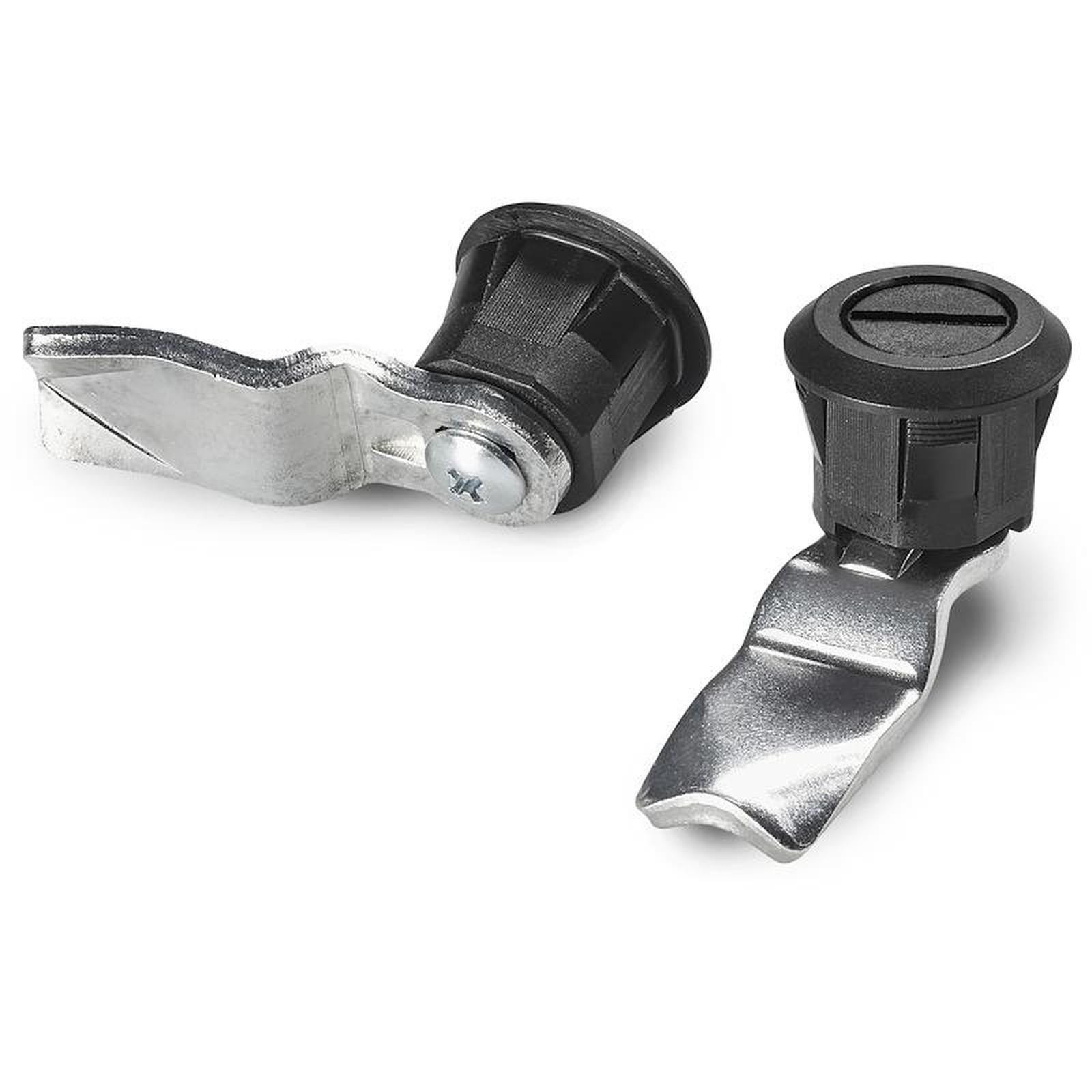

UNIVERSAL QUARTER TURN PLASTIC CAM LOCK WITH QUICK INSTALL AND WITH SLOTTED HEAD
10
J121
Serrature 1/4 giro M22

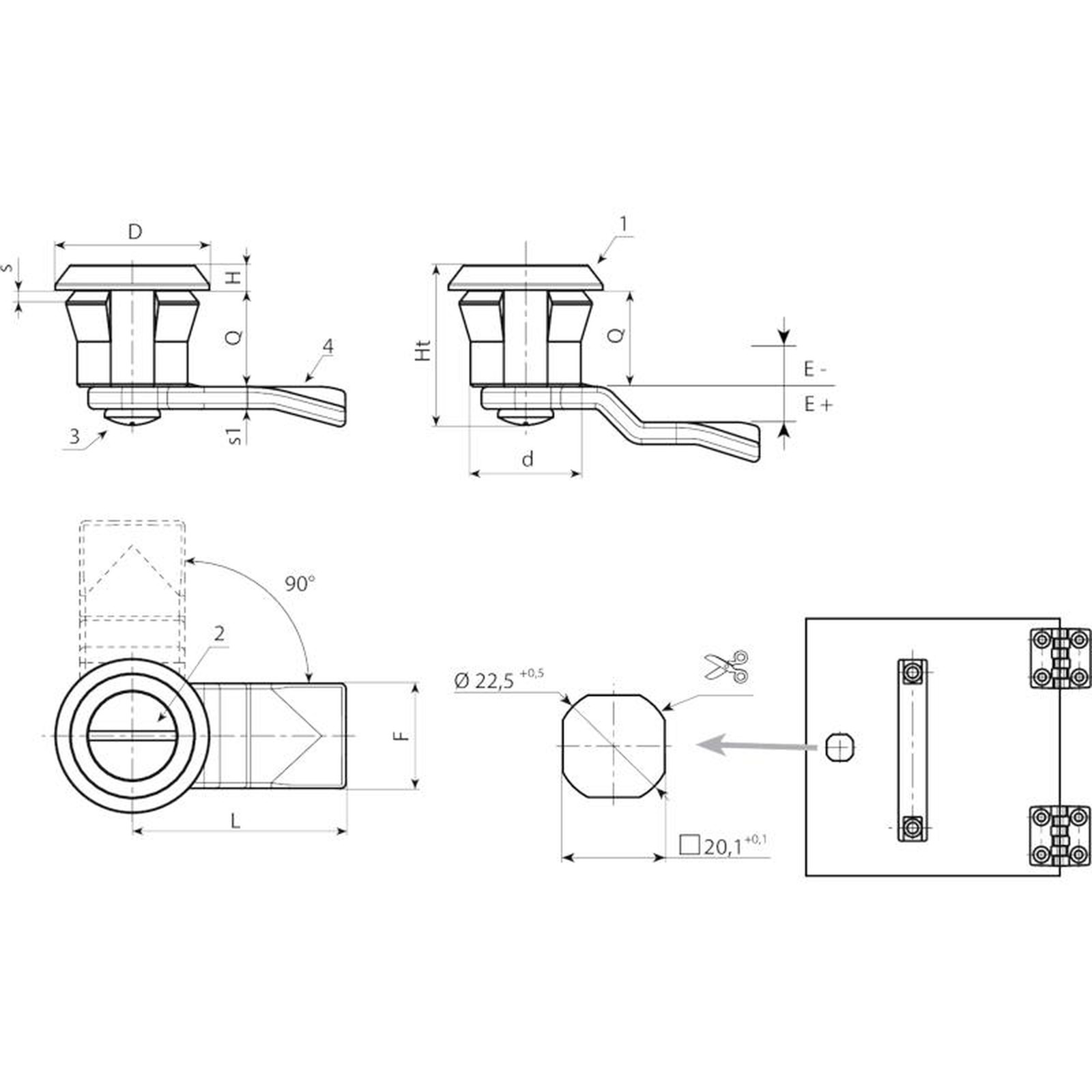

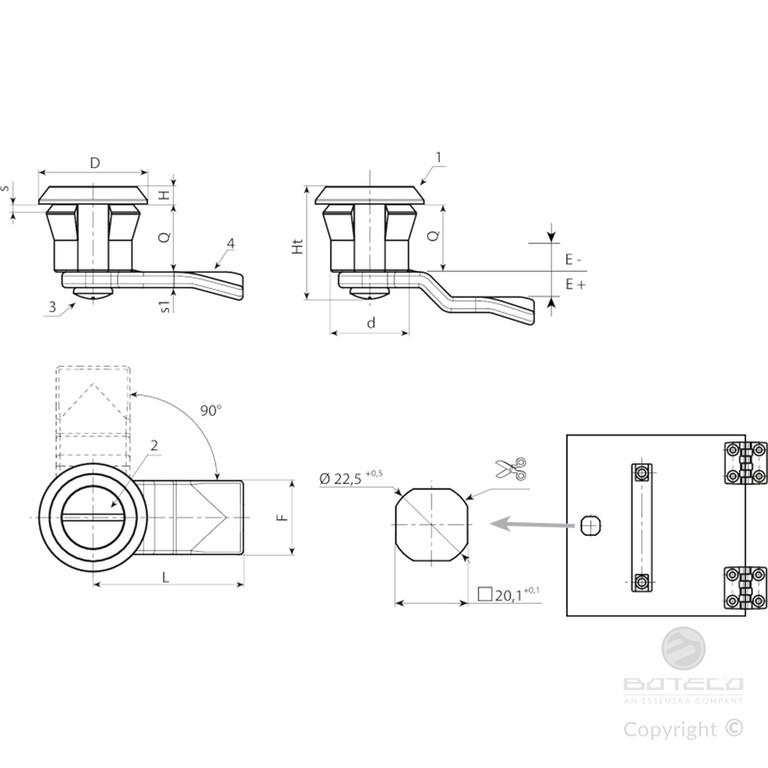

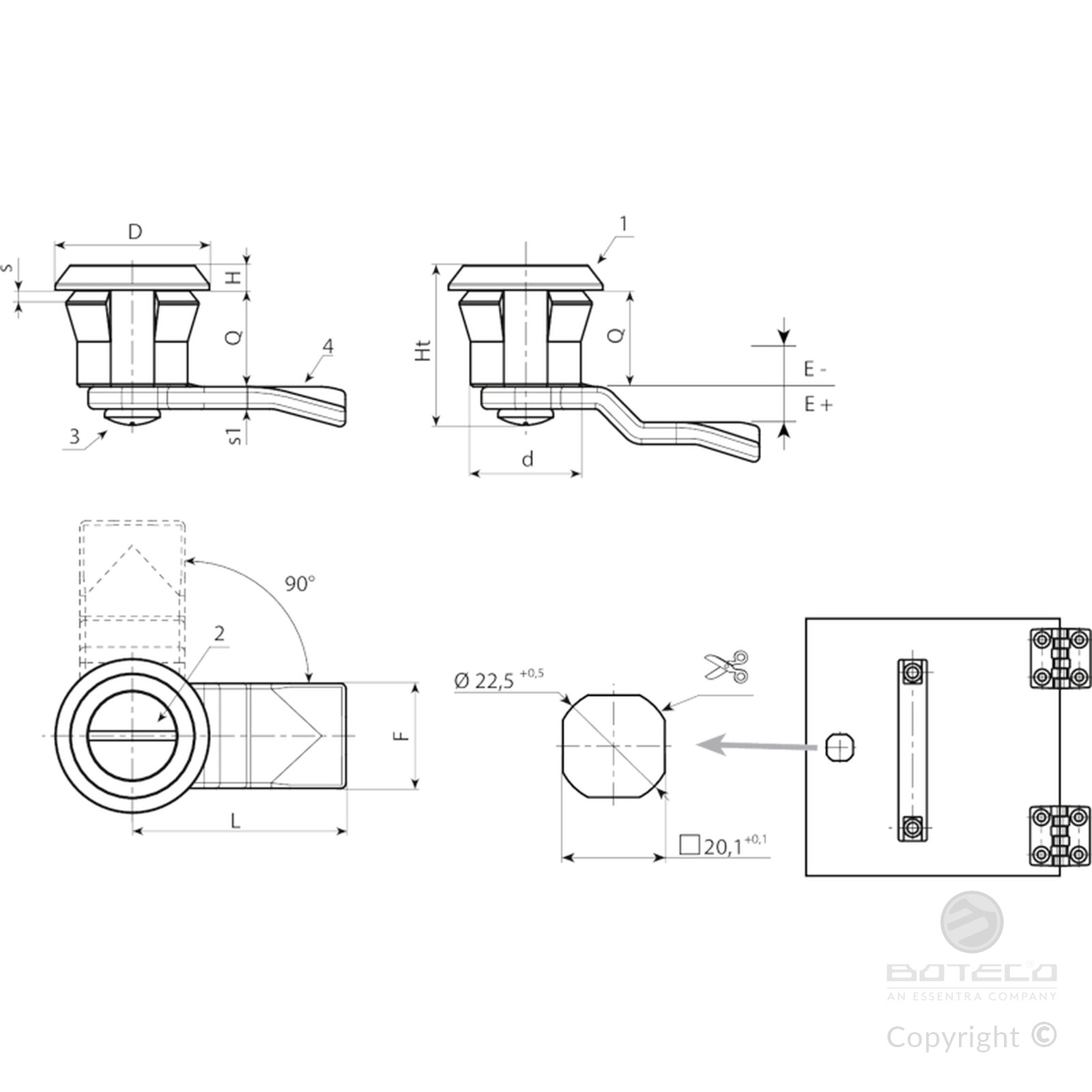

Materials:
(1) 20mm body with deformable fixing ribs, for snap fitting in sheet metal push tabs. Reinforced polyamide PA6.6. Resistant to oils and greases.
(2) Groove with slotted head, in reinforced PA6.6 polyamide.
(3) Steel cam, (E=0 straight, E=2,4,6,8,10 formed out, E=-2 formed in).
(4) Self-tapping Phillips steel fixing screw 4.2x10.
Surface finish:
(1-2) Satin.
(3-4) Smooth.
Colour:
(1-2) Black (RAL 9011).
(3-4) Galvanising standard.
Rotation:
90°.
Special Requests:
None.
| Code | Art. | d | D | L | Q | E | F | Ht | H | s (max.) | s1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | J12120.T00E-4X4501 | 20 | 28 | 45 | 18 | -4 | 19 | 30 | 4 | 1-2 | 4 | - |
| - | J12120.T00E-2X4501 | 20 | 28 | 45 | 18 | -2 | 19 | 30 | 4 | 1-2 | 4 | - |
| - | J12120.T00E00X4501 | 20 | 28 | 45 | 18 | 0 | 19 | 30 | 4 | 1-2 | 4 | - |
| - | J12120.T00E02X4501 | 20 | 28 | 45 | 18 | 2 | 19 | 30 | 4 | 1-2 | 4 | - |
| - | J12120.T00E04X4501 | 20 | 28 | 45 | 18 | 4 | 19 | 30 | 4 | 1-2 | 4 | - |
| - | J12120.T00E06X4501 | 20 | 28 | 45 | 18 | 6 | 19 | 30 | 4 | 1-2 | 4 | - |
| - | J12120.T00E08X4501 | 20 | 28 | 45 | 18 | 8 | 19 | 30 | 4 | 1-2 | 4 | - |
| - | J12120.T00E10X4501 | 20 | 28 | 45 | 18 | 10 | 19 | 30 | 4 | 1-2 | 4 | - |
| - | J12120.T00E12X4501 | 20 | 28 | 45 | 18 | 12 | 19 | 30 | 4 | 1-2 | 4 | - |
