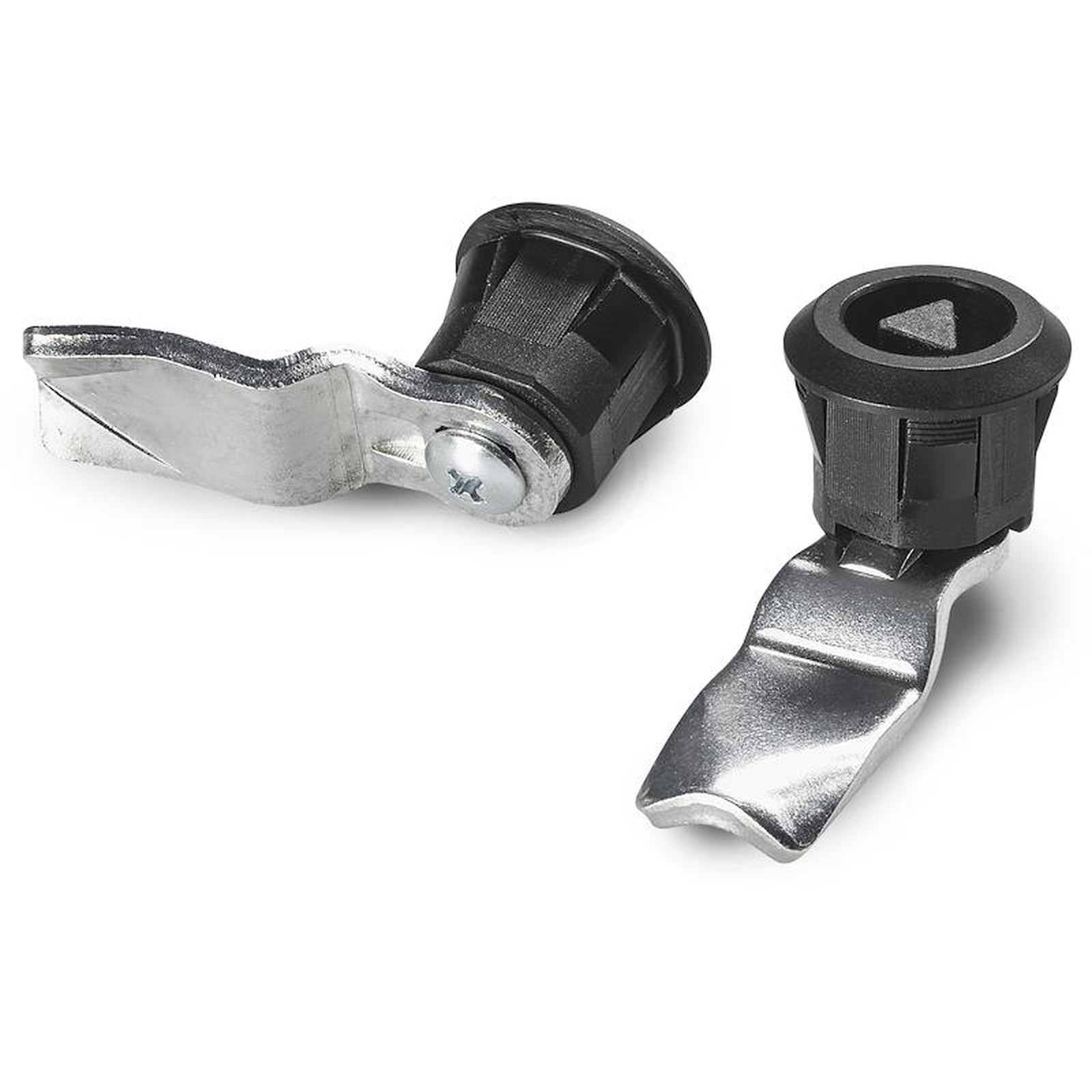

UNIVERSAL QUARTER TURN PLASTIC CAM LOCK WITH QUICK INSTALL AND TRIANGLE SOCKET KEY
10
J120
Serrature 1/4 giro M22

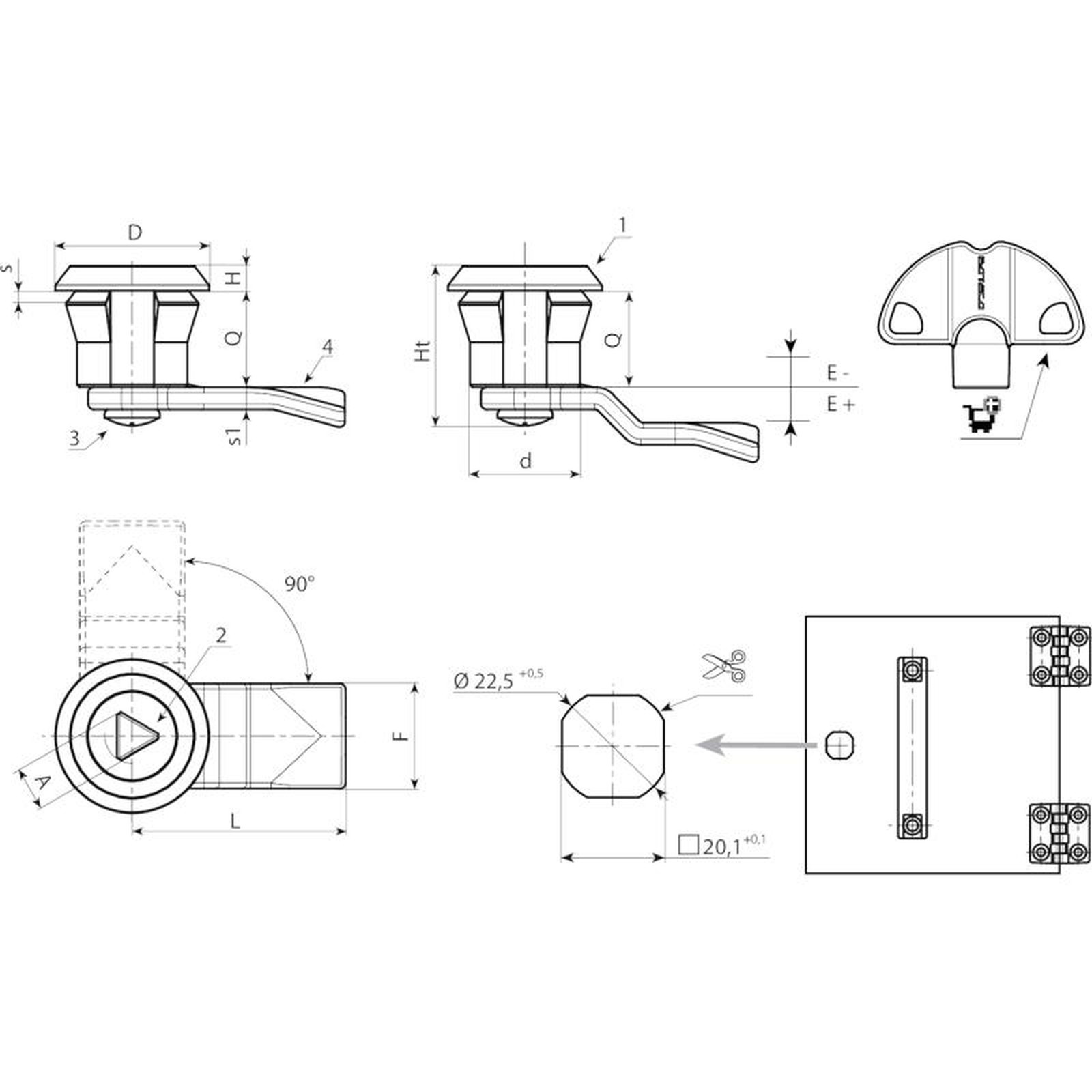

Materials:
(1) 20mm body with deformable fixing ribs, for snap fitting in sheet metal push tabs. Reinforced polyamide PA6.6. Resistant to oils and greases.
(2) Triangular shaped groove, in reinforced PA6.6 polyamide.
(3) Self-tapping Phillips steel fixing screw 4.2x10.
(4) Steel cam (E=0 straight, E=2,4,6,8,10 formed out, E=-2 formed in).
Surface finish:
(1-2) Satin.
(3-4) Smooth.
Colour:
(1-2) Black (RAL 9011).
(3-4) Galvanising standard.
Key (optional):
Red polyamide key (PA6), art. J090.
ATTENTION: The key is not supplied. To be ordered separately.
Rotation:
90°.
Special Requests:
Upon request the key can be supplied with the lock. Add letter C at the end of the main code.
| Code | Art. | A | d | D | L | Q | E | F | Ht | H | s (max.) | s1 | Weight (g) | Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | J12020.T08E-4X4501 | 8 | 20 | 28 | 45 | 18 | -4 | 19 | 30 | 4 | 1-2 | 4 | - | J09050.TT0816 |
| - | J12020.T08E-2X4501 | 8 | 20 | 28 | 45 | 18 | -2 | 19 | 30 | 4 | 1-2 | 4 | - | J09050.TT0816 |
| - | J12020.T08E00X4501 | 8 | 20 | 28 | 45 | 18 | 0 | 19 | 30 | 4 | 1-2 | 4 | - | J09050.TT0816 |
| - | J12020.T08E04X4501 | 8 | 20 | 28 | 45 | 18 | 4 | 19 | 30 | 4 | 1-2 | 4 | - | J09050.TT0816 |
| - | J12020.T08E06X4501 | 8 | 20 | 28 | 45 | 18 | 6 | 19 | 30 | 4 | 1-2 | 4 | - | J09050.TT0816 |
| - | J12020.T08E08X4501 | 8 | 20 | 28 | 45 | 18 | 8 | 19 | 30 | 4 | 1-2 | 4 | - | J09050.TT0816 |
| - | J12020.T08E10X4501 | 8 | 20 | 28 | 45 | 18 | 10 | 19 | 30 | 4 | 1-2 | 4 | - | J09050.TT0816 |
| - | J12020.T08E12X4501 | 8 | 20 | 28 | 45 | 18 | 12 | 19 | 30 | 4 | 1-2 | 4 | - | J09050.TT0816 |
