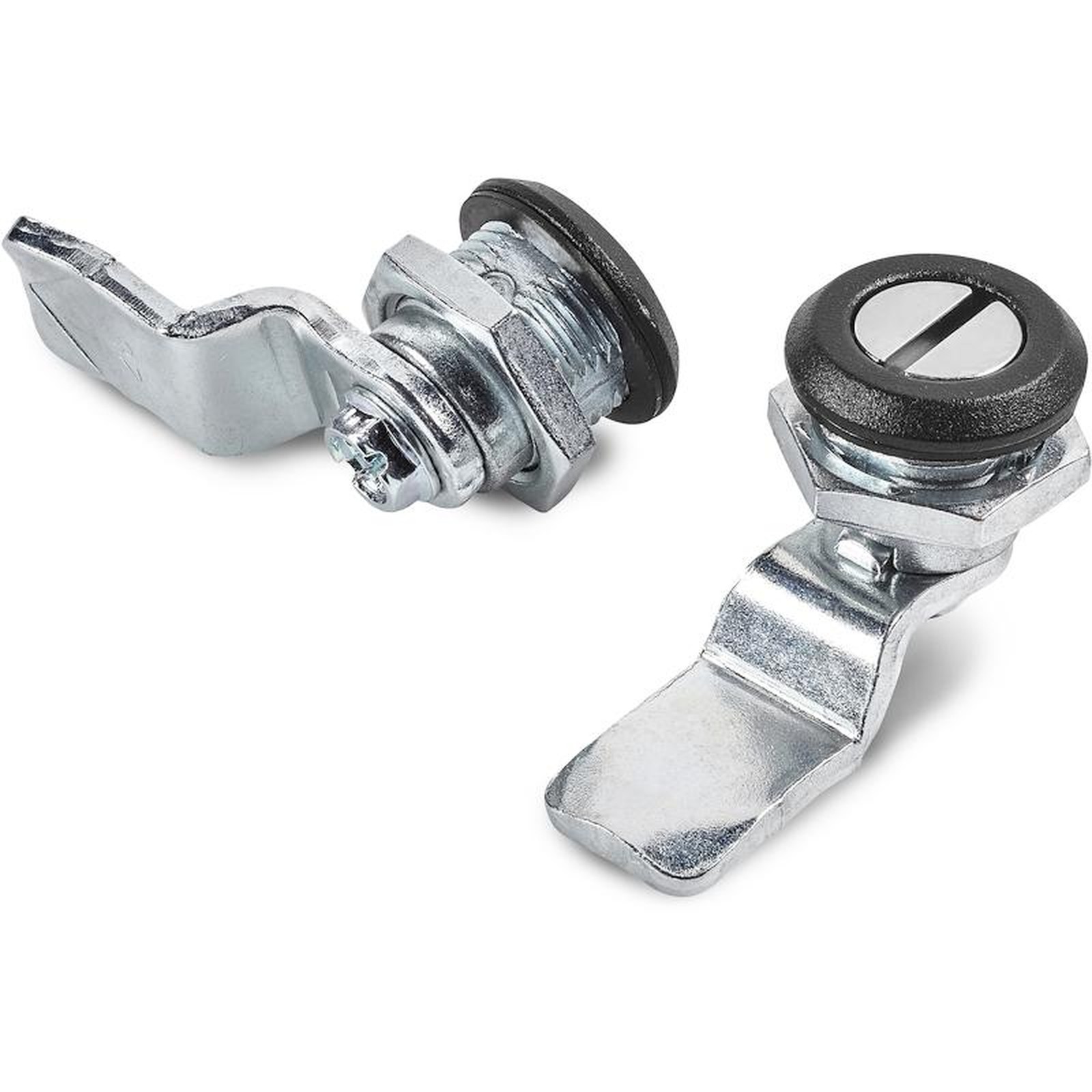

Materials:
(1) Die-cast zamak body M22x1.5 (stator).
(2) Slotted die-cast zamak groove.
(3) Die-cast zamak hexagon lock nut M22x1.5.
(4) Rubber gasket.
(5) Steel cam (E=0 straight, E=2,4,6,8,10 formed out, E=-2 formed in).
(6) Phillips steel fixing screw M6x10.
Surface finish:
L117-01
(1) Satin.
(2-3-4-5-6) Smooth.
L117-L
Smooth.
Colour:
L117-01
(1) Black epoxy powder coated (RAL 9011).
(2-3-4-5-6) Standard galvanising.
L117-L
(1) Bright chrome plating.
(2-3-4-5-6) Standard galvanising.
Rotation:
90°.
Special Requests:
None.
Version J117-01: black coated.

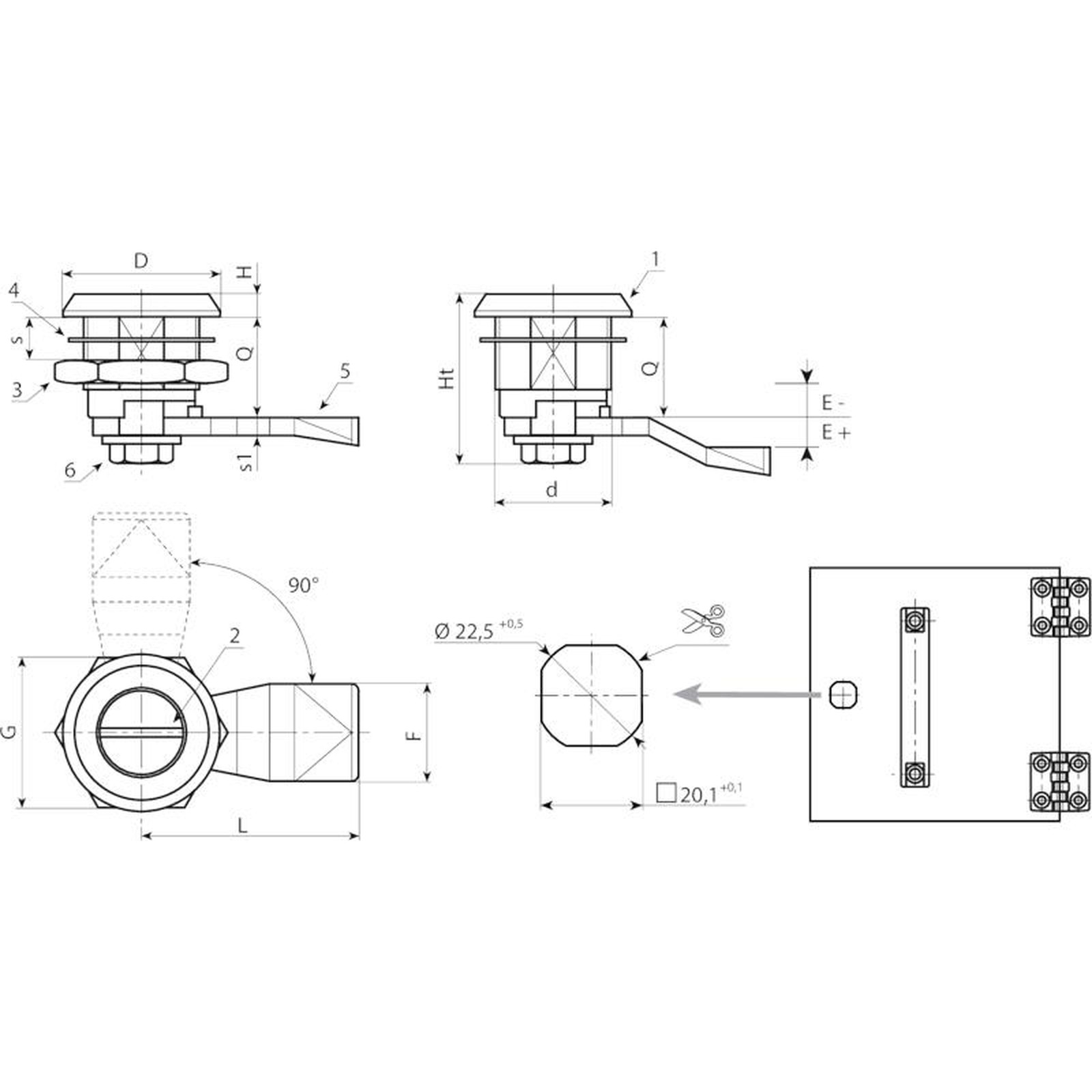

| Code | Art. | d | D | L | Q | E | F | G | Ht | H | s (max.) | s1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | J11722.Z00E-4X4501 | M22 | 28 | 45 | 18 | -4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E-2X4501 | M22 | 28 | 45 | 18 | -2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E00X4501 | M22 | 28 | 45 | 18 | 0 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E02X4501 | M22 | 28 | 45 | 18 | 2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E04X4501 | M22 | 28 | 45 | 18 | 4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E06X4501 | M22 | 28 | 45 | 18 | 6 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E08X4501 | M22 | 28 | 45 | 18 | 8 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E10X4501 | M22 | 28 | 45 | 18 | 10 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E12X4501 | M22 | 28 | 45 | 18 | 12 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
Version J117-L: chromed.
| Code | Art. | d | D | L | Q | E | F | G | Ht | H | s (max.) | s1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | J11722.Z00E-4X45L | M22 | 28 | 45 | 18 | -4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E-2X45L | M22 | 28 | 45 | 18 | -2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E00X45L | M22 | 28 | 45 | 18 | 0 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E02X45L | M22 | 28 | 45 | 18 | 2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E04X45L | M22 | 28 | 45 | 18 | 4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E06X45L | M22 | 28 | 45 | 18 | 6 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E08X45L | M22 | 28 | 45 | 18 | 8 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E10X45L | M22 | 28 | 45 | 18 | 10 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
| - | J11722.Z00E12X45L | M22 | 28 | 45 | 18 | 12 | 19 | 27 | 31,5 | 4 | 8 | 4 | - |
