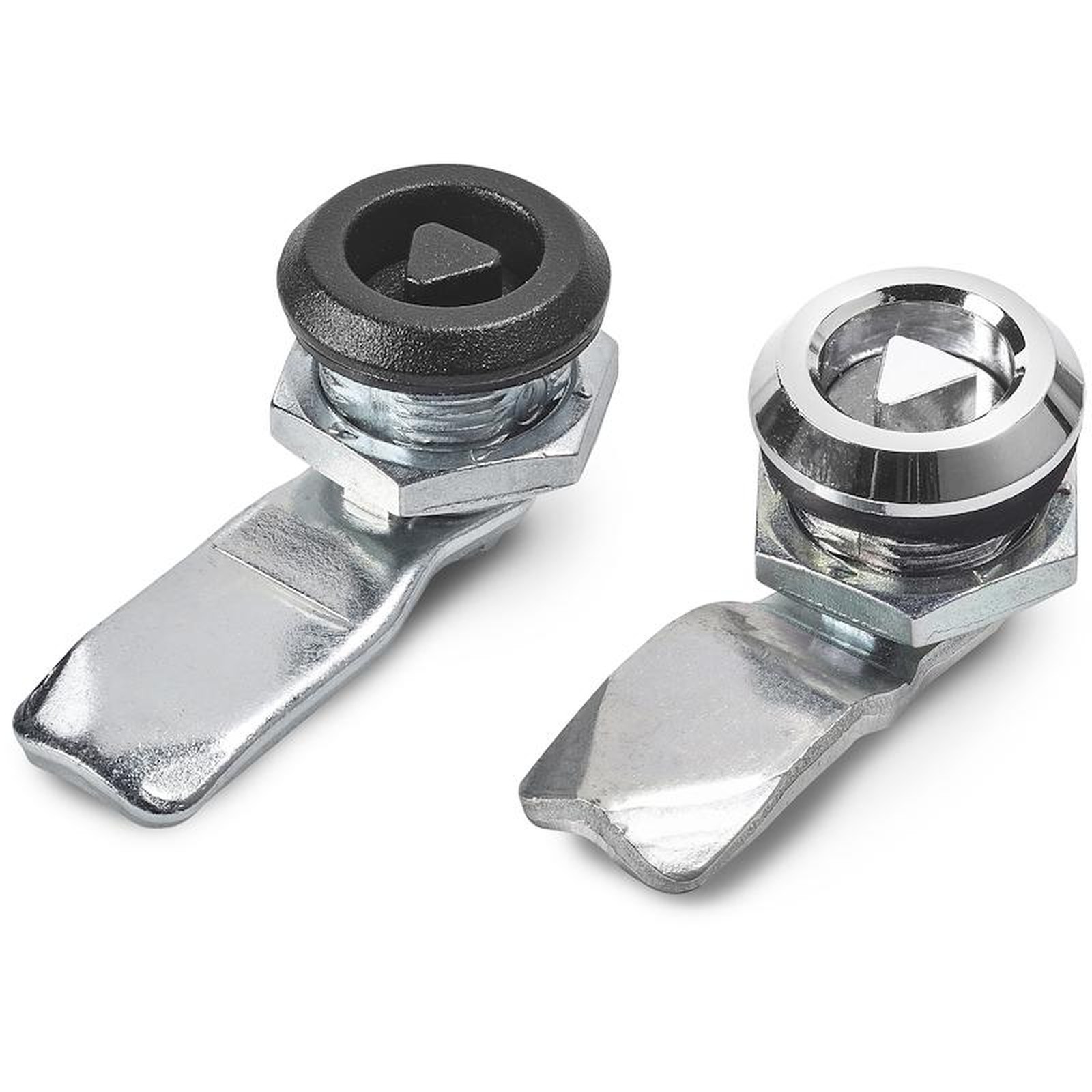

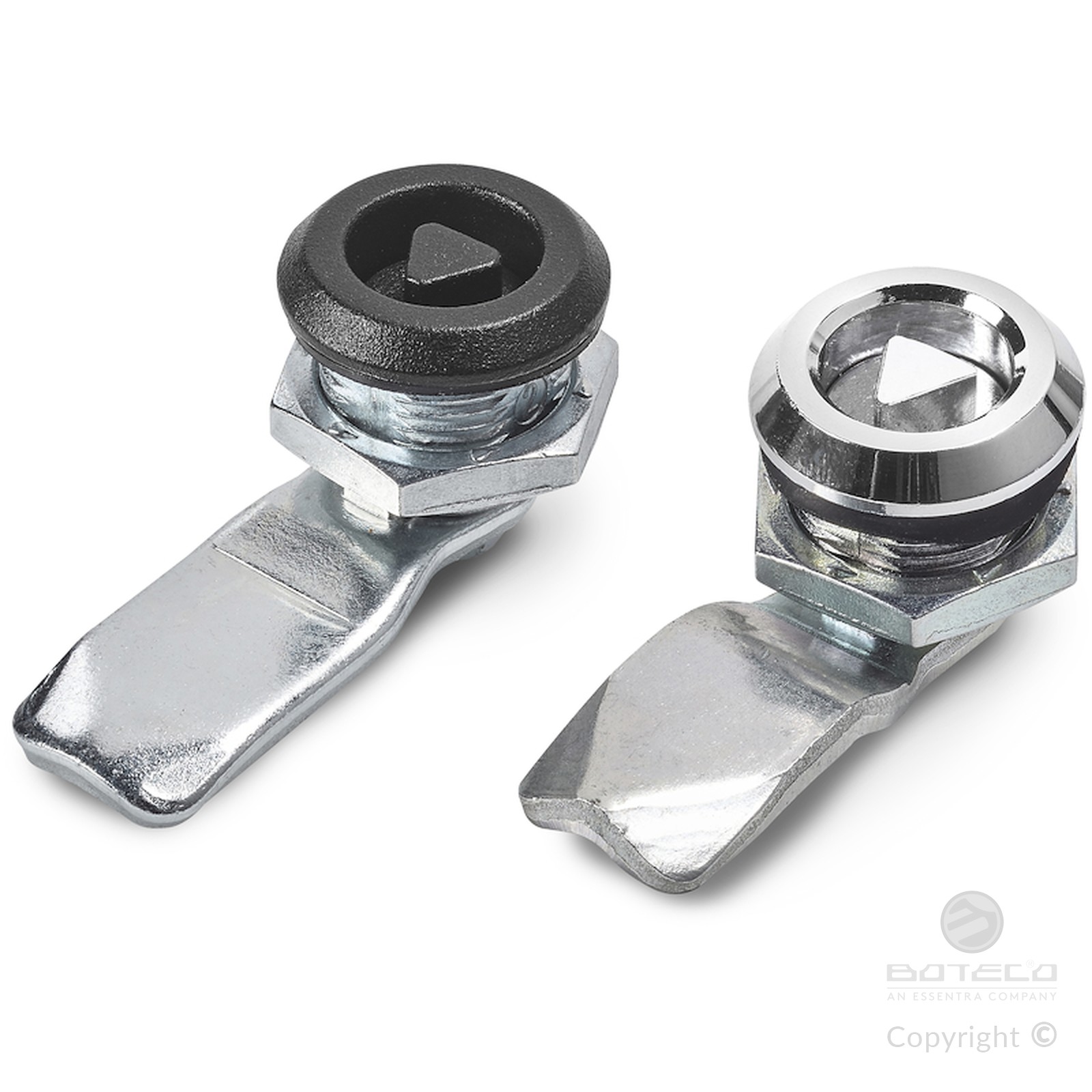

UNIVERSAL QUARTER TURN ZAMAK CAM LOCK M22 THREAD WITH TRIANGLE SOCKET KEY
10
J115
Serrature 1/4 giro M22
Materials:
(1) Die-cast zamak body M22x1.5 (stator).
(2) Triangular shaped die-cast zamak groove.
(3) Die-cast zamak hexagon lock nut M22x1.5.
(4) Rubber gasket.
(5) Steel cam (E=0 straight, E=2,4,6,8,10 formed out, E=-2 formed in).
(6) Phillips steel fixing screw M6x10.
Surface finish:
L115-01
(1) Satin.
(2-3-4-5-6) Smooth.
L115-L
Smooth.
Colour:
L115-01
(1) Black epoxy powder coated (RAL 9011).
(2-3-4-5-6) Standard galvanising.
L115-L
(1) Bright chrome plating.
(2-3-4-5-6) Standard galvanising.
Key (optional):
Red polyamide key (PA6), art. J090.
ATTENTION: The key is not supplied. To be ordered separately.
Rotation: 90°
Special Requests:

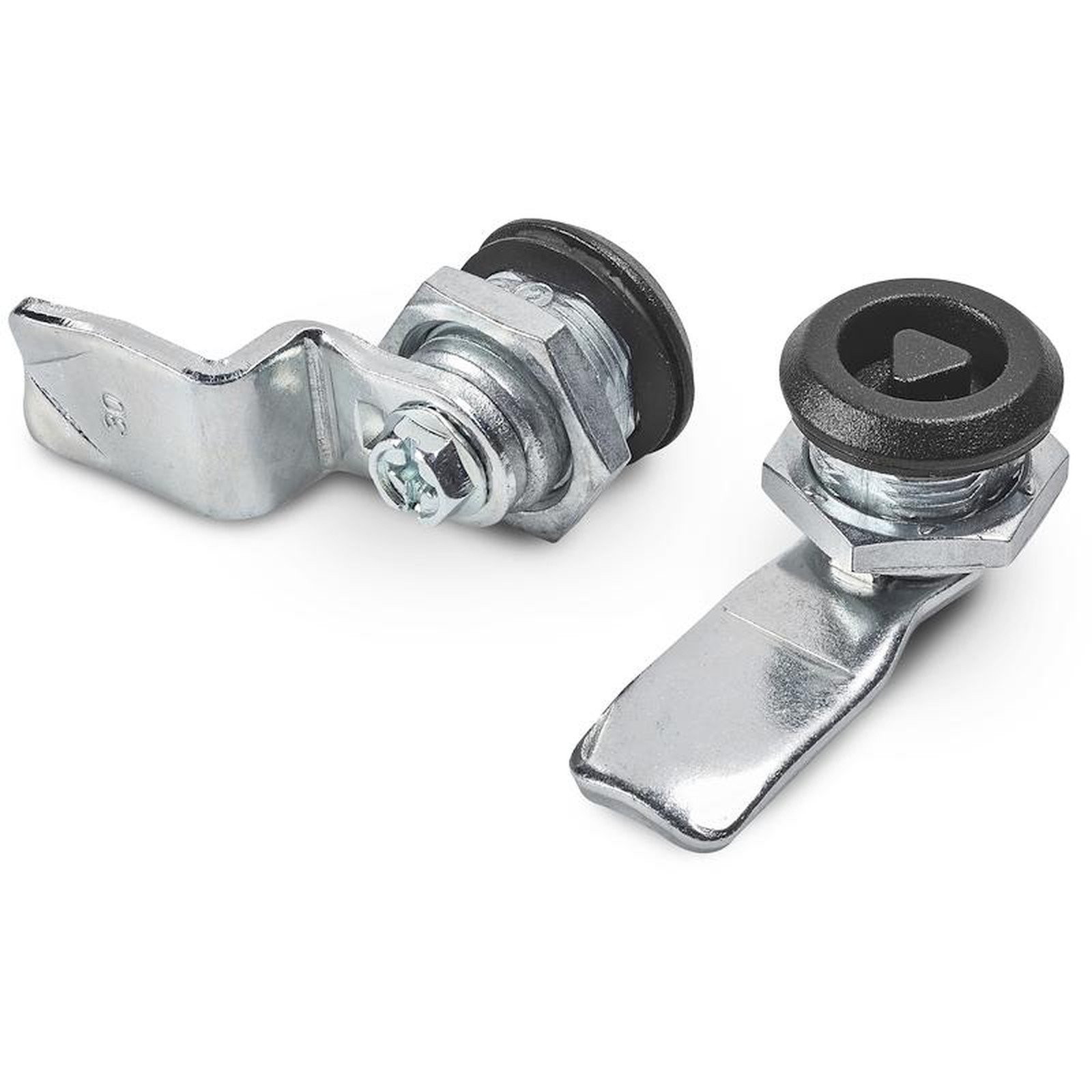

Version J115-01: black coated.

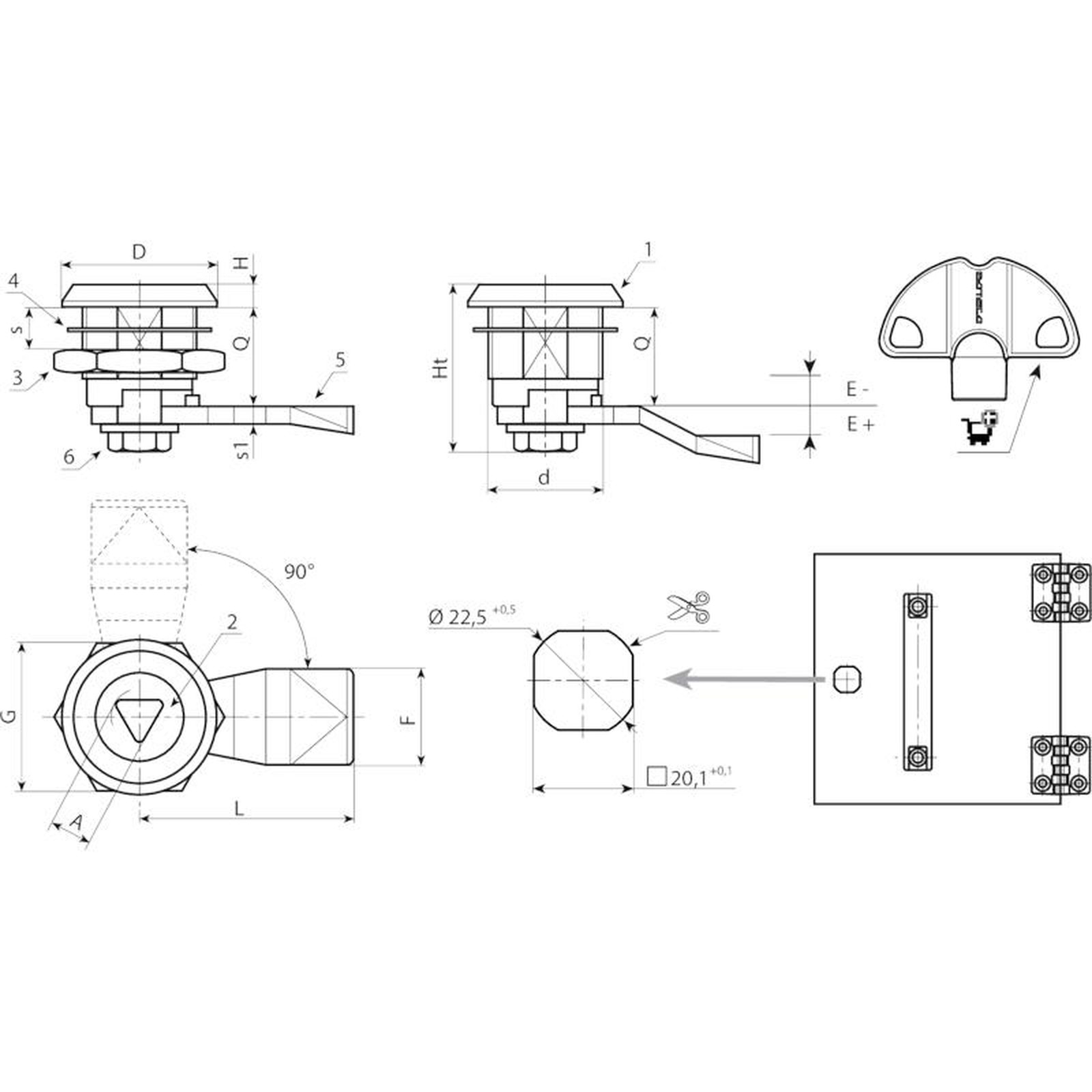

| Code | Art. | A | d | D | L | Q | E | F | G | Ht | H | s (max.) | s1 | Weight (g) | Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | J11522.Z08E-4X4501 | 8 | M22 | 28 | 45 | 18 | -4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E-2X4501 | 8 | M22 | 28 | 45 | 18 | -2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E00X4501 | 8 | M22 | 28 | 45 | 18 | 0 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E02X4501 | 8 | M22 | 28 | 45 | 18 | 2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E04X4501 | 8 | M22 | 28 | 45 | 18 | 4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E06X4501 | 8 | M22 | 28 | 45 | 18 | 6 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E08X4501 | 8 | M22 | 28 | 45 | 18 | 8 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E10X4501 | 8 | M22 | 28 | 45 | 18 | 10 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E12X4501 | 8 | M22 | 28 | 45 | 18 | 12 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |

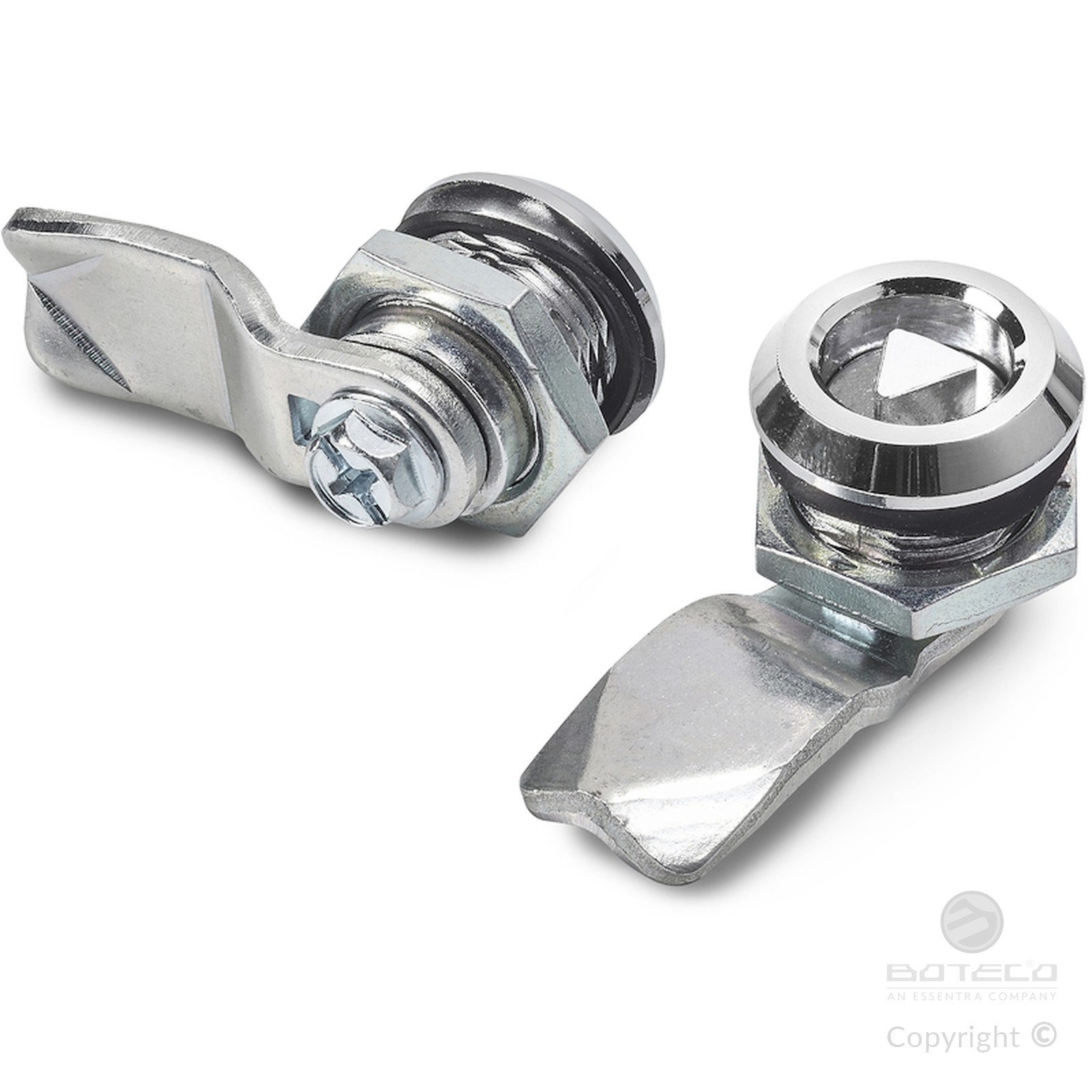

Version J115-L: chromed.
| Code | Art. | A | d | D | L | Q | E | F | G | Ht | H | s (max.) | s1 | Weight (g) | Key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | J11522.Z08E-4X45L | 8 | M22 | 28 | 45 | 18 | -4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E-2X45L | 8 | M22 | 28 | 45 | 18 | -2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E00X45L | 8 | M22 | 28 | 45 | 18 | 0 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E02X45L | 8 | M22 | 28 | 45 | 18 | 2 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E04X45L | 8 | M22 | 28 | 45 | 18 | 4 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E06X45L | 8 | M22 | 28 | 45 | 18 | 6 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E08X45L | 8 | M22 | 28 | 45 | 18 | 8 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E10X45L | 8 | M22 | 28 | 45 | 18 | 10 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
| - | J11522.Z08E12X45L | 8 | M22 | 28 | 45 | 18 | 12 | 19 | 27 | 31,5 | 4 | 8 | 4 | - | J09050.TT0816 |
