10

J090

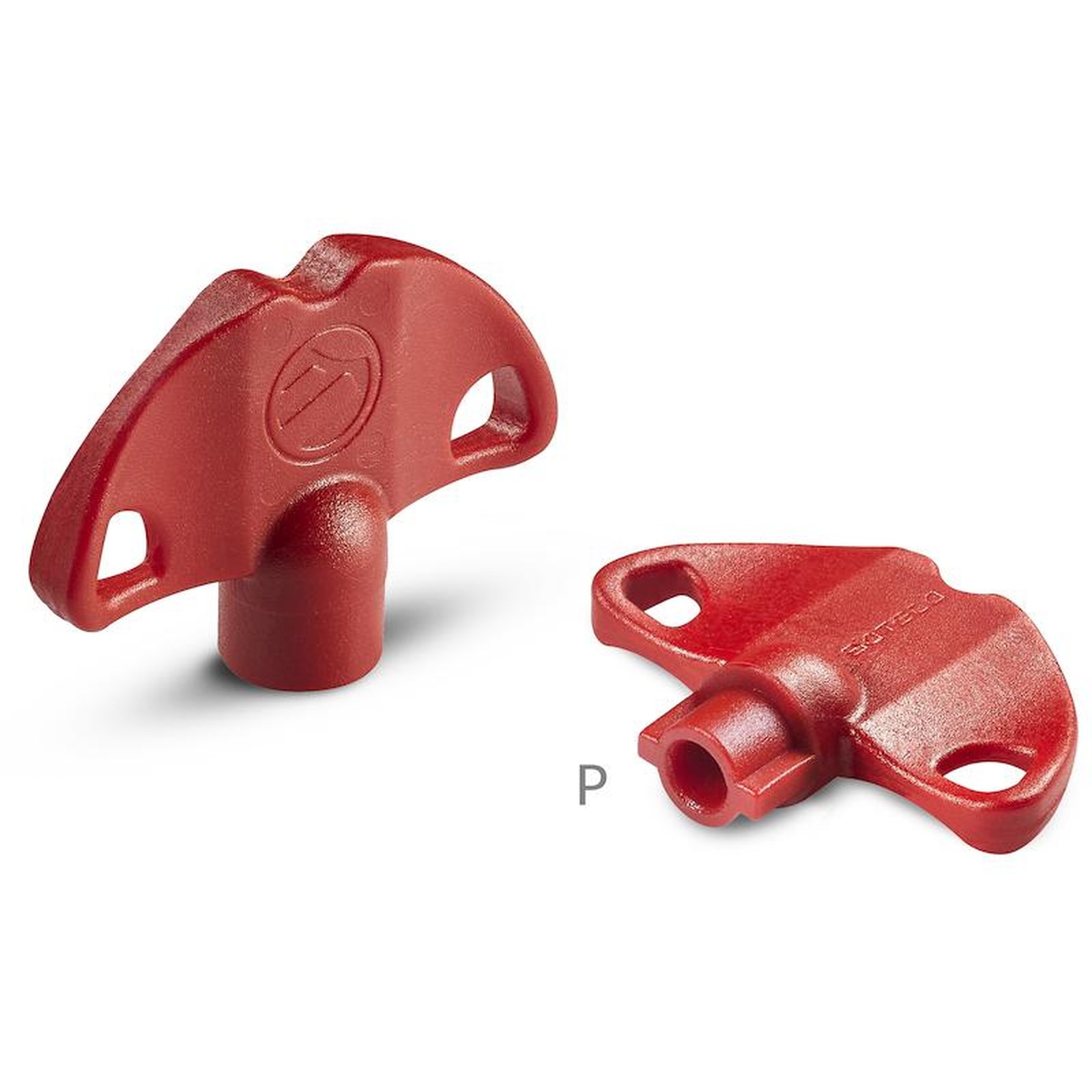

RED PLASTIC KEY FOR QUARTER TURN CAM LOCKS

1/4 turn locks M22

Data sheet Technical Notes More information

Materials:

Reinforced polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Red:(RAL 3000 code 16).

Special Requests:

The key can be supplied with a 200 mm retaining chain.

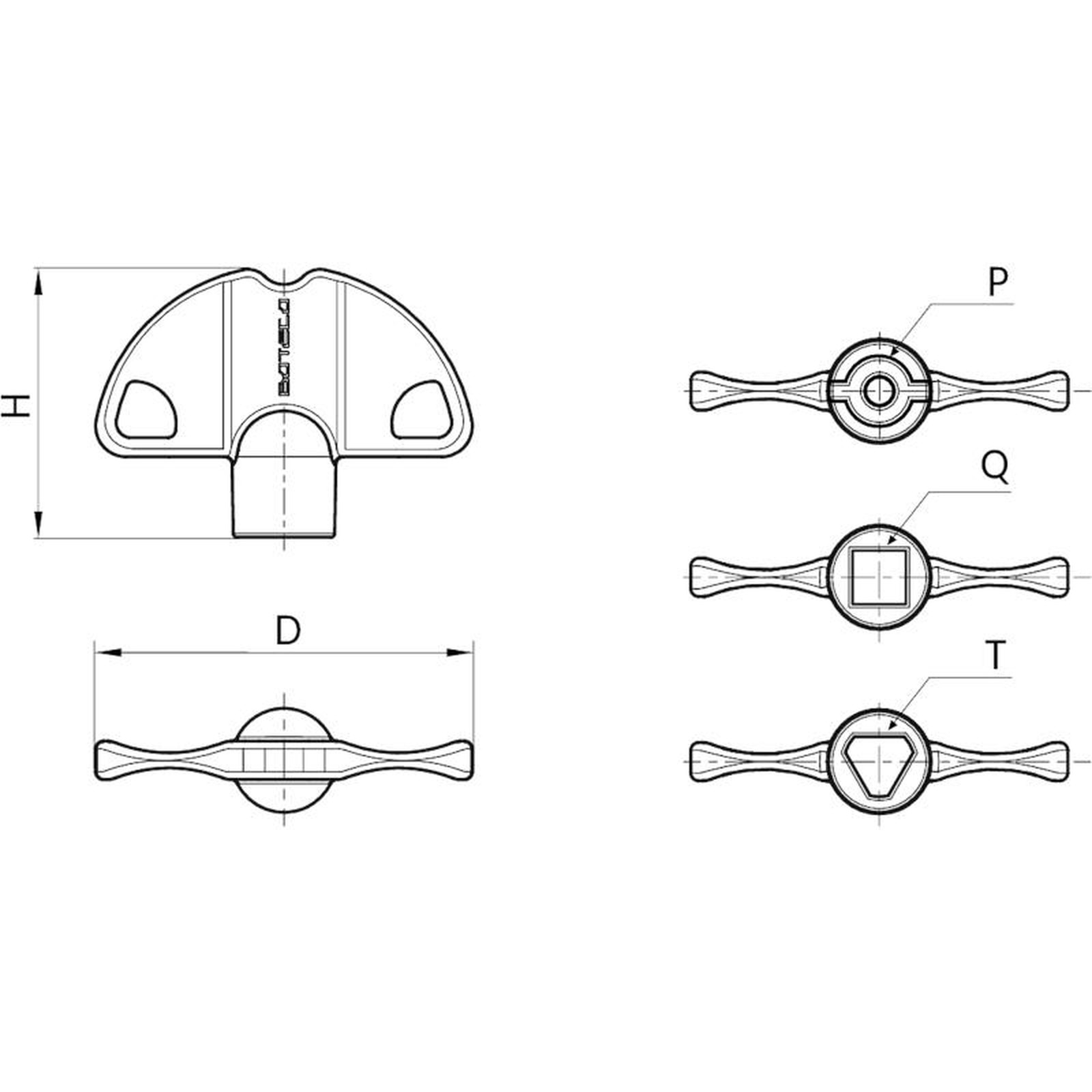

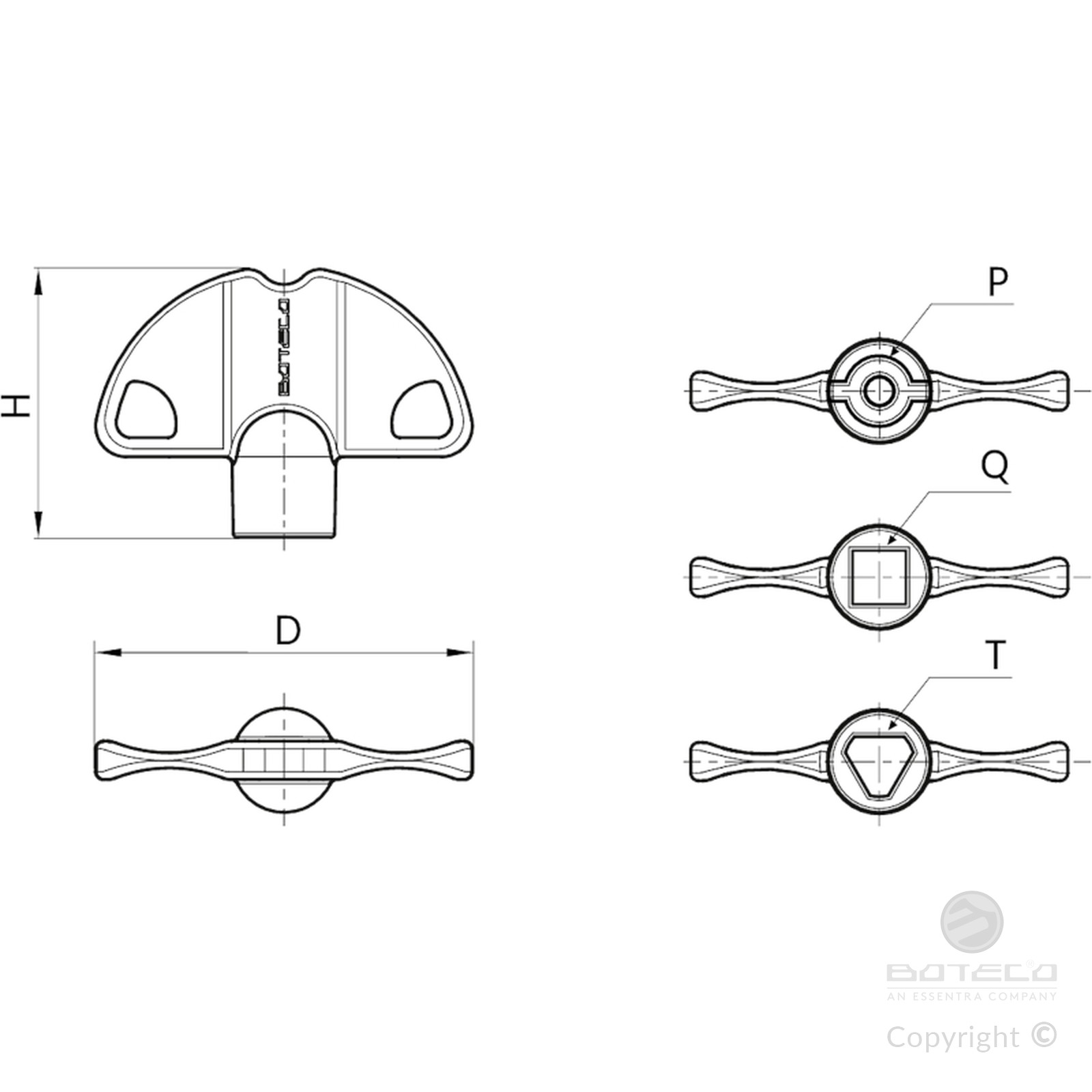

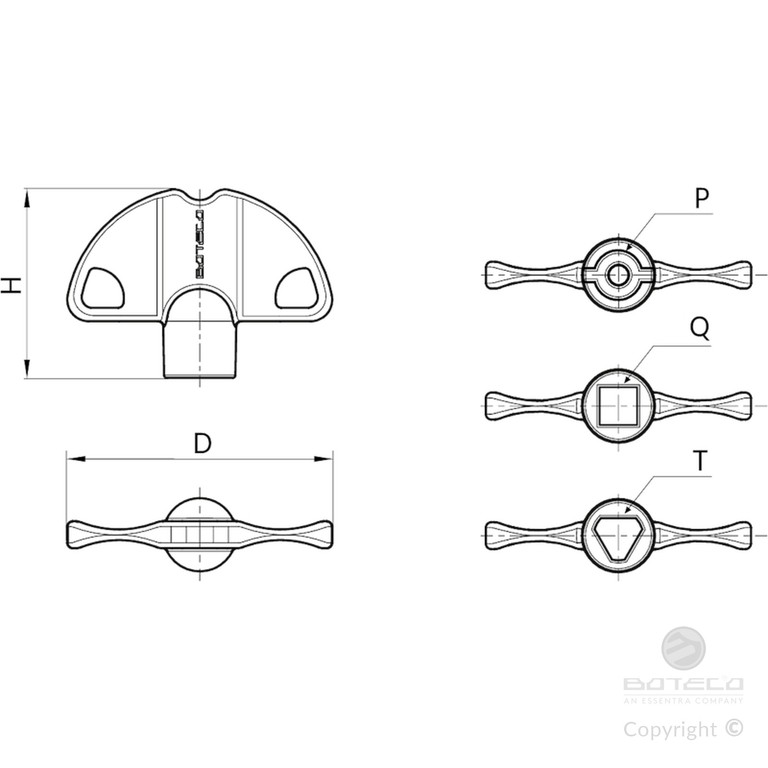

Code	Art.	D	H	Design	Weight (g)
J09050.0001	J09050.TP0316	49	35	P - 3	10
J09050.0002	J09050.TP0516	49	35	P - 5	10
J09050.0006	J09050.TQ0716	49	35	Q - 7	10
J09050.0003	J09050.TQ0816	49	35	Q - 8	10
J09050.0005	J09050.TT0616	49	35	T - 6.5	10
J09050.0004	J09050.TT0816	49	35	T - 8	10
