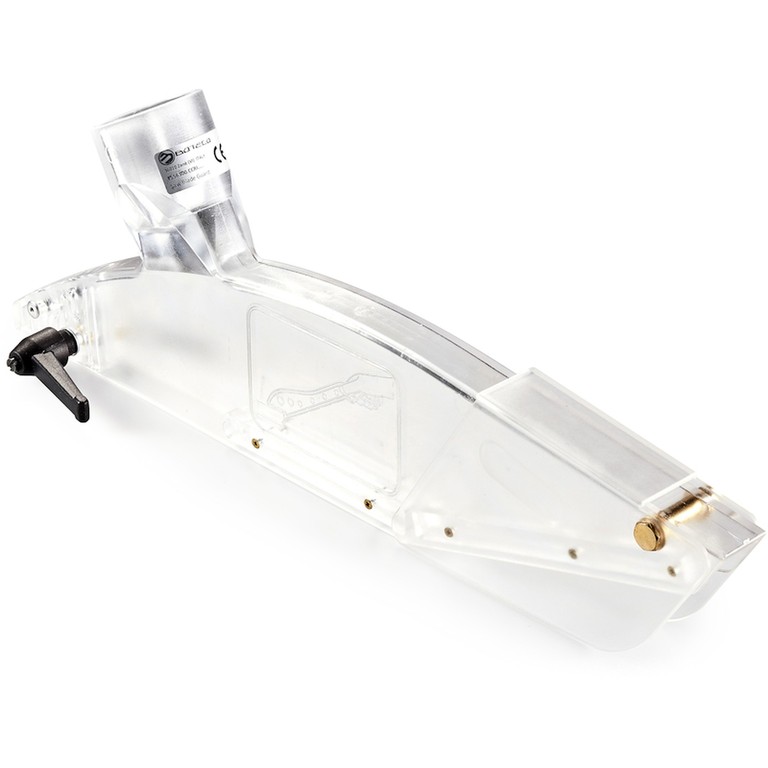

SAW SAFETY GUARD WITH EXTENSION FOR SCORING BLADE
20
T559
Accessori per macc. a legno

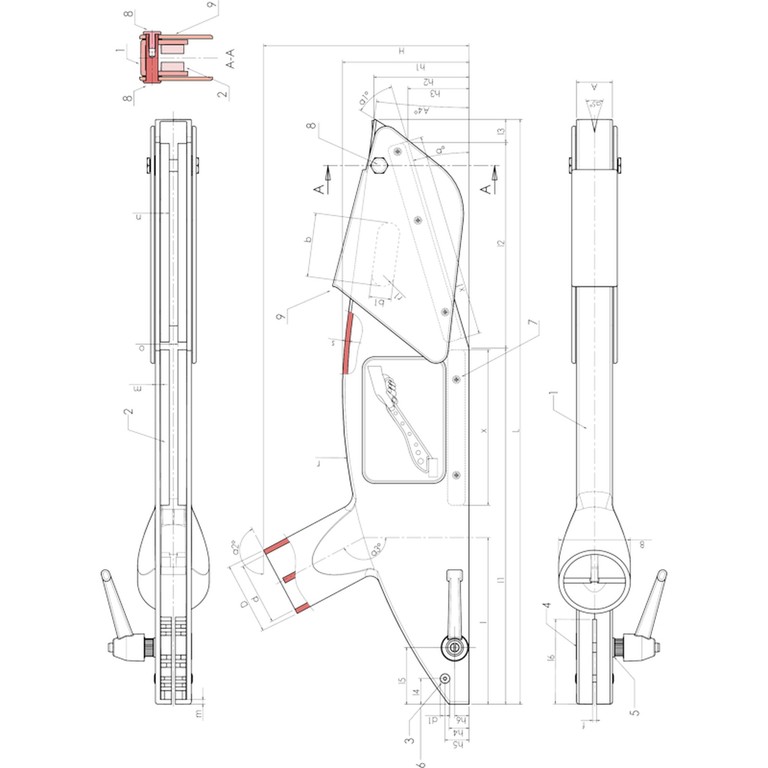

Materials:
(1-2-9) Polycarbonate.
Surface finish:
Satin.
Colour:
Transparent.
Inserts:
(3) Aluminium rivet AL4.010 4.0x10.
(4) Brass threaded through-hole insert.
(5) Galvanised steel washer.
(6) Spring pin d.6x30 in black-oxide treated spring steel DIN 148.
(7) Brass self-tapping screw M03x10 DIN 97.
(8) Turned brass pin to rotate and fix the extension.
(9) Mobile safety extension for scoring blade.
Clamping lever:
Indexed clamping lever art. A523065.TM08X3001.
Special requests:
Black suction tube adapter D. 40 to be ordered separately - art. T556040.T01.
| Code | Art. | L | A | B | H | D | d | d1 | l | l1 | l2 | l3 | l4 | l5 | l6 | h1 | h2 | h3 | h4 | h5 | h6 | a° | a1° | a2° | a3° | a4° | a5° | b | b1 | f | m | n | o | r | r1 | s | x | x1 | W | K | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T559300.0001 | T559300.CCRI | 490 | 30 | 60 | 172 | 60 | 53 | 6 | 145 | 297 | 176 | 17 | 21.5 | 47.5 | 70 | 105 | 79.5 | 52 | 14.5 | 20 | 11.5 | 16.5 | 41 | 152 | 152 | 7.5 | 22 | 56 | 21 | 3 | 4 | 7 | 8 | 430 | 10 | 4 | 130 | 170 | 192 | 13 | 650 |
