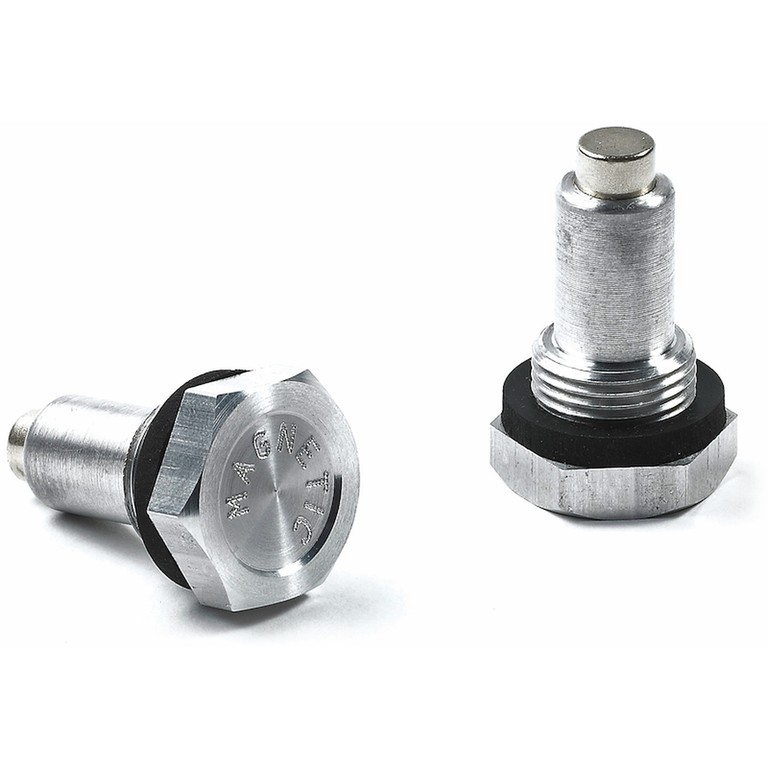

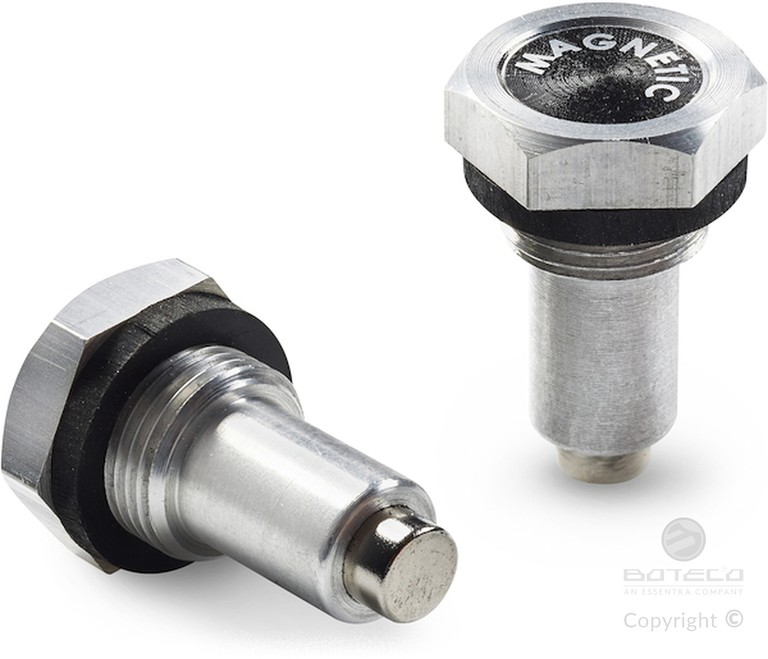

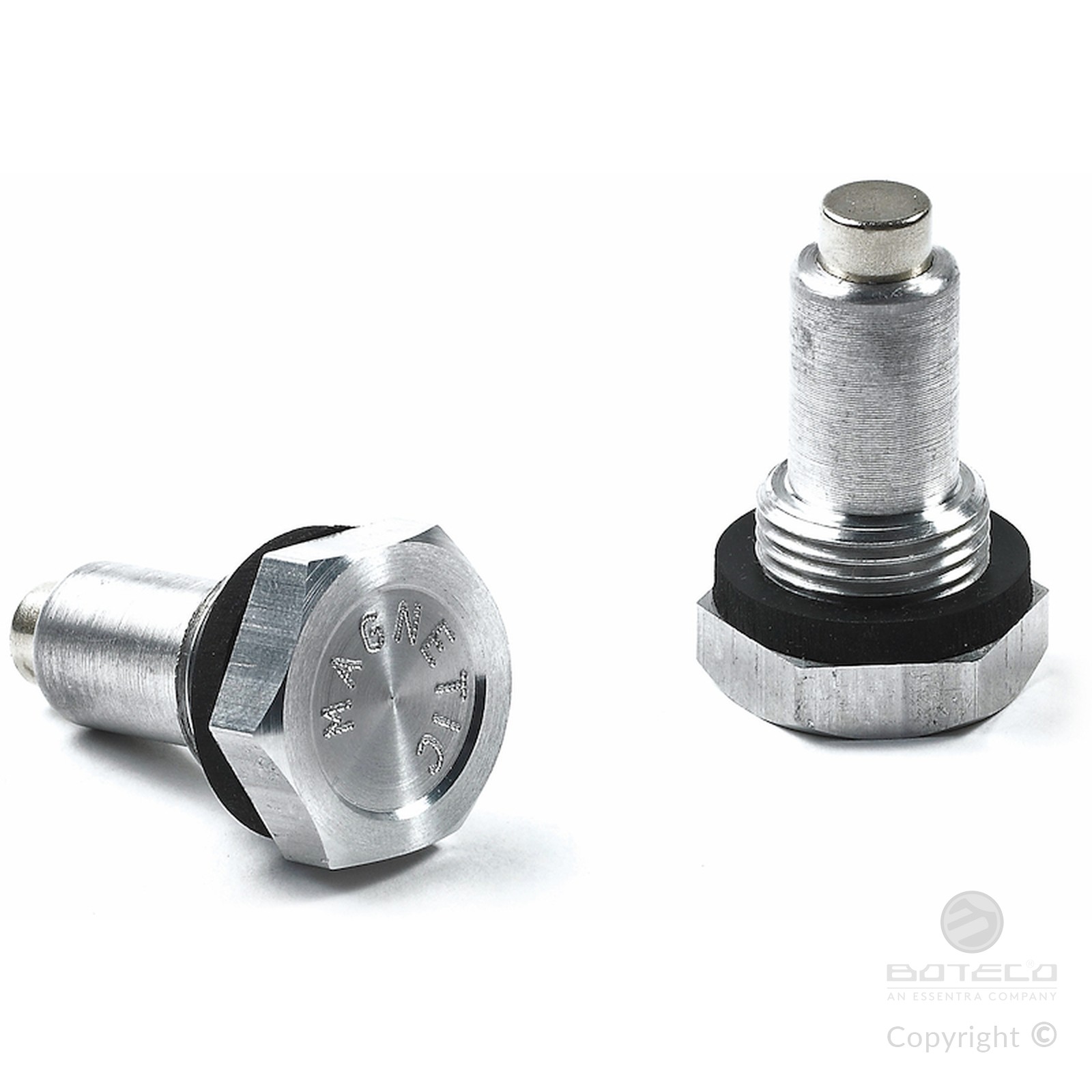

ALUMINIUM TANK PLUG WITH MAGNET (RESISTANT UP TO 200 °C)
20
T501
Tappi per prodotti Boteco

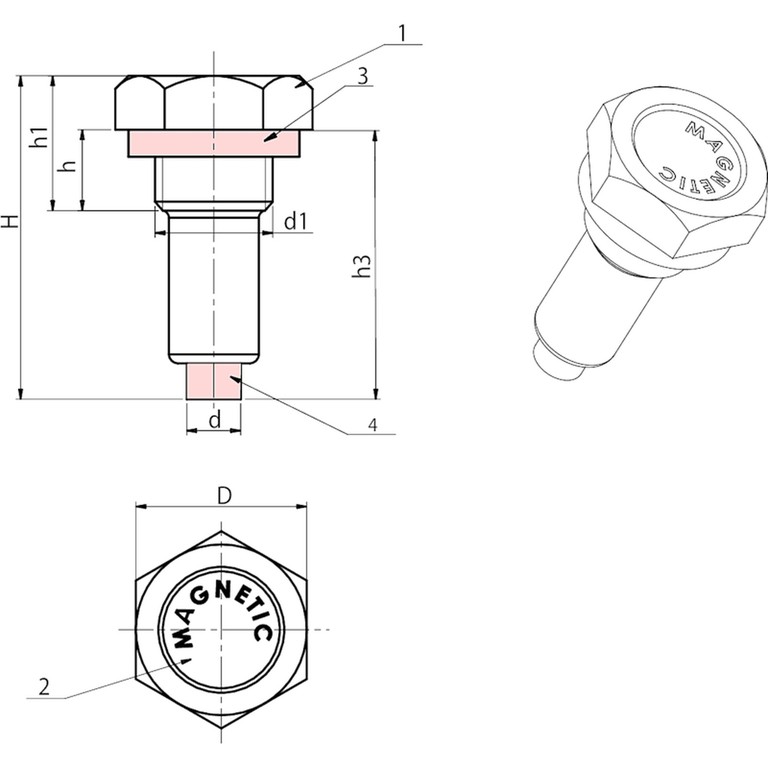

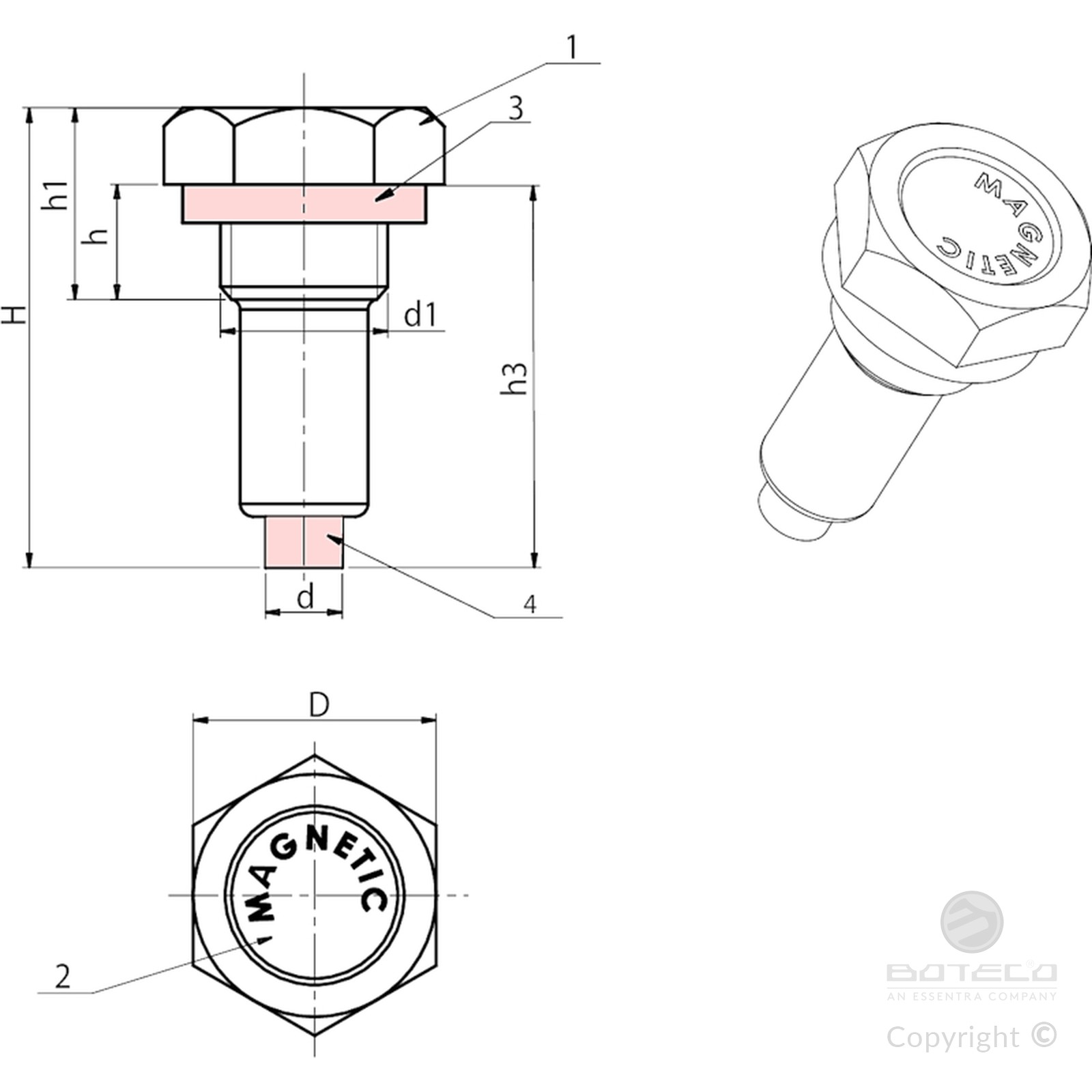

Materials:
(1) Aluminium plug (alloy 6060).
(4) Neodymium magnet -NdFeB- (N35EH) resistant up to 200°C.
(2) Punched “MAGNETIC” writing resistant up to 200°C.
(3) Gasket in fluoroelastomer (VITON®) resistant up to 200°C.
Surface finish:
Turned.
Colour:
Natural.
Special requests:
Upon request and for special quantities writings can be supplied to customer’s drawing.
Upon request and for special quantities thread d1 can be supplied to customer’s drawing.
Version with GAS threads
| Code | art. | D | d | H | h | h1 | h3 | d1 (GAS) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| T50119.0001 | T50119.AT1-4 | 19 | 6 | 36 | 9 | 15 | 28 | 1/4 | 14 |
| T50122.0001 | T50122.AT3-8 | 22 | 8 | 36 | 9 | 15 | 30 | 3/8 | 21 |
| T50126.0006 | T50126.AT1-2 | 26 | 8 | 40 | 11 | 18 | 34 | 1/2 | - |
| T50132.0001 | T50132.AT3-4 | 32 | 8 | 44 | 12 | 20 | 36 | 3/4 | - |
Version with metric fine pitch
| Code | art. | D | d | H | h | h1 | h3 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| T50122.0006 | T50122.AB16X1.5 | 22 | 8 | 36 | 9 | 15 | 30 | M16X1,5 | 21 |
| T50126.0005 | T50126.AB20X1.5 | 26 | 8 | 40 | 11 | 18 | 34 | M20X1,5 | - |
| T50132.0006 | T50132.AB27X1.5 | 32 | 8 | 44 | 12 | 20 | 36 | M27X1,5 | - |
