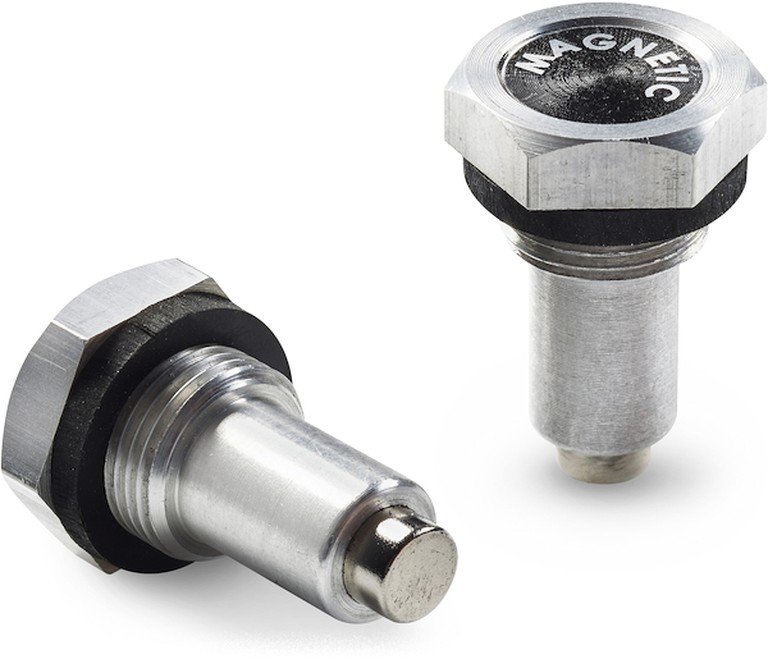

ALUMINIUM TANK PLUG WITH MAGNET
20
T500
Tappi per prodotti Boteco

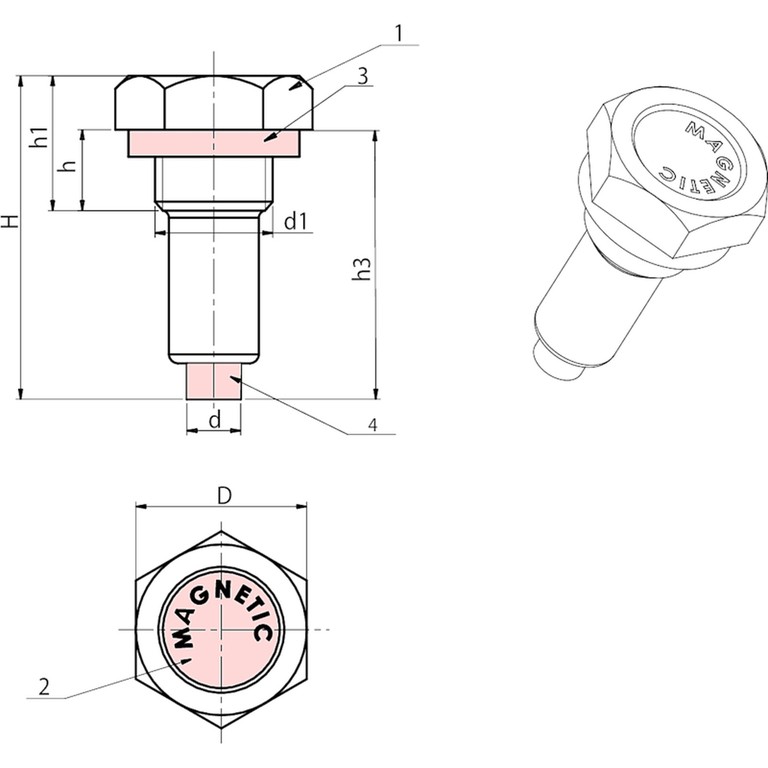

Materials:
(1) Aluminium plug (alloy 6060).
(4) Neodymium magnet -NdFeB- (N35SH) resistant up to 120°C.
(2) Pad-printed “MAGNETIC” writing, resistant up to 120°C.
(3) NBR rubber gasket.
Surface finish:
Turned.
Colour:
Natural.
Special requests:
Upon request and for special quantities pad-printings can be supplied to customer’s drawing.
Upon request and for special quantities thread d1 can be supplied to customer’s drawing.
Version with GAS threads
| Code | art. | D | d | H | h | h1 | h3 | d1 (GAS) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| T50019.0001 | T50019.AT1-4 | 19 | 6 | 36 | 9 | 15 | 28 | 1/4 | 14 |
| T50022.0001 | T50022.AT3-8 | 22 | 8 | 36 | 9 | 15 | 30 | 3/8 | 21 |
| T50026.0001 | T50026.AT1-2 | 26 | 8 | 40 | 11 | 18 | 34 | 1/2 | - |
| T50032.0001 | T50032.AT3-4 | 32 | 8 | 44 | 12 | 20 | 36 | 3/4 | - |
Version with metric fine pitch
| Code | art. | D | d | H | h | h1 | h3 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| T50022.0009 | T50022.AB16X1.5 | 22 | 8 | 36 | 9 | 15 | 30 | M16X1,5 | 21 |
| T50026.0008 | T50026.AB20X1.5 | 26 | 8 | 40 | 11 | 18 | 34 | M20X1,5 | - |
| T50032.0008 | T50032.AB27X1.5 | 32 | 8 | 44 | 12 | 20 | 36 | M27X1,5 | - |
