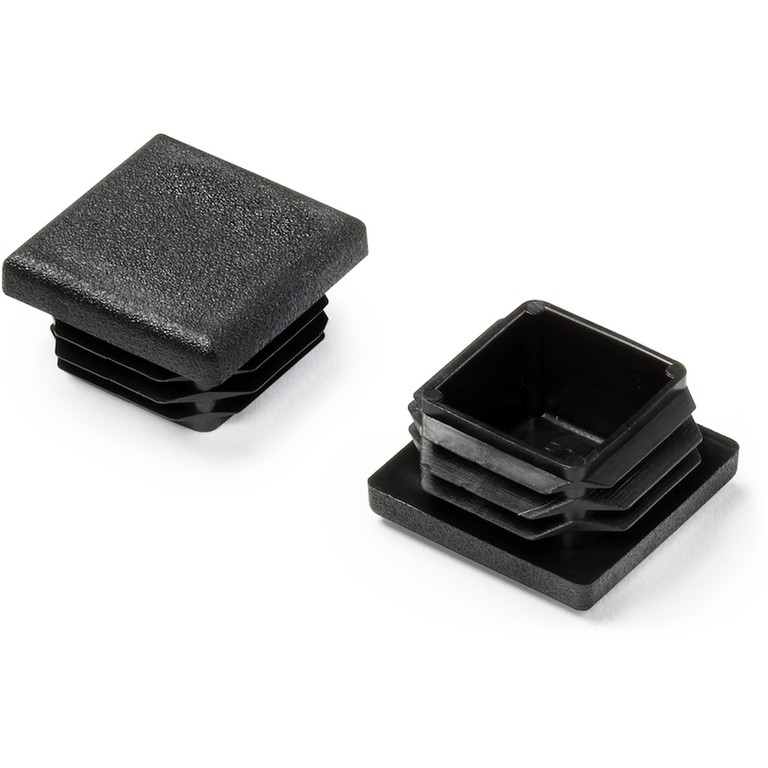

SQUARE TUBE PLUG
20
T481
Tappi per prodotti Boteco
Materials:
Square plug with square lamellar insert in Polyethylene (LDPE).
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Fixing method:
Push-fit.
Special requests:
None.

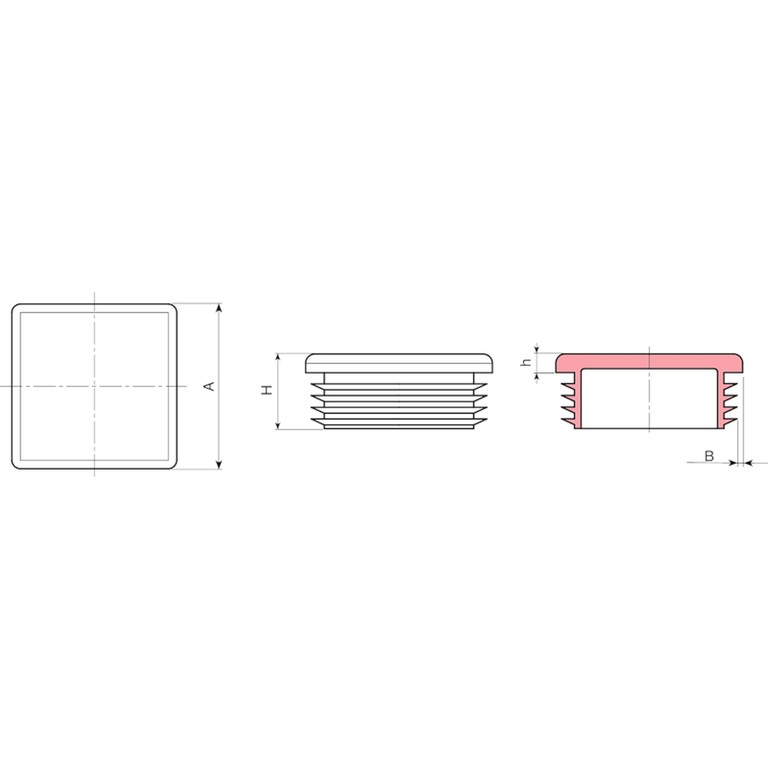

| Code | art. | A | H | h | B thickness of the tube (min - max) | Weight (g) |
|---|---|---|---|---|---|---|
| T481010.0001 | T481010.D01 | 10 | 16 | 4 | 0,8-2,5 | 1 |
| T481012.0001 | T481012.D01 | 12 | 16 | 4 | 1-2 | 1 |
| T481013.0001 | T481013.D01 | 13 | 16 | 4 | 0,5-2 | 1 |
| T481015.0001 | T481015.D01 | 15 | 15,5 | 4 | 1-2 | 1 |
| T481016.0001 | T481016.D01 | 16 | 16,5 | 5 | 1-2,5 | 1.5 |
| T481018.0001 | T481018.D01 | 18 | 16,5 | 5 | 1,5-3 | 2 |
| T481020.0001 | T481020.D01 | 20 | 16,5 | 5 | 1-3 | 2.5 |
| T481022.0001 | T481022.D01 | 22 | 17 | 5 | 1-3,5 | 2.5 |
| T481025.0001 | T481025.D01 | 25 | 16,5 | 5 | 1-3 | 3.5 |
| T481028.0001 | T481028.D01 | 28 | 16,5 | 5 | 1-3 | 4 |
| T481030.0001 | T481030.D01 | 30 | 16,5 | 5 | 1-3 | 4.5 |
| T481032.0001 | T481032.D01 | 32 | 16,5 | 5 | 1-3,5 | 6 |
| T481034.0001 | T481034.D01 | 34 | 19,5 | 5 | 1-3 | 6 |
| T481035.0001 | T481035.D01 | 35 | 19,5 | 5 | 1-3 | 6 |
| T481038.0001 | T481038.D01 | 38 | 19,5 | 5 | 1-3,5 | 7.5 |
| T481040.0001 | T481040.D01 | 40 | 19,5 | 5 | 1-3 | 8 |
| T481045.0001 | T481045.D01 | 45 | 19,5 | 5 | 1-3 | 9 |
| T481050.0001 | T481050.D01 | 50 | 19,5 | 5 | 1-2,5 | 11 |
| T481055.0001 | T481055.D01 | 55 | 19,5 | 5 | 2-4,5 | 12.5 |
| T481060.0001 | T481060.D01 | 60 | 20 | 5 | 1,5-3,5 | 19 |
| T481065.0001 | T481065.D01 | 65 | 26 | 5 | 1-3 | 23.5 |
| T481070.0001 | T481070.D01 | 70 | 24 | 5 | 1,5-4 | 25 |
| T481075.0001 | T481075.D01 | 75 | 27 | 6 | 2-4,5 | 26.5 |
| T481080.0001 | T481080.D01 | 80 | 27 | 6 | 1,5-4 | 28 |
| T481090.0001 | T481090.D01 | 90 | 31 | 6 | 3-5 | 47.5 |
| T481095.0001 | T481095.D01 | 95 | 27,5 | 6 | 3,5-5,5 | 52 |
| T481100.0001 | T481100.D01 | 100 | 31 | 7 | 1-4 | 51.5 |
