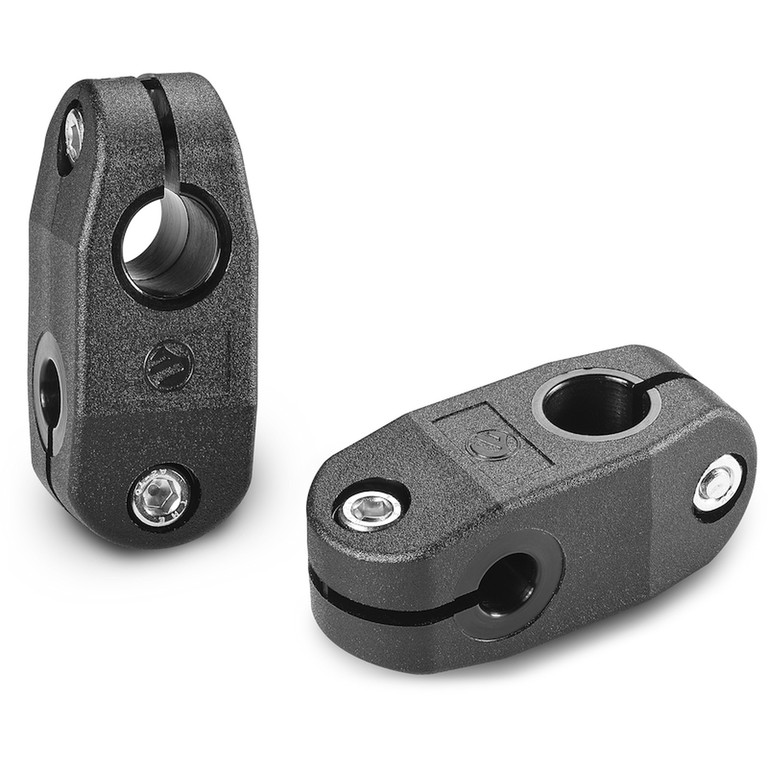

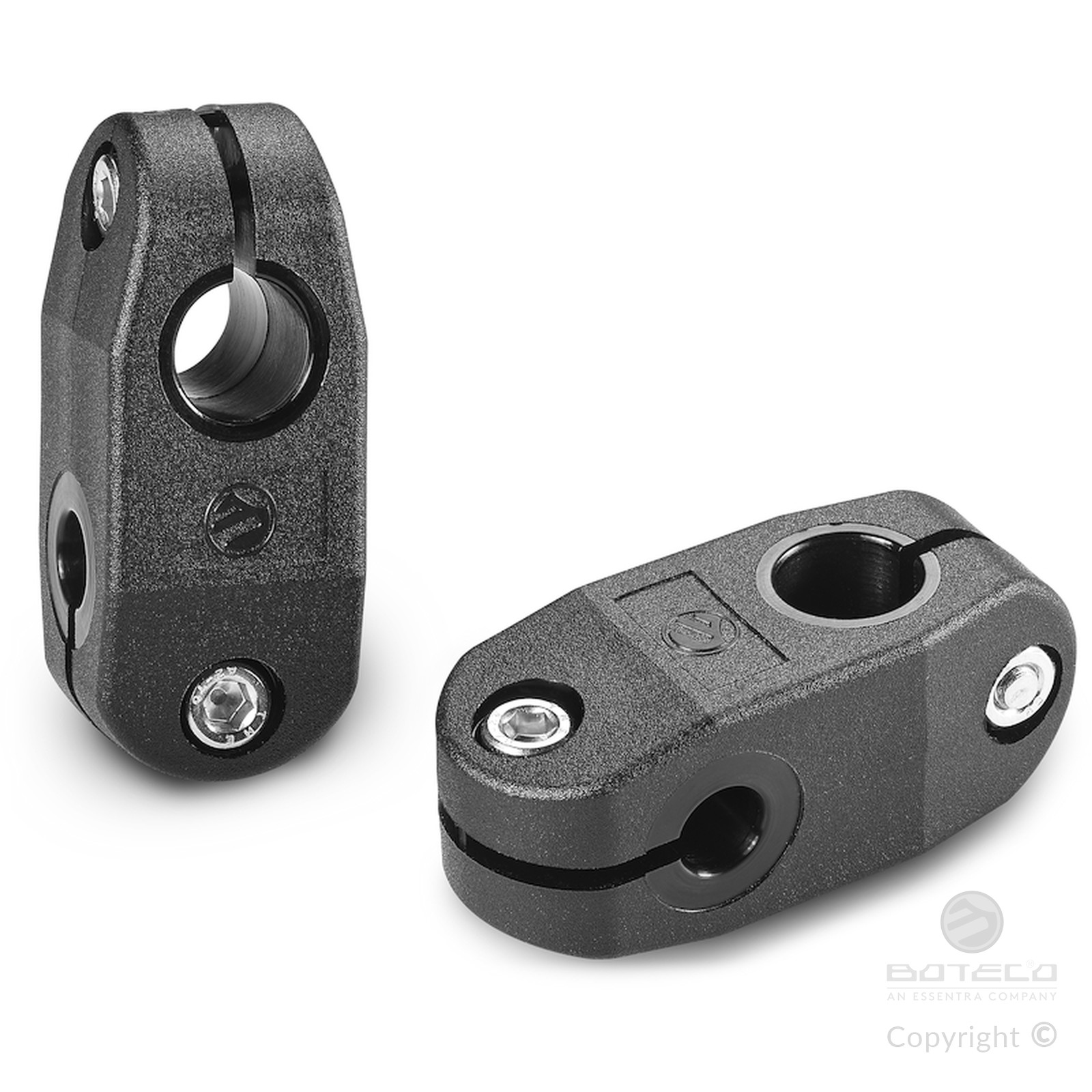

CROSS CLAMP WITH 90° HOLES AND SCREW FIXING
20
T200
Accessori per trasporto
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
(1) Galvanised steel hexagon socket head cap screw TCCE DIN 912.
Galvanised steel nut with threaded through hole DIN 934/UNI 5588.
Hole:
Smooth through hole obtained by moulding the plastic.
Special requests:
Upon request and for special quantities the clamp can be supplied with holes d1 and d2 to customer’s drawing.
Upon request and for special quantities the clamp can be supplied with holes d1 and d2 square.
Upon request and for special quantities available in the colours indicated in the chart on page TitoloTabellaColori .

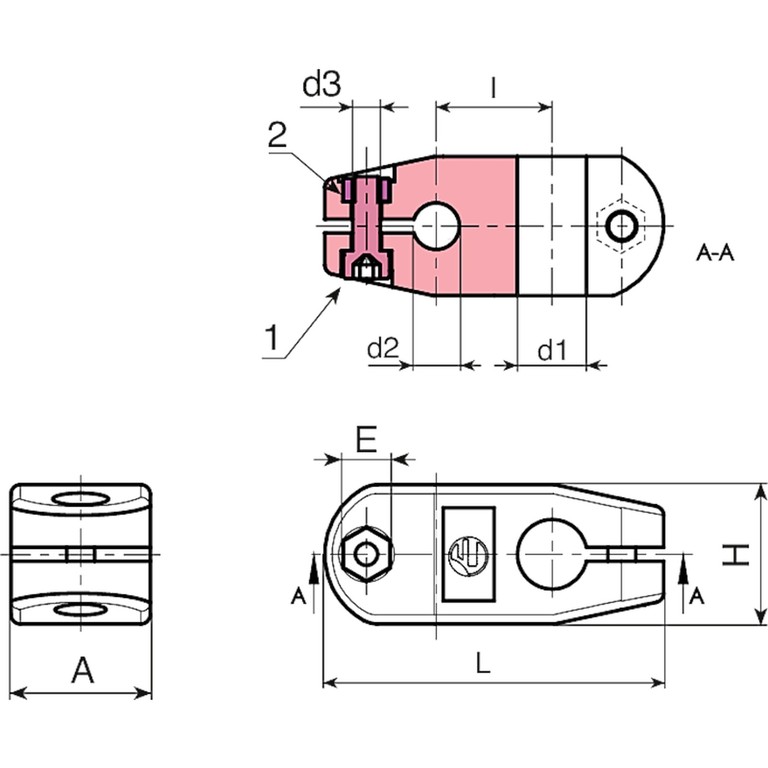

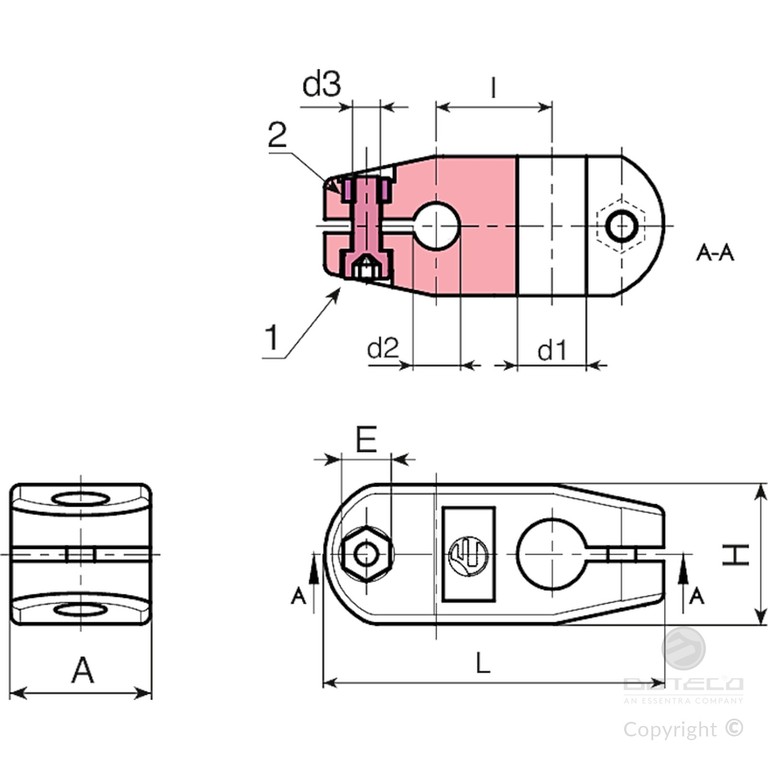

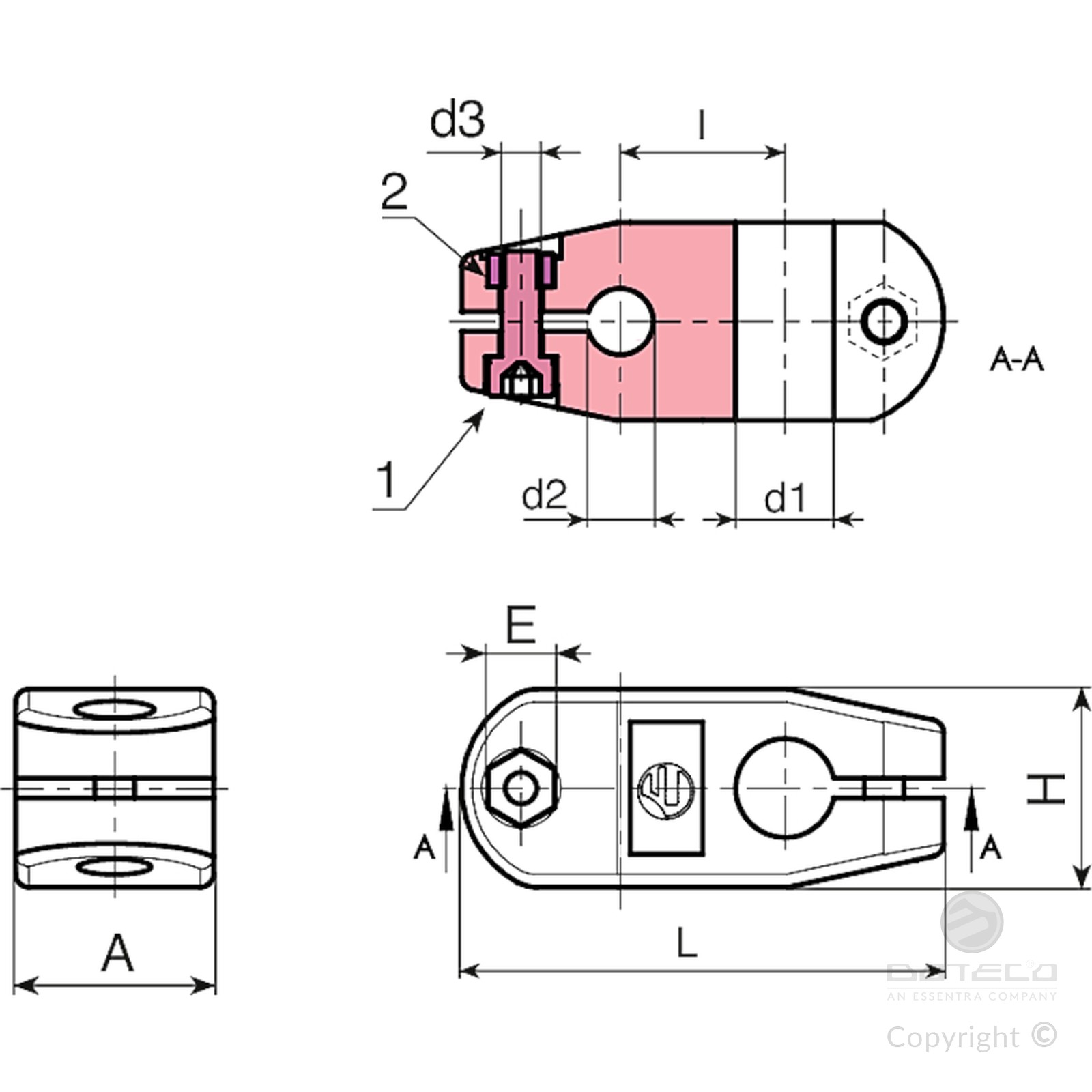

| Code | art. | L | A | H | E | I | c | d3 | d1 | d2 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T20073.0003 | T20073.TG121001 | 73 | 30 | 30 | 10 | 25 | 2,8 | M06 | 12 | 10 | 72 |
| T20073.0004 | T20073.TG121201 | 73 | 30 | 30 | 10 | 25 | 2,8 | M06 | 12 | 12 | 70 |
| T20073.0005 | T20073.TG121401 | 73 | 30 | 30 | 10 | 25 | 2,8 | M06 | 12 | 14 | 69 |
| T20073.0006 | T20073.TG121601 | 73 | 30 | 30 | 10 | 25 | 2,8 | M06 | 12 | 16 | 68 |
