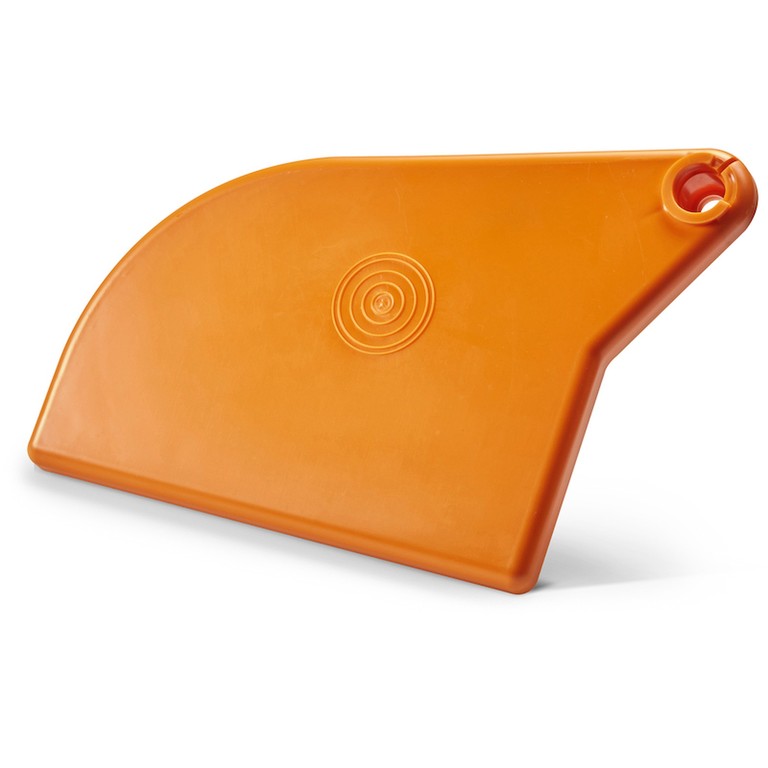

PLANE GUARD (Boomerang)
20
R551
Protezione mandrini
Materials:
Impact resistant polystyrene.
Surface finish:
Satin.
Colour:
Orange (RAL 2004).
Hole:
Smooth through hole obtained by moulding the plastic.
Special requests:
None.

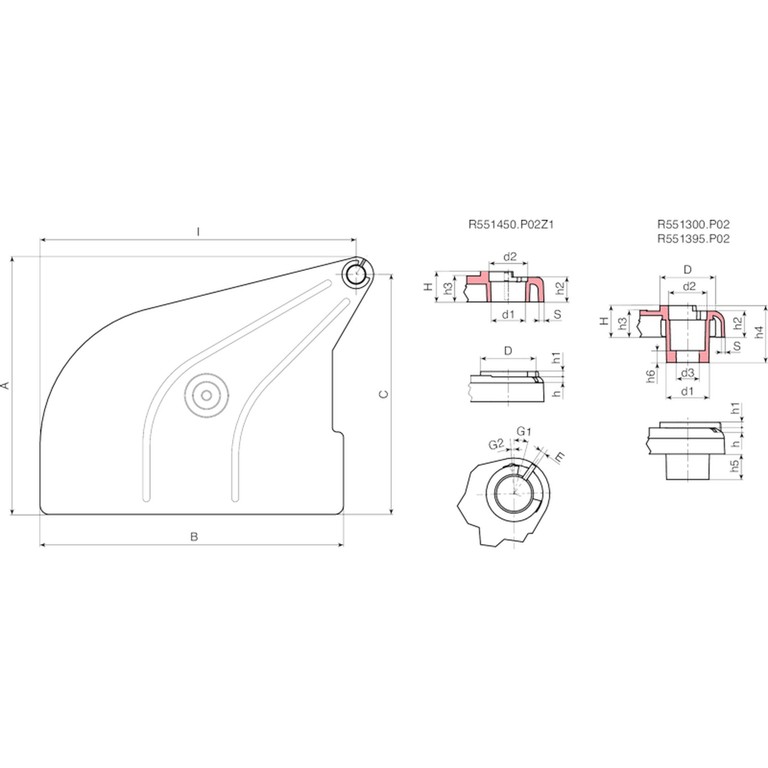

| Code | Art. | A | B | C | I | D | E | S | H | G1 | G2 | h | h1 | h2 | h3 | h4 | h5 | h6 | d1 | d2 | d3 | d4 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R551300.0001 | R551300.P02 | 264 | 314 | 235 | 340 | 41 | 3 | 2,5 | 23 | - | 10 | 7 | 4 | 19 | 19 | 41,5 | 18,5 | 8,5 | 25 | 28 | 16,5 | 30,5 | 320 |
| R551395.0001 | R551395.P02 | 281 | 357 | 255 | 372 | 41 | 3 | 2,5 | 23 | 15 | 10 | 6,5 | 4 | 18 | 19,5 | 41,5 | 18,5 | 9 | 25 | 28 | 16,5 | 30,5 | 420 |
| R551450.0001 | R551450.P02Z1 | 370 | 436 | 344 | 455 | 41 | 3,5 | 4 | 22 | 10 | 4 | 3,5 | 4 | 18 | 19 | - | - | - | 25 | 28 | - | - | 745 |
