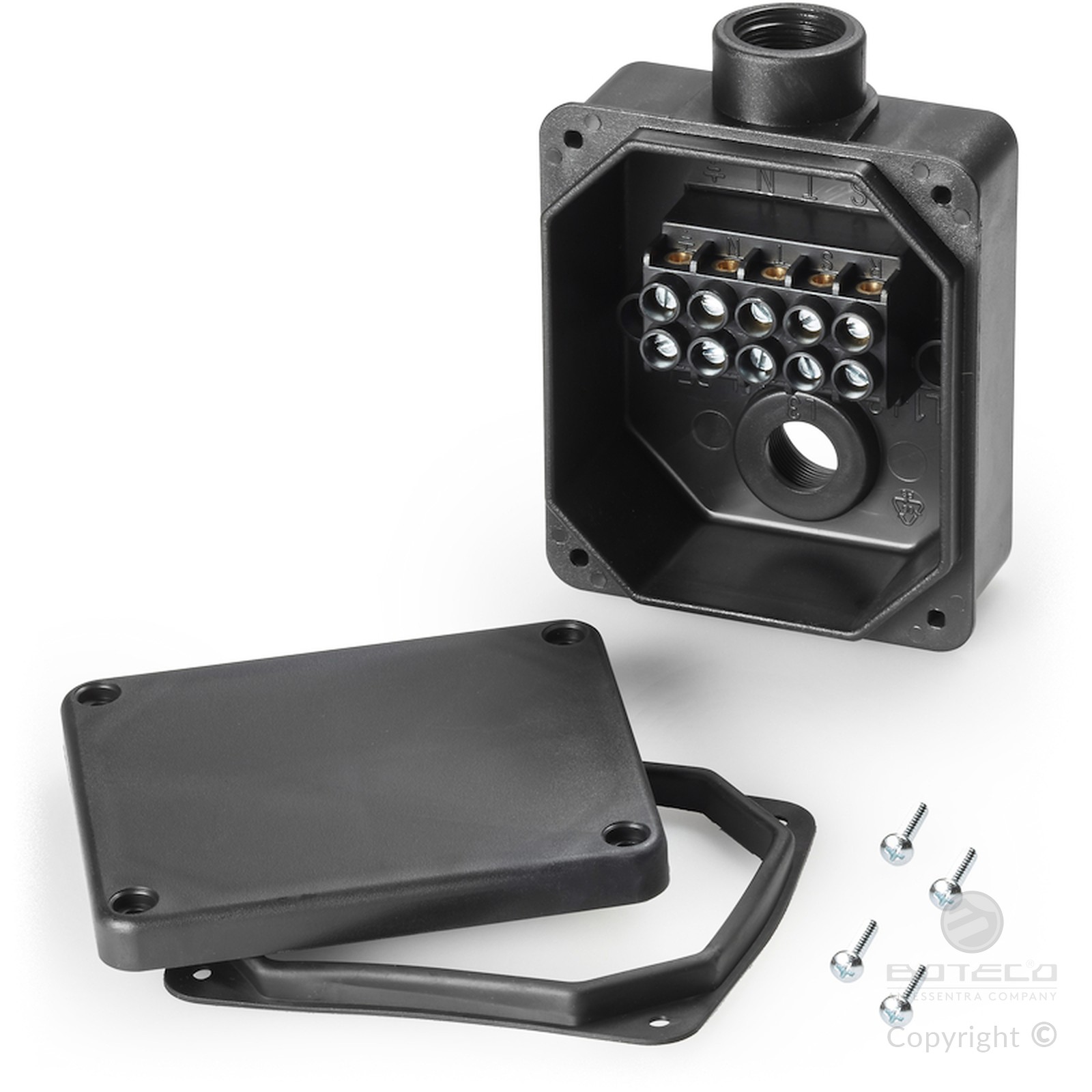

COMPLETE "SEALED" 5 WAY TERMINAL BLOCK
20
R537
Morsettiere e coperchi
Materials:
(1-3) Impact resistant polystyrene.
Surface finish:
Smooth.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with threaded through hole.
(4) Galvanised self-tapping screw 4.2x22 DIN 7981/UNI6954.
(2) Thermoplastic rubber 75 shore.
(5) Galvanised steel screw M4x10 DIN 84.
(6) Rear terminal block cover.
Degree of protection:
IP54.
Special Requests:
None.

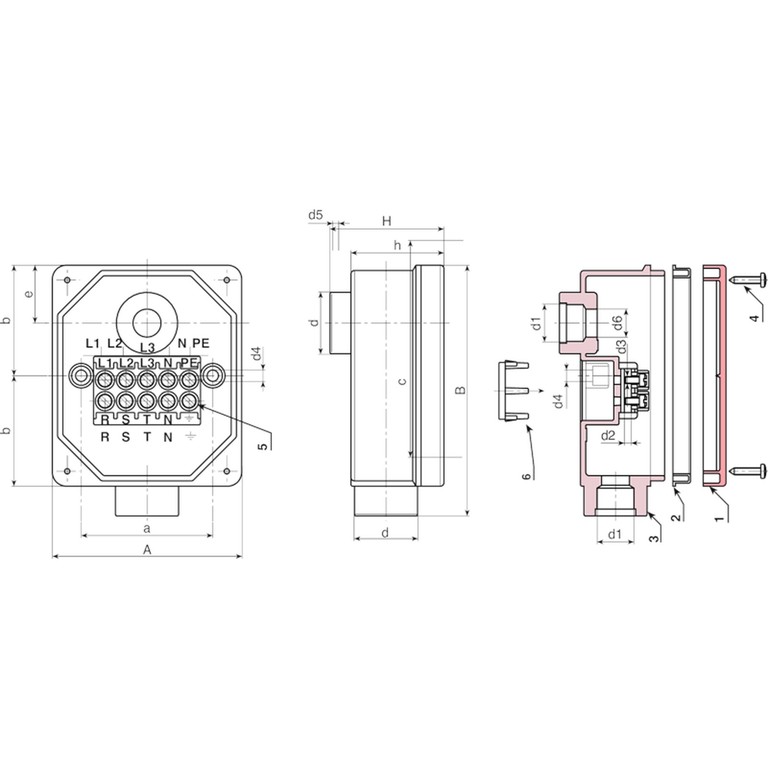

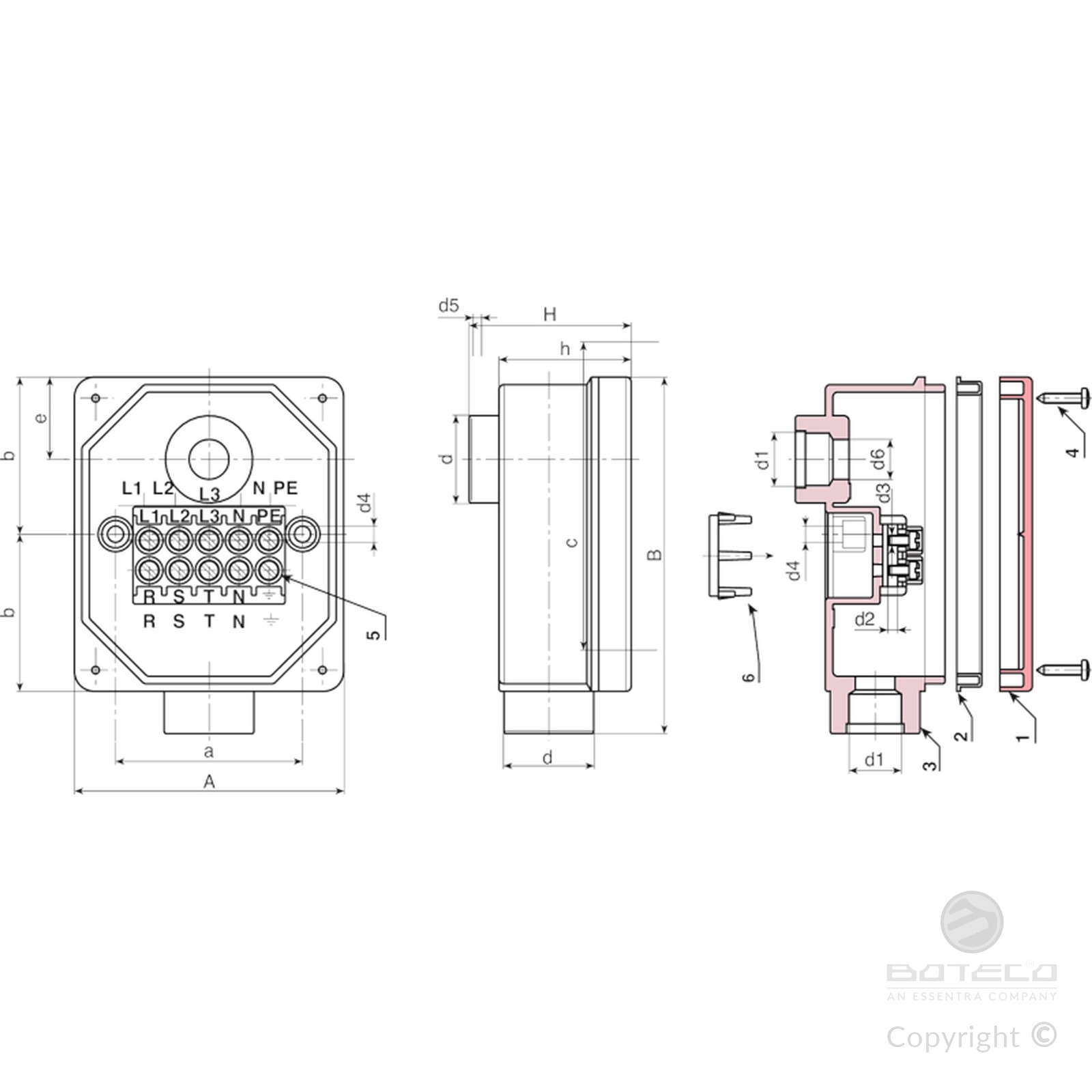

Code | Art. | A | B | H | h | d | a | b | c | e | d1 | d2 | d3 | d4 | d5 | d6 | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R537126M25.0001 | R537126M25.P01(*) | 108,5 | 144 | 67,5 | 54,5 | 36 | 75 | 63 | 120,5 | 30 | M25x1,5 | 5 | M4 | 6 | 3.5 | 18,5 | 345 |
(*) Lockable cable section: 2,5mm2 3-cable (220V) or 1,5mm2 5-cable (380V).
