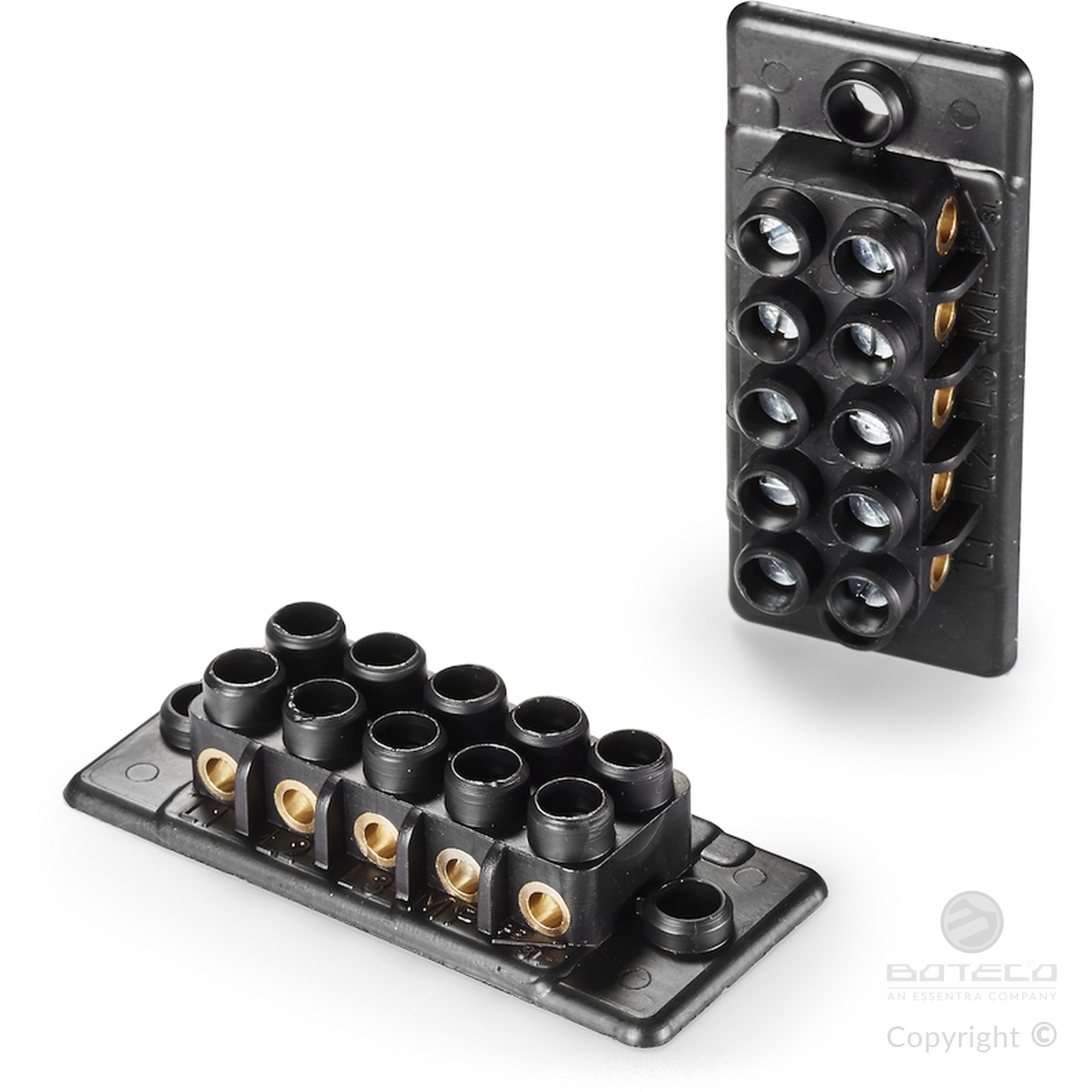

5 WAY TERMINAL BLOCK
20
R534
Morsettiere e coperchi
Materials:
Impact resistant polystyrene.
Surface finish:
Smooth.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with threaded through hole.
Galvanised steel screw M4x10 DIN 84.
Special requests:
None.
Compatible accessories:
Terminal block cover article R535.
Terminal block cover article R531.

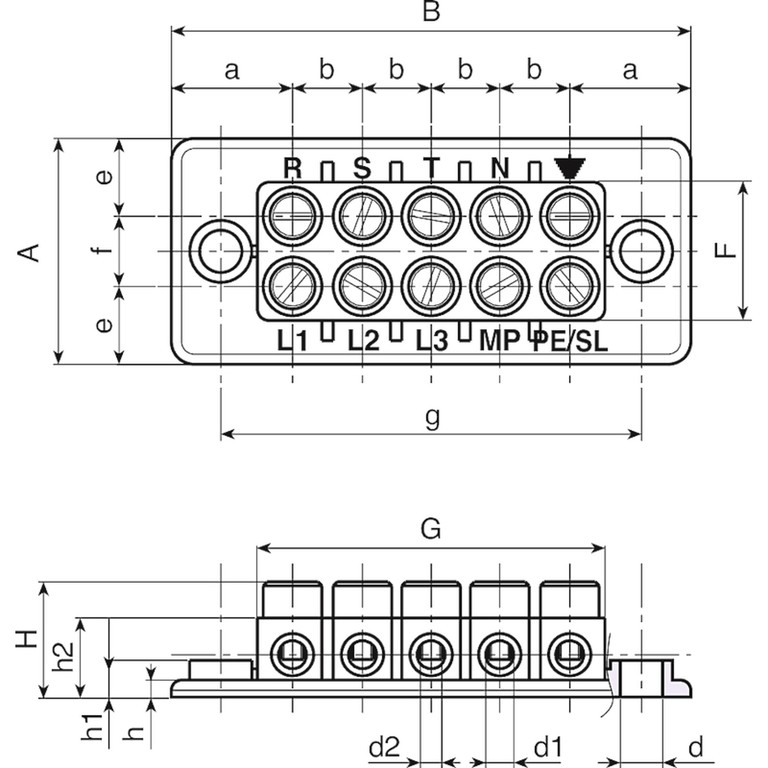

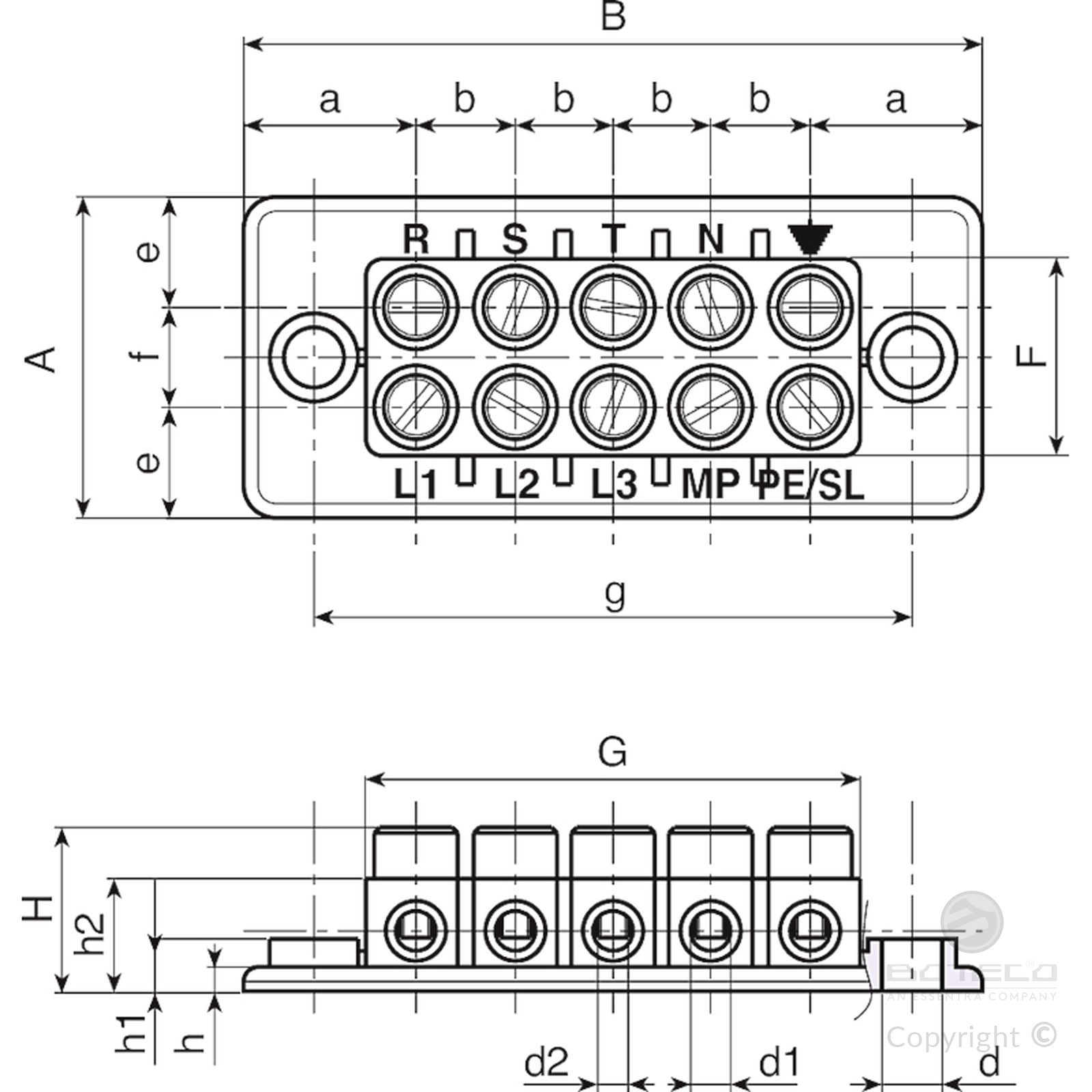

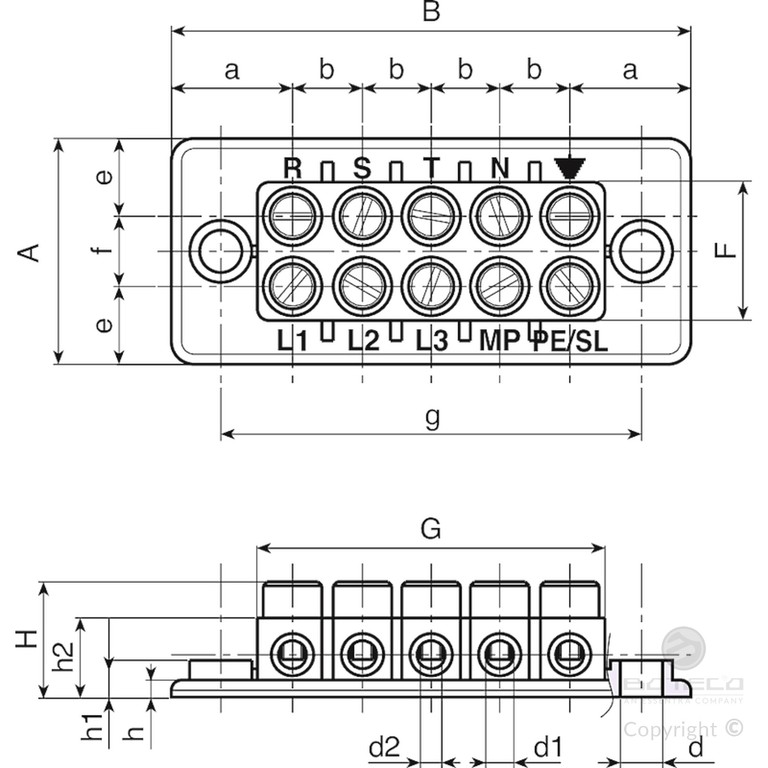

Code | Art. | A | B | H | F | G | a | b | g | e | f | h | h1 | h2 | d | d1 | d2 | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R53491.0001 | R53491.P01 | 40,5 | 92,5 | 21 | 25 | 62,5 | 21,5 | 12,5 | 75 | 14 | 12,5 | 3 | 7 | 15,5 | 7,5 | 5 | M4 | 83 |
