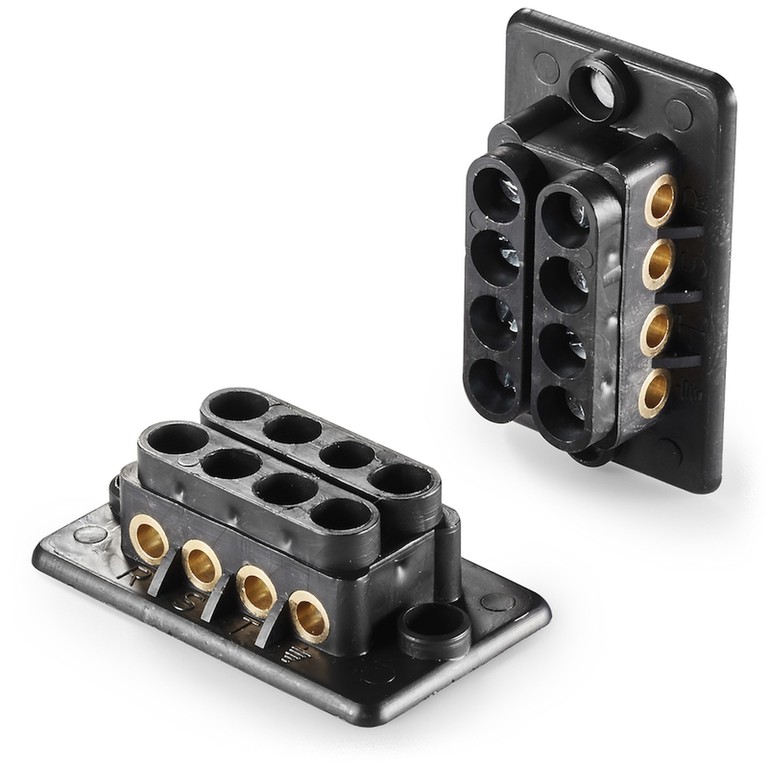

SMALL 4 WAY TERMINAL BLOCK
20
R532
Morsettiere e coperchi
Materials:
Impact resistant polystyrene.
Surface finish:
Smooth.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with threaded through hole.
Galvanised steel screw M4x10 DIN 84.
Special requests:
None.
Compatible accessories:
Terminal block cover article R533.

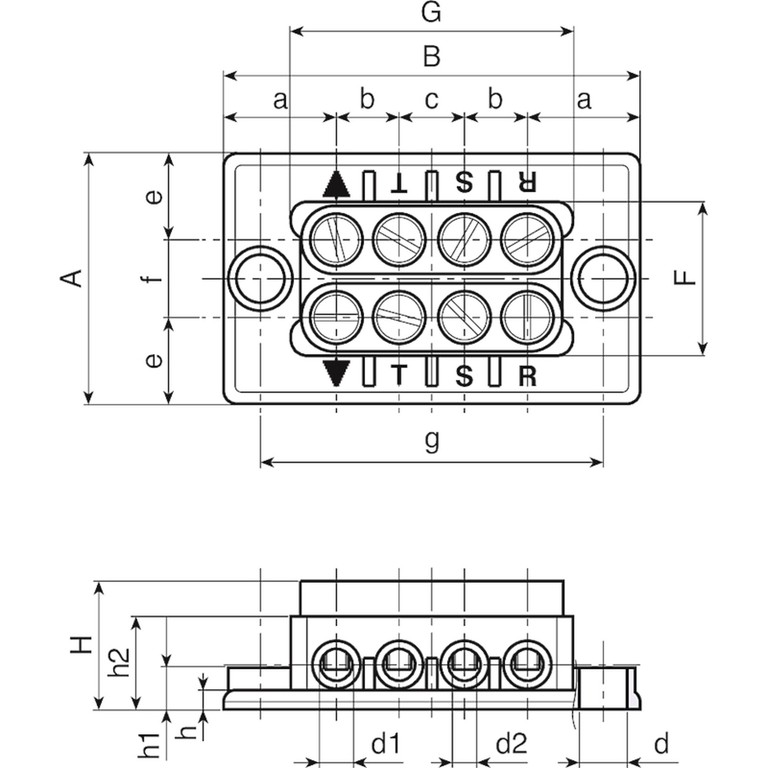

Code | Art. | A | B | H | F | G | a | b | c | e | f | g | h | h1 | h2 | d | d1 | d2 | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R53265.0001 | R53265.P01 | 39,5 | 65,5 | 21 | 24,5 | 44 | 18 | 9,7 | 10,3 | 13,5 | 12,5 | 54 | 3 | 6 | 15 | 7 | 5 | M4 | 27 |
