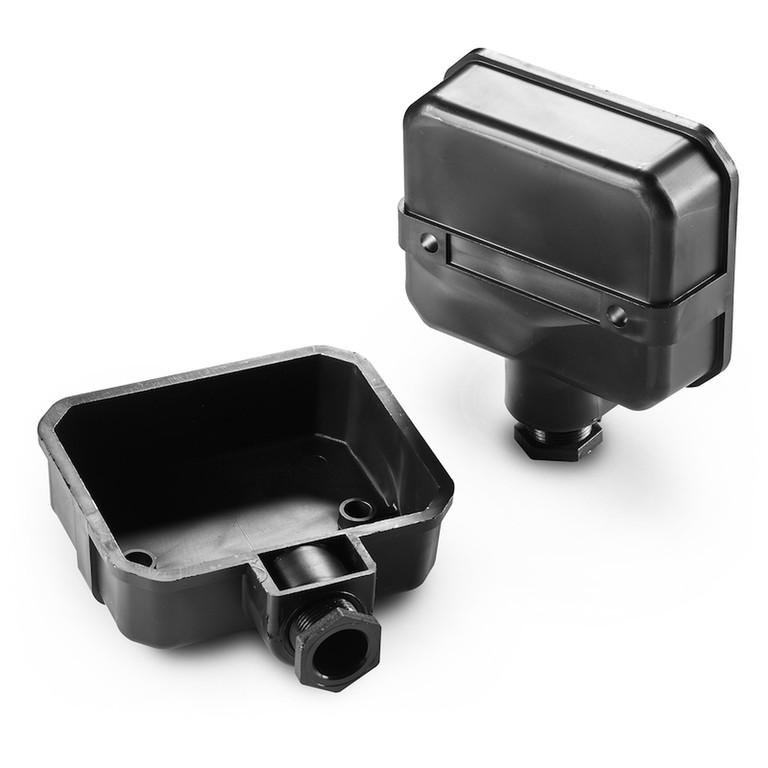

TERMINAL BLOCK COVER FOR TERMINAL R530
20
R531
Morsettiere e coperchi
Materials:
Impact resistant polystyrene.
Surface finish:
Smooth.
Colour:
Black (RAL 9011).
Special requests:
None.
Compatible accessories:
4 way terminal block article R530.

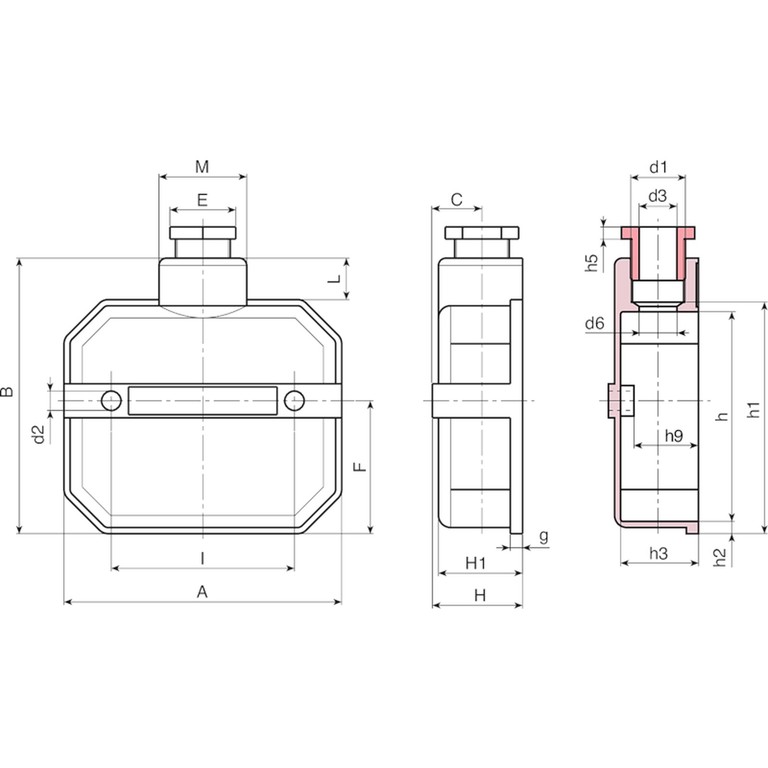

Code | Art. | A | B | C | E | F | H | H1 | I | L | M | d1 | d2 | d3 | d6 | g | h | h1 | h2 | h3 | h5 | h9 | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R531114PG16.0001 | R531114PG16.P01 | 114 | 114 | 20,5 | 27 | 53,5 | 37 | 35 | 75 | 18 | 35,5 | PG16 | 7,5 | 17,5 | 16 | 5 | 86 | 96 | 5 | 32,5 | 5 | 27,5 | 86 |
