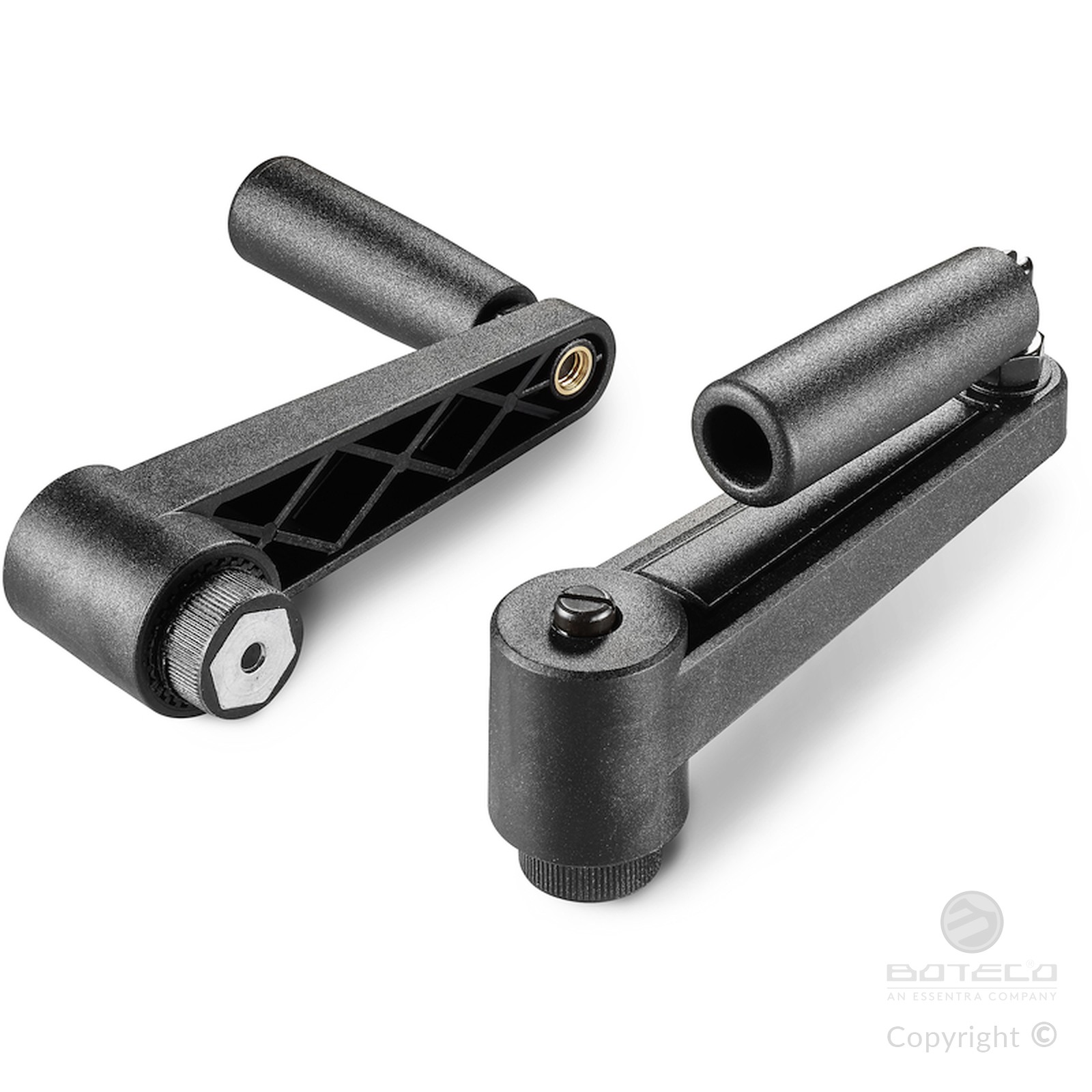

INDEXED CRANK HANDLE WITH SMOOTH BORE INSERT AND FOLDING HANDLE

05

E521


Manovelle scatto

Material:

Reinforced polyamide. Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black (RAL 9011).

Inserts:

Galvanised steel insert with blind smooth bore (bore tolerance H10).

Lateral insert:

Brass insert with threaded through hole.

Spring:

Stainless steel spring (Aisi 302).

Fixing screw:

Black oxide treated steel screw with slotted head.

Lateral handle:

Revolving, folding handle art. M136.

Special requests:

Upon request and for special quantities inserts can be supplied in different materials.

Upon request and for special quantities crank handle body available in the colours indicated in the chart.

Data sheet

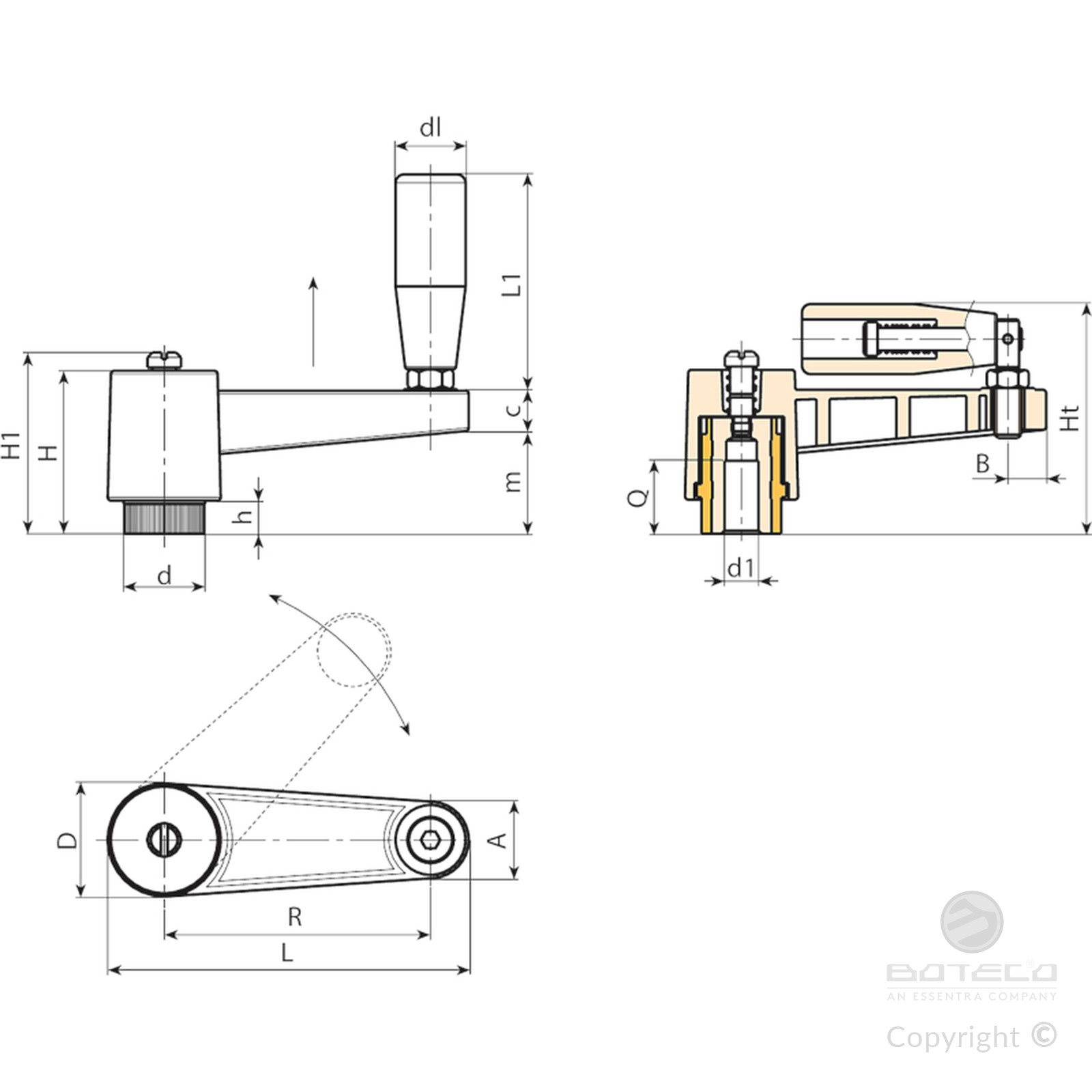

Code Art. L R H D d m c A B h H1 Ht d1 H10 Q dl L1 Weight (g)
E521065.0003 E521065.TP0501 87,5 65 46 27 19 29 13 17 9 10 - 67,5 5 22 20 54 105
E521080.0005 E521080.TP0501 109 80 50 34 24,5 33 13 22 12 11 54 75 5 28 23,5 76 190
E521110.0006 E521110.TP0501 139 110 50 34 24,5 33 13 22 12 11 54 75 5 28 23,5 76 220
