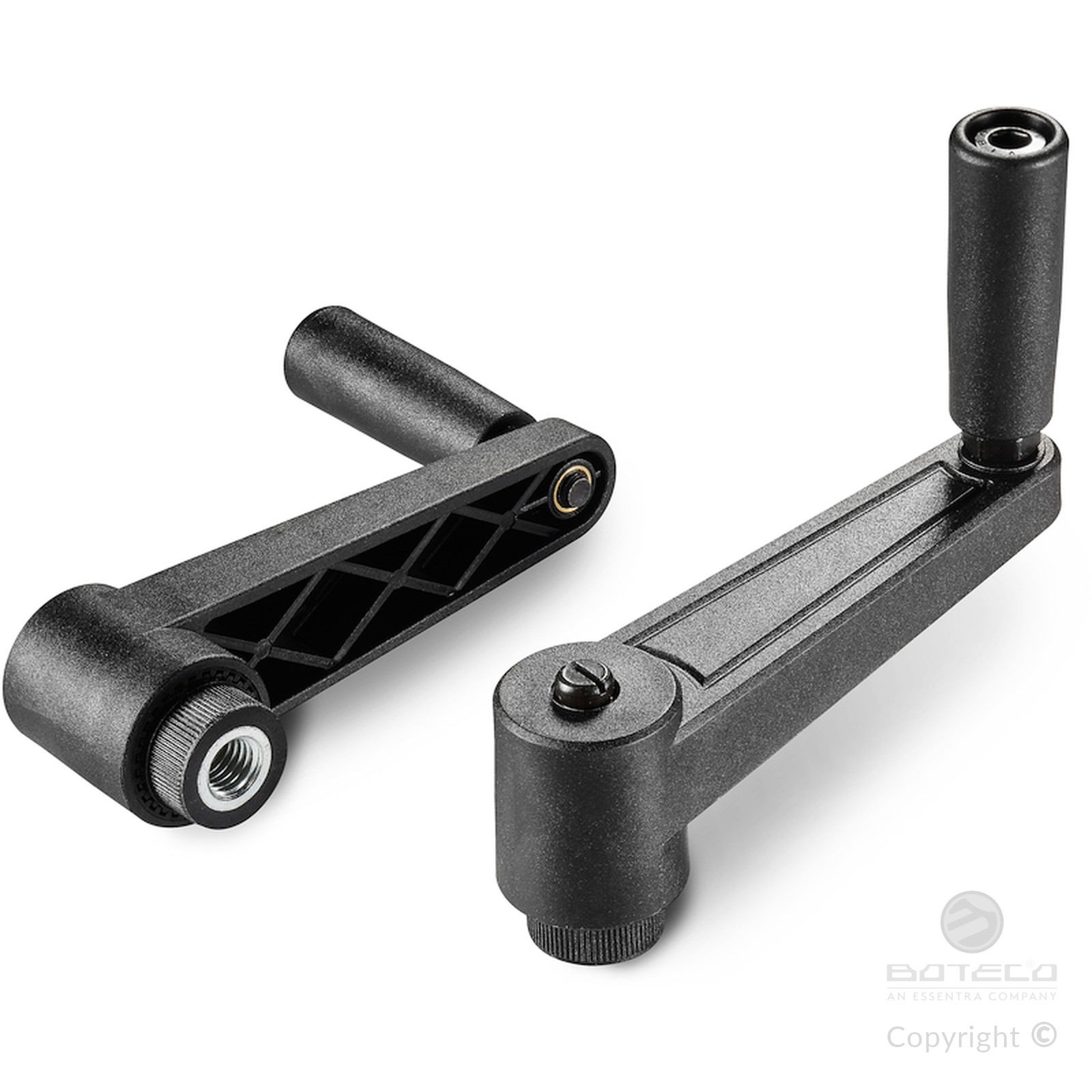

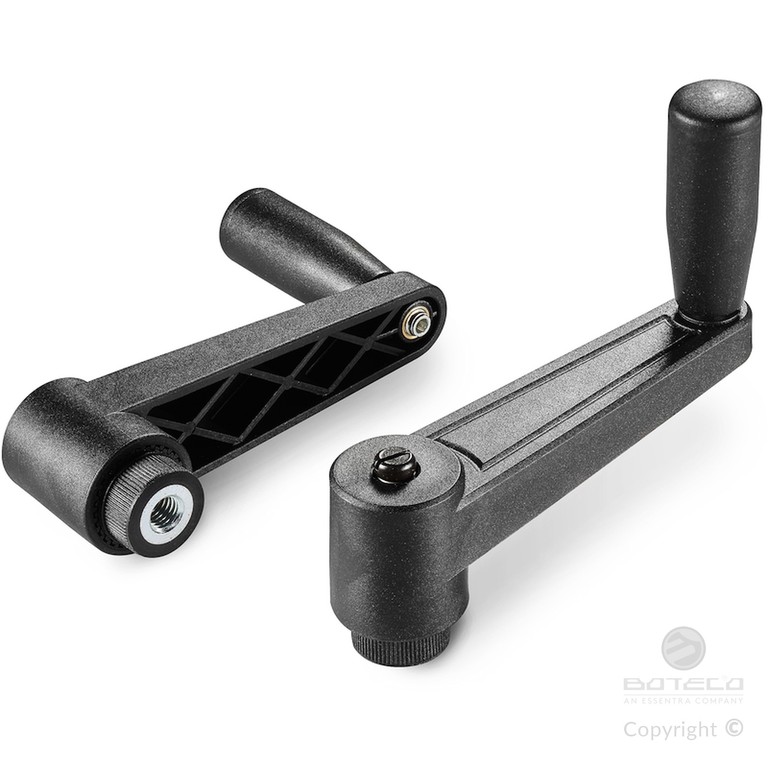

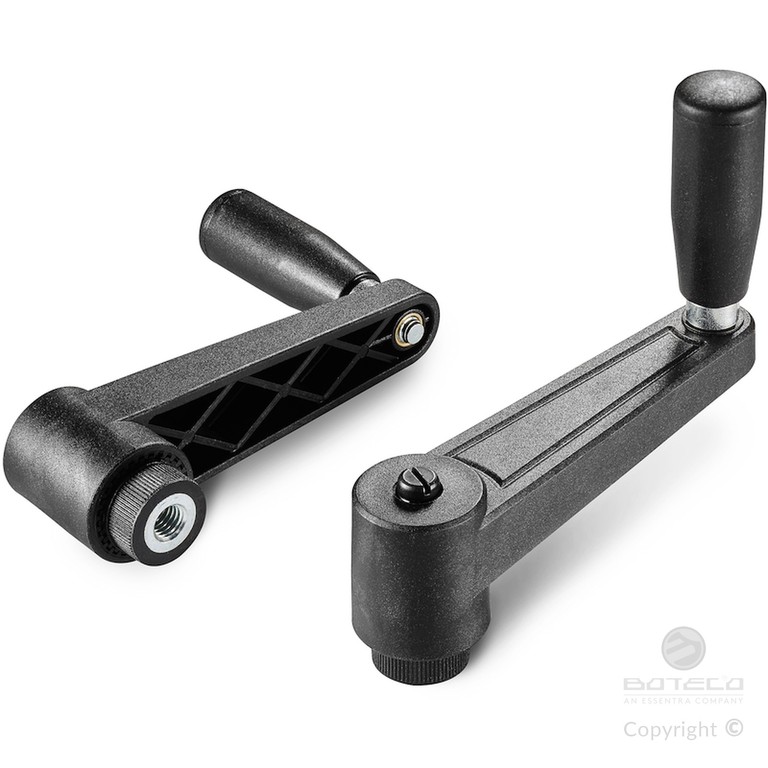

INDEXED CRANK HANDLE WITH THREADED INSERT AND REVOLVING HANDLE

05

E518


Manovelle scatto

    Material:

    Reinforced polyamide. Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black (RAL 9011).

    Inserts:

    Galvanised steel insert with female threaded hole (thread tolerance 6H).

    Lateral insert:

    Brass insert with threaded through hole.

    Spring:

    Stainless steel spring (Aisi 302).

    Fixing screw:

    Black oxide treated steel screw with slotted head.

    Lateral handle:

    Revolving handle art. M144.

    Special requests:

    Upon request and for special quantities inserts can be supplied in different materials.

    Upon request and for special quantities crank handle body available in the colours indicated in the chart.

    Data sheet

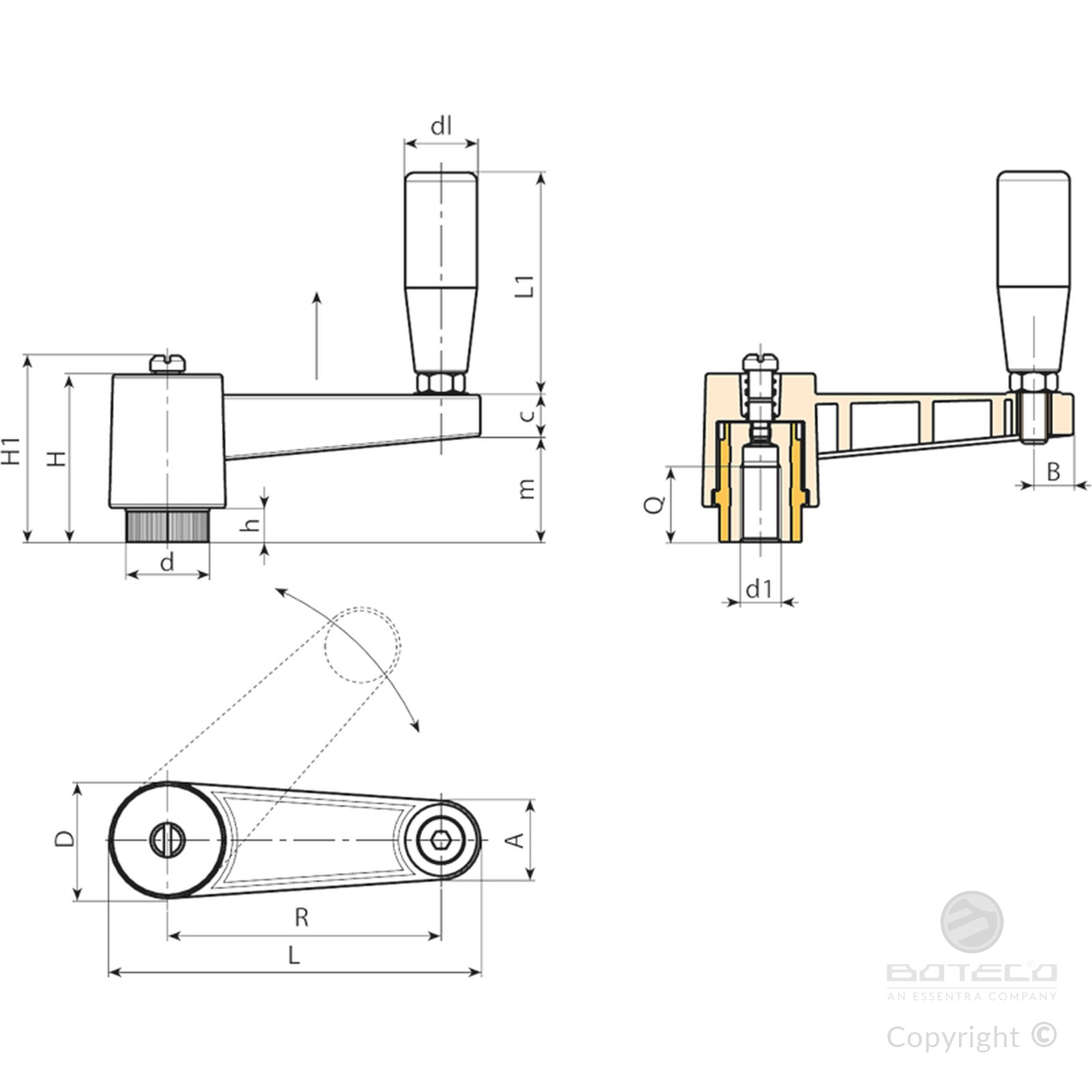

    Code Art. L R H D d m c A B h H1 d1 6H Q dl L1 Weight (g)
    E518065.0001 E518065.TM0801 88,5 65 46 27 19 30 13 17 9 10 - M8 18 19 54 94
    E518065.0002 E518065.TM1001 88,5 65 46 27 19 30 13 17 9 10 - M10 18 19 54 90
    E518065.0003 E518065.TM1201 88,5 65 46 27 19 30 13 17 9 10 - M12 18 19 54 90
    E518080.0001 E518080.TM1201 109 80 50 34 24,5 33 13 22 12 11 54 M12 22 21 66 172
    E518080.0002 E518080.TM1401 109 80 50 34 24,5 33 13 22 12 11 54 M14 22 21 66 164
    E518080.0003 E518080.TM1601 109 80 50 34 24,5 33 13 22 12 11 54 M16 22 21 66 154
    E518110.0001 E518110.TM1201 139 110 50 34 24,5 33 13 22 12 11 54 M12 22 21 66 181
    E518110.0002 E518110.TM1401 139 110 50 34 24,5 33 13 22 12 11 54 M14 22 21 66 195
    E518110.0003 E518110.TM1601 139 110 50 34 24,5 33 13 22 12 11 54 M16 22 21 66 198
