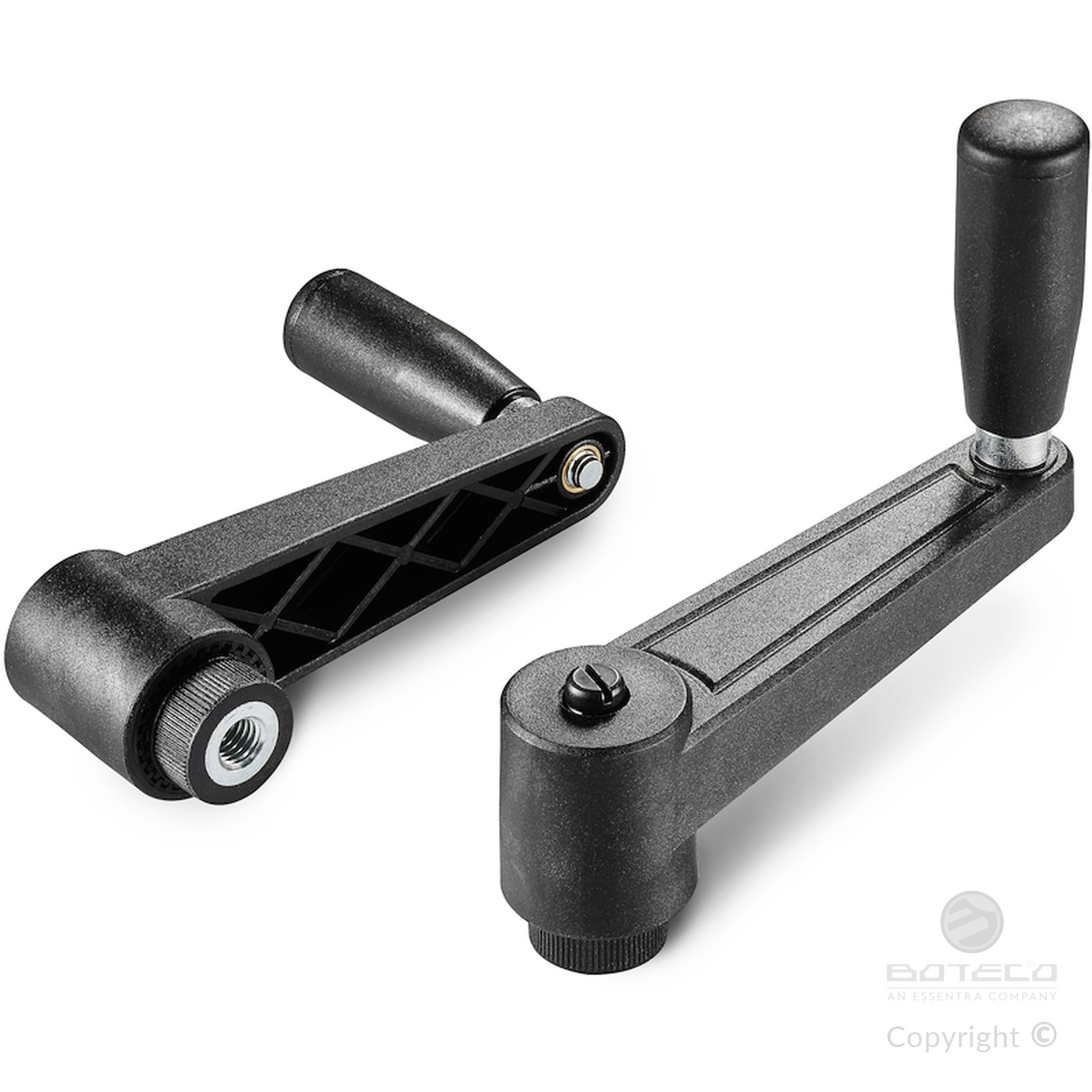

INDEXED CRANK HANDLE WITH THREADED INSERT AND REVOLVING HANDLE M145

05

E513


Manovelle scatto

    Material:

    Reinforced polyamide. Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black (RAL 9011).

    Inserts:

    Galvanised steel insert with female threaded hole (thread tolerance 6H).

    Lateral insert:

    Brass insert with threaded through hole.

    Spring:

    Stainless steel spring (Aisi 302).

    Fixing screw:

    Black oxide treated steel screw with slotted head.

    Lateral handle:

    Revolving handle art. M145.

    Special requests:

    Upon request and for special quantities inserts can be supplied in different materials.

    Upon request and for special quantities lever body available in the colours indicated in the chart.

    Data sheet

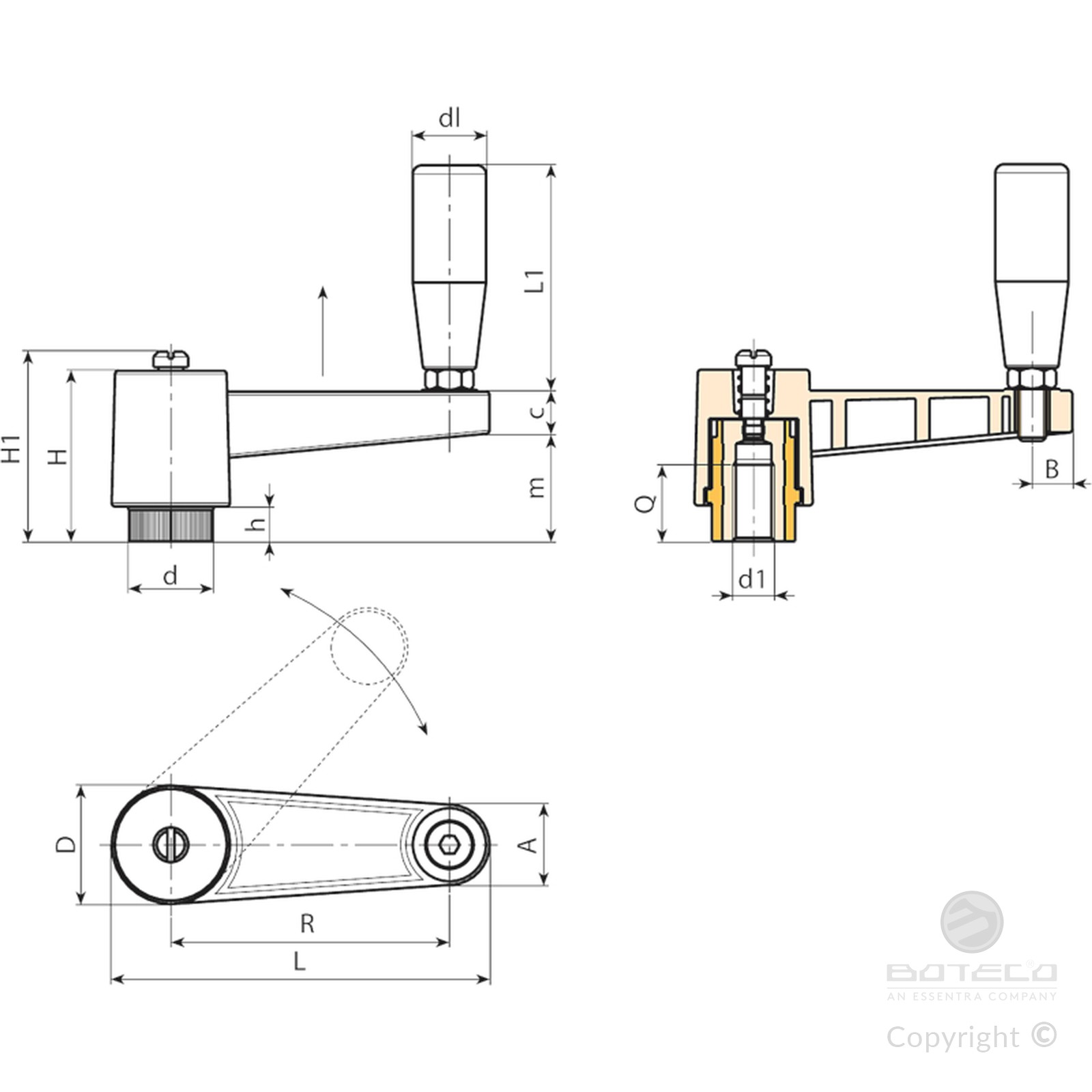

    Code Art. L R H D d m c A B h H1 d1 6H Q dl L1 Weight (g)
    E513065.0001 E513065.TM0801 88,5 65 46 27 19 30 13 17 9 10 - M8 18 20 56 96
    E513065.0002 E513065.TM1001 88,5 65 46 27 19 30 13 17 9 10 - M10 18 20 56 92
    E513065.0003 E513065.TM1201 88,5 65 46 27 19 30 13 17 9 10 - M12 18 20 56 91
    E513080.0001 E513080.TM1201 109 80 50 34 24,5 33 13 22 12 11 54 M12 22 23,5 68 177
    E513080.0002 E513080.TM1401 109 80 50 34 24,5 33 13 22 12 11 54 M14 22 23,5 68 179
    E513080.0003 E513080.TM1601 109 80 50 34 24,5 33 13 22 12 11 54 M16 22 23,5 68 169
    E513110.0001 E513110.TM1201 139 110 50 34 24,5 33 13 22 12 11 54 M12 22 23,5 68 196
    E513110.0002 E513110.TM1401 139 110 50 34 24,5 33 13 22 12 11 54 M14 22 23,5 68 200
    E513110.0003 E513110.TM1601 139 110 50 34 24,5 33 13 22 12 11 54 M16 22 23,5 68 205
