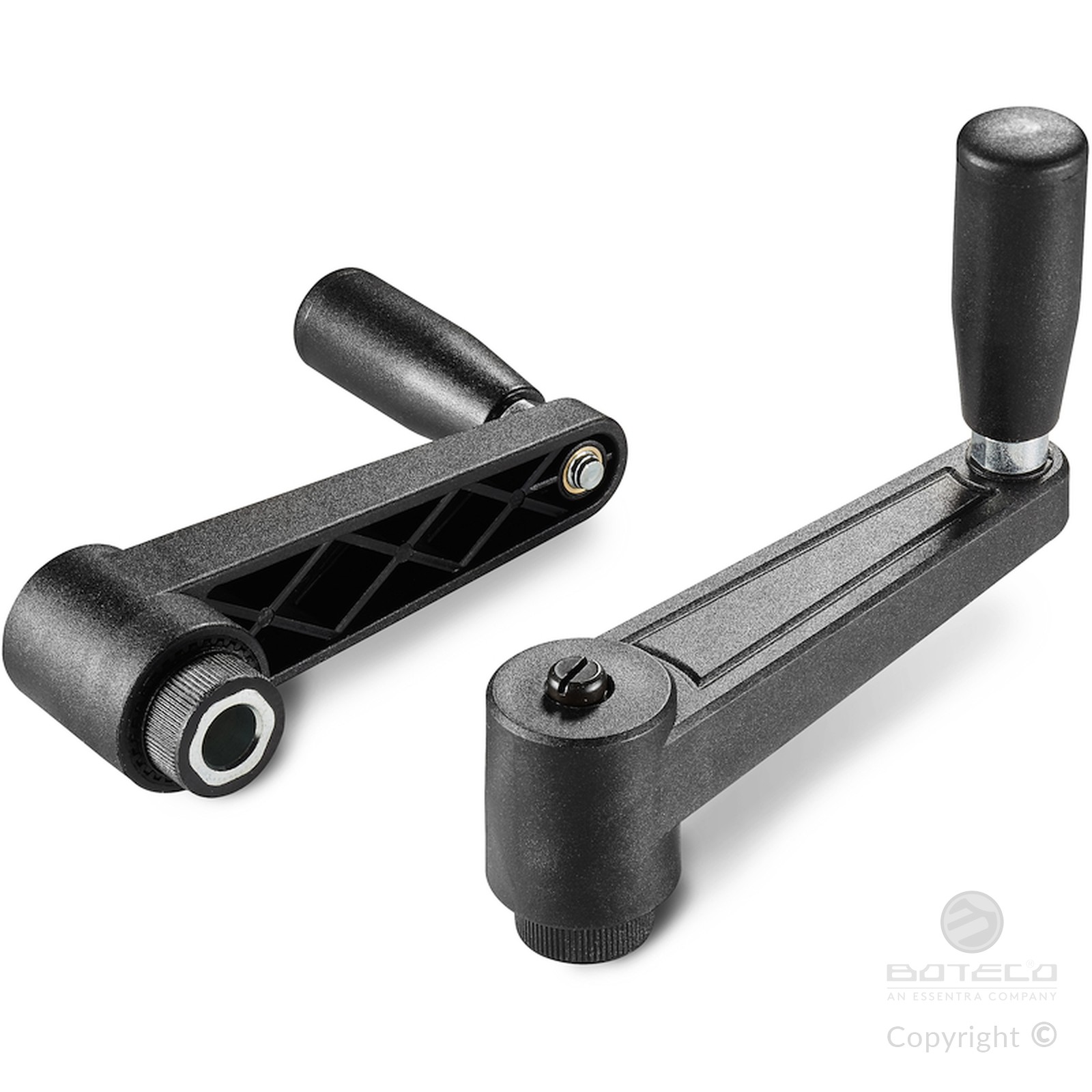

INDEXED CRANK HANDLE WITH SMOOTH BORE INSERT AND REVOLVING HANDLE M145

05

E511


Manovelle scatto

    Material:

    Reinforced polyamide. Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black (RAL 9011).

    Inserts:

    Galvanised steel insert with blind smooth bore (bore tolerance H10).

    Lateral insert:

    Brass insert with threaded through hole.

    Spring:

    Stainless steel spring (Aisi 302).

    Fixing screw:

    Black oxide treated steel screw with slotted head.

    Lateral handle:

    Revolving handle art. M145.

    Special requests:

    Upon request and for special quantities inserts can be supplied in different materials.

    Upon request and for special quantities crank handle body available in the colours indicated in the chart.

    Data sheet

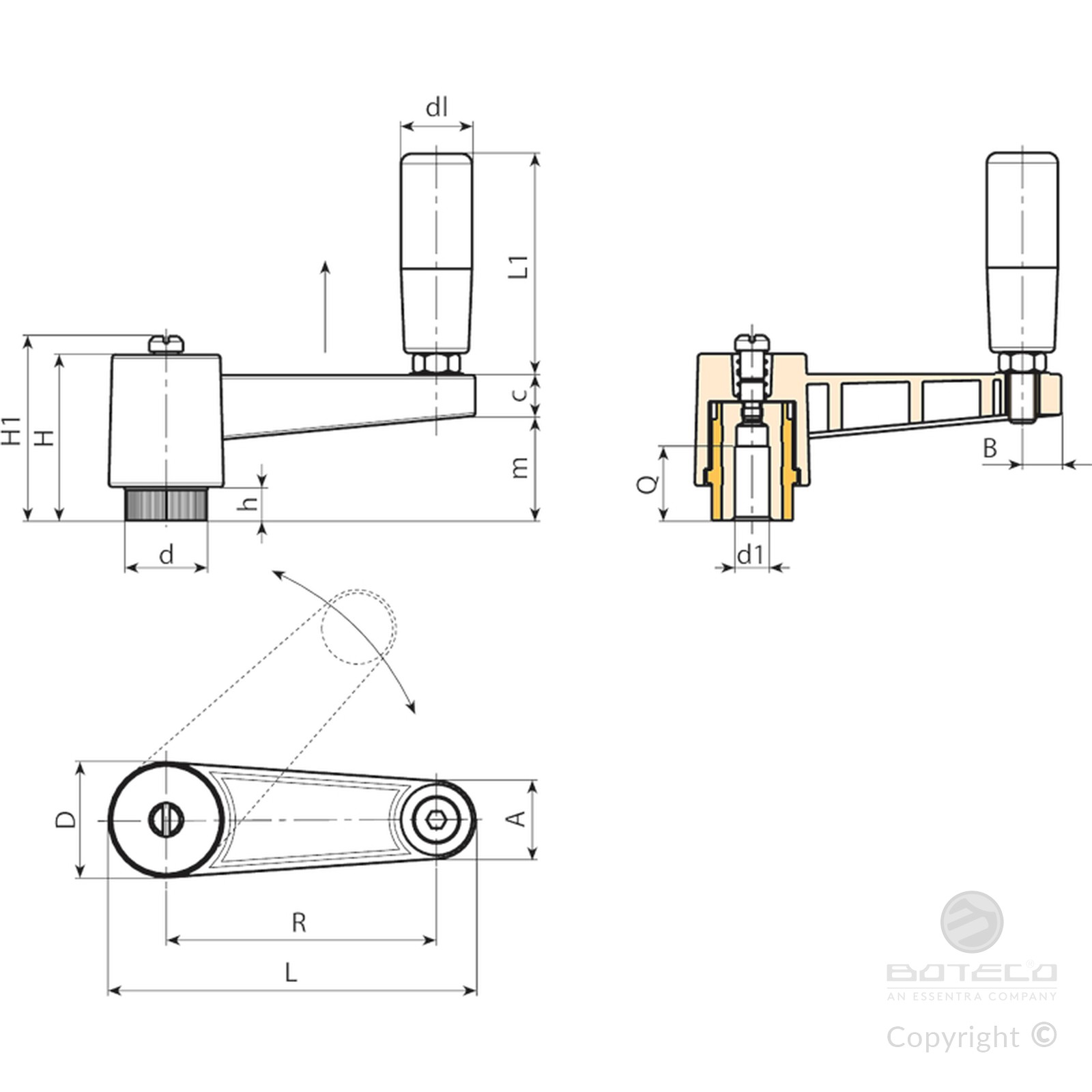

    Code Art. L R H D d m c A B h H1 d1 H10 Q dl L1 Weight (g)
    E511065.0001 E511065.TP0501 88,5 65 46 27 19 30 13 17 9 10 - 5 22 20 56 92
    E511080.0001 E511080.TP0501 109 80 50 34 24,5 33 13 22 12 11 54 5 28 23,5 68 187
    E511110.0001 E511110.TP0501 139 110 50 34 24,5 33 13 22 12 11 54 5 28 23,5 68 205
