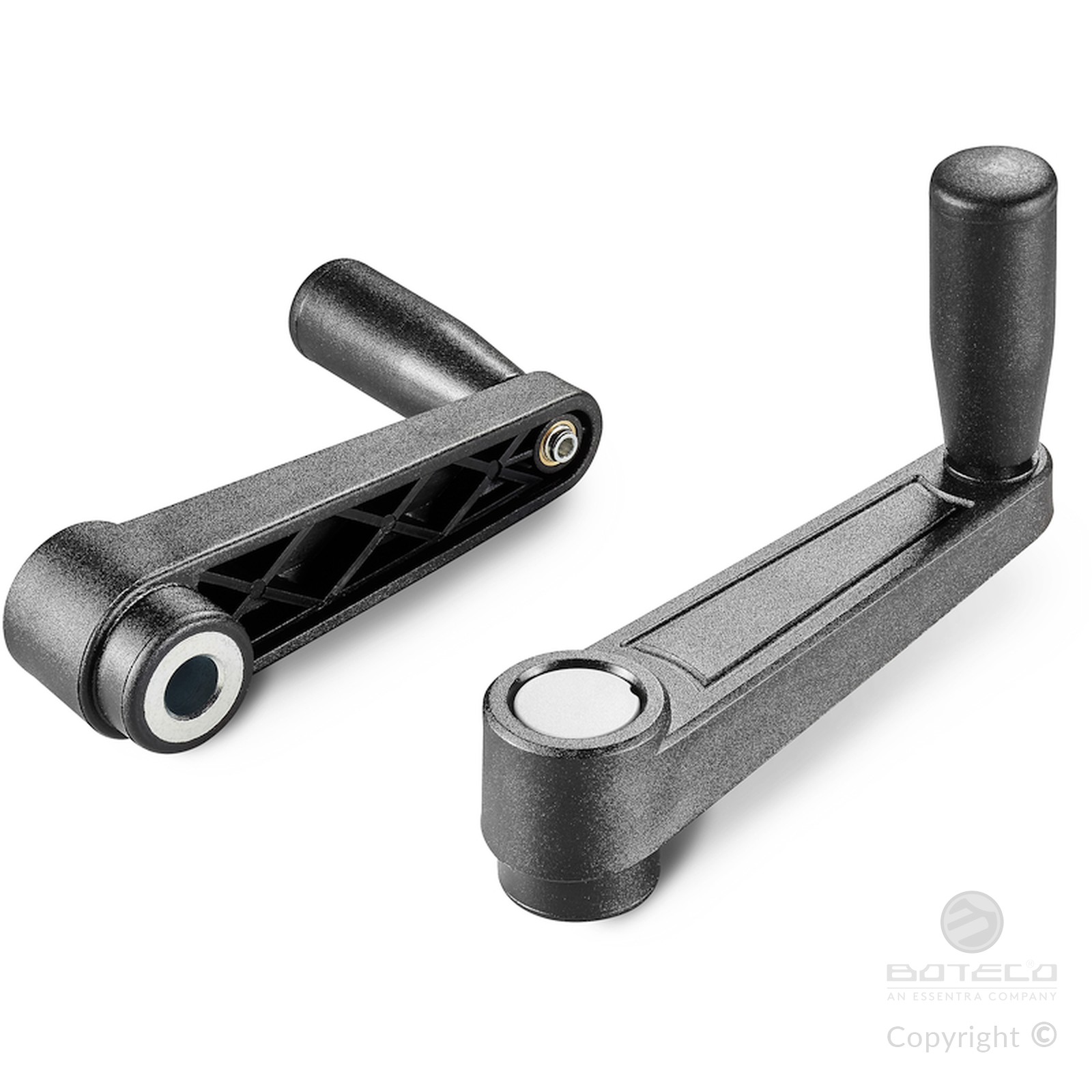

CRANK HANDLE WITH SMOOTH BORE INSERT AND REVOLVING HANDLE M129

05

E222


Manovelle con foro liscio

    Material:

    Reinforced polyamide.

    Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black (RAL 9011).

    Central cap:

    Grey polyamide (RAL 7035). 13).

    Alternative Cap colours:

    Orange (RAL 2004 code 02).

    Red (RAL 3000 code 16).

    Blue (RAL 5015 code 07).

    Green (RAL 6024 code 17).

    Yellow (RAL 1021 code 10).

    Black (RAL 9011 code 01).

    Inserts:

    Galvanised steel insert with smooth through bore (tolerance H10).

    Lateral insert:

    Brass insert with threaded through hole.

    Lateral handle:

    Revolving handle art. M129.

    Special requests:

    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

    Upon request and for special quantities available in the colours indicated in the chart.

    Data sheet

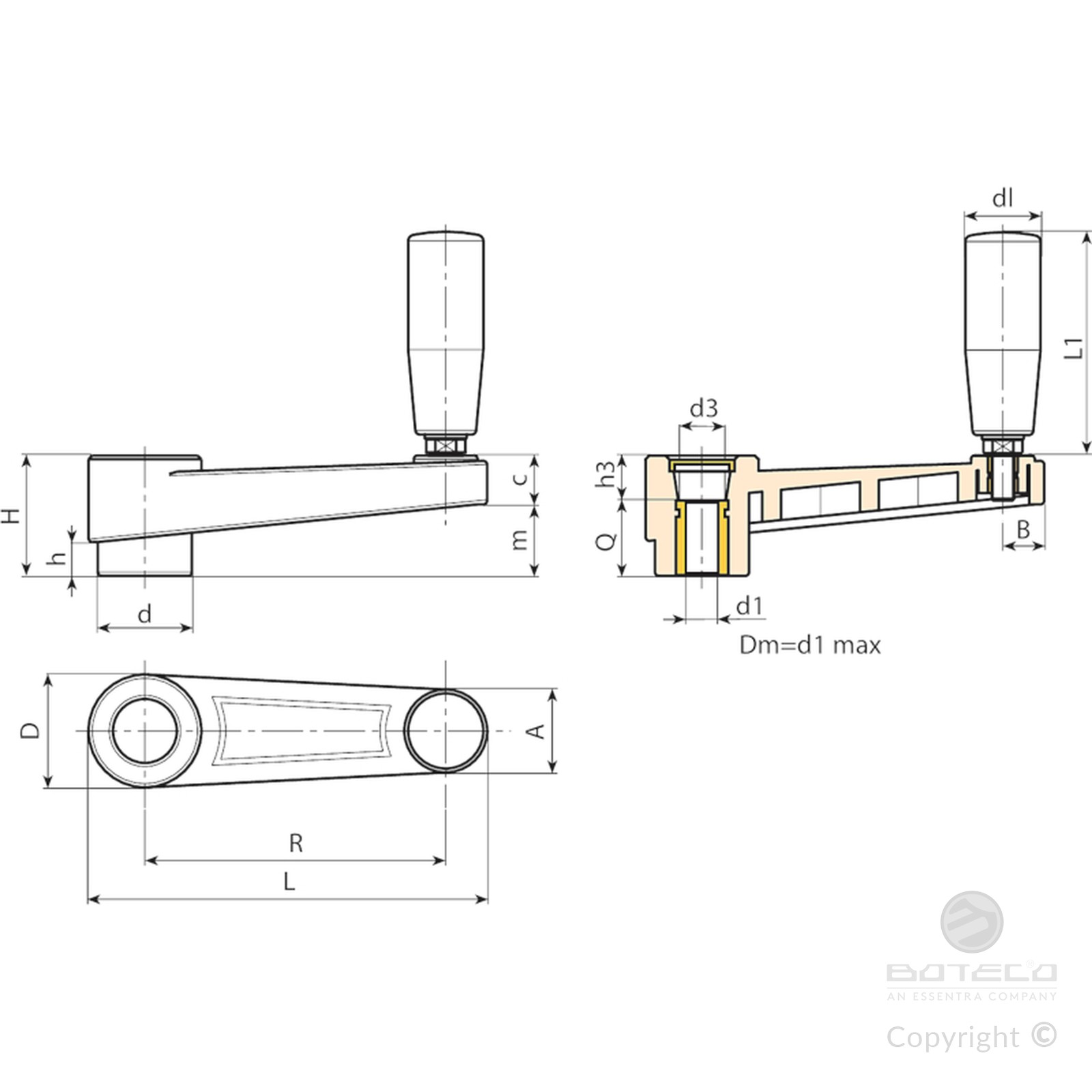

    Code Art. L R H D d m c A B h d3 h3 dm d1 H10 Q dl L1 Weight (g)
    E222065.0008 E222065.TP0501 89 65 30 27,5 22 17 13 20 9,5 8 14,5 10 12 5 20 20 52 111
    E222065.0003 E222065.TD1001 89 65 30 27,5 22 17 13 20 9,5 8 14,5 10 12 10 20 20 52 117
    E222065.0004 E222065.TD1201 89 65 30 27,5 22 17 13 20 9,5 8 14,5 10 12 12 20 20 52 114
    E222080.0013 E222080.TP0501 107 80 33,5 32 26 20,5 13 23 11 9 19,5 9,5 14 5 24 20 52 135
    E222080.0003 E222080.TD1001 107 80 33,5 32 26 20,5 13 23 11 9 19,5 9,5 14 10 24 20 52 140
    E222080.0005 E222080.TD1201 107 80 33,5 32 26 20,5 13 23 11 9 19,5 9,5 14 12 24 20 52 136
    E222110.0001 E222110.TD0801 140 110 39 35 29 25 14 24 12 11 19,5 11 14 8 28 23,5 63 182
    E222110.0007 E222110.TD1001 140 110 39 35 29 25 14 24 12 11 19,5 11 14 10 28 23,5 63 179
    E222110.0004 E222110.TD1201 140 110 39 35 29 25 14 24 12 11 19,5 11 14 12 28 23,5 63 175
    E222140.0001 E222140.TD0801 175 140 49 44 35,5 32 17 27 13 15,5 24 19 20 8 30 25 72 271
    E222140.0003 E222140.TD1201 175 140 49 44 35,5 32 17 27 13 15,5 24 19 20 12 30 25 72 265
    E222140.0004 E222140.TD1401 175 140 49 44 35,5 32 17 27 13 15,5 24 19 20 14 30 25 72 261
    E222140.0005 E222140.TD1601 175 140 49 44 35,5 32 17 27 13 15,5 24 19 20 16 30 25 72 255
    E222185.0001 E222185.TD0801 223 185 55 47,5 40 38,5 16,5 27 14 17 29,5 21 22 08 34 26 82 450
    E222185.0004 E222185.TD1201 223 185 55 47,5 40 38,5 16,5 27 14 17 29,5 21 22 12 34 26 82 442
    Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
    Dm = Maximum obtainable diameter for subsequent machining (widening).
