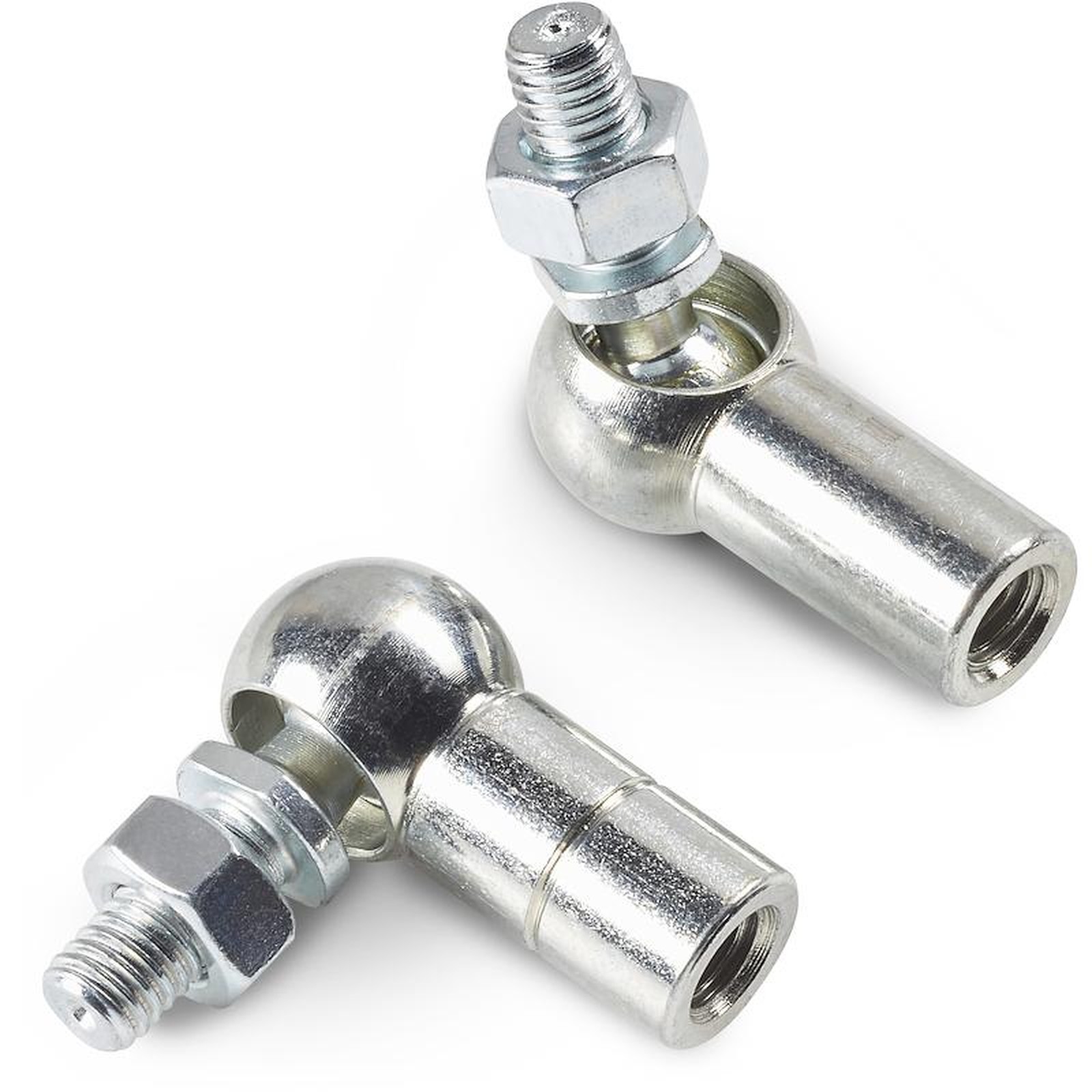

STEEL ANGLED BALL JOINT - DIN 71802 - C DESIGN
23
Y718
Giunti angolari
Materials:
Steel with strength class 5.8.
Surface finish:
Turned with low roughness.
Colour:
Standard blue galvanising.

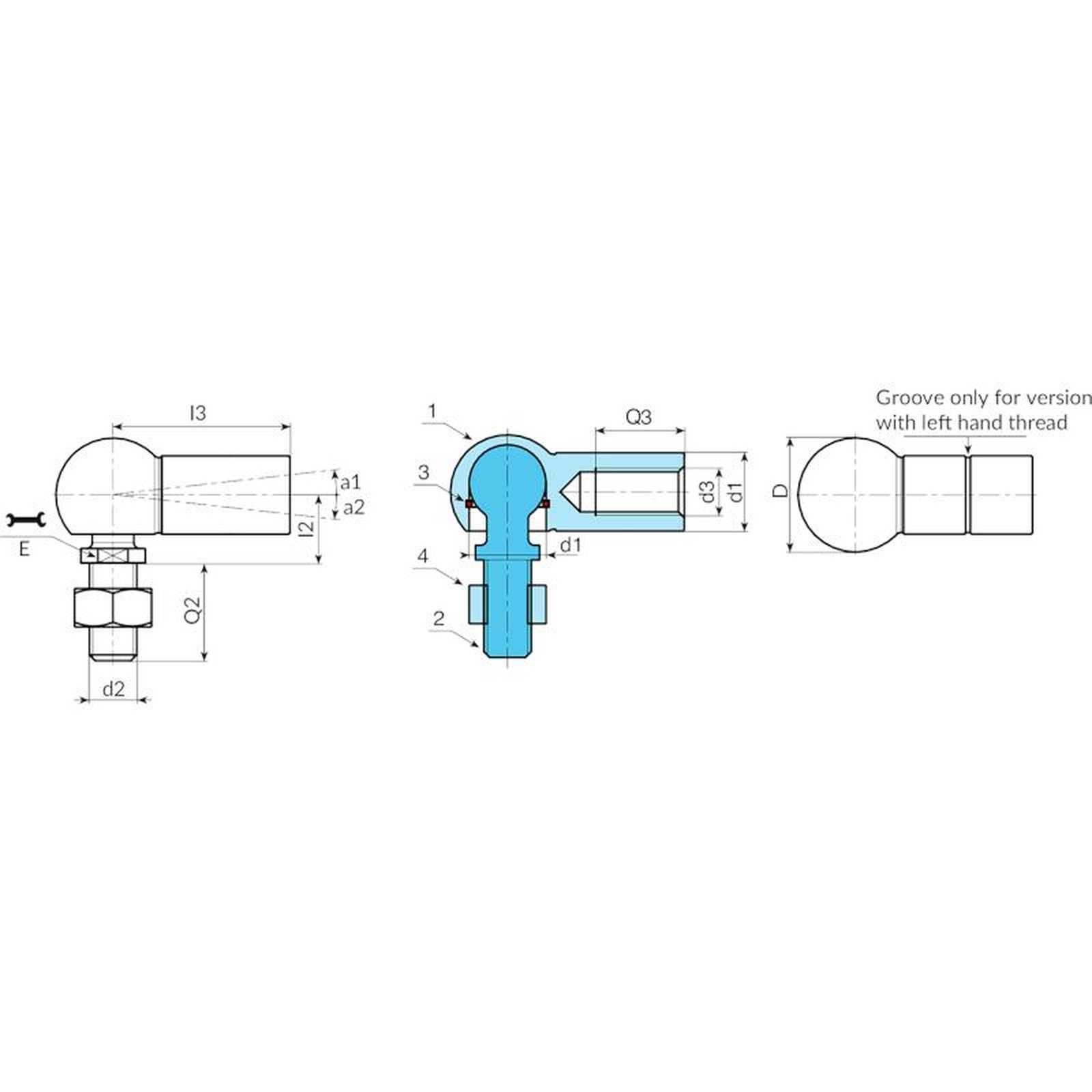

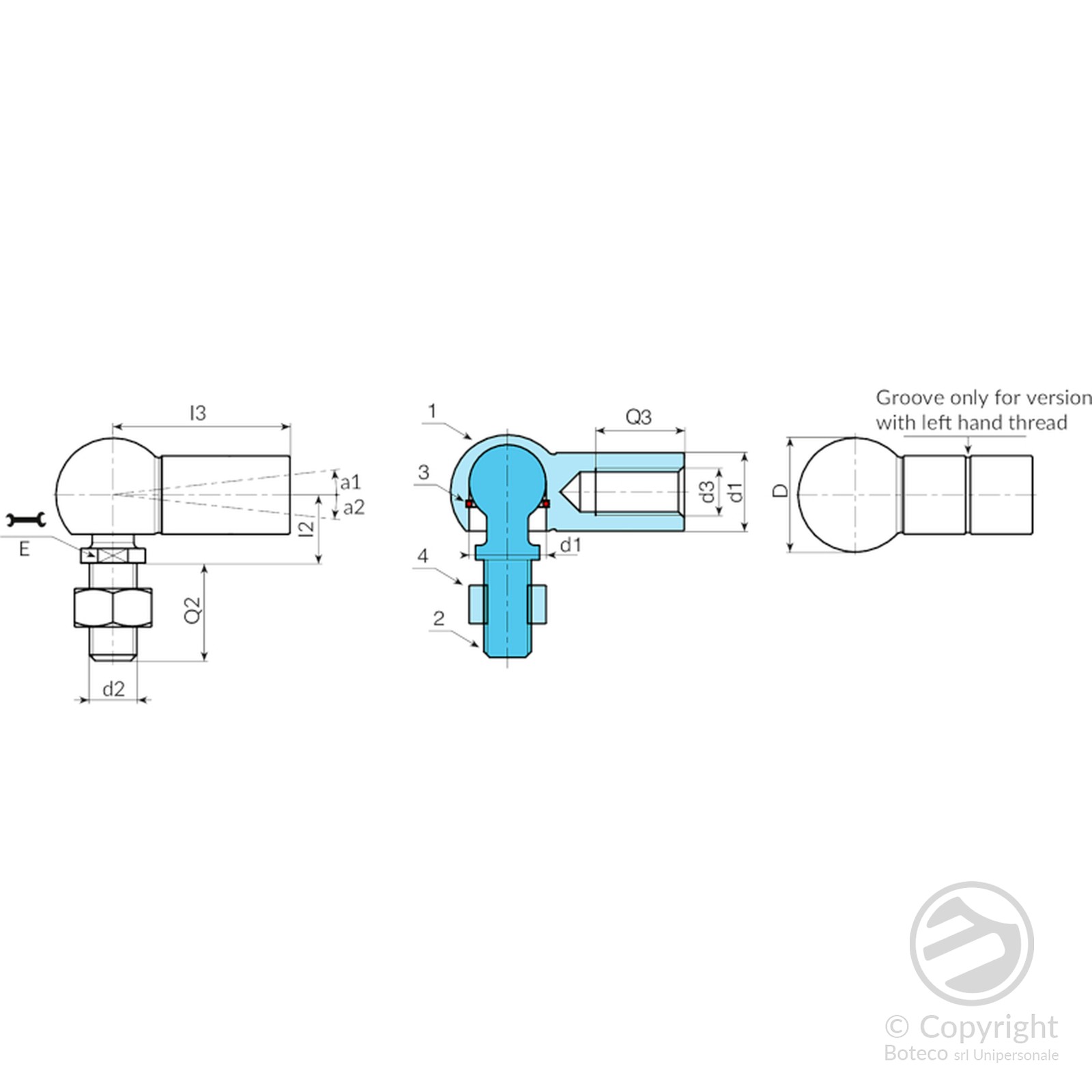

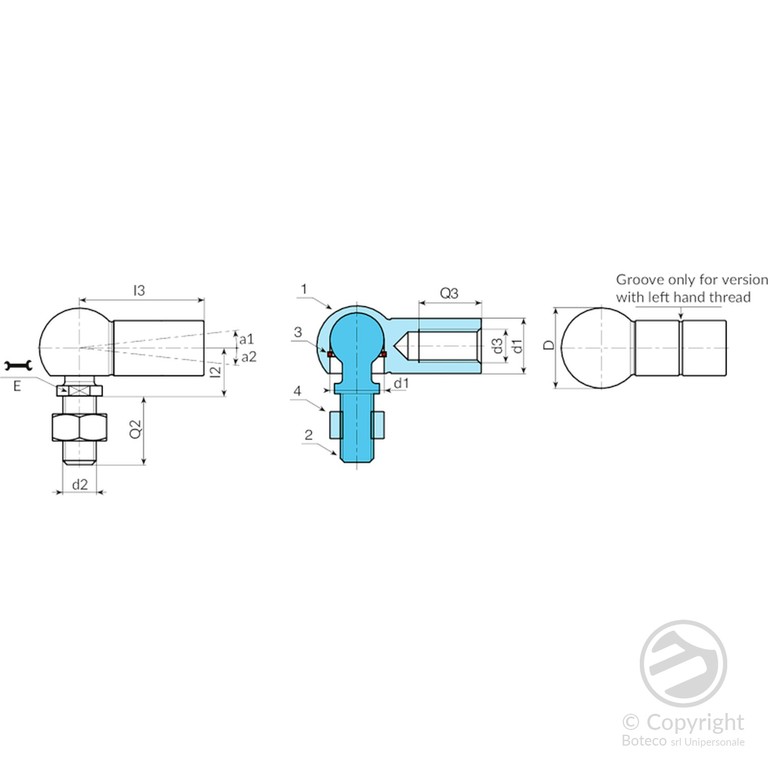

Inserts:
(1) Steel ball joint with threaded hole.
(3) Harmonic steel spring ring.
(4) Steel nut with threaded hole (DIN 934).
(2) Ball insert with milled seat for wrench and threaded stud machined from solid steel (thread tolerance 6g).
Standard version:
Right-hand thread (thread tolerance 6H).
Version SX (LH):
Left-hand thread (thread tolerance 6H). Identifiable by the groove on the joint.
Special requests:
None.
Version 718 - joint with standard thread
| Code | Art. | d2 6g | d3 6H | D | E | I2 | I3 | Q2 | d1#r# h9-H9 | Q3 | a1 | a2 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Y71808.0001 | Y71808.VZM05 | M5 | M5 | 12,8 | 7 | 9 | 22 | 10,2 | 8 | 10,2 | 18 | 18 | 15 |
| Y71810.0001 | Y71810.VZM06 | M6 | M6 | 14,8 | 8 | 11 | 25 | 11,5 | 10 | 11,5 | 18 | 18 | 25 |
| Y71813.0001 | Y71813.VZM08 | M8 | M8 | 19,3 | 11 | 13 | 30 | 14 | 13 | 14 | 18 | 18 | 53 |
| Y71816.0001 | Y71816.VZM10 | M10 | M10 | 24 | 13 | 16 | 35 | 15,5 | 16 | 15,5 | 18 | 18 | 104 |
| Y71819.0001 | Y71819.VZM14X1.5 | M14X1,5 | M14X1,5 | 30 | 16 | 20 | 45 | 21,5 | 19 | 21,5 | - | 15 | 221 |
Version 718 - joint with LH thread
| Code | Art. | d2 6g | d3 6H | D | E | I2 | I3 | Q2 | d1#r# h9-H9 | Q3 | a1 | a2 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Y71808.0002 | Y71808.VZM05SX | M5 | M5 SX | 12.8 | 7 | 9 | 22 | 10,2 | 8 | 10,2 | 18 | 18 | 15 |
| Y71810.0002 | Y71810.VZM06SX | M6 | M6 SX | 14.8 | 8 | 11 | 25 | 11,5 | 10 | 11,5 | 18 | 18 | 25 |
| Y71813.0002 | Y71813.VZM08SX | M8 | M8 SX | 19,3 | 11 | 13 | 30 | 14 | 13 | 14 | 18 | 18 | 53 |
| Y71816.0002 | Y71816.VZM10SX | M10 | M10 SX | 24 | 13 | 16 | 35 | 15,5 | 16 | 15,5 | 18 | 18 | 104 |
| Y71819.0002 | Y71819.VZM14X1.5SX | M14X1,5 | M14X1,5 SX | 30 | 16 | 20 | 45 | 21,5 | 19 | 21,5 | 18 | 18 | 221 |
