THREADED SHAFT COLLAR
23
Y711
Anelli di serraggio
Materials (1):
Y711:
Turned free-cutting steel.
Y711PIN:
Turned stainless steel (Aisi 303).
Surface finish:
Fine turned.
Colour:
Y711:
Standard black-oxide treatment.
Y711PIN:
Natural.
Fixing screws (2):
Y711:
No. 1 black-oxide treated steel socket head screw, class 12.9 DIN 912
Y711PIN:
No. 1 stainless steel socket head screw (Aisi 304) DIN 912.
ATTENTION:
We recommend making the shaft with a tolerance less than h11.
Special requests:
None.
Version Y711: Black-oxide treated steel shaft collars

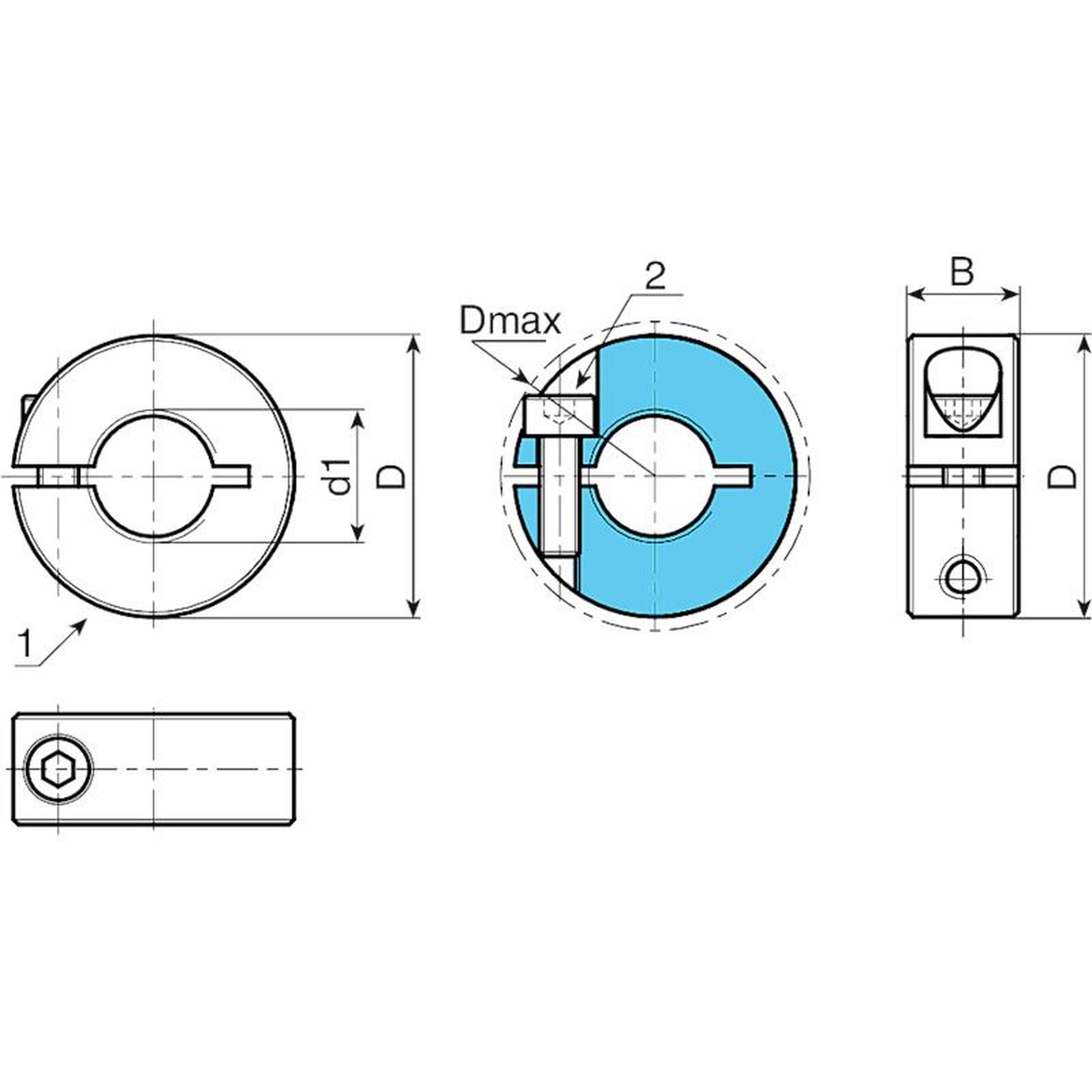

| Code | Art. | D | Dmax | B | d1 | DIN 912 | Weight (g) |
|---|---|---|---|---|---|---|---|
| Y711016.0004 | Y711016.VBM04 | 16 | 20,7 | 9 | M4 | M03x8 | 14 |
| Y711016.0005 | Y711016.VBM05 | 16 | 20,7 | 9 | M5 | M03x8 | 13,5 |
| Y711016.0006 | Y711016.VBM06 | 16 | 20,7 | 9 | M6 | M03x8 | 12 |
| Y711018.0002 | Y711018.VBM08 | 18 | 22,4 | 9 | M8 | M03x8 | 15 |
| Y711024.0002 | Y711024.VBM10 | 24 | 26 | 9 | M10 | M03x10 | 24.5 |
| Y711028.0002 | Y711028.VBM12 | 28 | 31,8 | 11 | M12 | M04x12 | 40 |
| Y711034.0002 | Y711034.VBM16 | 34 | 39,4 | 13 | M16 | M05x16 | 71 |
| Y711040.0002 | Y711040.VBM20 | 40 | 46,4 | 15 | M20 | M06x18 | 107 |

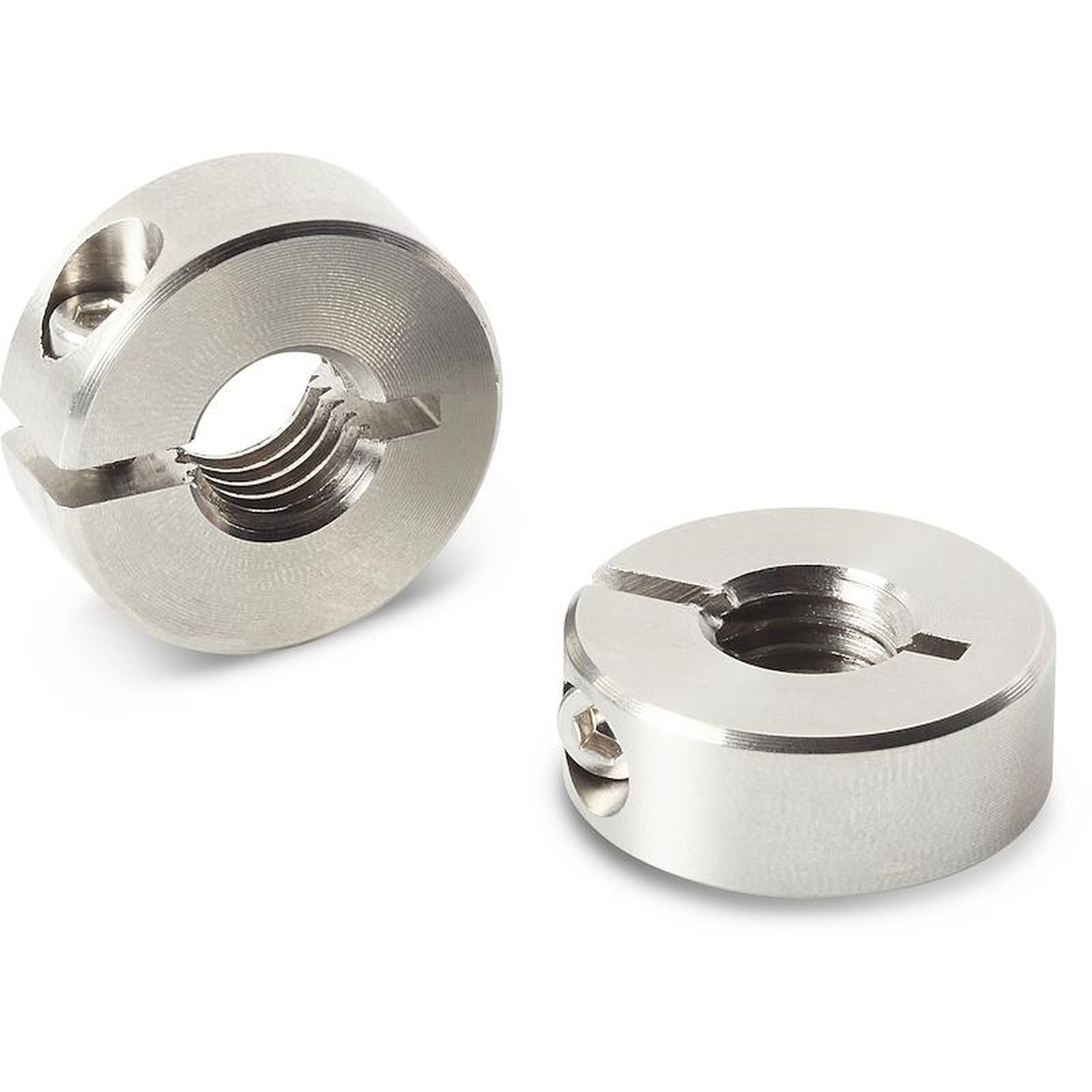

Version Y711 PIN: Stainless steel (Aisi 303) shaft collars
| Code | Art. | D | Dmax | B | d1 | DIN 912 | Weight (g) |
|---|---|---|---|---|---|---|---|
| Y711016.0001 | Y711016.INM04PIN | 16 | 20,7 | 9 | M4 | M03x8 | 14 |
| Y711016.0002 | Y711016.INM05PIN | 16 | 20,7 | 9 | M5 | M03x8 | 13,5 |
| Y711016.0003 | Y711016.INM06PIN | 16 | 20,7 | 9 | M6 | M03x8 | 12 |
| Y711018.0001 | Y711018.INM08PIN | 18 | 22,4 | 9 | M8 | M03x8 | 15 |
| Y711024.0001 | Y711024.INM10PIN | 24 | 26 | 9 | M10 | M03x10 | 24.5 |
| Y711028.0001 | Y711028.INM12PIN | 28 | 31,8 | 11 | M12 | M04x12 | 40 |
| Y711034.0001 | Y711034.INM16PIN | 34 | 39,4 | 13 | M16 | M05x16 | 71 |
| Y711040.0001 | Y711040.INM20PIN | 40 | 46,4 | 15 | M20 | M06x18 | 107 |
