Materials:

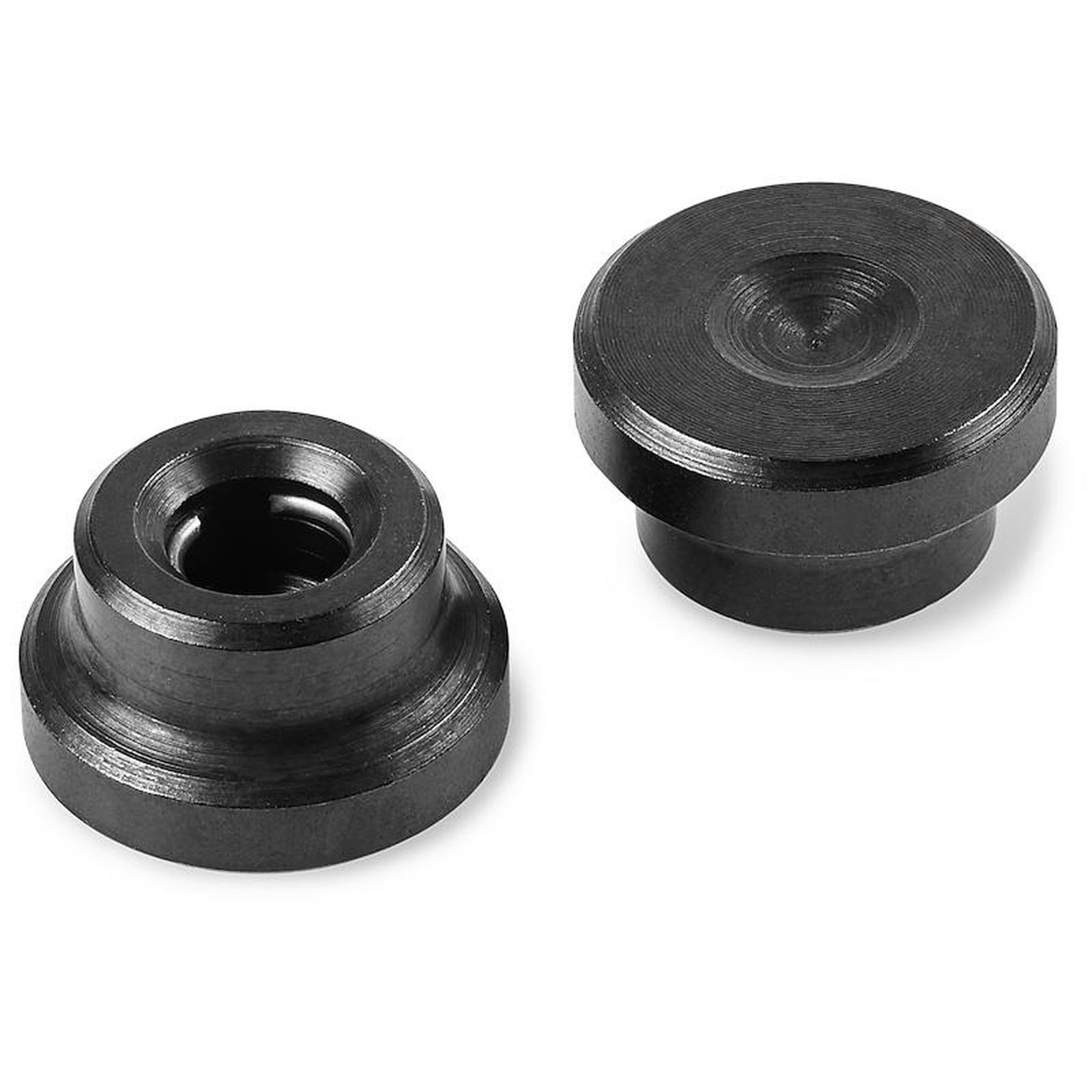

Y631:
Case-hardened base.
(1) Harmonic steel retaining ring.

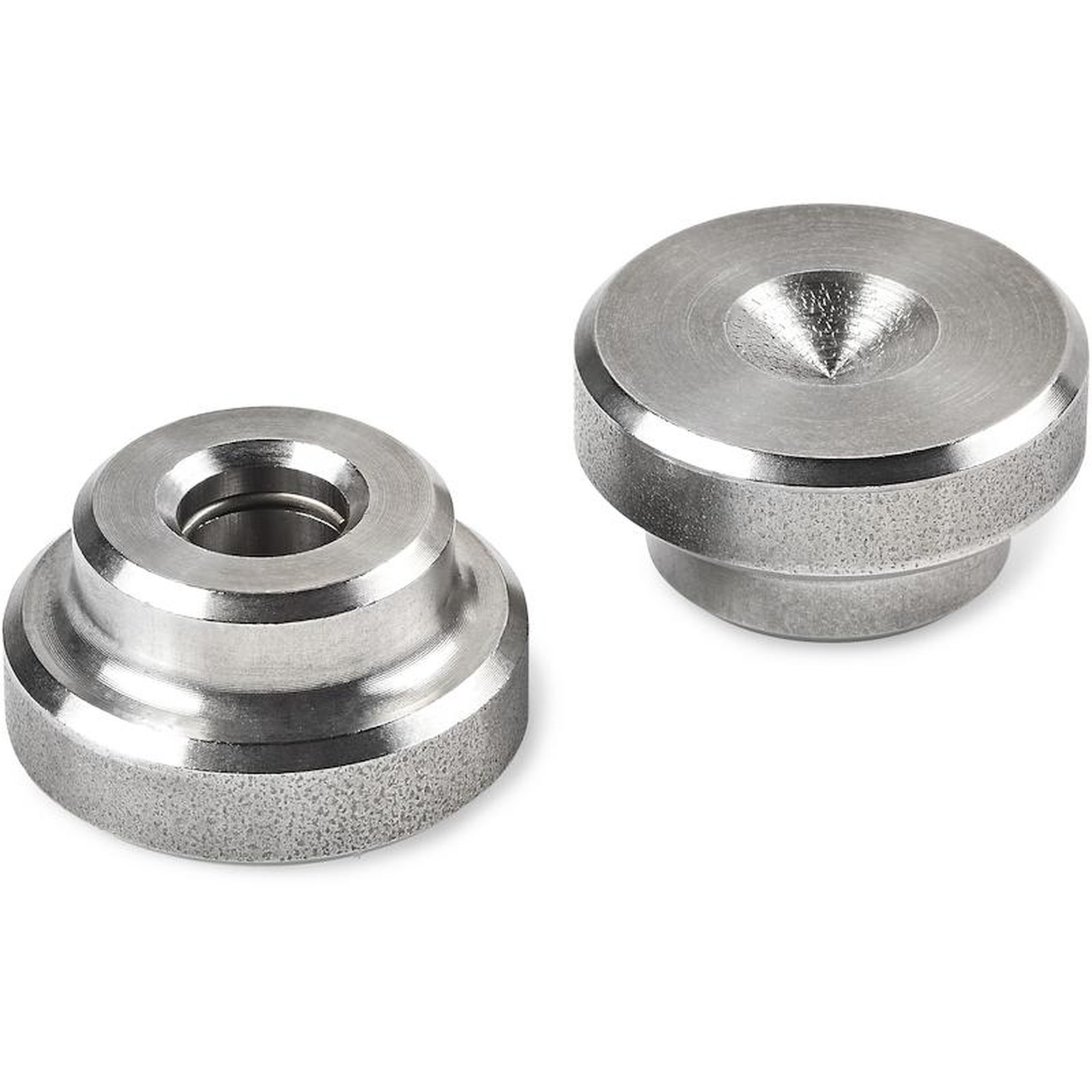

Y631 CIN:
Stainless steel base (Aisi 303).
(1) Stainless steel retaining ring (Aisi 302).
Surface finish:
Y631:
Case-hardened.
Y631 CIN:
Natural, untreated.
Colour:
Y631:
Black-oxide treatment.
Y631 CIN:
Natural.
Special requests:
Upon request and for special quantities the base can be supplied with a low T design and a larger clamping surface.

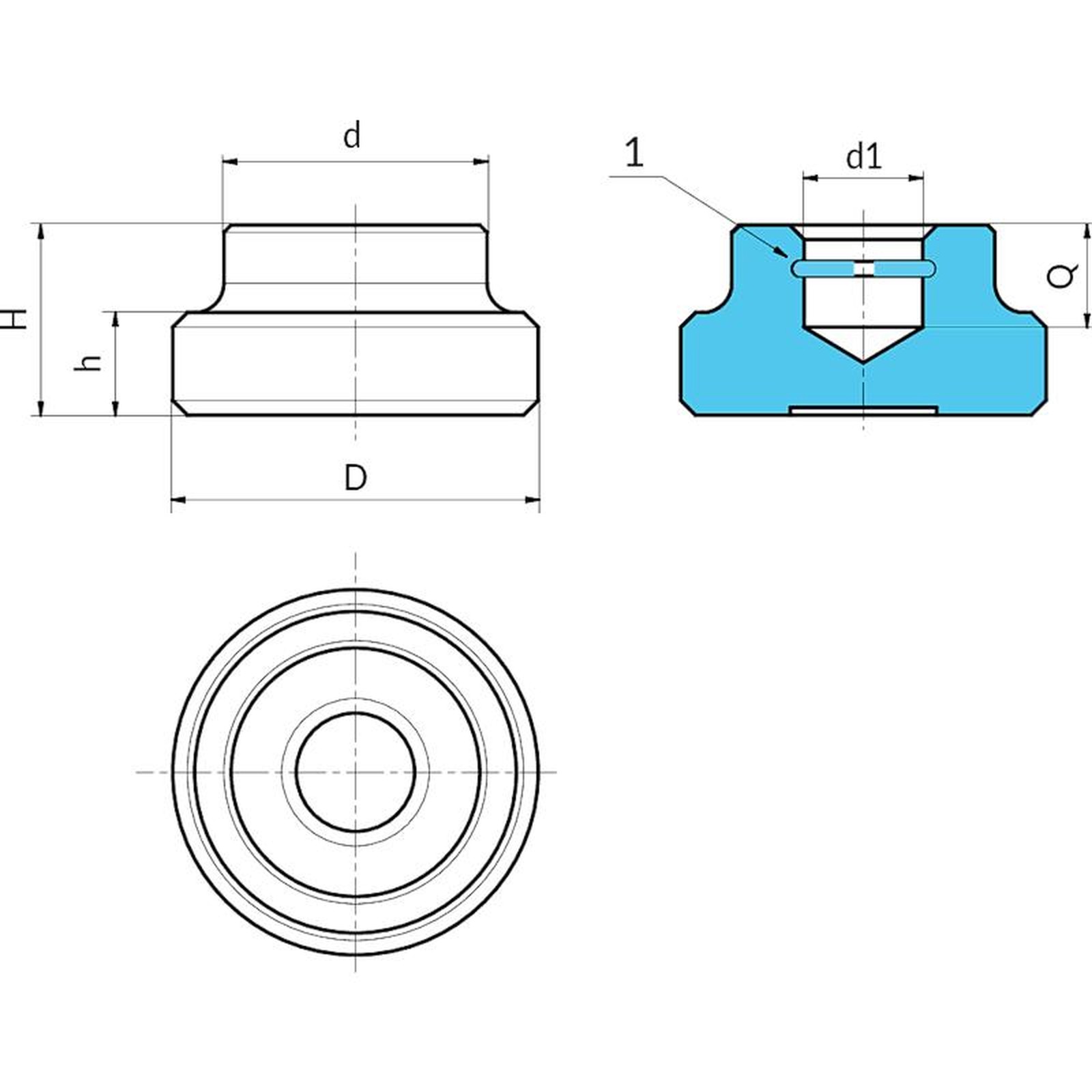

| Code | art. | D | d | H | h | for pins DIN 6332 | d1 H12 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| Y631012.0002 | Y631012.SBD04.6 | 12 | 10 | 7 | 2.5 | M06 | 4.6 | 4 | 4 |
| Y631016.0002 | Y631016.SBD06.1 | 16 | 12 | 9 | 4 | M08 | 6.1 | 5 | 9 |
| Y631020.0002 | Y631020.SBD08.1 | 20 | 15 | 11 | 5 | M10 | 8.1 | 6 | 12 |
| Y631025.0002 | Y631025.SBD08.1 | 25 | 18 | 13 | 7 | M12 | 8.1 | 7 | 34 |
| Y631032.0002 | Y631032.SBD12.1 | 32 | 22 | 15 | 7 | M16 | 12.1 | 7.5 | 57 |
| Y631040.0002 | Y631040.SBD15.6 | 40 | 28 | 16 | 9 | M20 | 15.6 | 8 | 103 |
| Code | art. | D | d | H | h | for pins DIN 6332 | d1 H12 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| Y631012.0001 | Y631012.IND04.6CIN | 12 | 10 | 7 | 2.5 | M06 | 4.6 | 4 | 4 |
| Y631016.0001 | Y631016.IND06.1CIN | 16 | 12 | 9 | 4 | M08 | 6.1 | 5 | 9 |
| Y631020.0001 | Y631020.IND08.1CIN | 20 | 15 | 11 | 5 | M10 | 8.1 | 6 | 12 |
| Y631025.0001 | Y631025.IND08.1CIN | 25 | 18 | 13 | 7 | M12 | 8.1 | 7 | 34 |
| Y631032.0001 | Y631032.IND12.1CIN | 32 | 22 | 15 | 7 | M16 | 12.1 | 7.5 | 57 |
| Y631040.0001 | Y631040.IND15.6CIN | 40 | 28 | 16 | 9 | M20 | 15.6 | 8 | 103 |
