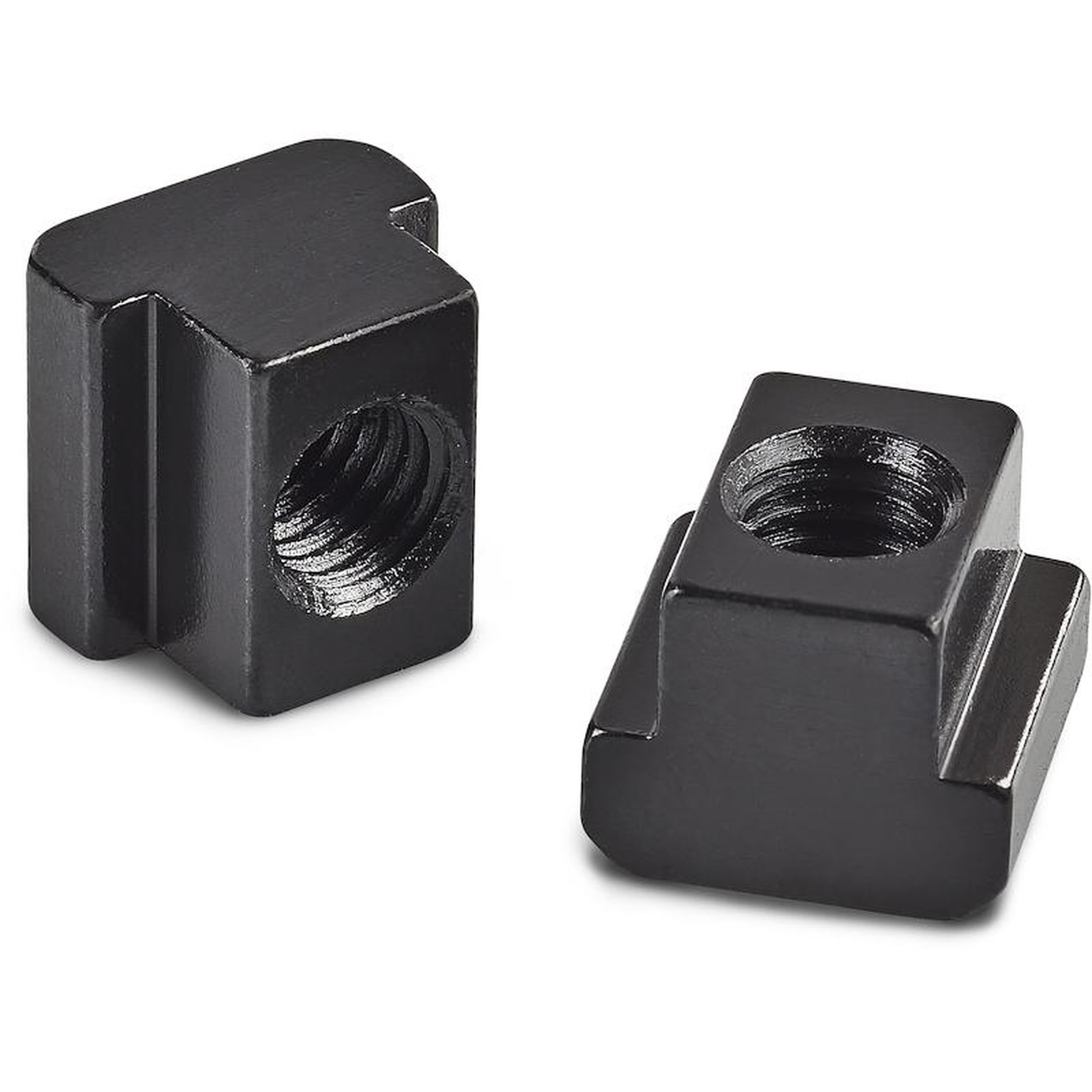

Materials:
Steel with class 8 tensile strength.
Surface finish:
Smooth.
Colour:
Black-oxide treated.
Hole:
Threaded through hole (thread tolerance 6H).
Special requests:
The product can be supplied with galvanised finish. Replace the "SBM" portion of the code with "SZM".
| Code | art. | A -0,3/+0,5 | B -0,5 | L -0,5 | h1 -0,5 | H | T slot DIN508 | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| Y508005.0001 | Y508005.SBM0408 | 5 | 9 | 9 | 3 | 5,5 | 5 | M4 | 2 |
| Y508006.0001 | Y508006.SBM0508 | 6 | 10 | 10 | 4 | 8 | 6 | M5 | 4 |
| Y508008.0001 | Y508008.SBM0608 | 8 | 13 | 13 | 6 | 10 | 8 | M6 | 8 |
| Y508010.0001 | Y508010.SBM0808 | 9,5 | 16 | 20 | 6,5 | 12 | 10 | M8 | 12 |
| Y508012.0001 | Y508012.SBM1008 | 12 | 19 | 22 | 6,5 | 12 | 12 | M10 | 20 |
| Y508014.0001 | Y508014.SBM1208 | 14 | 22 | 26 | 8 | 16 | 14 | M12 | 34 |
| Y508018.0001 | Y508018.SBM1608 | 18 | 28 | 30 | 10,5 | 20 | 18 | M16 | 62 |
| Y508022.0001 | Y508022.SBM2008 | 22 | 35 | 39 | 14,5 | 27 | 22 | M20 | 149 |
| Y508028.0001 | Y508028.SBM2408 | 27 | 41 | 42,5 | 17 | 33,5 | 28 | M24 | 314 |
| Y508036.0001 | Y508036.SBM3008 | 35 | 53 | 53 | 22,5 | 44 | 36 | M30 | 586 |
