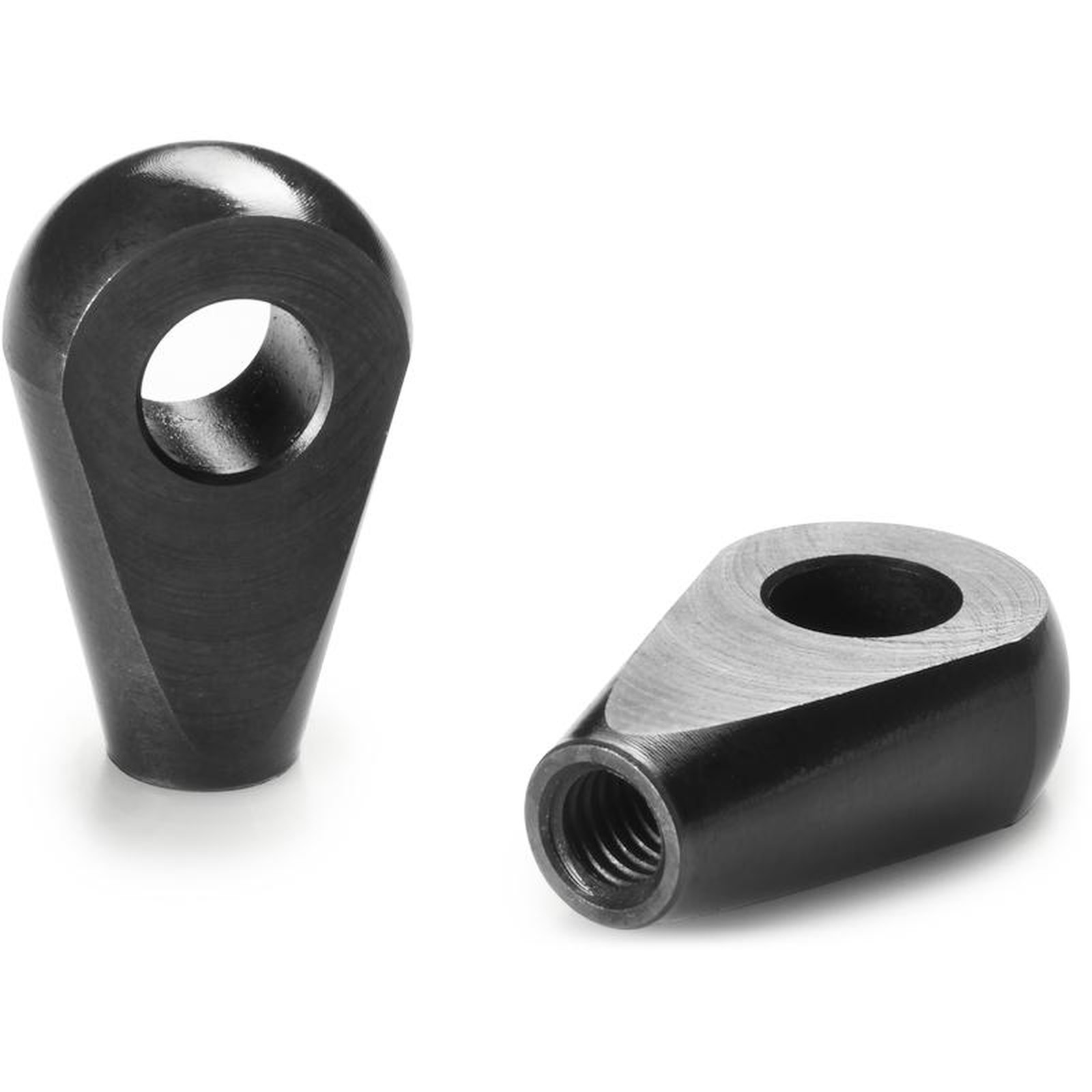

STEEL EYELET END FITTING
23
Y442
Componenti vari DIN
Materials:
Steel with strength class 5.8.
Surface finish:
Fine turned finish.
Colour:
Standard black-oxide treatment.
Hole:
(d1) Female threaded hole machined from solid metal (thread tolerance 6H).
(d2) Smooth through hole machined from solid metal (hole tolerance H7).
Special Requests:
On request the product can be supplied with galvanised finish, (code no.: Y442018.VZM06 - attention: hole tolerance H9).
| Code | art. | D -0.3 | H | A -0.15 | I | d | d2 H7 | d1 6H | Q +1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| Y44218.0001 | Y44218.SBM06 | 18 | 37 | 9 | 19 | 8,5 | 7,1 | M6 | 9 | 1,4 |
