04
DFLAN

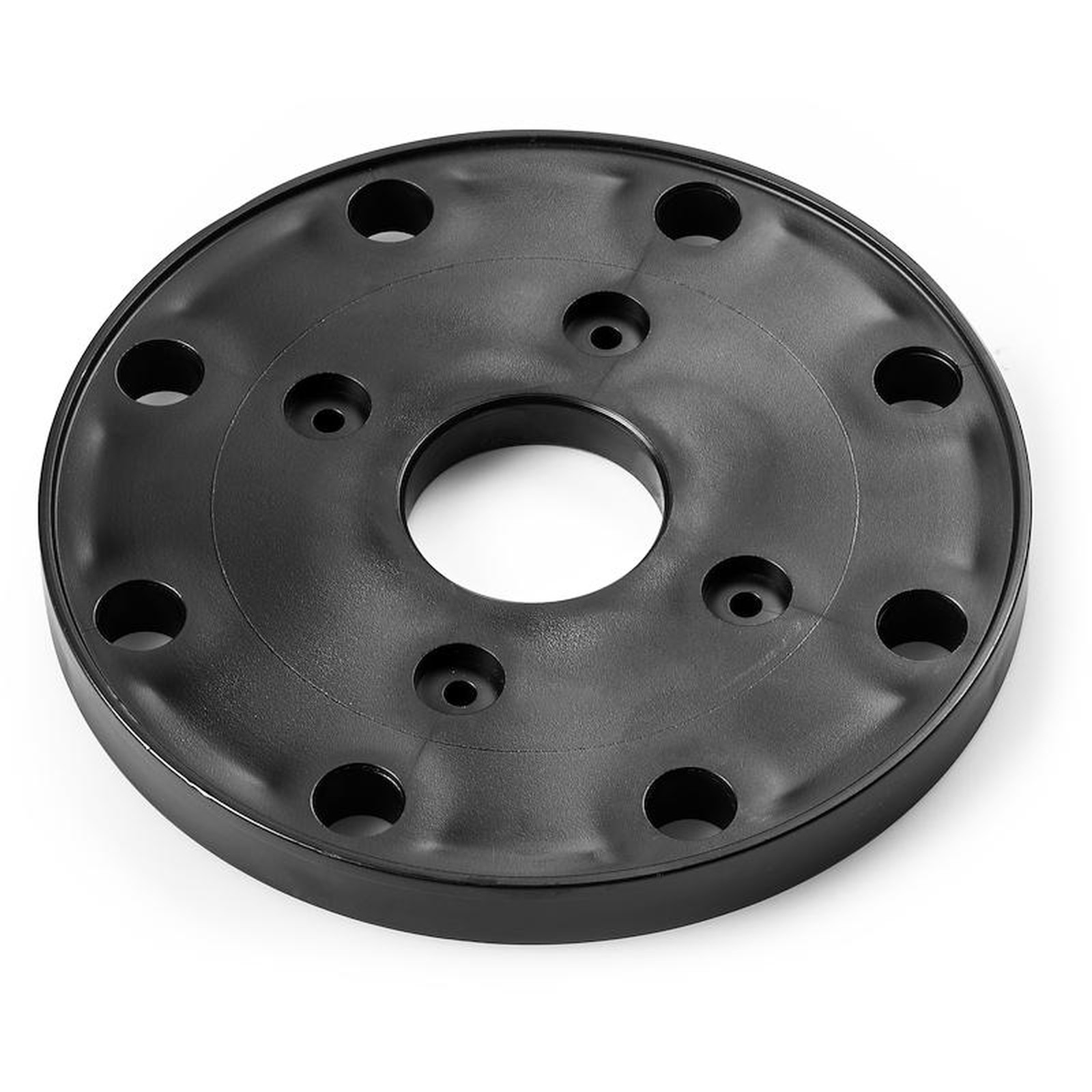

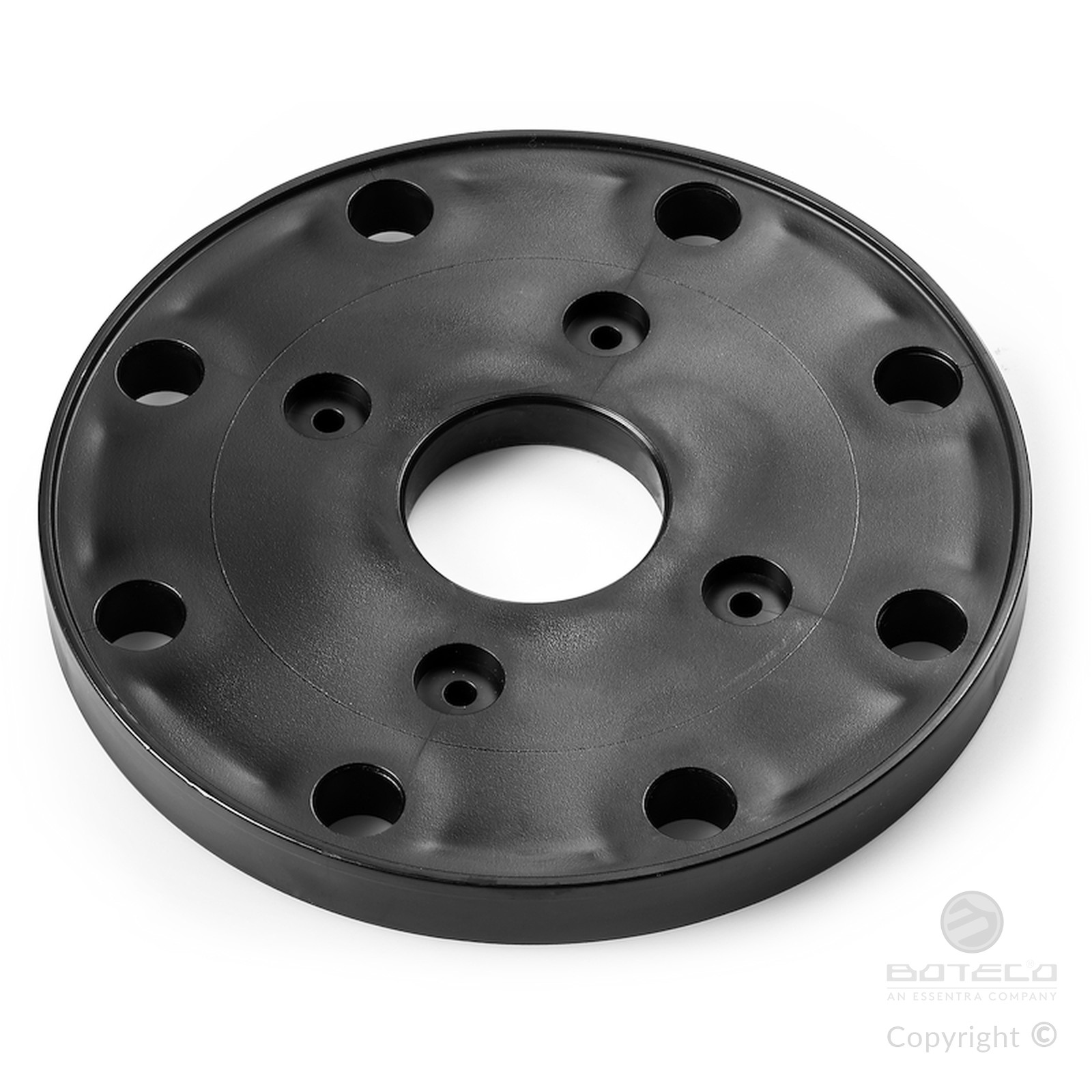

LOCKING FLANGE FOR POSITIONING (ACESSORY FOR ART. D601-D602-D603-D604)

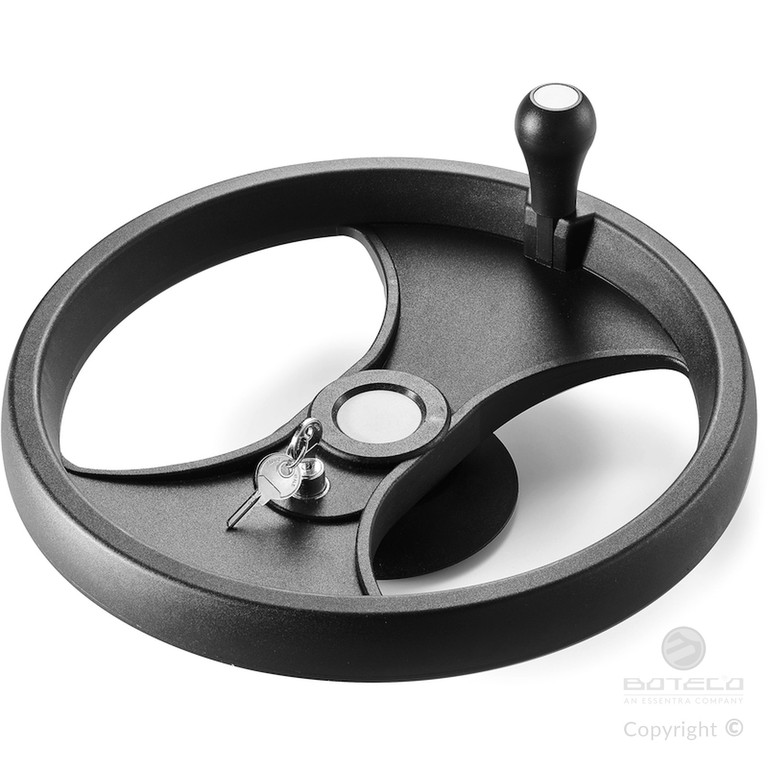

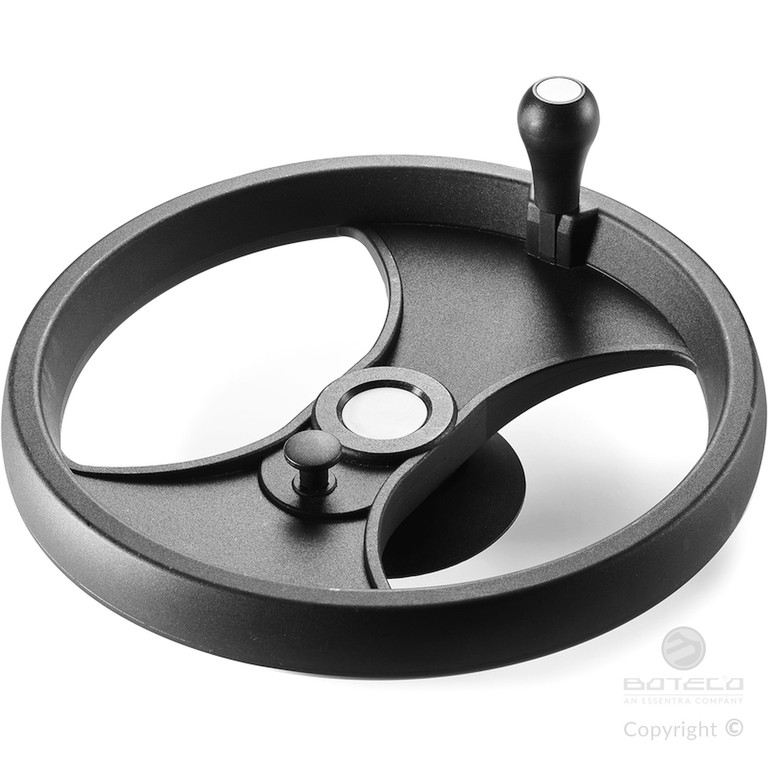

Handwheels for mobile storage cabinets mounted on a trackway
Materials:
Impact resistant polystyrene.
Surface finish:
Smooth.
Colour:
Black(RAL 9011).
Holes:
Holes obtained by moulding the plastic. Holes marked d2 cannot be modified. It is possible to change both the diameter and the positioning of holes marked d1, d3, d4.
Fixing method:
Use the 4 central holes d3. Screws not supplied.
Special requests:
Upon request and for special quantities, customised position and diameter of holes d1, d3, d4.

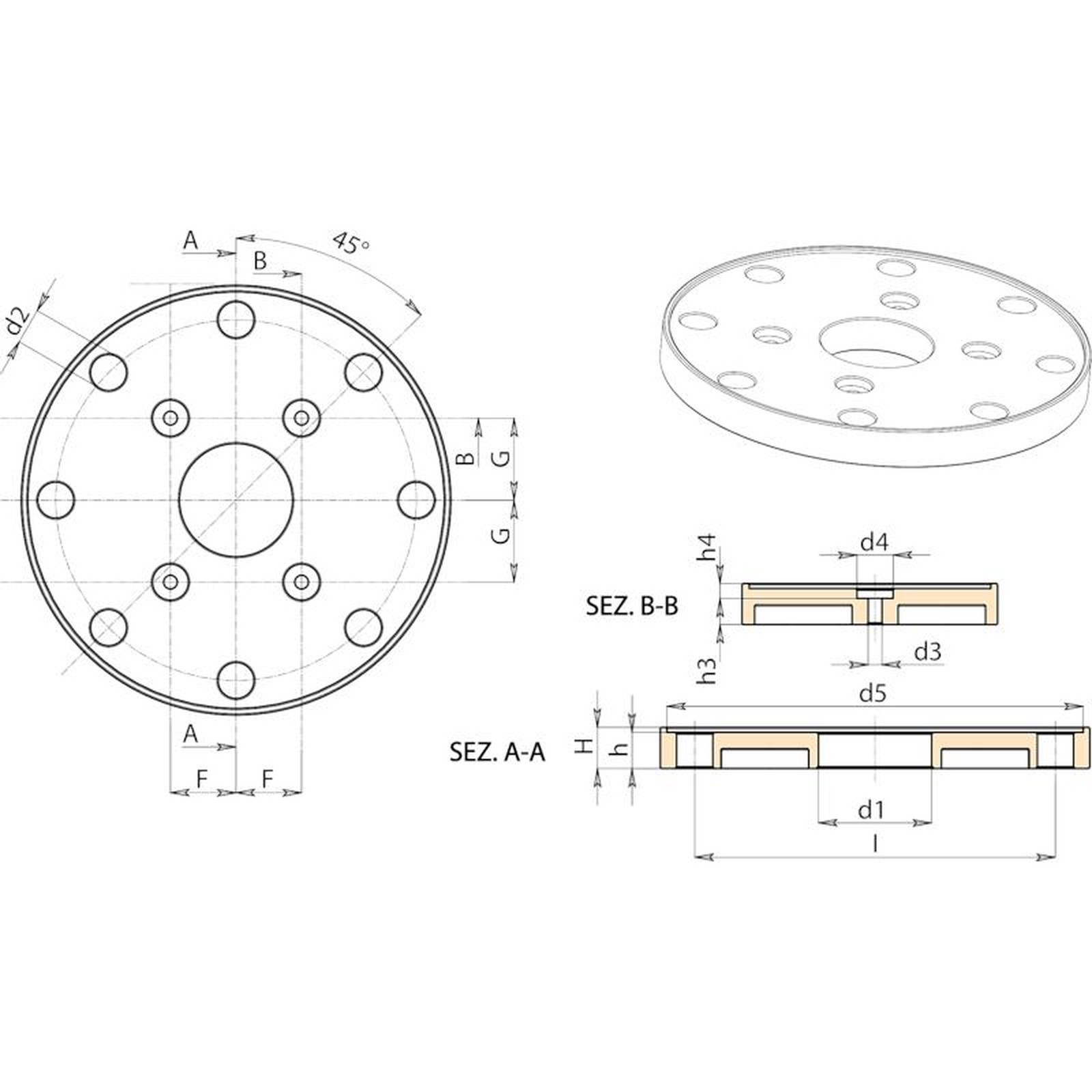

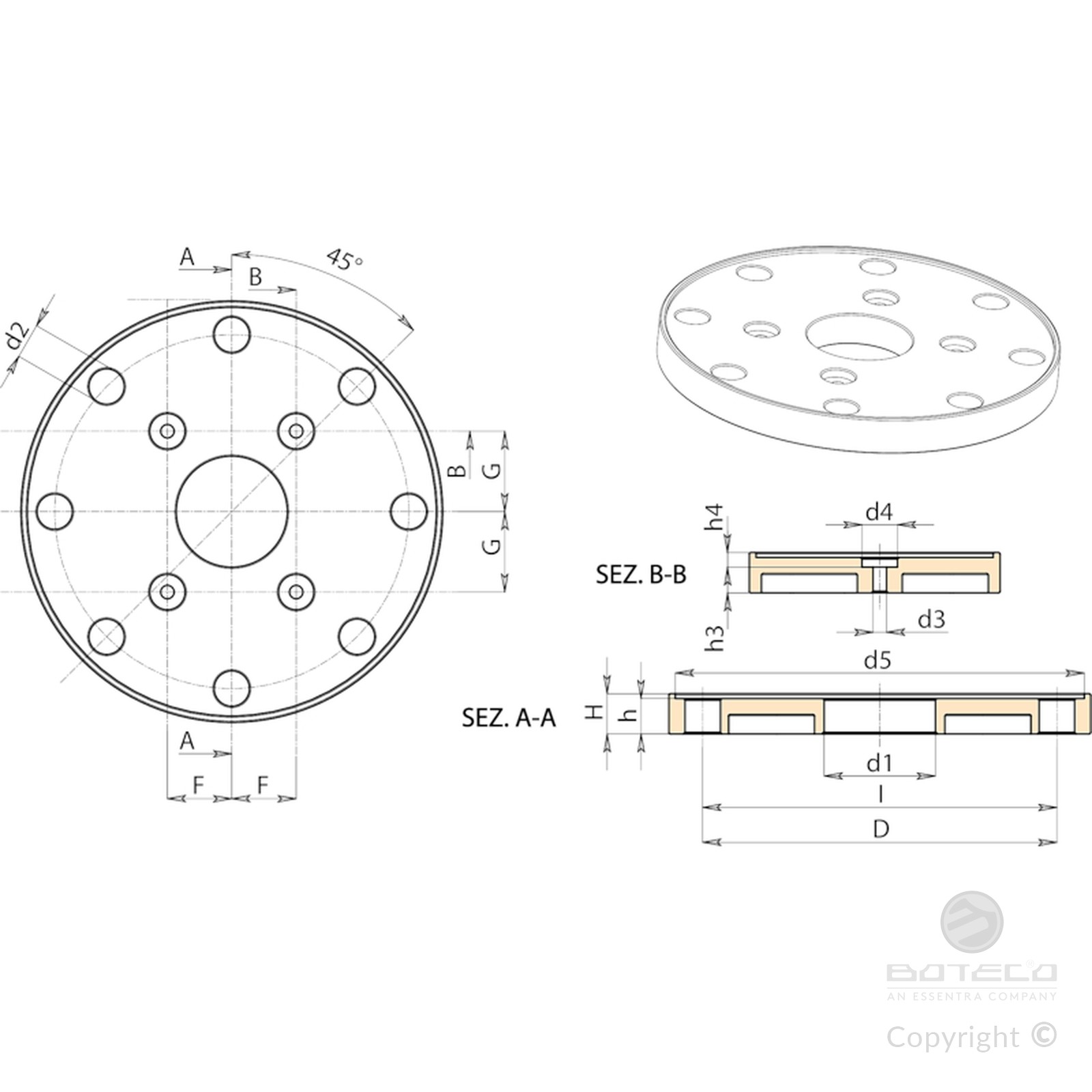

| Code | Art. | D | H | h | h3 | h4 | I | F | G | d2 | d3 | d4 | d5 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFLAN.0001 | DFLAN.T131X34,5X4,2 | 131 | 12.5 | 11 | 8 | 3 | 110 | 20 | 25 | 11 | 4.5 | 11 | 127 | 34.5 | 80 |
A.R. = Upon request.
| Code | Art. | D | H | h | h3 | h4 | I | F | G | d2 | d3 | d4 | d5 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFLAN.0001 | DFLAN.T131X34,5X4,2 | 131 | 12.5 | 11 | 8 | 3 | 110 | 20 | 25 | 11 | 4.5 | 11 | 127 | 34.5 | 80 |
| - | DFLAN.T131X............... | 131 | 12.5 | 11 | A.R. | A.R. | 110 | A.R. | A.R. | 11 | A.R. | A.R. | 127 | A.R. | - |
A.R. = Upon request.
