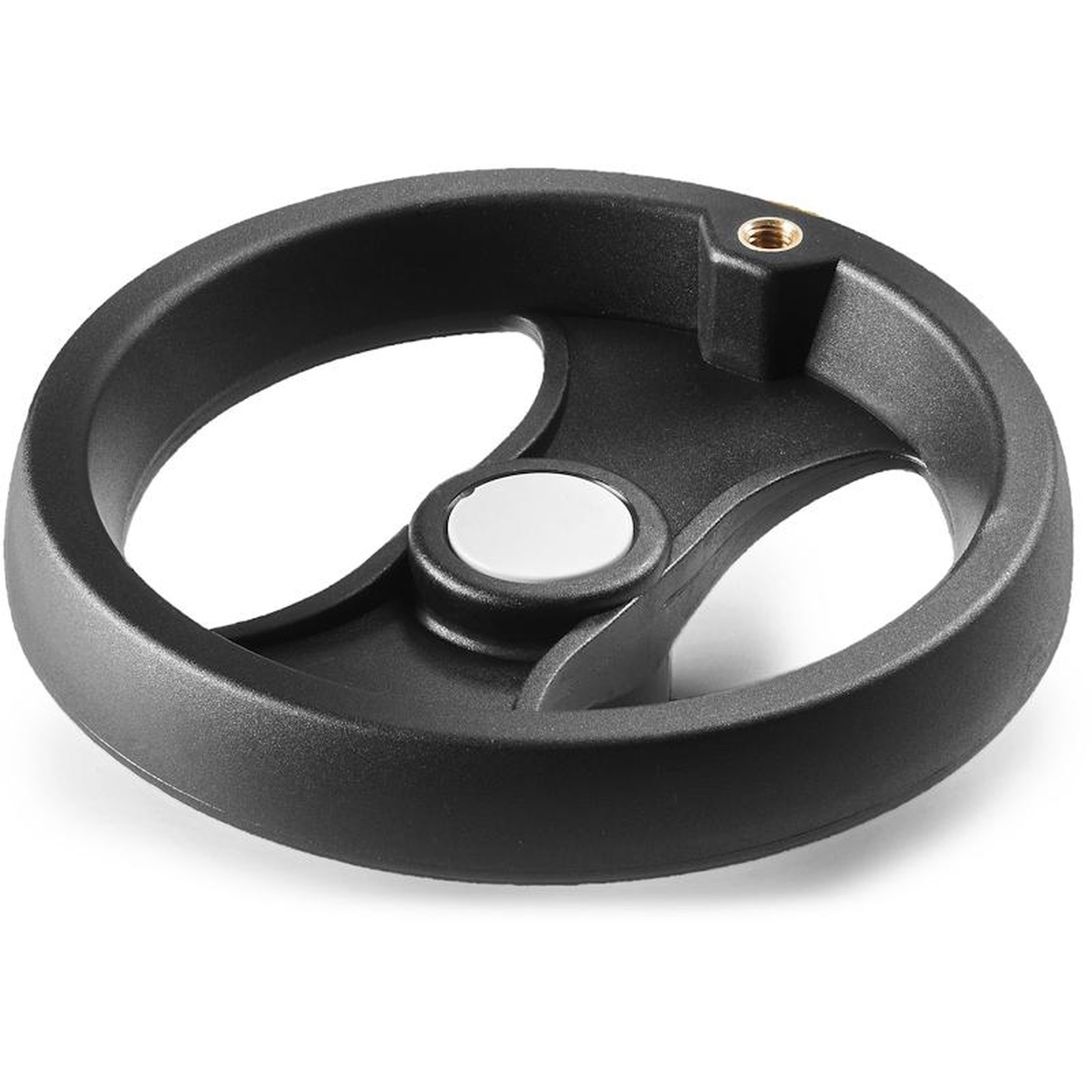

TWO-SPOKE CONTROL HANDWHEEL BASE WITH PROVISION FOR HANDLE

04

DBASE


Volantini a razze

    Materials:

    Reinforced and stabilized polyamide. Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black (RAL 9011).

    Central cap:

    Grey polyamide (RAL 7035). 13).

    Alternative cap colours:

    Orange (RAL 2004 code 02).

    Blue (RAL 5015 code 07).

    Yellow (RAL 1021 code 10).

    Red (RAL 3000 code 16).

    Green (RAL 6024 code 17).

    Black (RAL 9011 code 01).

    Main insert:

    Galvanised steel insert with smooth through bore (tolerance H10).

    Lateral insert:

    Brass insert with threaded through hole.

    Hub:

    Solid Hub.

    (*) Lightweight hub.

    Fixing method:

    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

    Special requests:

    On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.

    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

    Upon request and for special quantities available in the colours indicated in the chart.

    Data sheet

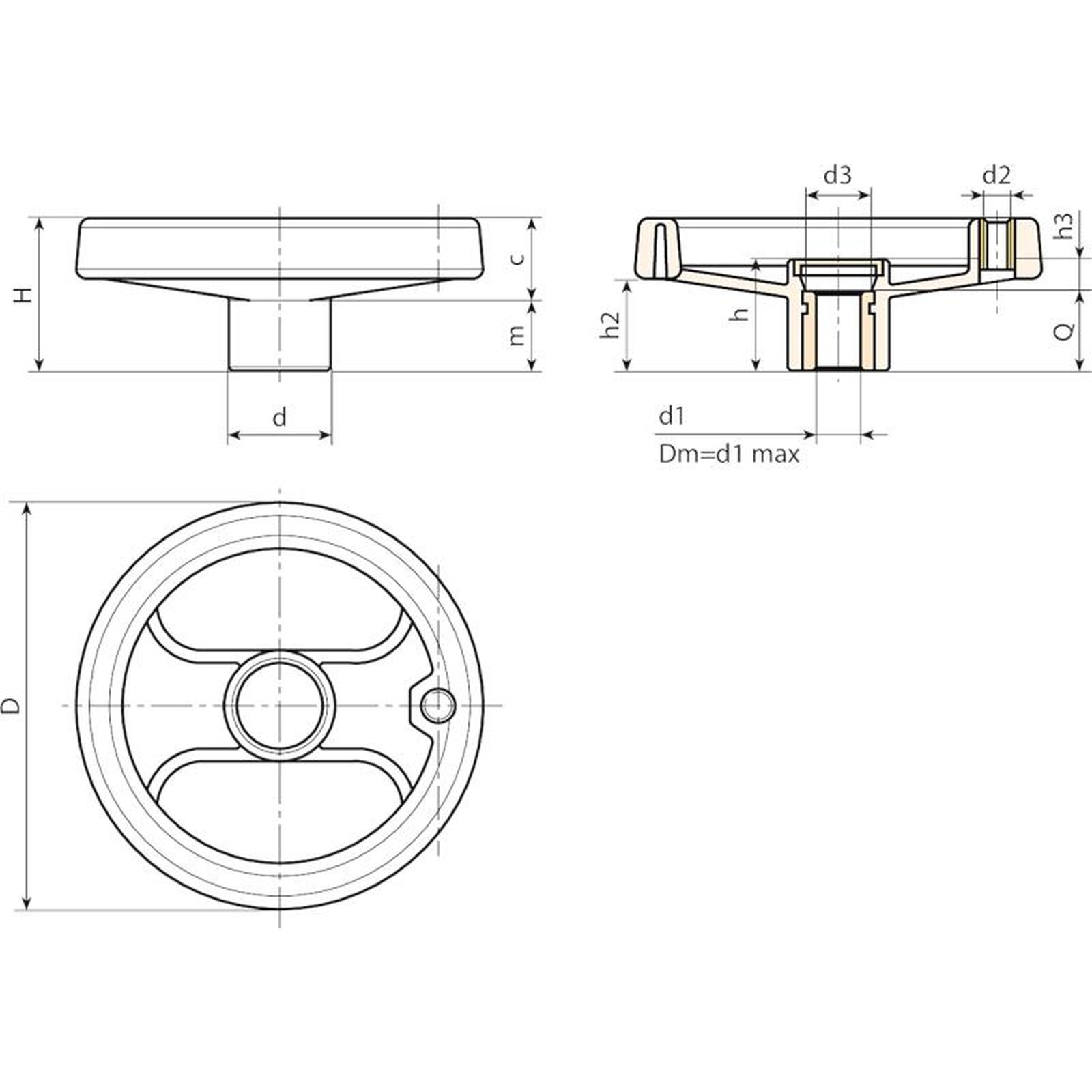

    Code Art. D H h d m c h2 h3 d3 Dm d2 6H d1 H10 Q Weight (g)
    D080.TP0501PZ1 D080.TP0501PZ1 80 34 26 24,5 15,5 18,5 20 6 16,5 12 M6 5 20 90
    D100.TP0501PZ1 D100.TP0501PZ1 100 43 33 28,5 20,5 22,5 26,5 9 16,5 16 M6 5 24 150
    D130.TP0501PZ1 D130.TP0501PZ1 129 50 35.5 32 20 30 30 11,5 25,5 18 M8 5 24 230
    D160.TD0801PZ1 D160.TD0801PZ1 160 57,5 41 40 20 37.5 34 9 26 22 M8 8 32 375
    D200.TD0801PZ1 D200.TD0801PZ1 198 60,5 38,5 51 16,5 44 31,5 7,5 27 22 M8 8 32 615
    D250.TD0801PZ1 D250.TD0801PZ1 252 70 48 56 23 47 38,5 12 31,5 28 M10 8 36 920
    D350.TD0801PZ1 D350.TD0801PZ1 349 78 49 67 21 57 42 17 34 30 M10 (*) 8 32 1510
    Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
