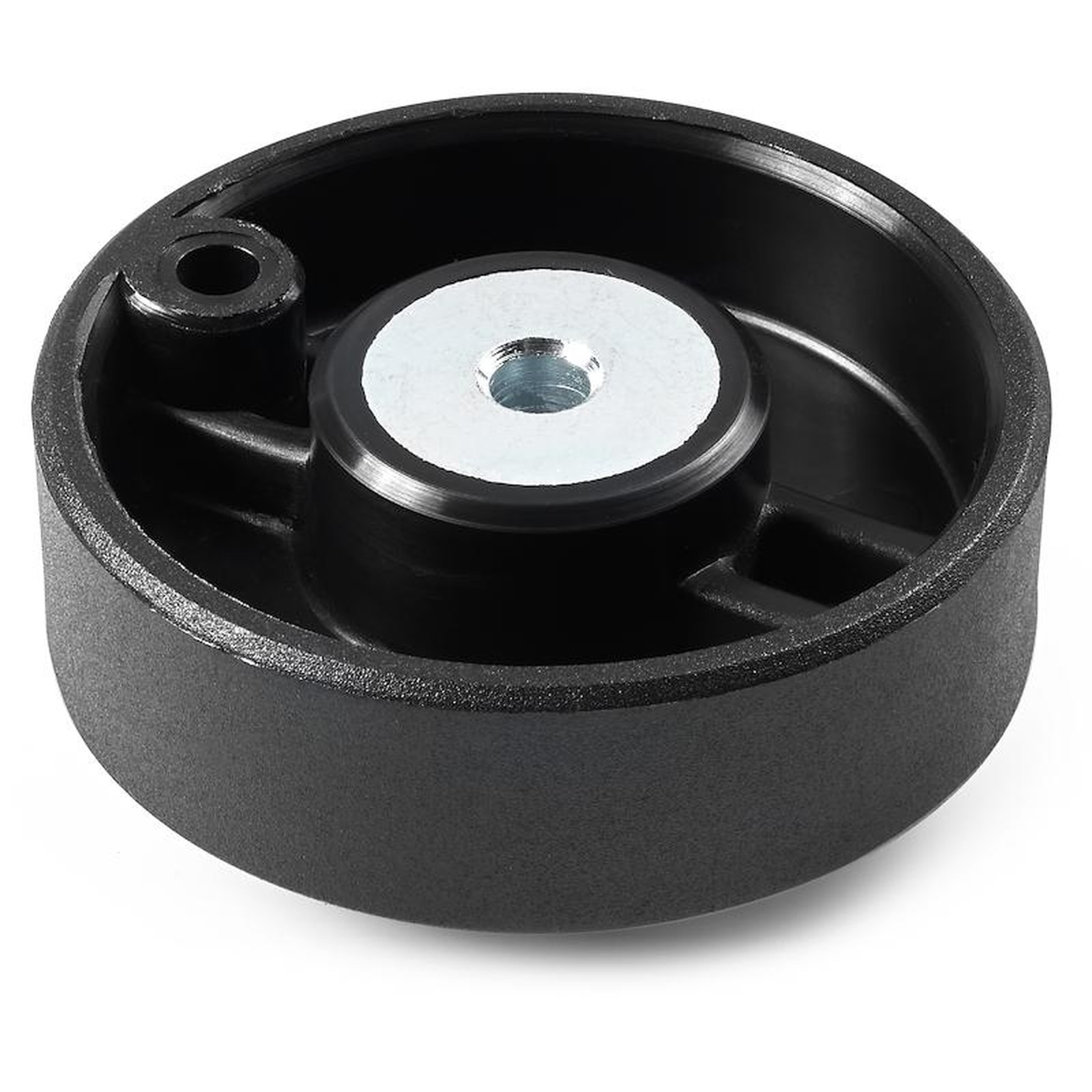

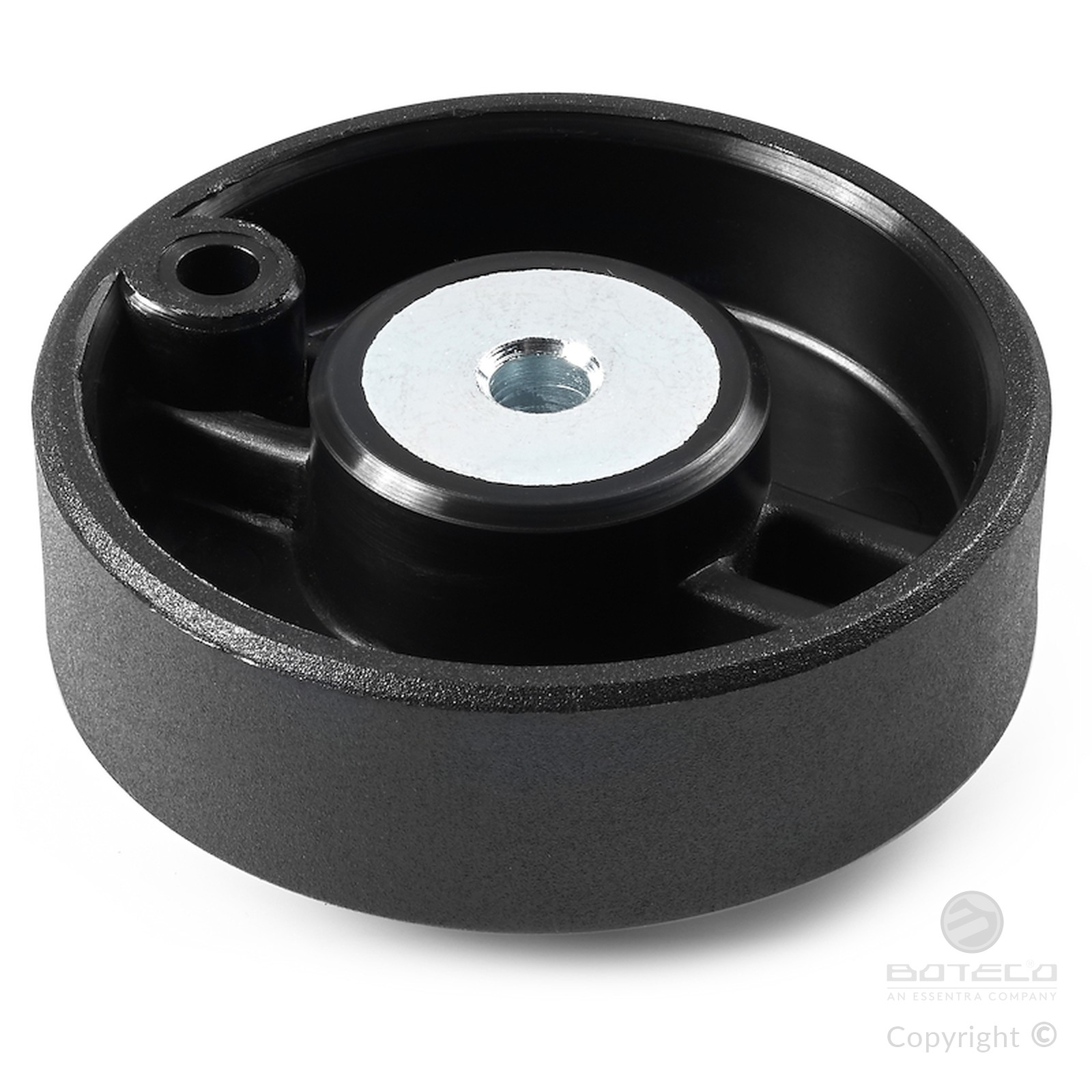

LIGHTWEIGHT CONTROL HANDWHEEL
04
D782
Volantini di manovra vari
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Main insert:
Galvanised steel insert with smooth through bore (tolerance H10).
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities available in the colours indicated in the chart.

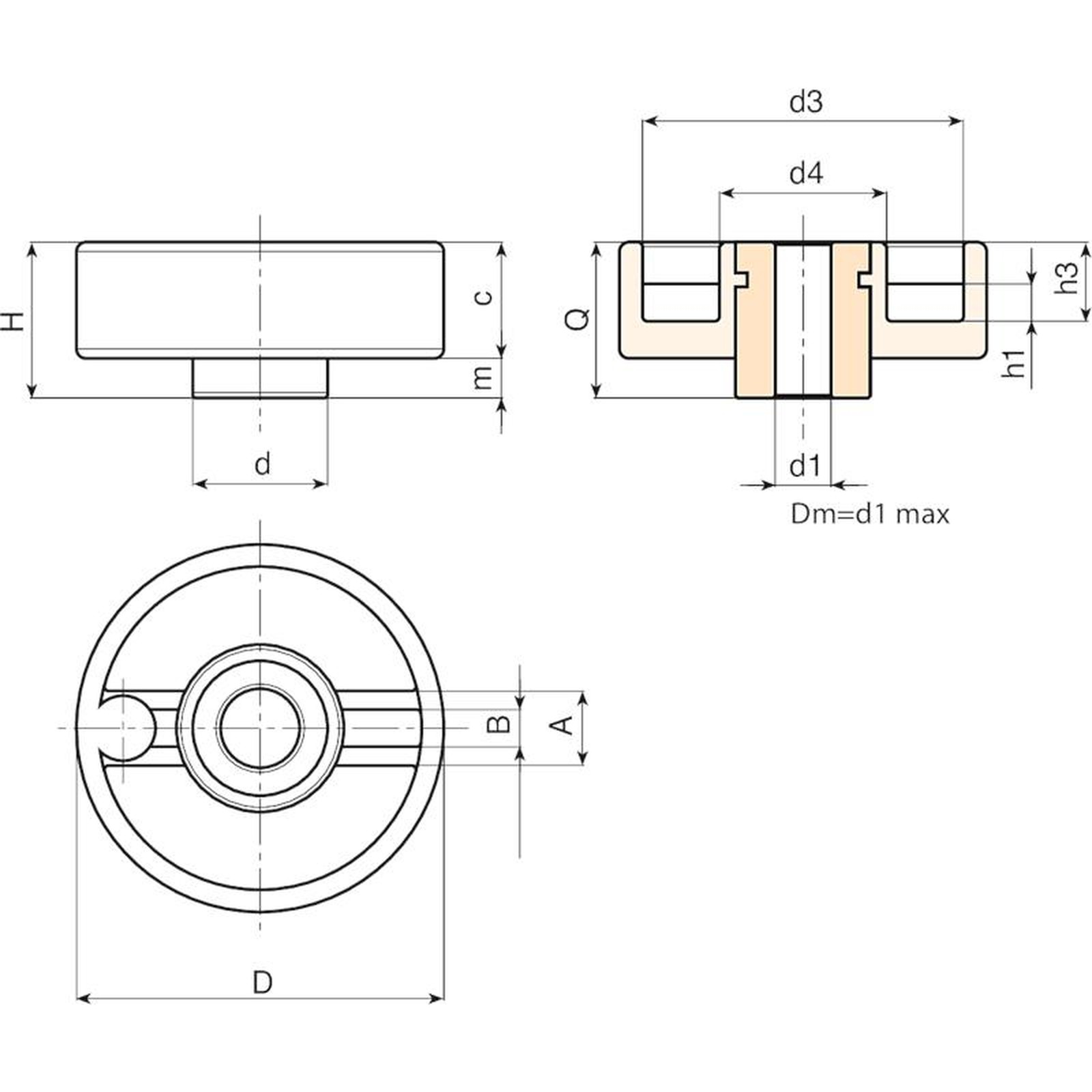

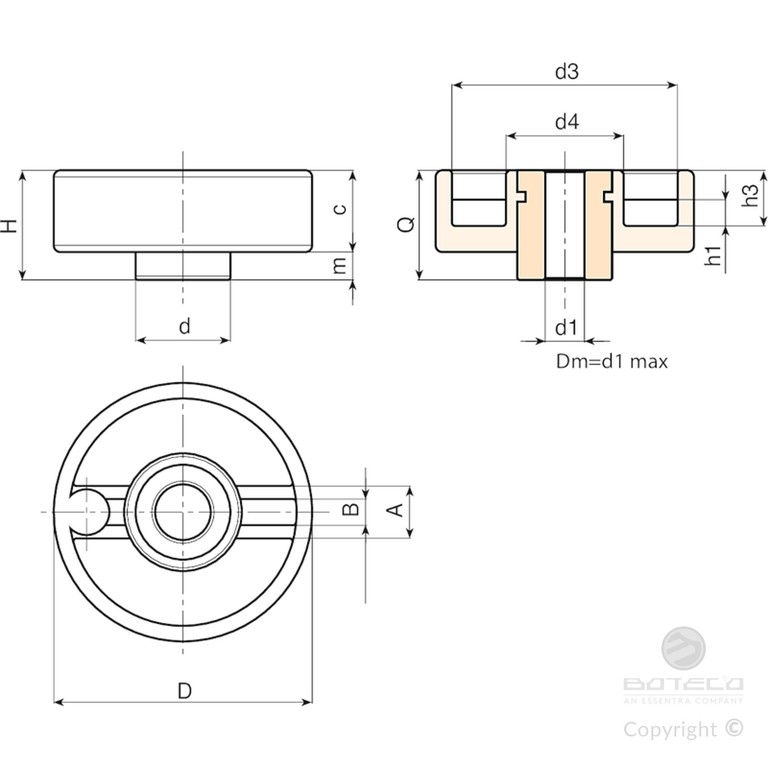

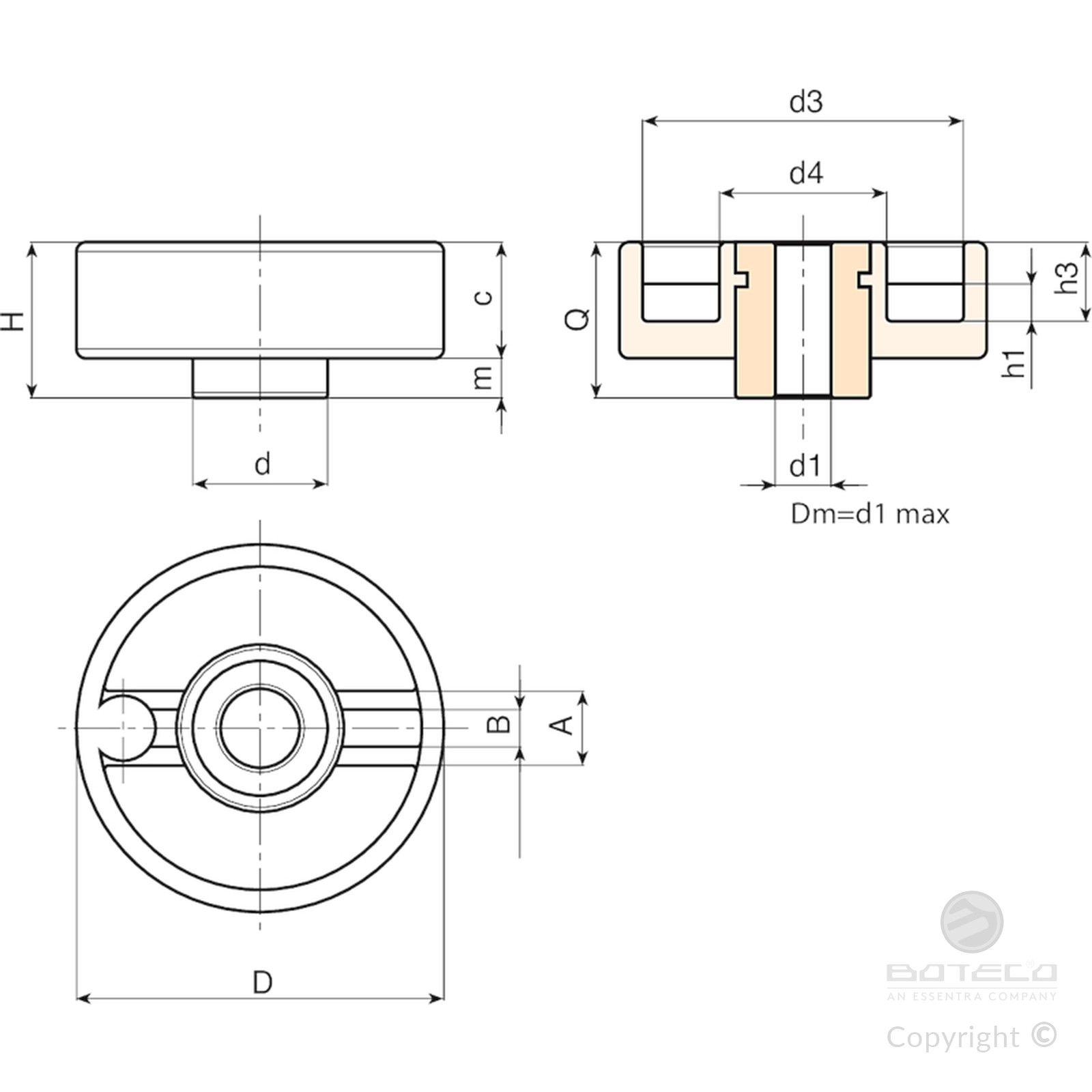

| Code | Art. | D | H | d | c | m | h1 | h3 | A | B | d3 | d4 | Dm | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D78280.0001 | D78280.TD0801 | 80 | 34 | 29 | 25 | 9 | 8 | 17 | 16 | 7.5 | 69 | 36 | 20 | 8 | 34 | 230 |
| D78280.0002 | D78280.TD1201 | 80 | 34 | 29 | 25 | 9 | 8 | 17 | 16 | 7.5 | 69 | 36 | 20 | 12 | 34 | 227 |
Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
