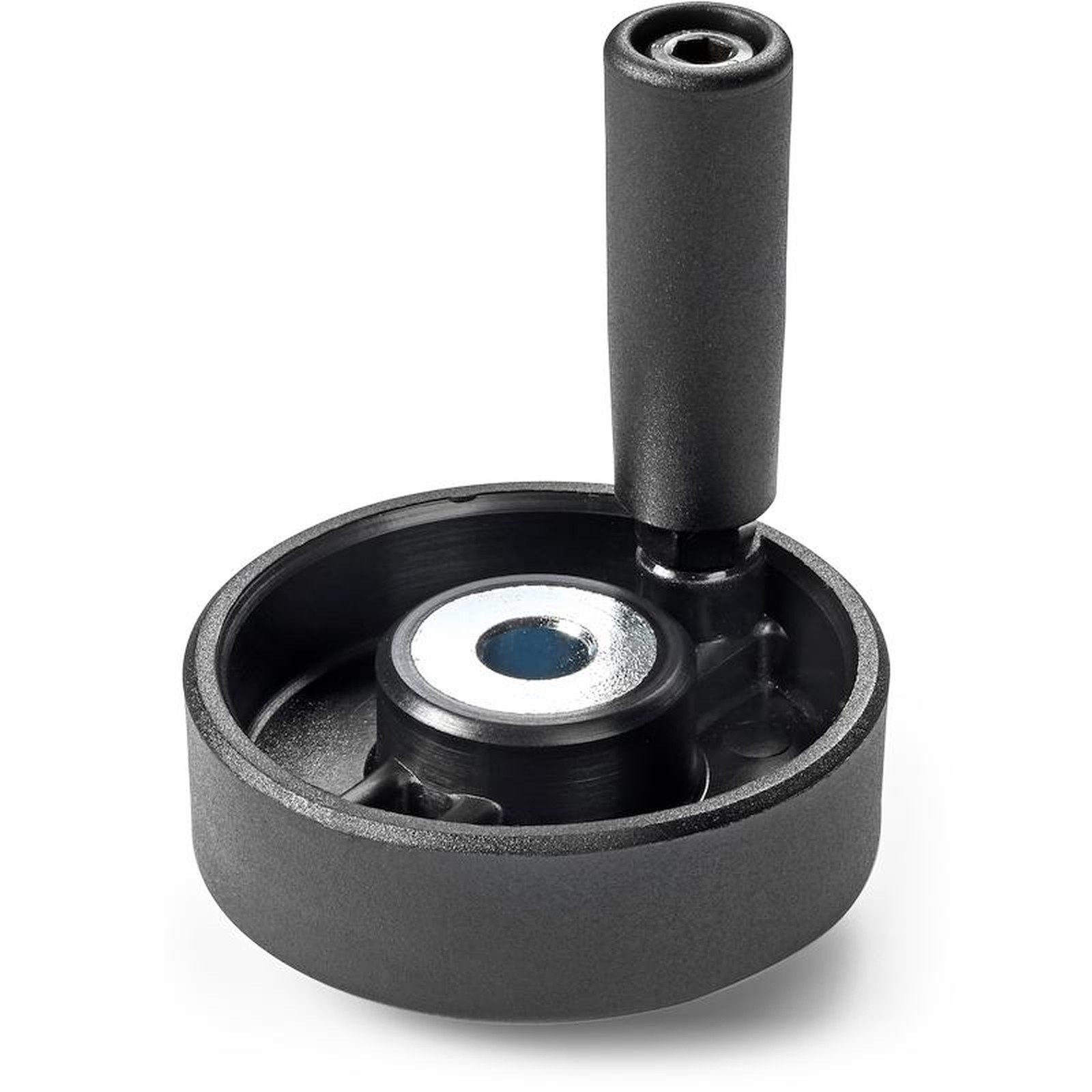

LIGHTWEIGHT CONTROL HANDWHEEL WITH REVOLVING HANDLE

04

D779


Volantini di manovra vari

Materials:

Reinforced polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black (RAL 9011).

Main insert:

Galvanised steel insert with smooth through bore (tolerance H10).

Lateral insert:

Brass insert with threaded through hole.

Lateral handle:

Revolving handle art. M144.

Fixing method:

For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

Special requests:

On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.

Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

Upon request and for special quantities available in the colours indicated in the chart.

Data sheet

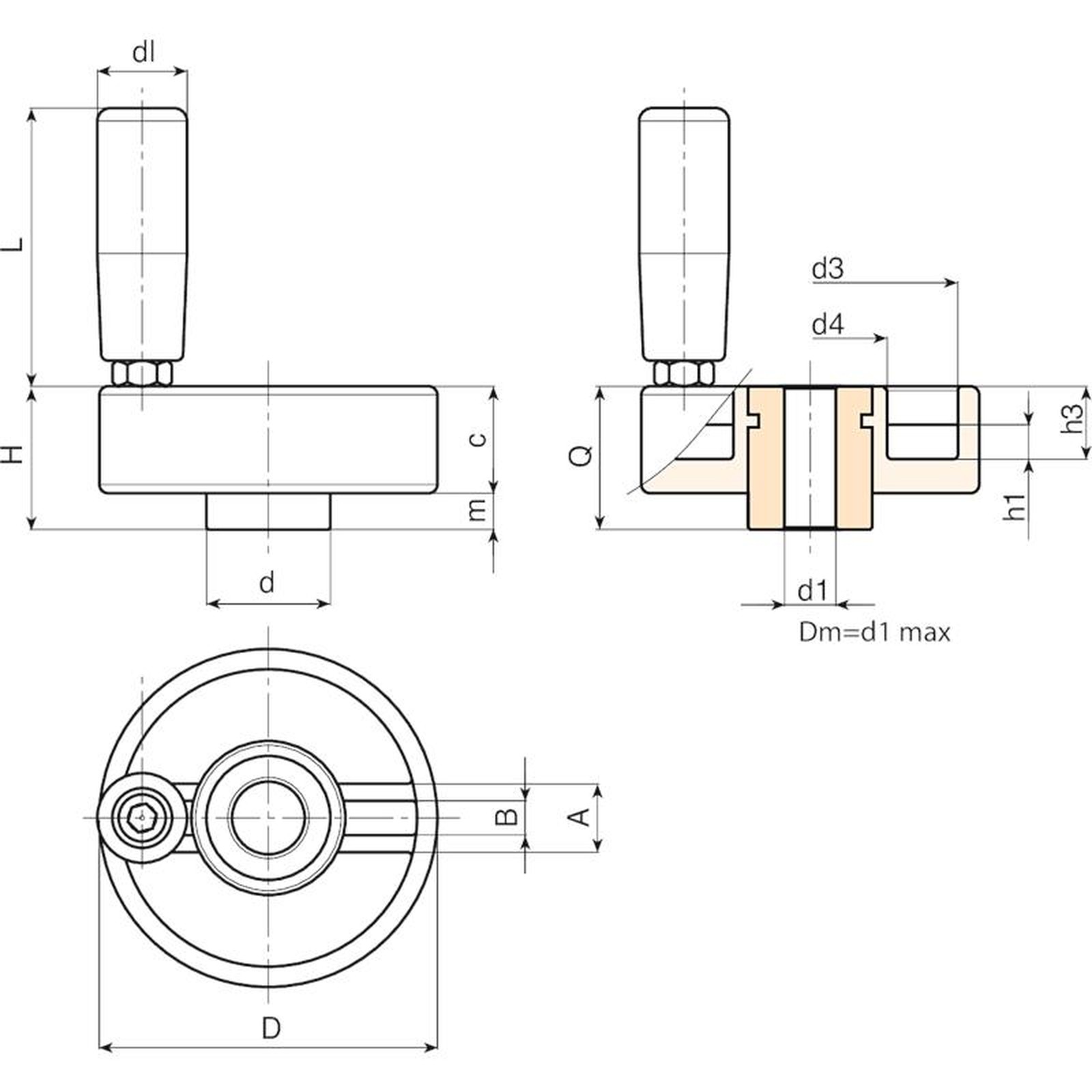

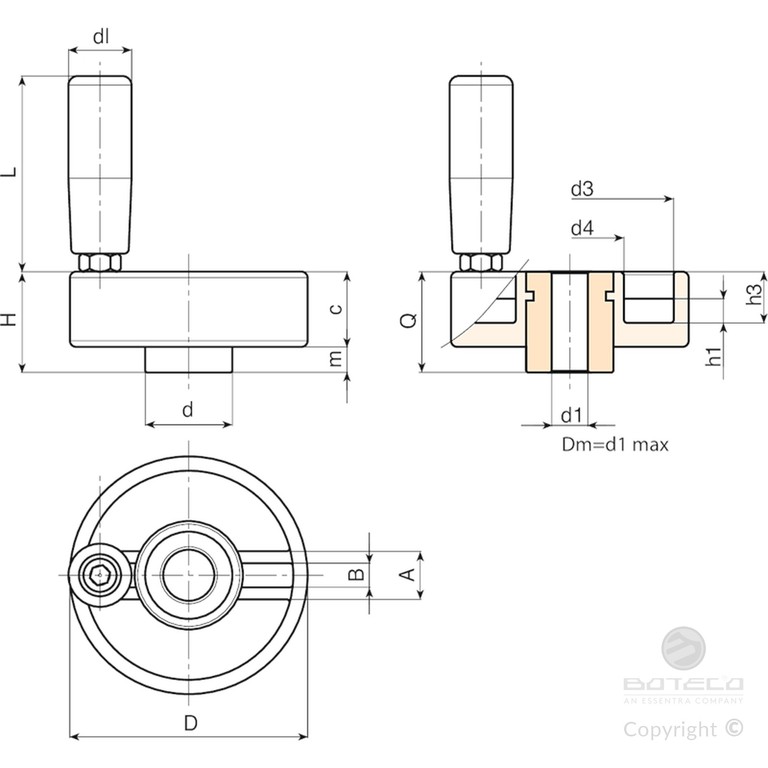

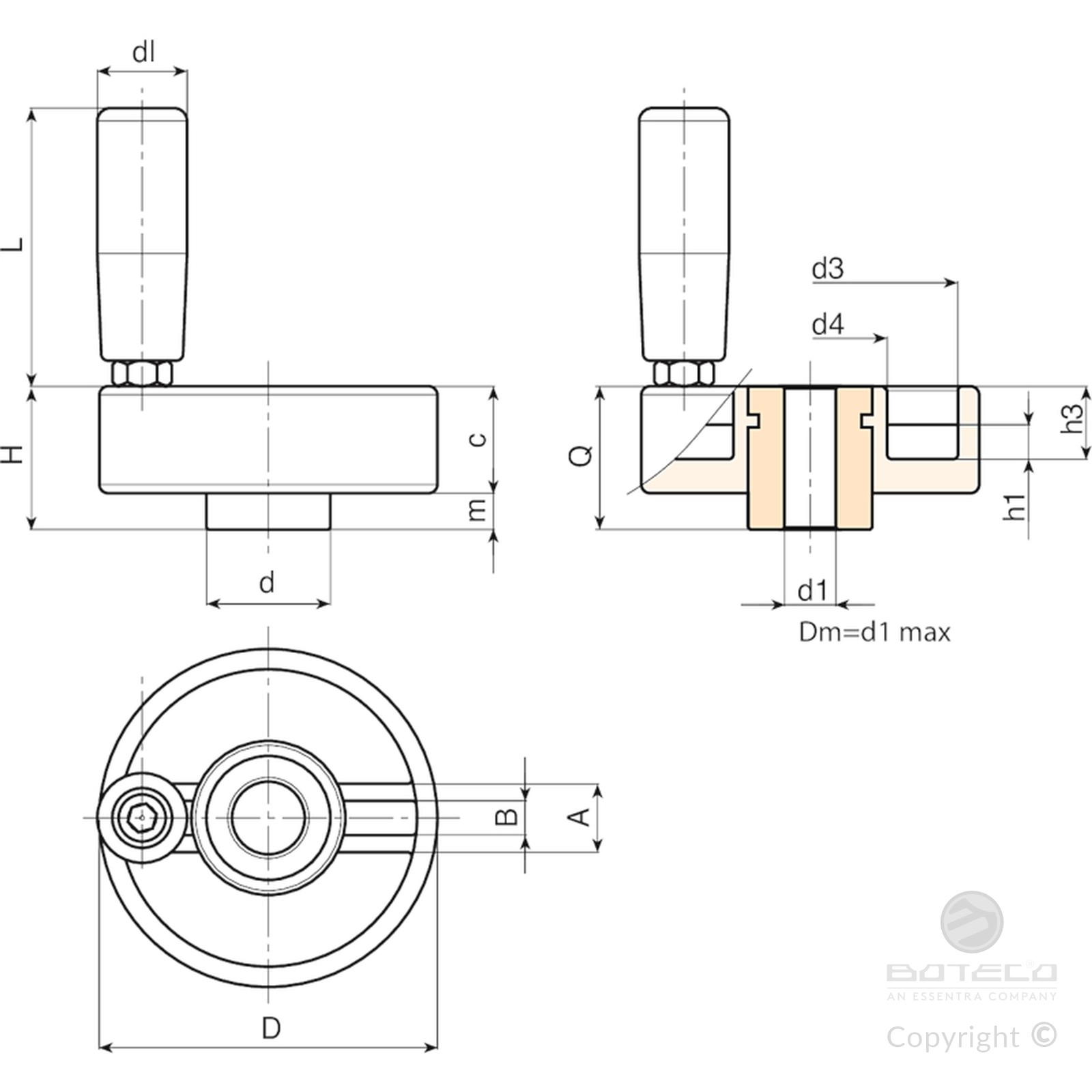

Code Art. D H d c m h1 h3 A B d3 d4 dl L Dm d1 H10 Q Weight (g)
D77980.0011 D77980.TP0501P 80 34 29 25 9 8 17 16 7.5 69 36 21 65 20 5 34 285
D77980.0003 D77980.TD1201P 80 34 29 25 9 8 17 16 7.5 69 36 21 65 20 12 34 279
Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).

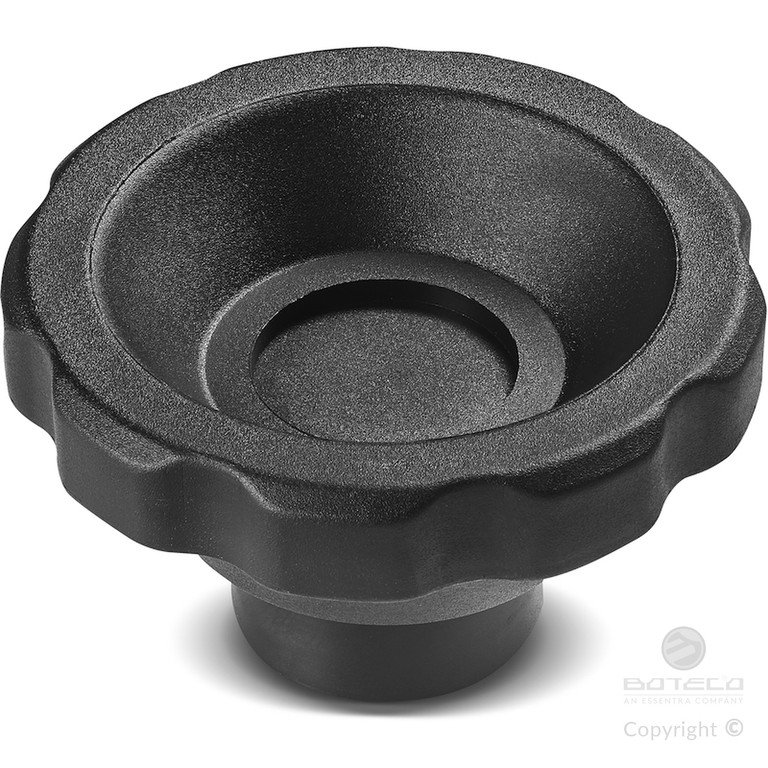

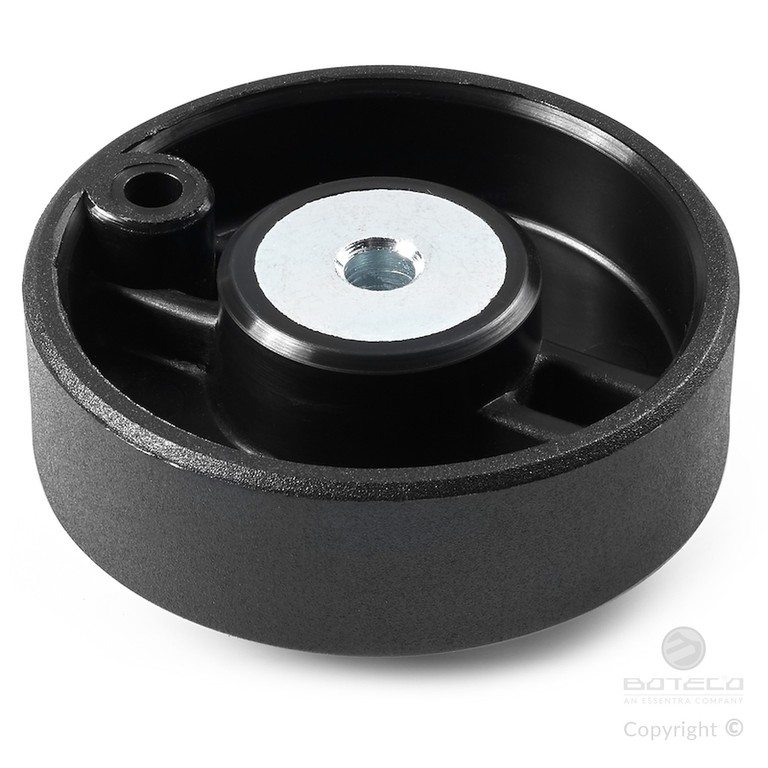

Alternative products:
