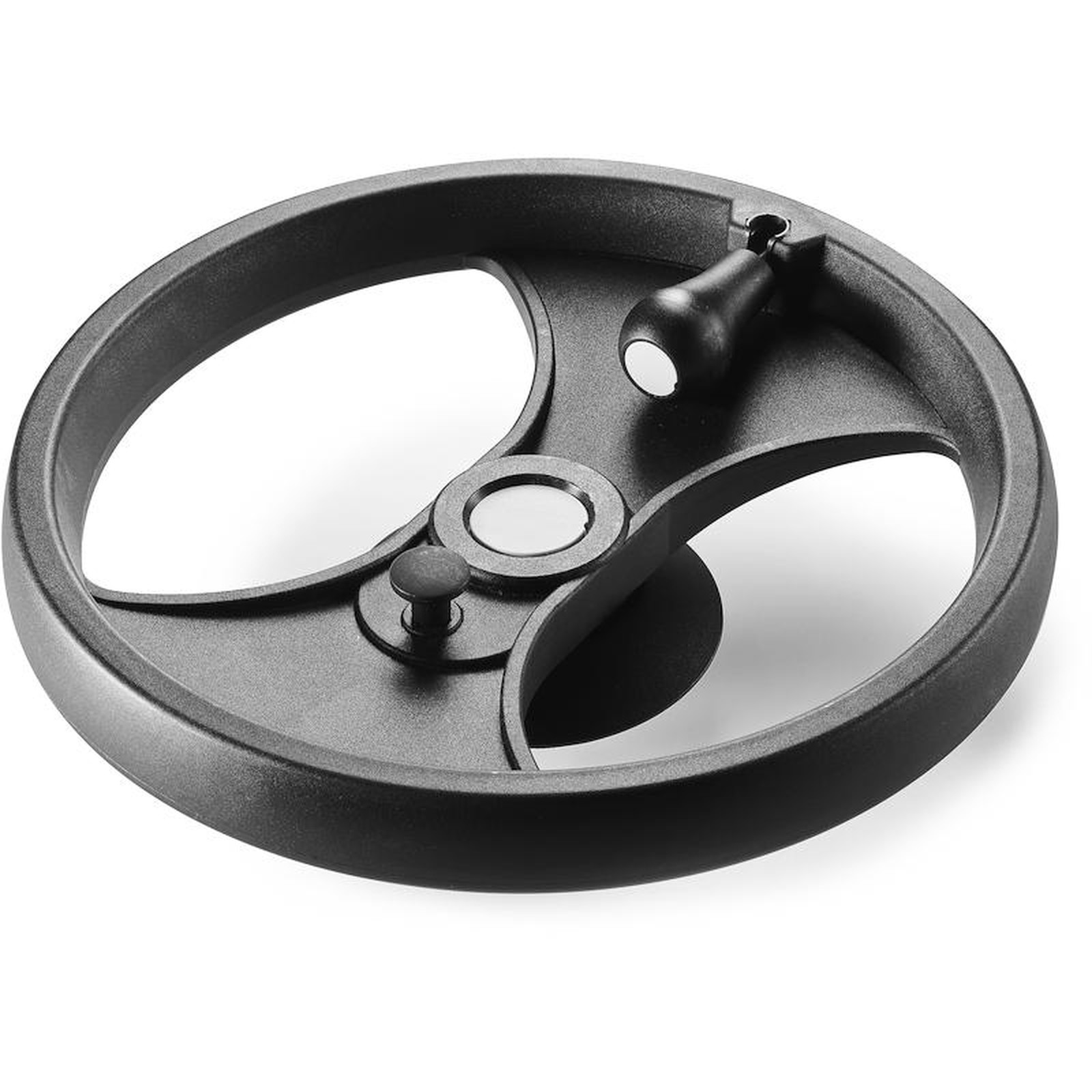

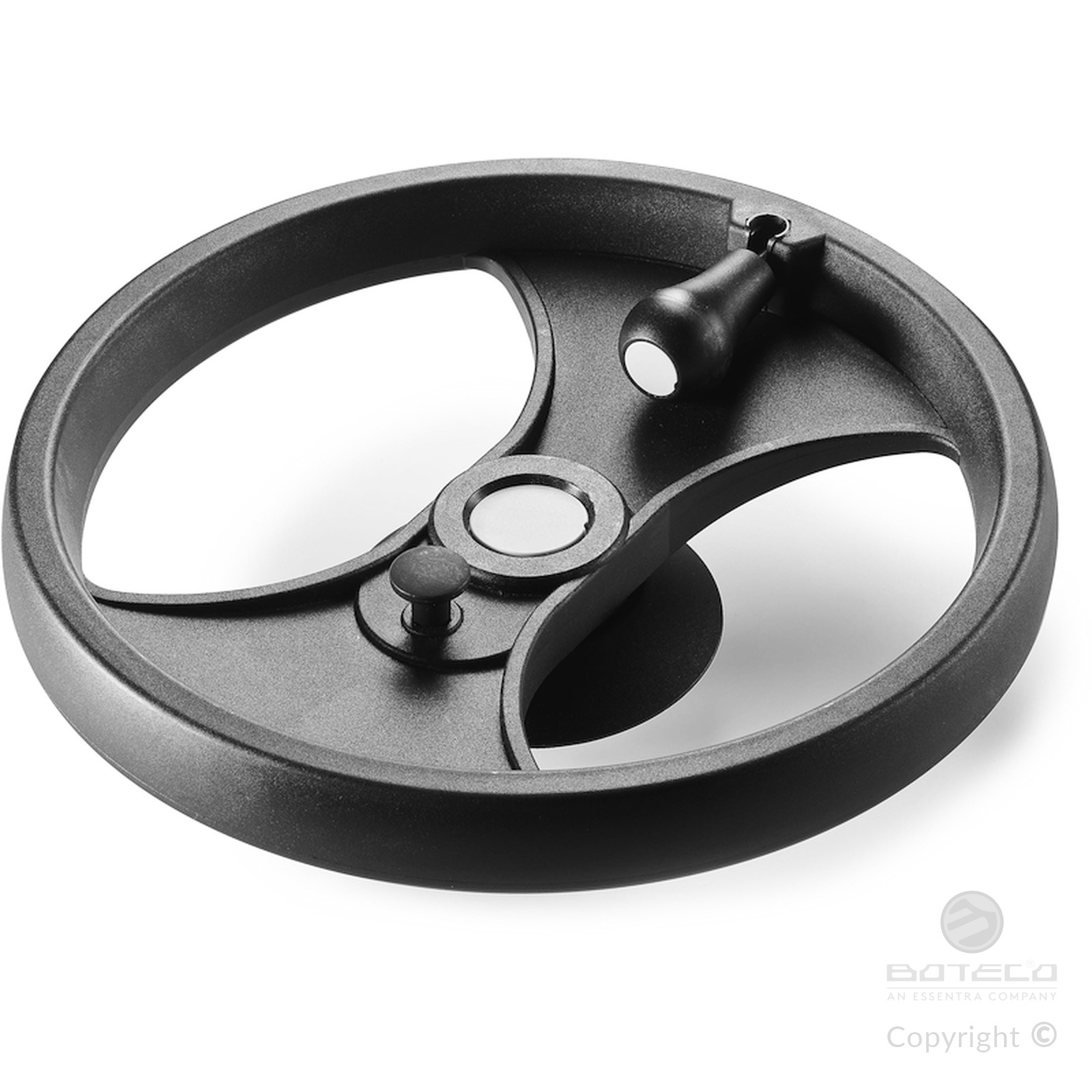

TWO-SPOKE HANDWHEEL WITH FOLDAWAY HANDLE AND LOCKING PISTON
D601
Volantini per Armadi compattabili su rotaia
Description
This product type is a variation of our traditional handwheel D207-350. By simply adding a special assembly kit this product adapts to the requirements of a particular market: the mobile shelving market (mobile storage cabinets mounted on a trackway). This handwheel is used to move the shelving along the trackway. A fitted lock or locking piston serves to lock, stop, position the shelving units in certain positions.
Materials:
Reinforced and stabilized polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Black (RAL 9011 code 01).

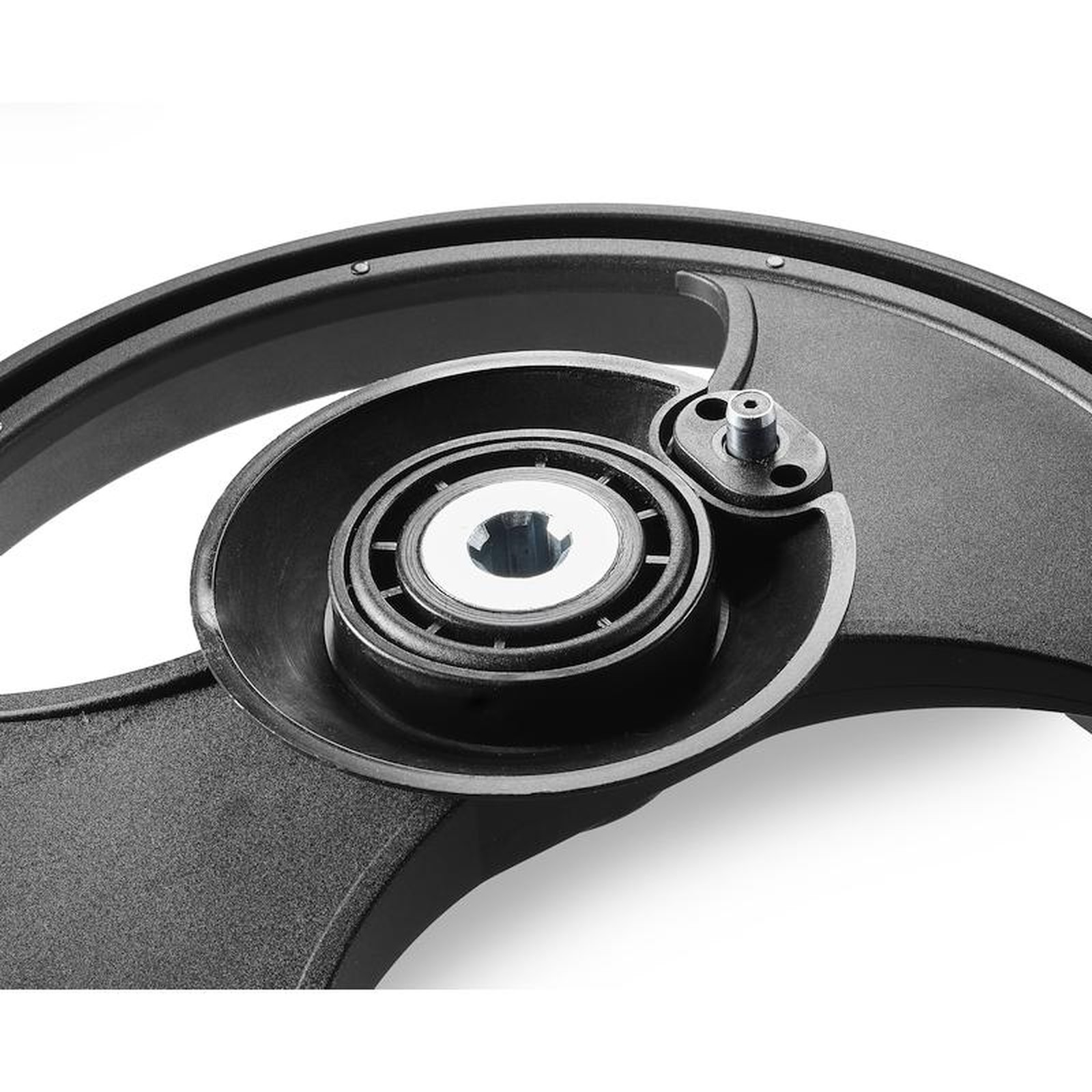

Locking piston kit:

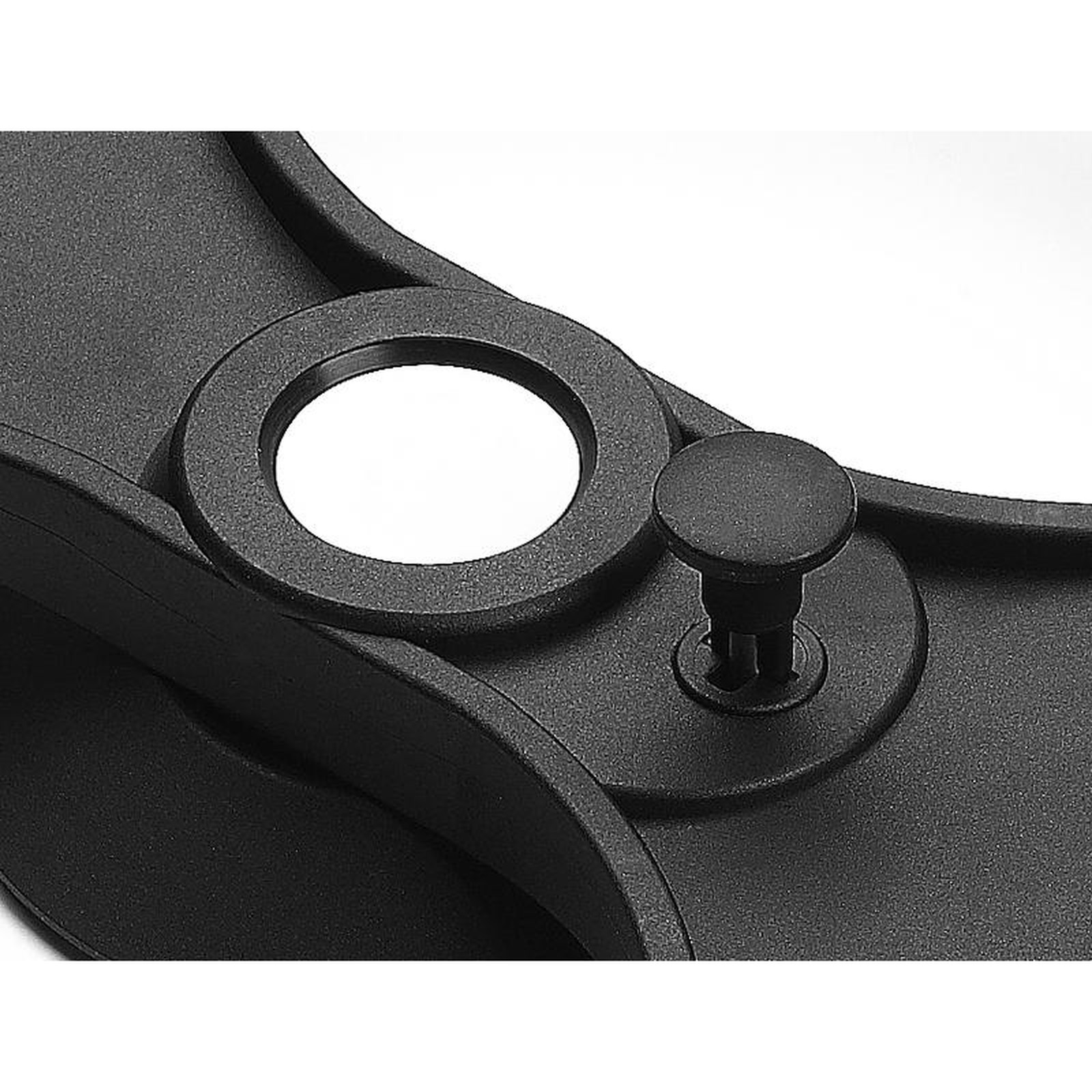

(1) PA6+GF hole cover ring. Colour Black (RAL 9011). Push-fit assembly. Removable.
(2) PA6+GF piston holder. Colour Black (RAL 9011). Assembly with two self-tapping, galvanised steel screws, screwdriver head 3.5x30.
(3) PA6+GF gear stick d. 26 with positioning brackets. Colour Black (RAL 9011). With M04 brass female threaded insert.
(5) PA6+GF gear stick support with positioner. Colour Black (RAL 9011).
(6) Galvanised steel return spring.
(7) Galvanised steel washer.

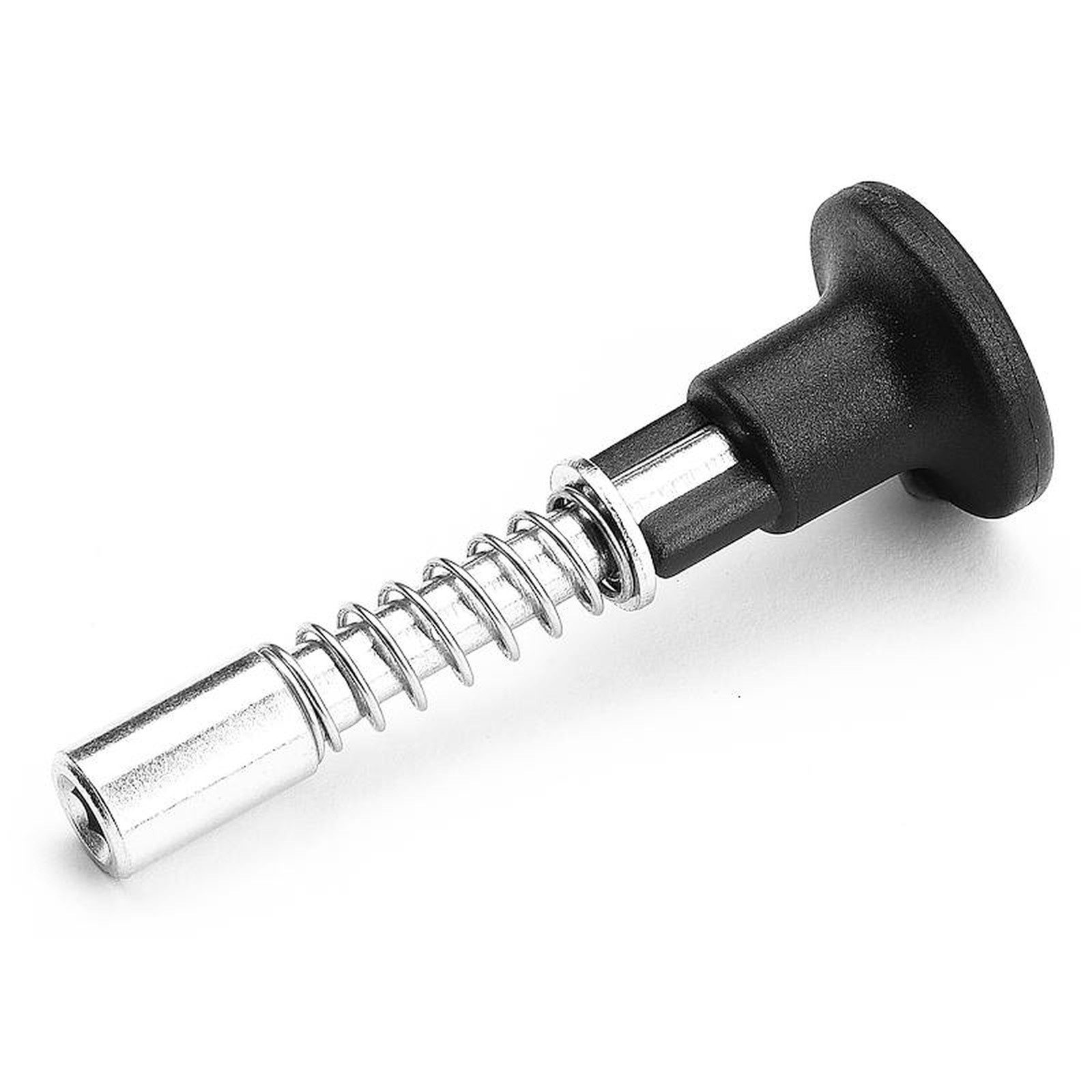

(8) Galvanised steel locking piston. Seat for Allen wrench no. 5 for fastening. Piston stroke 10 mm. Useful projection from handwheel 8 mm.
Inserts:
Galvanised steel insert with smooth through bore (tolerance H10).
(Includes 6 mm keyway).
(4) Black-oxide treated hexagon socket button head screw ISO 7838 for fastening handle.
Lateral handle:

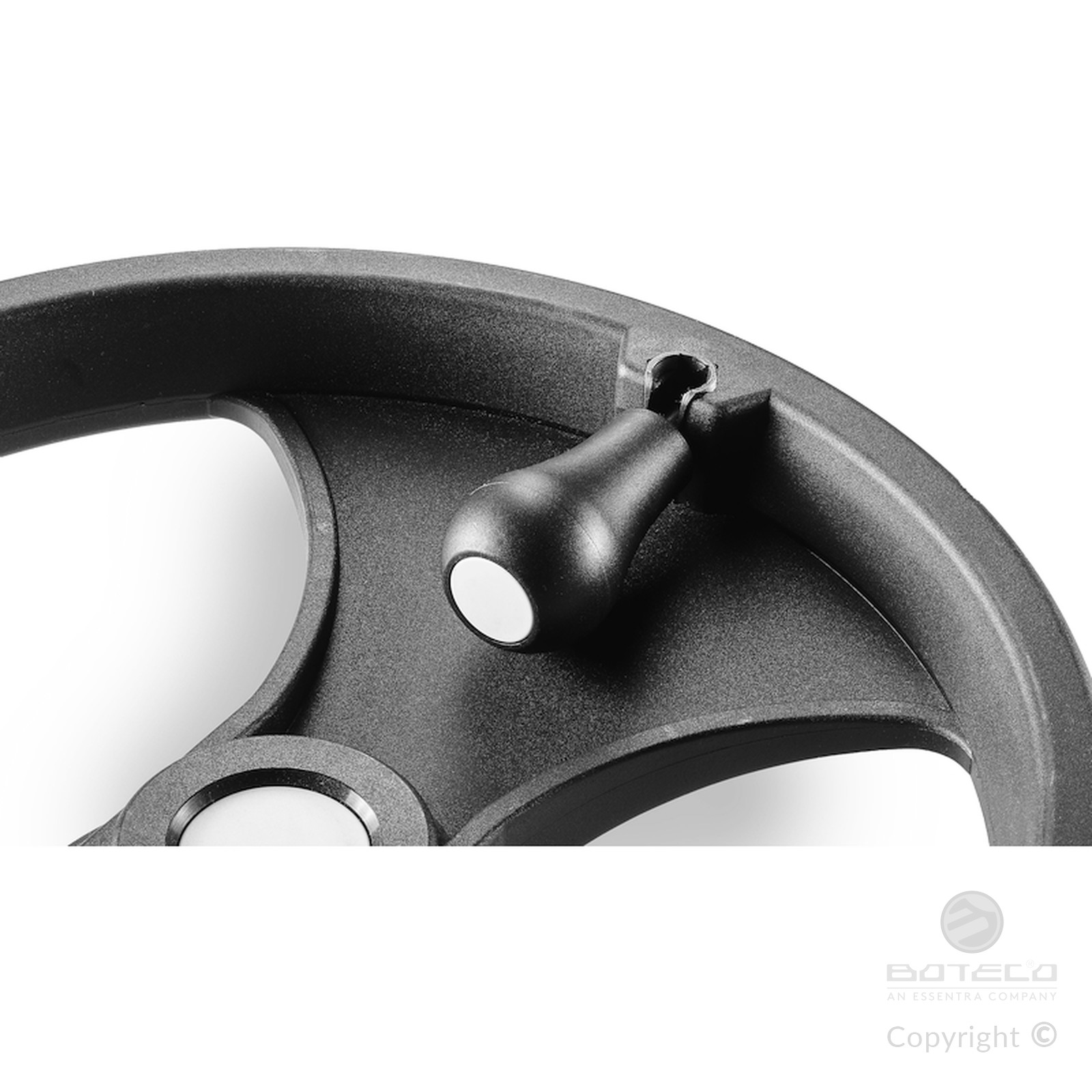

Flush, foldaway revolving handle in handwheel M202 “Euromodel”, with hexagonal connection. PA6+GF handle, black RAL 9011. Black-oxide treated internal mechanism. Fixed with black-oxide treated hexagon socket button head screw ISO 7838. Handle cap in grey polyamide (RAL 7035 code 13).
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities available in the colours indicated in the chart.

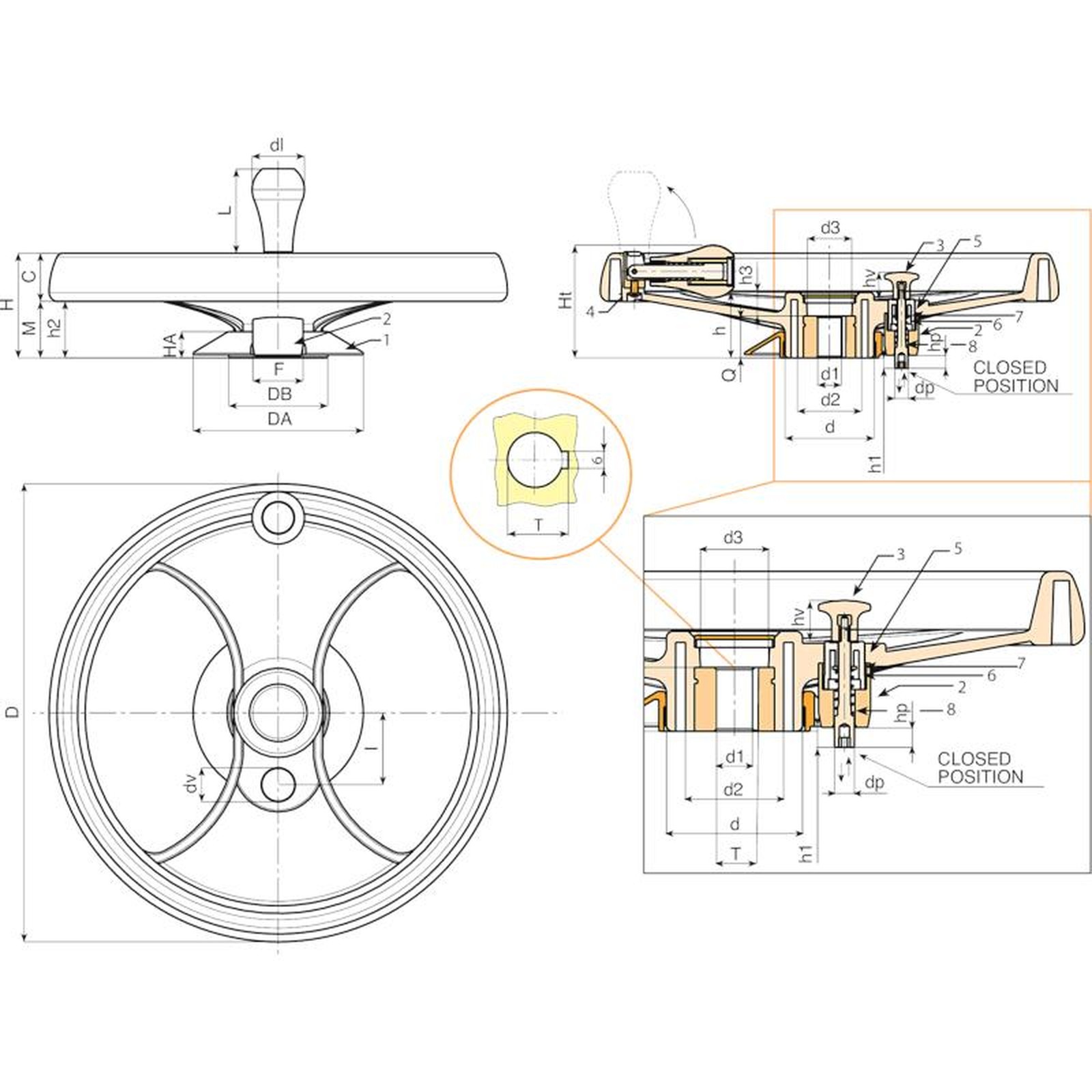

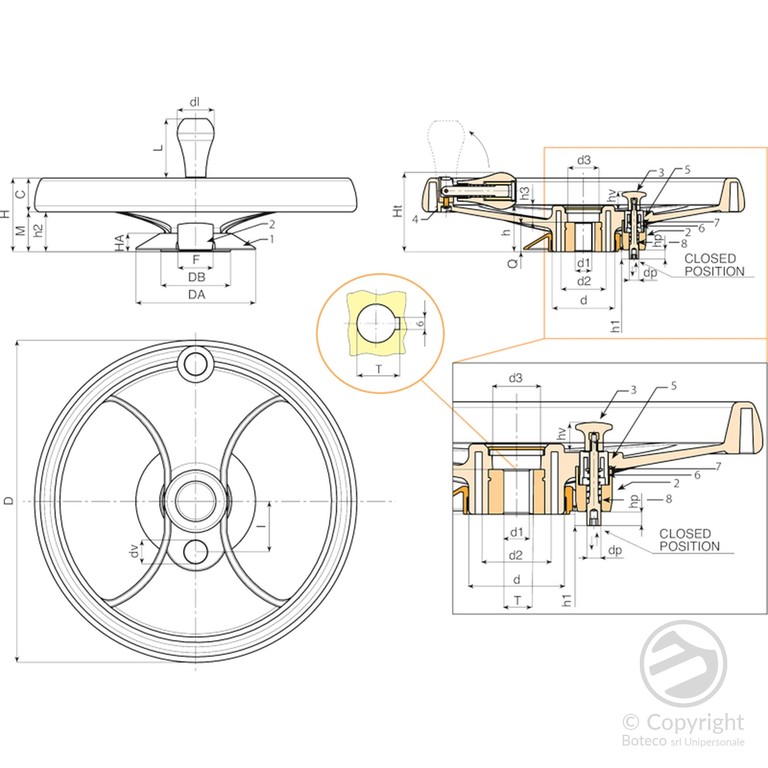

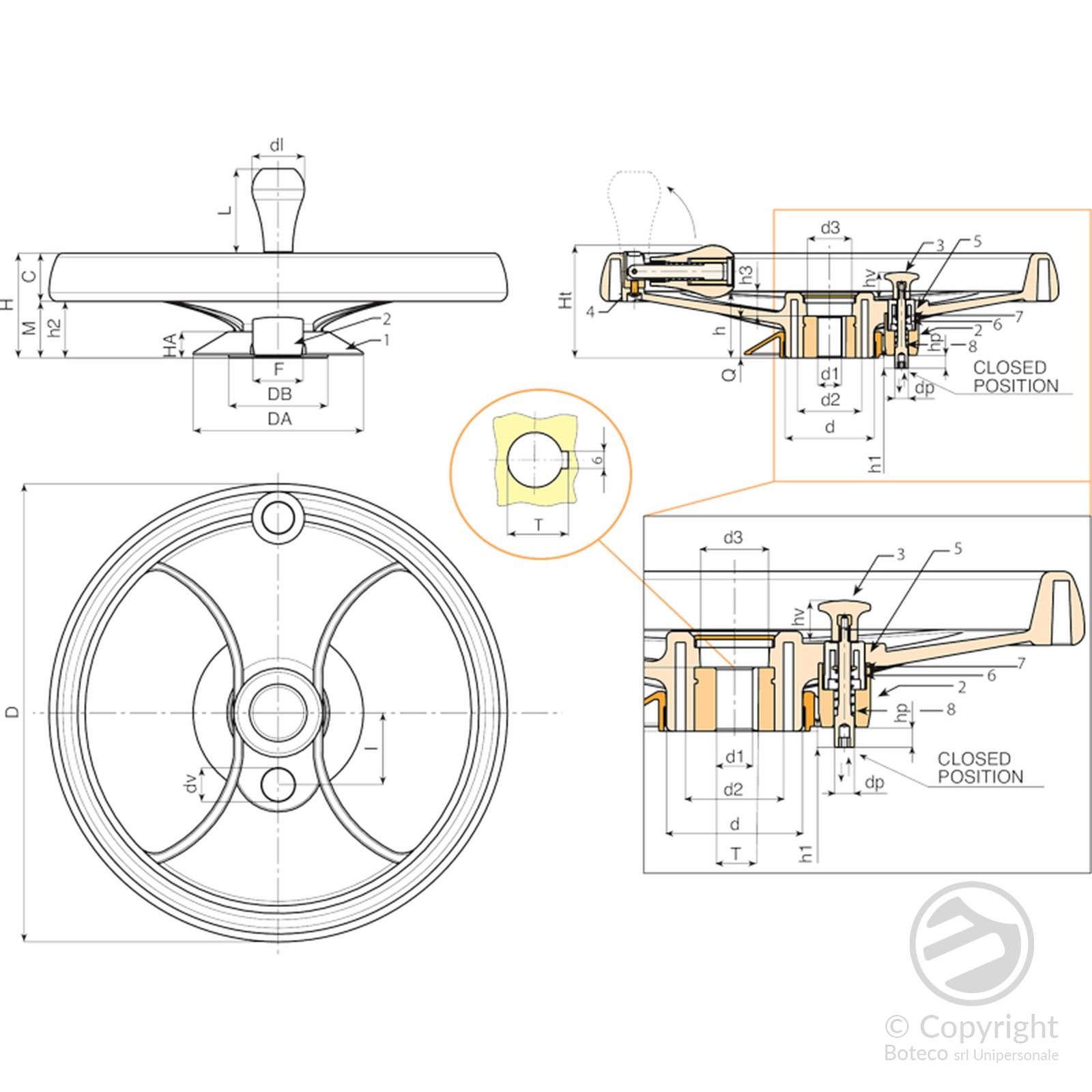

Code | Art. | D | H | Ht | h | d | M | C | h2 | h3 | d2 | d3 | Dm | d1 H10 | T | Q | I | dv | hv | h1 | dp | hp | DA | HA | DB | F | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D601350.0006 | D601350.TD2001H | 346 | 80 | 86 | 49.5 | 67.5 | 24 | 56 | 43.5 | 17.5 | 49 | 35 | 28 | 20 | 22,8 | 32 | 55 | 20 | 21 | 8 | 10 | 10 | 131 | 20 | 76 | 38 | 1800 |
