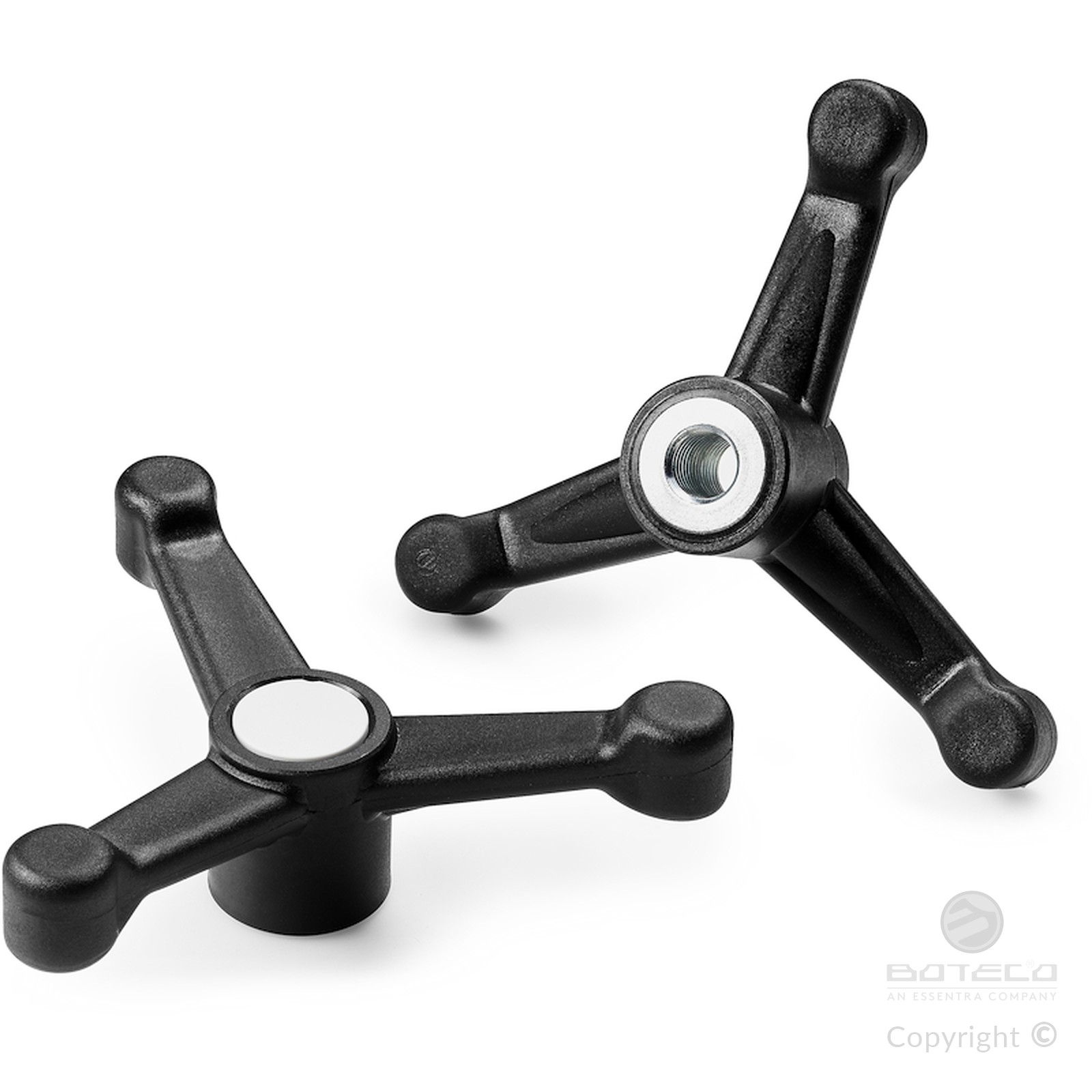

THREE-ARM CONTROL HANDWHEEL WITH SMOOTH OR THREADED HOLE
D214
Volantini a braccia
Materials:
Reinforced and stabilized polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Black (RAL 9011 code 01).
Main insert:
Version PON:
Brass insert with threaded through hole (thread tolerance 6H).
Version TM:
Galvanised steel insert with threaded through hole (thread tolerance 6H).
Version TD:
Galvanised steel insert with smooth through bore (tolerance H10).
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities the handwheel can be supplied in Orange (RAL 2004 Code 02).
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.






Version PON with brass insert with threaded through hole.

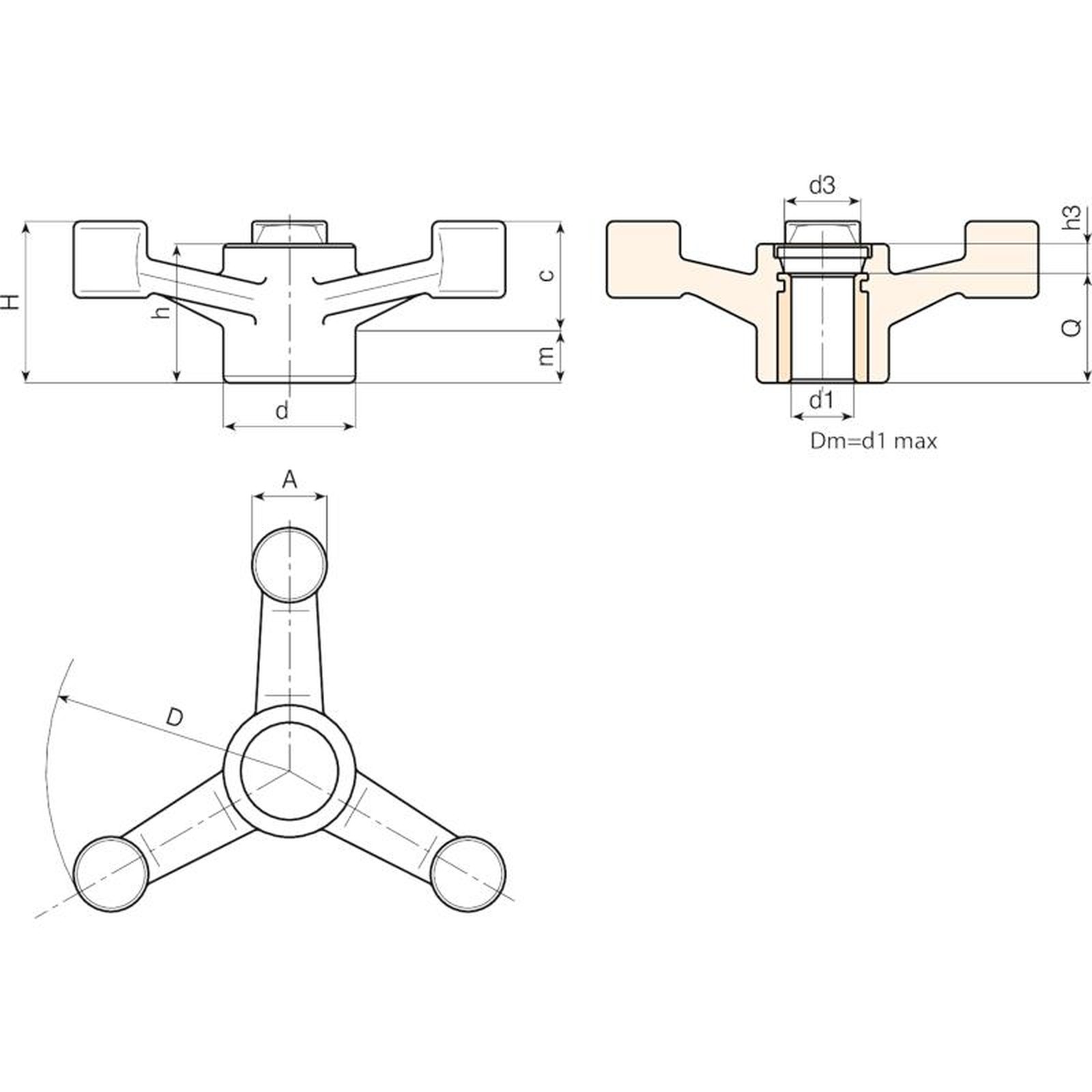

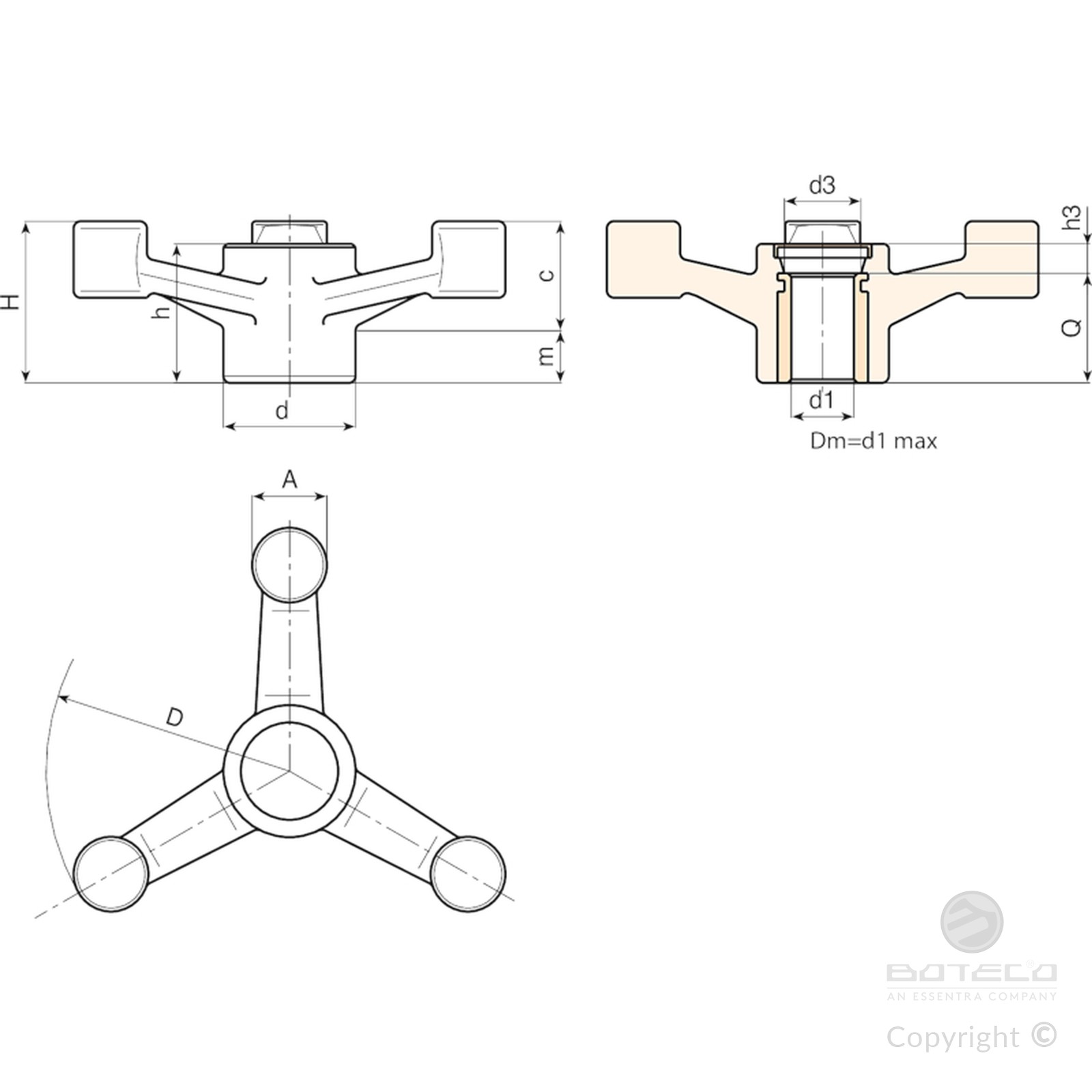

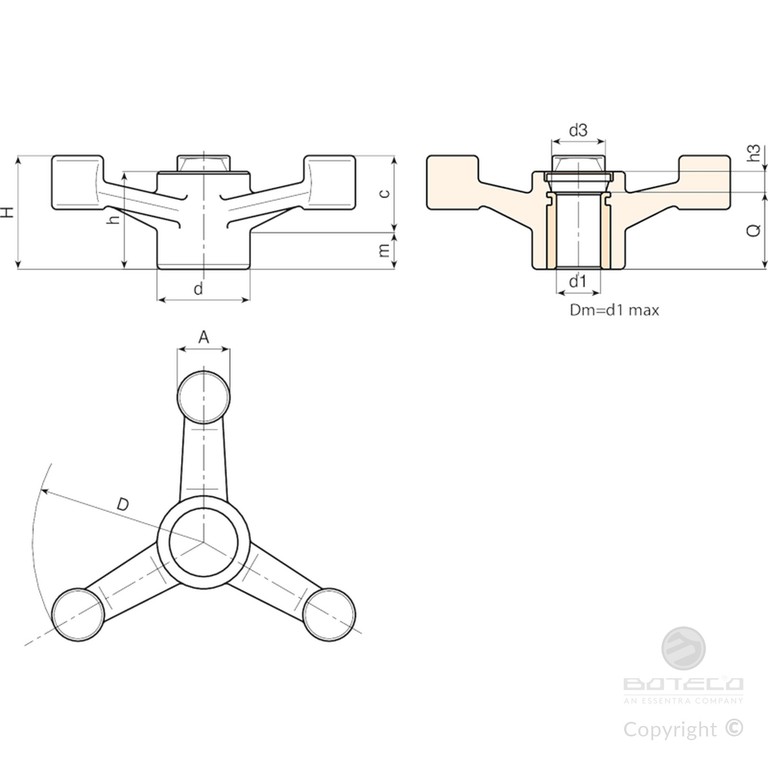

Code | Art. | D | H | h | d | m | c | A | h3 | d3 | d1 6H | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D214140.0020 | D214140.TM1401PON | 137 | 45 | 39.5 | 38 | 19 | 26 | 22 | 7.5 | 26 | M14 | 32 | 127 |
Version TM with galvanised steel insert and threaded through hole.
Code | Art. | D | H | h | d | m | c | A | h3 | d3 | d1 6H | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D214140.0019 | D214140.TM1201P | 137 | 45 | 39.5 | 38 | 19 | 26 | 22 | 7.5 | 26 | M12 | 32 | 195 |
D214140.0021 | D214140.TM1601P | 137 | 45 | 39.5 | 38 | 19 | 26 | 22 | 7.5 | 26 | M16 | 32 | 205 |
D214180.0015 | D214180.TM1601P | 177 | 56 | 42.5 | 38 | 20 | 35 | 23 | 10.5 | 26 | M16 | 32 | 265 |
D214180.0017 | D214180.TM1801P | 177 | 56 | 42.5 | 38 | 20 | 35 | 23 | 10.5 | 26 | M18 | 32 | 270 |
D214220.0013 | D214220.TM1401P | 221 | 61 | 46 | 38 | 22 | 39 | 25 | 14 | 26 | M14 | 32 | 290 |
D214220.0014 | D214220.TM1601P | 221 | 61 | 46 | 38 | 22 | 39 | 25 | 14 | 26 | M16 | 32 | 290 |
D214220.0018 | D214220.TM1801P | 221 | 61 | 46 | 38 | 22 | 39 | 25 | 14 | 26 | M18 | 32 | 274 |
Version TD with galvanised steel insert with smooth through bore (tolerance H10).
Code | Art. | D | H | h | d | m | c | A | h3 | d3 | Dm | d1 H10 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D214140.0005 | D214140.TD0801P | 137 | 45 | 39.5 | 38 | 19 | 26 | 22 | 7.5 | 26 | 22 | 8 | 32 | 232 |
D214140.0006 | D214140.TD1201P | 137 | 45 | 39.5 | 38 | 19 | 26 | 22 | 7.5 | 26 | 22 | 12 | 32 | 220 |
D214180.0002 | D214180.TD0801P | 177 | 56 | 42.5 | 38 | 20 | 35 | 23 | 10.5 | 26 | 22 | 8 | 32 | 264 |
D214220.0003 | D214220.TD0801P | 221 | 61 | 46 | 38 | 22 | 39 | 25 | 14 | 26 | 22 | 8 | 32 | 338 |
D214220.0010 | D214220.TD1801P | 221 | 61 | 46 | 38 | 22 | 39 | 25 | 14 | 26 | 22 | 18 | 32 | 330 |
