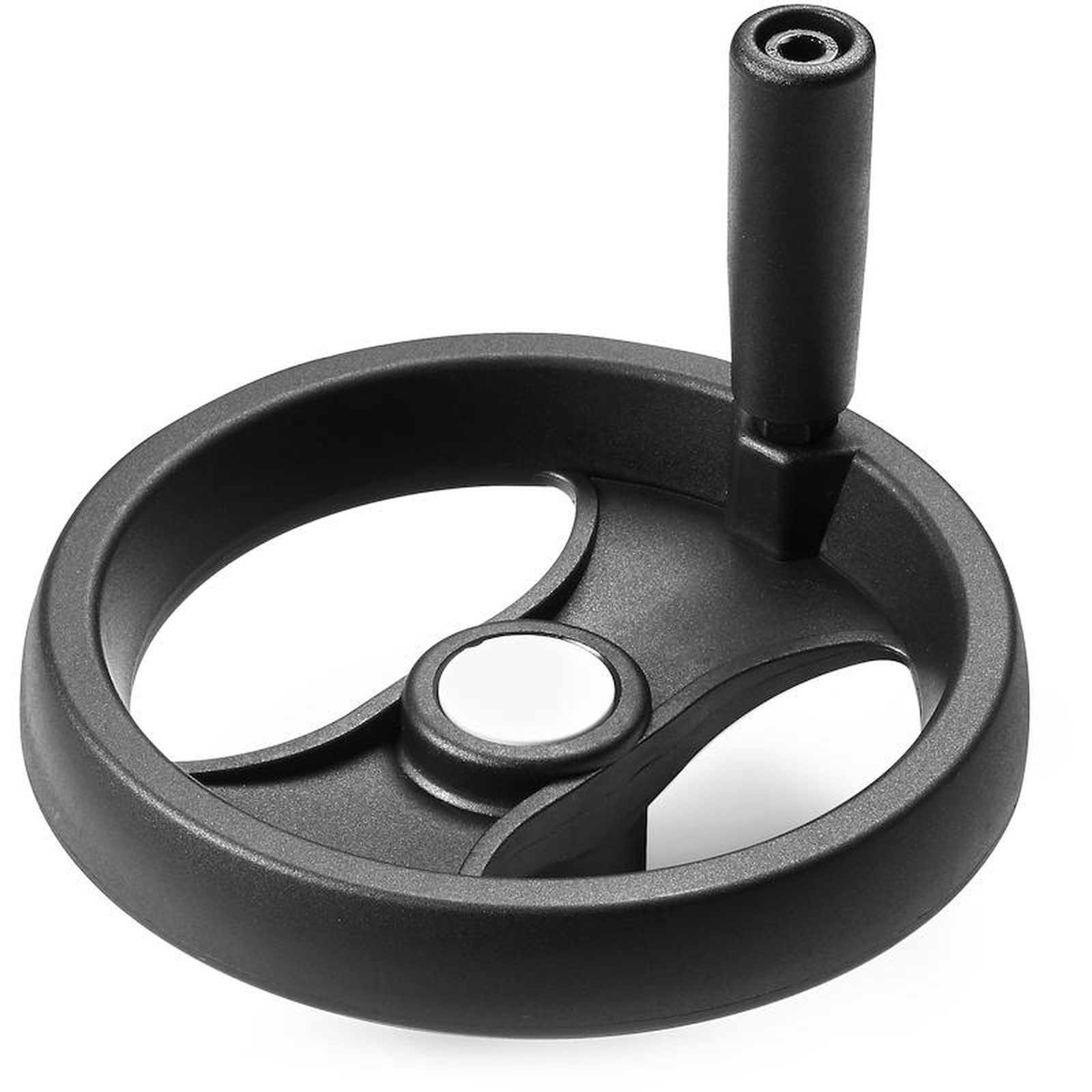

Materials:
Reinforced and stabilized polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange(RAL 2004 code 02).
Blue(RAL 5015 code 07).
Yellow(RAL 1021 code 10).
Red(RAL 3000 code 16).
Green(RAL 6024 code 17).
Black(RAL 9011 code 01).
Main insert:
Galvanised steel insert with smooth through bore (tolerance H10).
Lateral insert:
Brass insert with threaded through hole.
Lateral handle:
Revolving handle art. M144.
Hub:
Solid Hub.
(*) Lightweight hub.
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities spoke handwheels, handles and caps are available in the colours indicated in the chart (reduced range).

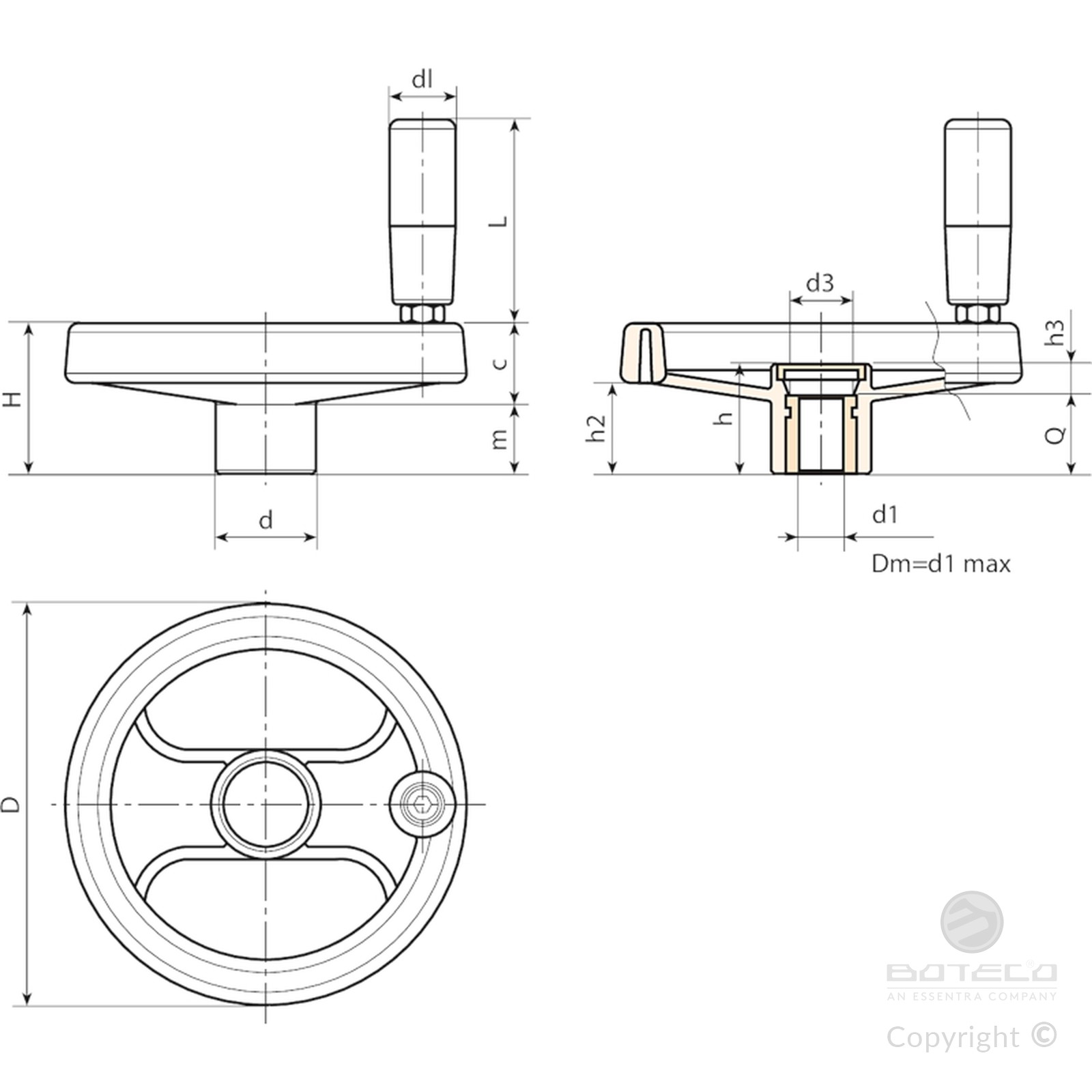

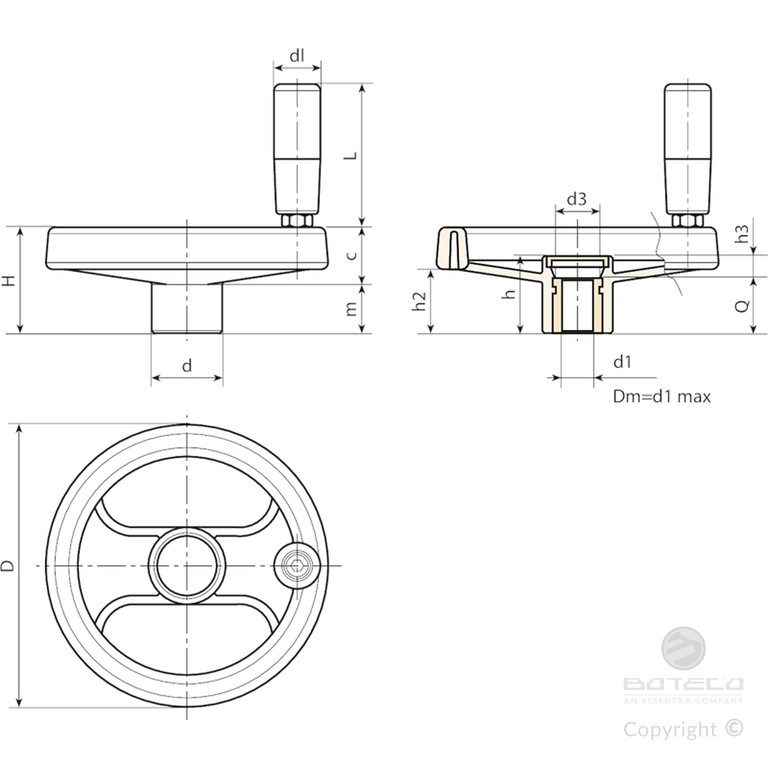

| Code | Art. | D | H | h | d | m | c | h2 | h3 | d3 | dl | L | Dm | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D206080.0014 | D206080.TP0501P | 80 | 34 | 26 | 24,5 | 15,5 | 18,5 | 20 | 6 | 16,5 | 19 | 54 | 12 | 5 | 20 | 113 |
| D206080.0002 | D206080.TD0801P | 80 | 34 | 26 | 24,5 | 15,5 | 18,5 | 20 | 6 | 16,5 | 19 | 54 | 12 | 8 | 20 | 115 |
| D206080.0006 | D206080.TD1001P | 80 | 34 | 26 | 24,5 | 15,5 | 18,5 | 20 | 6 | 16,5 | 19 | 54 | 12 | 10 | 20 | 110 |
| D206100.0021 | D206100.TP0501P | 100 | 43 | 33 | 28,5 | 20,5 | 22,5 | 26,5 | 9 | 16,5 | 19 | 54 | 16 | 5 | 24 | 182 |
| D206100.0003 | D206100.TD0801P | 100 | 43 | 33 | 28,5 | 20,5 | 22,5 | 26,5 | 9 | 16,5 | 19 | 54 | 16 | 8 | 24 | 176 |
| D206100.0009 | D206100.TD1001P | 100 | 43 | 33 | 28,5 | 20,5 | 22,5 | 26,5 | 9 | 16,5 | 19 | 54 | 16 | 10 | 24 | 160 |
| D206100.0011 | D206100.TD1201P | 100 | 43 | 33 | 28,5 | 20,5 | 22,5 | 26,5 | 9 | 16,5 | 19 | 54 | 16 | 12 | 24 | 177 |
| D206130.0046 | D206130.TP0501P | 129 | 50 | 35,5 | 32 | 20 | 30 | 30 | 11,5 | 25,5 | 21 | 65,5 | 18 | 5 | 24 | 285 |
| D206130.0004 | D206130.TD0801P | 129 | 50 | 35,5 | 32 | 20 | 30 | 30 | 11,5 | 25,5 | 21 | 65,5 | 18 | 8 | 24 | 293 |
| D206130.0008 | D206130.TD1001P | 129 | 50 | 35,5 | 32 | 20 | 30 | 30 | 11.5 | 25,5 | 21 | 65,5 | 18 | 10 | 24 | 290 |
| D206130.0014 | D206130.TD1201P | 129 | 50 | 35,5 | 32 | 20 | 30 | 30 | 11,5 | 25,5 | 21 | 65,5 | 18 | 12 | 24 | 280 |
| D206160.0007 | D206160.TD0801P | 160 | 57,5 | 41 | 40 | 20 | 37,5 | 34 | 9 | 26 | 23,5 | 75 | 22 | 8 | 32 | 440 |
| D206160.0019 | D206160.TD1401P | 160 | 57,5 | 41 | 40 | 20 | 37,5 | 34 | 9 | 26 | 23,5 | 75 | 22 | 14 | 32 | 430 |
| D206160.0043 | D206160.TD2001P | 160 | 57.5 | 41 | 40 | 20 | 37,5 | 34 | 9 | 26 | 23,5 | 75 | 22 | 20 | 32 | 375 |
| D206200.0002 | D206200.TD0801P | 198 | 60,5 | 38,5 | 51 | 16,5 | 44 | 31,5 | 7,5 | 27 | 23,5 | 75 | 22 | 8 | 32 | 685 |
| D206200.0012 | D206200.TD1601P | 198 | 60,5 | 38,5 | 51 | 16,5 | 44 | 31,5 | 7,5 | 27 | 23,5 | 75 | 22 | 16 | 32 | 640 |
| D206200.0020 | D206200.TD2001P | 198 | 60,5 | 38,5 | 51 | 16,5 | 44 | 31,5 | 7,5 | 27 | 23,5 | 75 | 22 | 20 | 32 | 685 |
| D206250.0007 | D206250.TD0801P | 252 | 70 | 48 | 56 | 23 | 47 | 38,5 | 12 | 31,5 | 25,5 | 87 | 28 | 8 | 36 | 1100 |
| D206250.0022 | D206250.TD2001P | 252 | 70 | 48 | 56 | 23 | 47 | 38,5 | 12 | 31,5 | 25,5 | 87 | 28 | 20 | 36 | 1015 |
| D206350.0002 | D206350.TD0801P | 349 | 78 | 49 | 67 | 21 | 57 | 42 | 17 | 34 | 26,5 | 97,5 | 30 | (*) 8 | 32 | 1650 |
