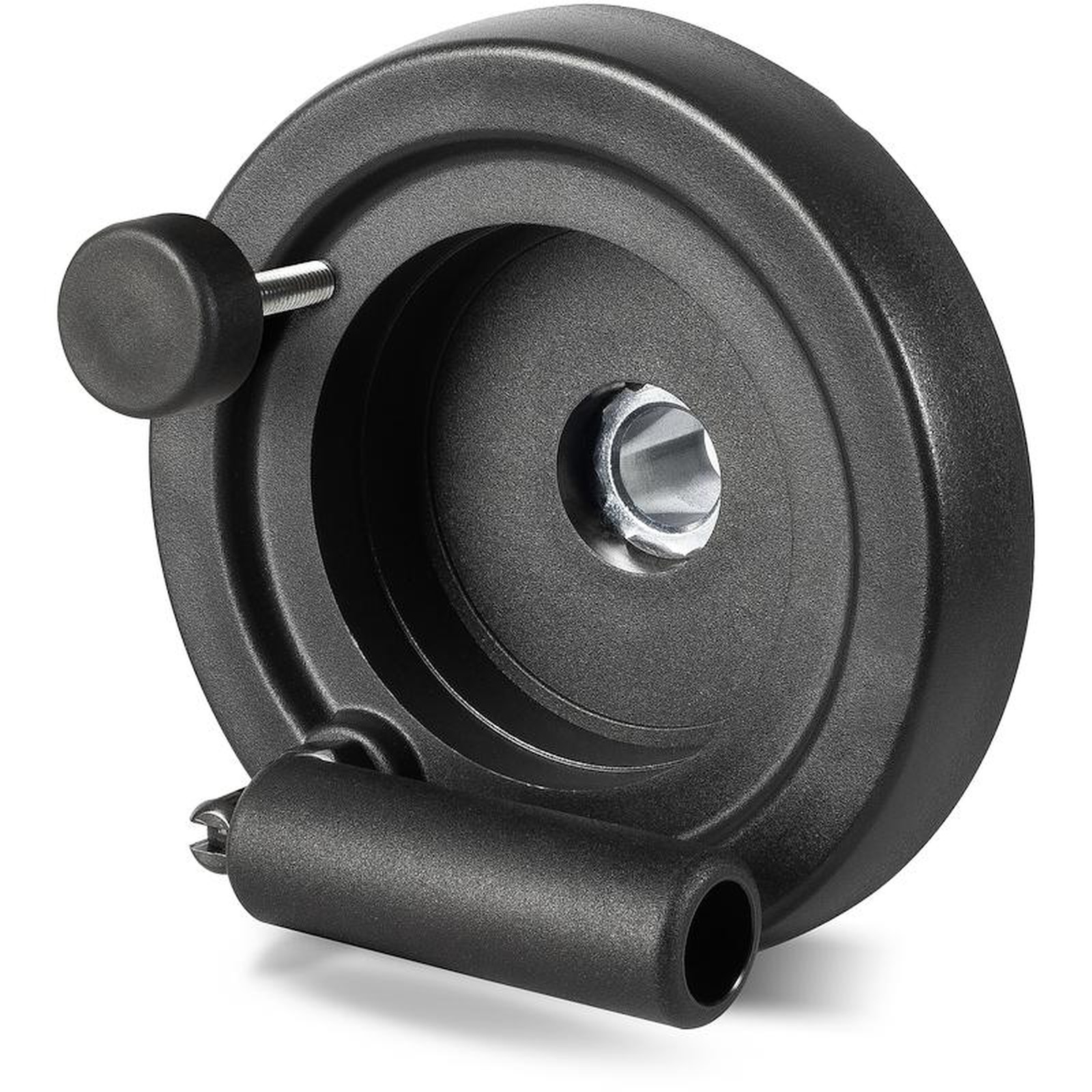

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT, REVOLVING, FOLDING HANDLE AND LOCKING KNOB

11

K905


Volantini di manovra con sede per indicatore gravitazionale

Materials:

Reinforced and stabilized polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black (RAL 9011).

Insert:

Galvanised steel insert with smooth through bore (tolerance H10).

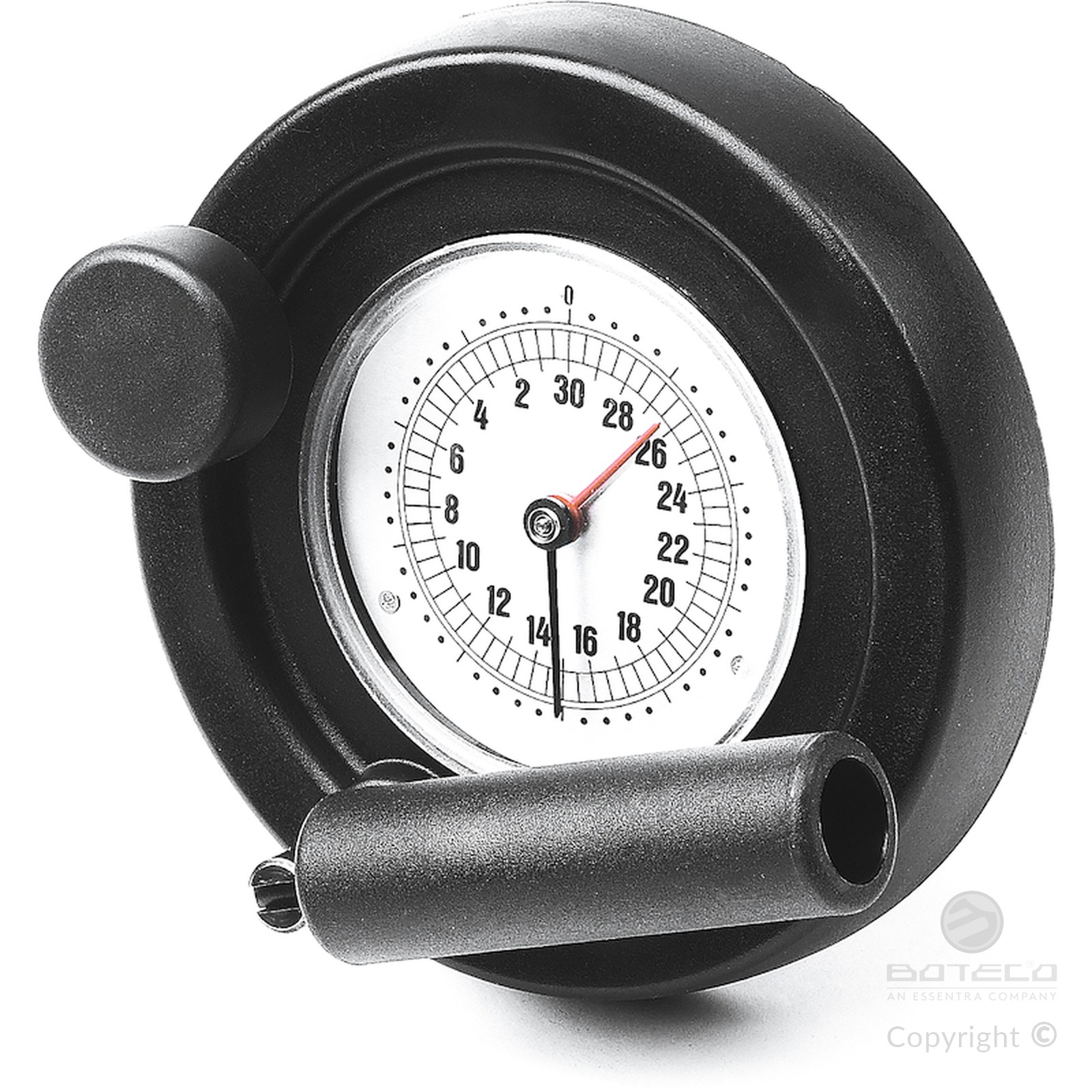

Mountable indicator:

Use gravity position indicators models K650 or K660. The indicator can be only used in a vertical position (horizontal machine axis). The indicator and the corresponding grub screw d7 must be purchased separately. For further information on the indicators see the pages of articles K650 and K660.

(*) With adapter KS08050.T01 you can mount the indicator K650050.

Lateral insert:

Brass insert with threaded through hole.

Lateral handle:

Revolving handle art. M136.

Locking handwheel:

Cylindrical handwheel G793-36 with threaded stud.

Fixing method:

For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

Special Requests:

On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.

Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

The indicator must be ordered separately.

Upon request and for special quantities it is possible to change the indicator seat.

Combinations Diameters/Indicators:

d5=50 --> K650050

d5=80 --> K650080 or K660080

Data sheet

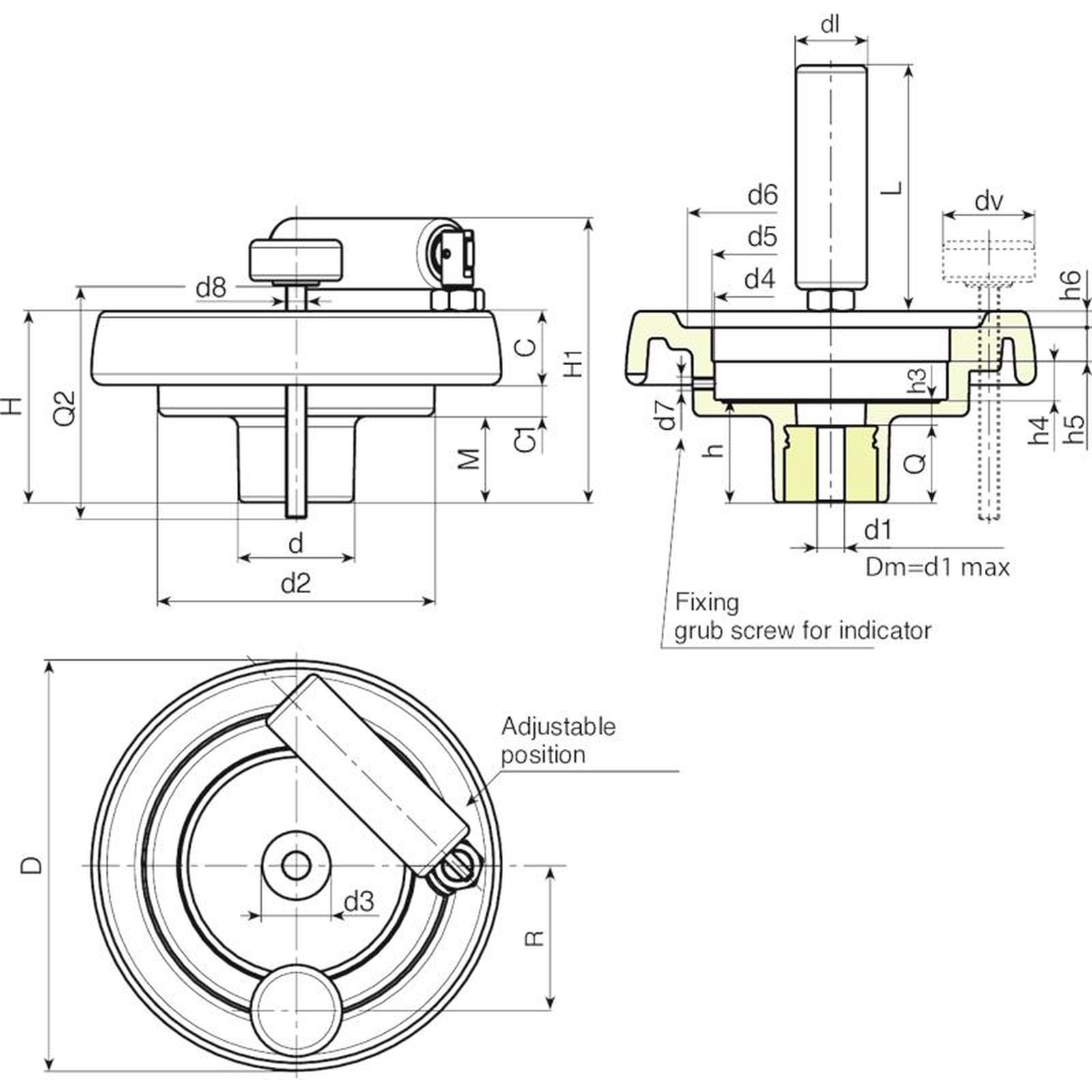

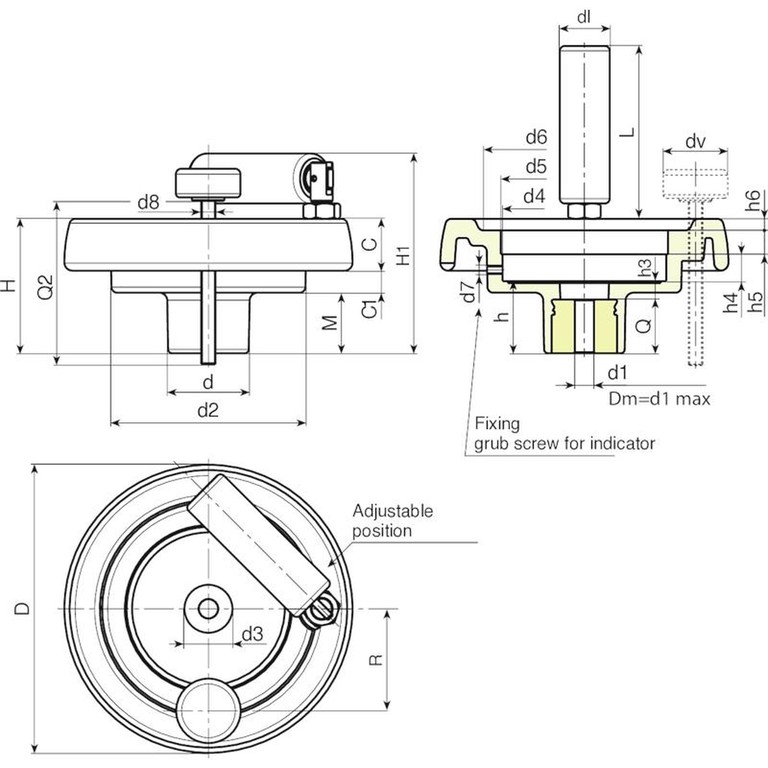

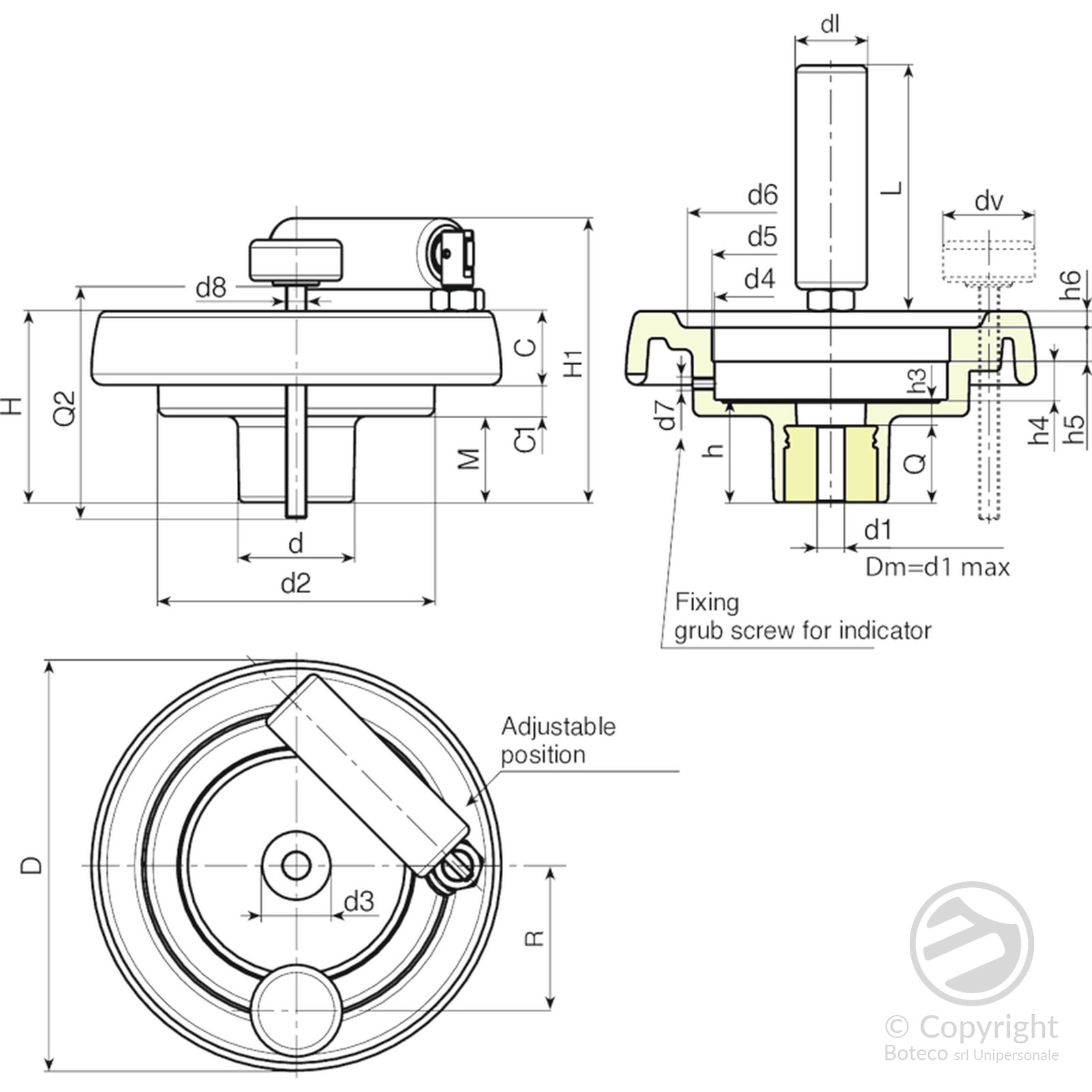

Code art. D H H1 d d2 M C C1 d3 d4 d5 d6 d7 h h3 h4 h5 h6 R d8 dl L Dm d1 Q Weight (g)
K905130.0002 K905130.T080P6.801P 130 65.5 94 42 98 28.5 23,5 13,5 29 85.2 80* 90 M6 34 10 13.5 12.5 5 54 M8 25 76 20 6.8 24 430
K905150.0003 K905150.T080P6.801P 149 69 104 42 101 31 25.5 12.5 29 85.2 80* 106 M6 37 9 13.5 12.5 6.5 57 M8 26 89 20 6.8 28 615
K905175.0006 K905175.T080P6.801P 174 73 108 41 114 30 31.5 11.5 26 85.2 80* 126 M6 39 11 13.5 12.5 8 60 M8 26 89 20 6.8 28 835
K905200.0001 K905200.T080P6.801P 201 71 106 46 136 24,5 32 14,5 30 85.2 80* 145 M6 35 12 13.6 12.5 10 74 M8 26 97 22 6.8 23 999
