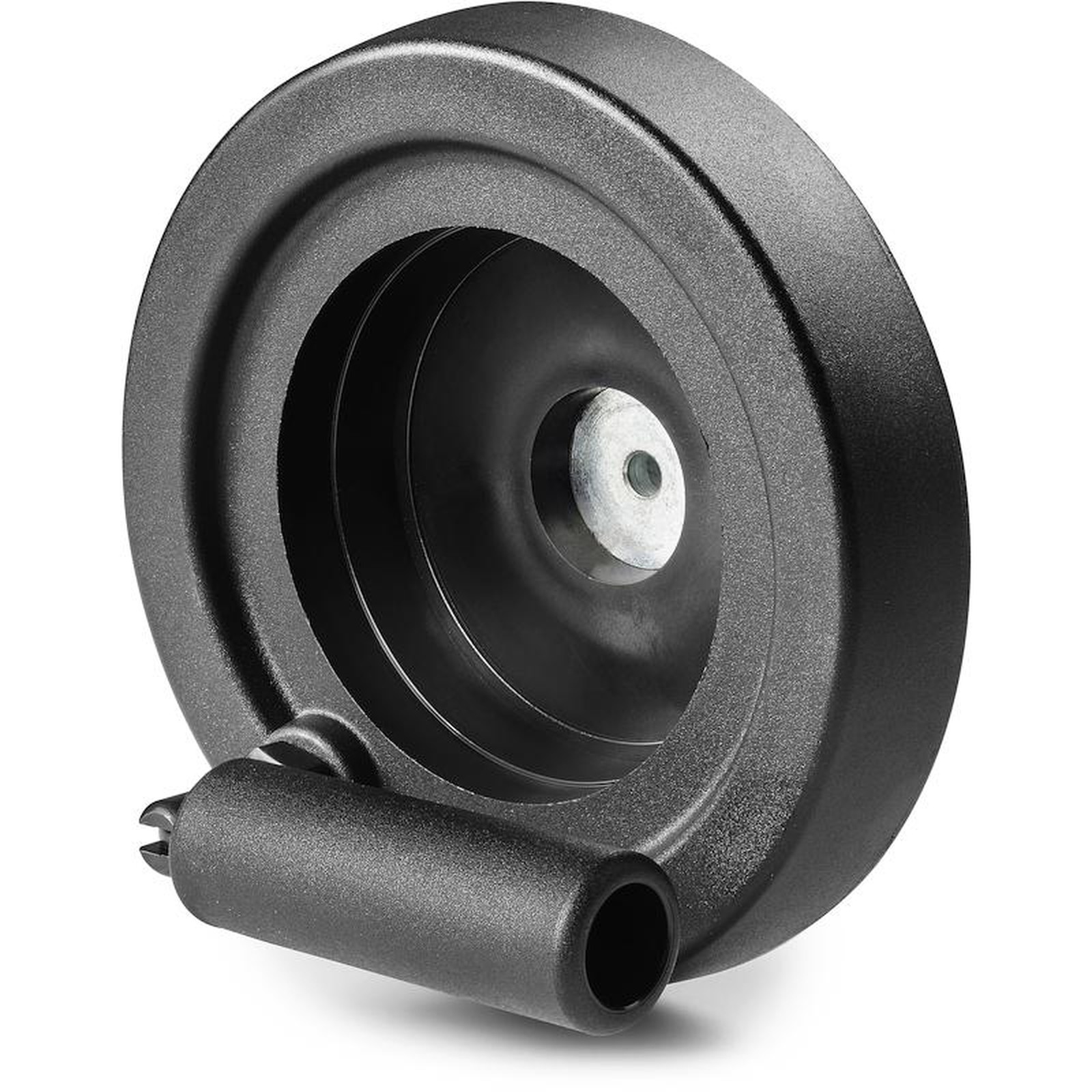

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT AND REVOLVING, FOLDING HANDLE

11

K904


Volantini di manovra con sede per indicatore gravitazionale

Materials:

Reinforced and stabilized polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black (RAL 9011).

Insert:

Galvanised steel insert with smooth through bore (tolerance H10).

Lateral insert:

Brass insert with threaded through hole.

Lateral handle:

Revolving handle art. M136.

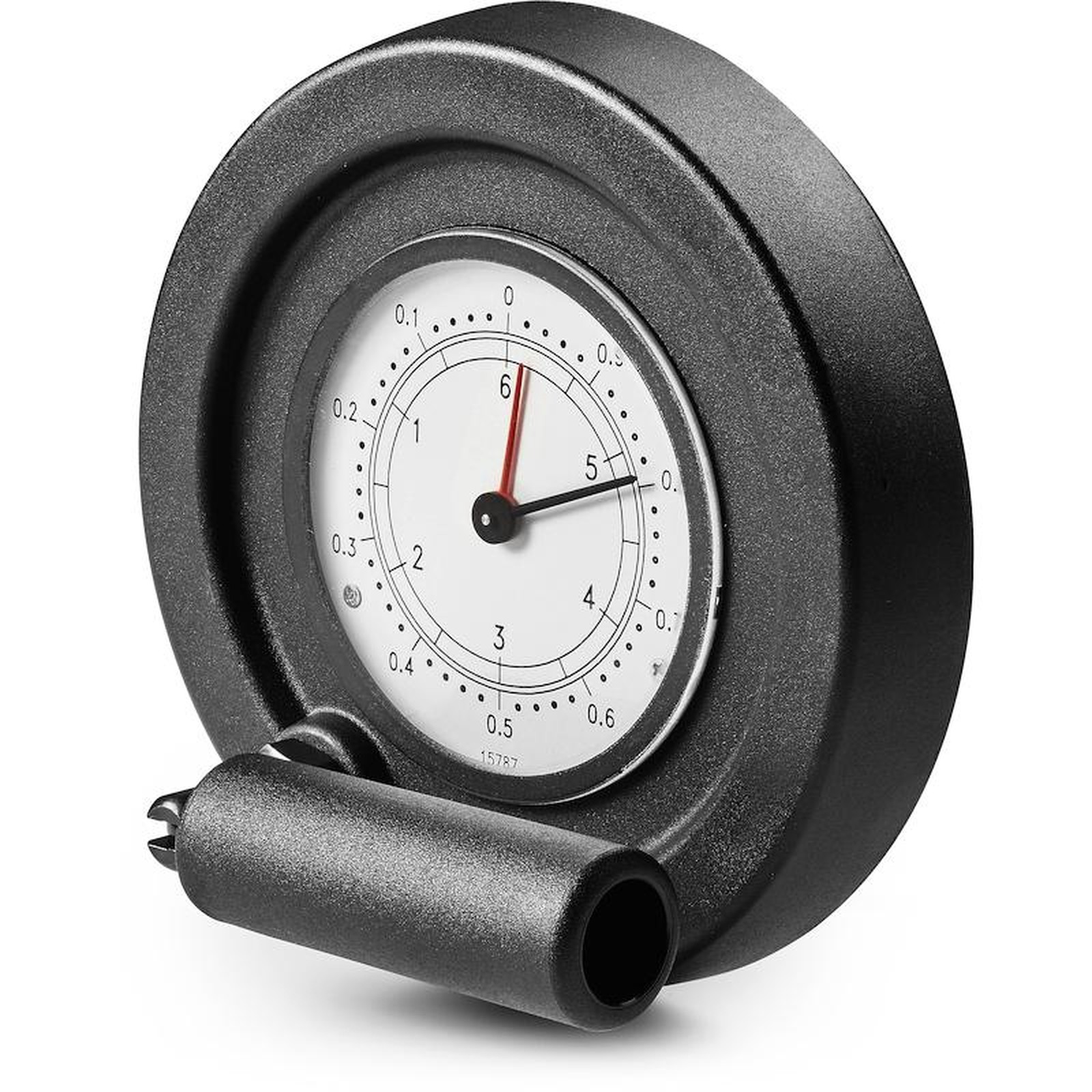

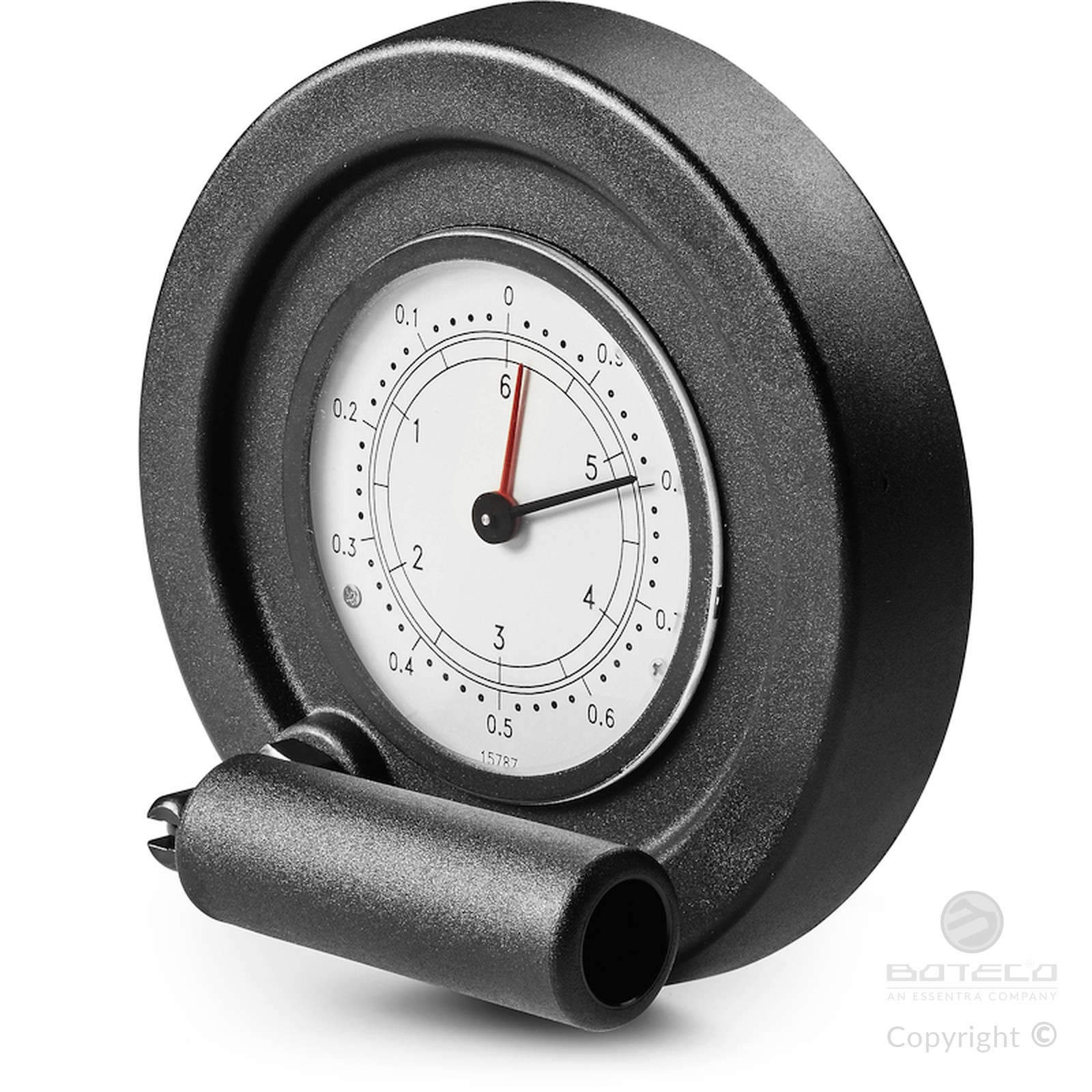

Mountable indicator:

Use gravity position indicators models K650 or K660. The indicator can be only used in a vertical position (horizontal machine axis). The indicator and the corresponding grub screw d7 must be purchased separately. For further information on the indicators see the pages of articles K650 and K660.

(*) With adapter KS08050.T01 you can mount the indicator K650050.

Fixing method:

For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

Special Requests:

On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.

Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

The indicator must be ordered separately.

Upon request and for special quantities it is possible to change the indicator seat.

Combinations Diameters/Indicators:

d5=50 --> K650050

d5=80 --> K650080 or K660080

Data sheet

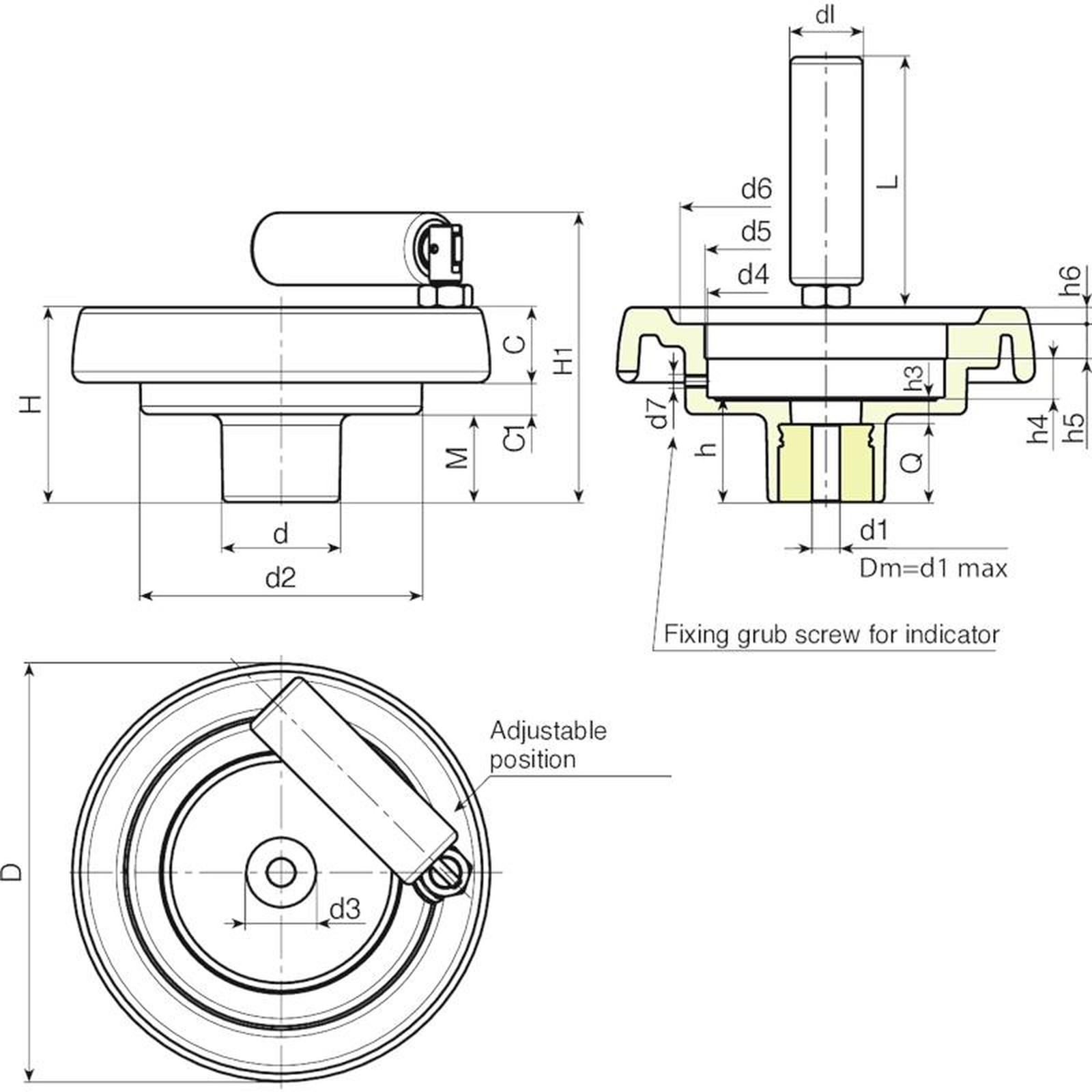

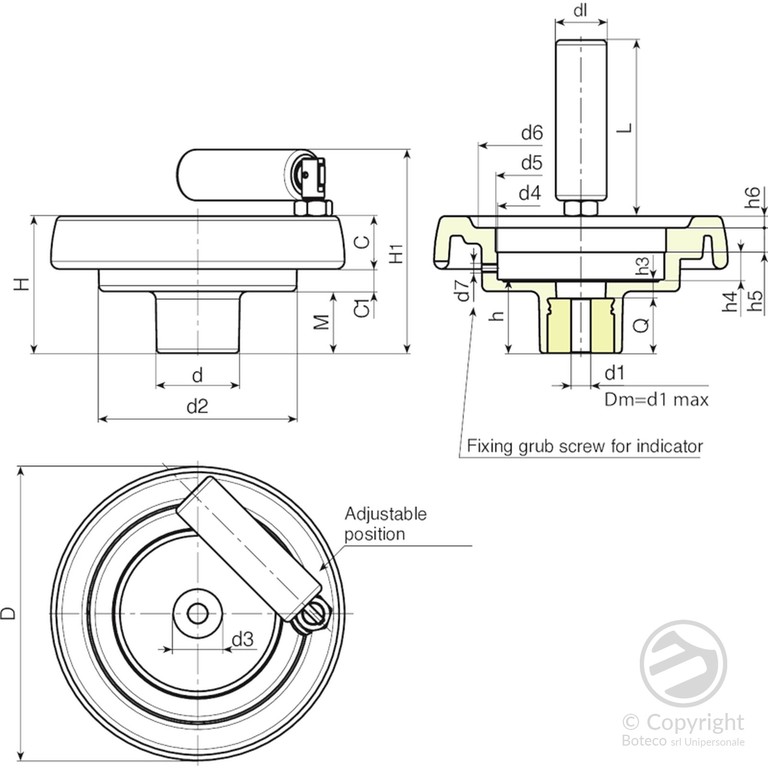

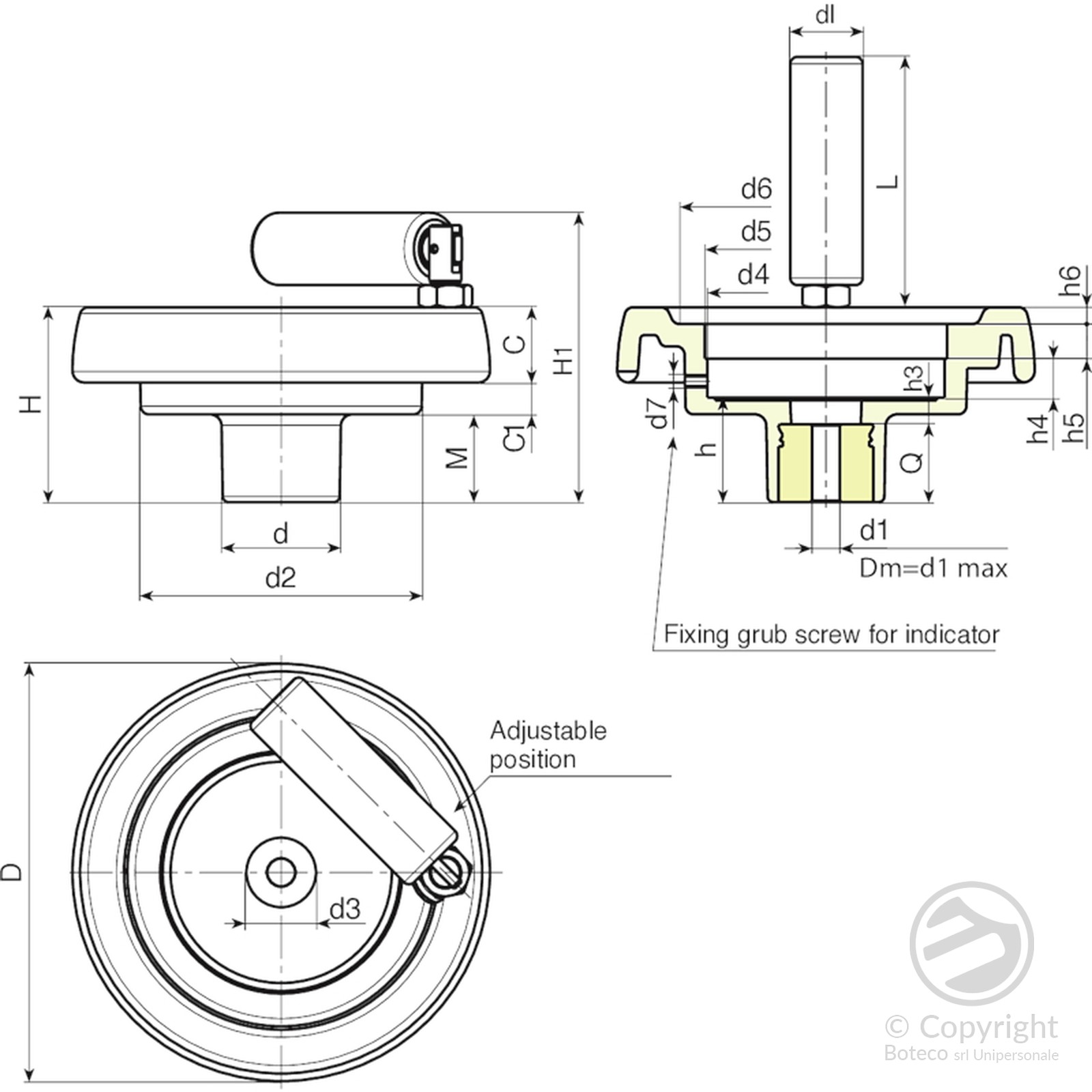

Code art. D H H1 d d2 M C C1 d3 d4 d5 d6 d7 h h3 h4 h5 h6 dl L Dm d1 Q Weight (g)
K904087.0001 K904087.T050P5.801P 86 53 77 32 62 21 17 15 20 50,8 50 63 M6 26,5 6,5 11,5 12 3 20 56 12 5,8 20 195
K904100.0001 K904100.T050P6.801P 99 55,5 80 32 63 23,5 20,5 11,5 20 50,8 50 68 M6 29 9 11,5 12 3,5 20 56 12 6,8 20 210
K904130.0005 K904130.T080P6.801P 130 65,5 94 42 98 28,5 23,5 13,5 29 85,2 80* 90 M6 34 10 13,5 12,5 5 25 76 20 6,8 24 420
K904150.0002 K904150.T080P6.801P 149 69 104 42 101 31 25,5 12,5 29 85,2 80* 106 M6 37 9 13,5 12,5 6,5 26 89 20 6,8 28 580
K904175.0001 K904175.T080P6.801P 174 73 107 41 114 30 31,5 11,5 26 85,2 80* 126 M6 39 11 13,5 12,5 8 26 89 20 6,8 28 800
K904200.0002 K904200.T080P6.801P 201 71 106 46 136 24,5 32 14,5 30 85,2 80* 145 M6 35 12 13,6 12,5 10 26 97 22 6,8 23 970
Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
