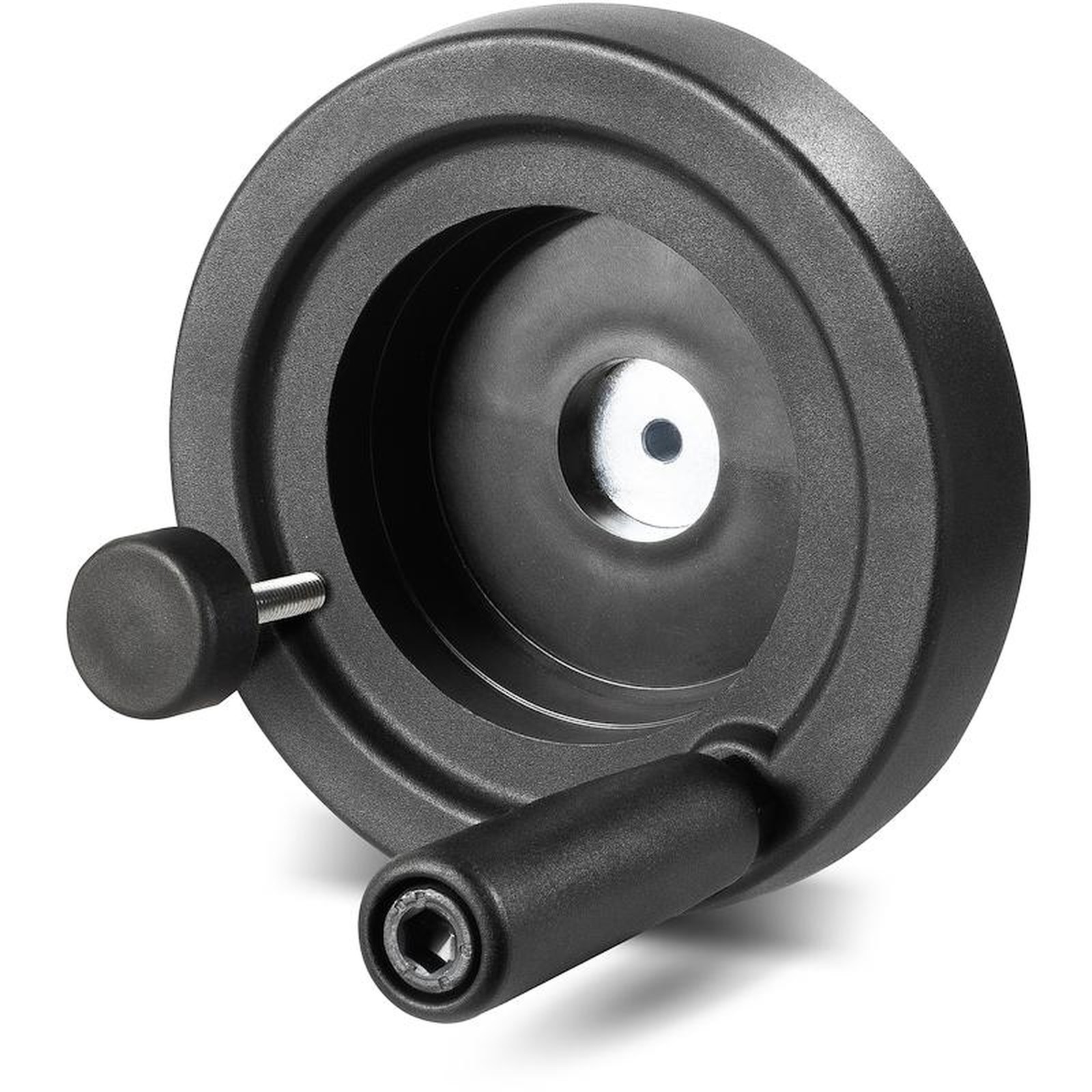

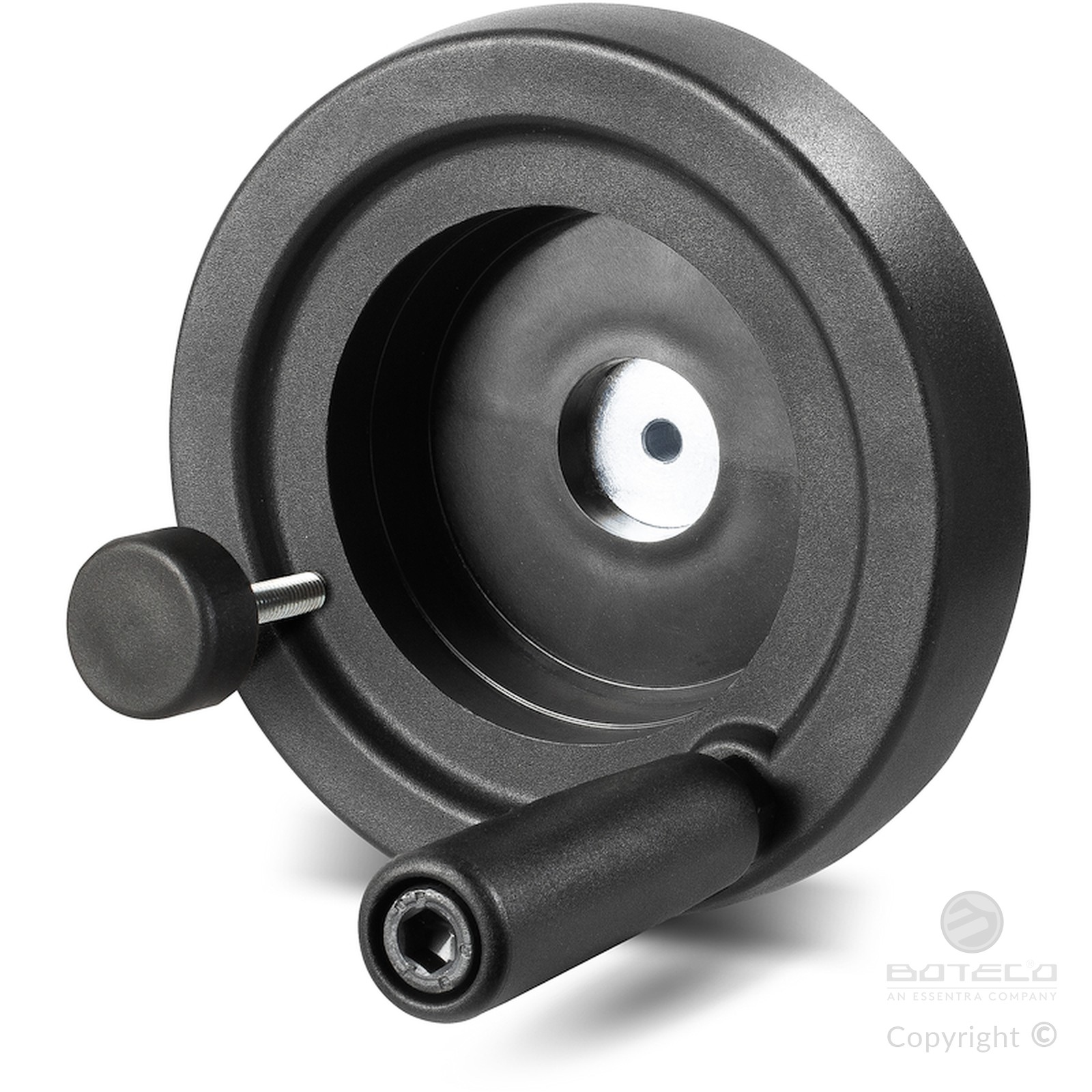

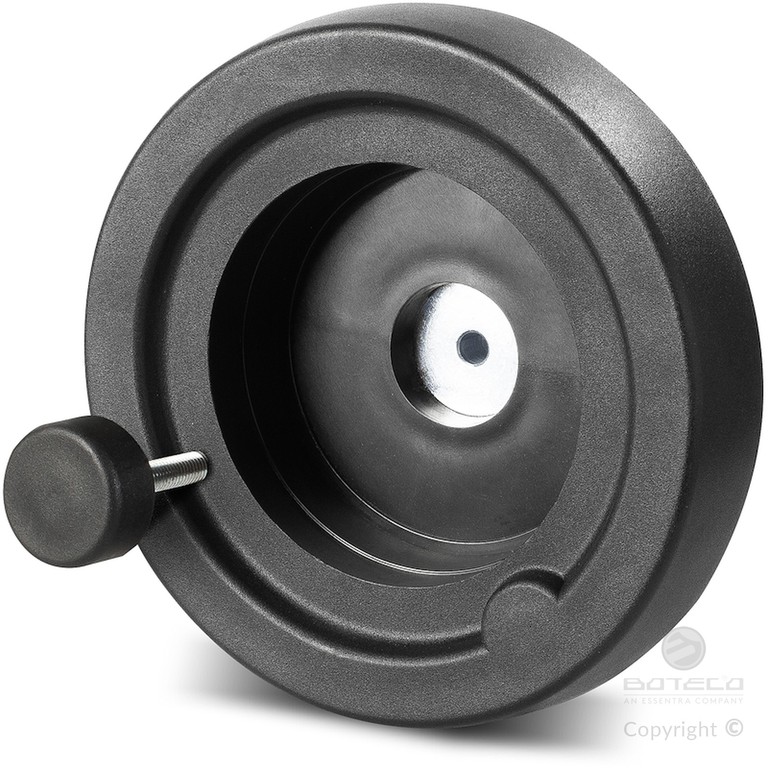

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT, REVOLVING HANDLE AND LOCKING KNOB

11

K903


Volantini di manovra con sede per indicatore gravitazionale

Materials:

Reinforced and stabilized polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black (RAL 9011).

Insert:

Galvanised steel insert with smooth through bore (tolerance H10).

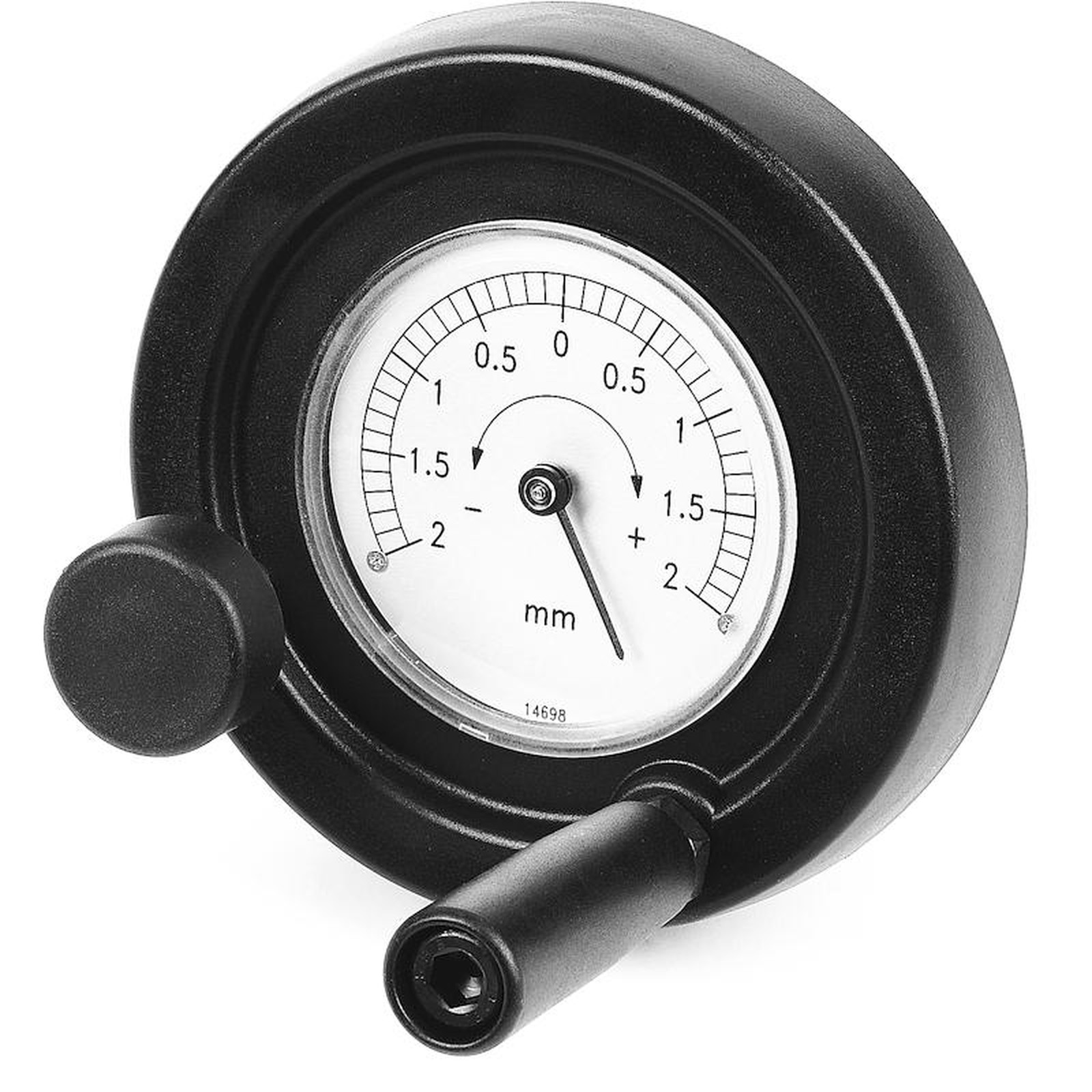

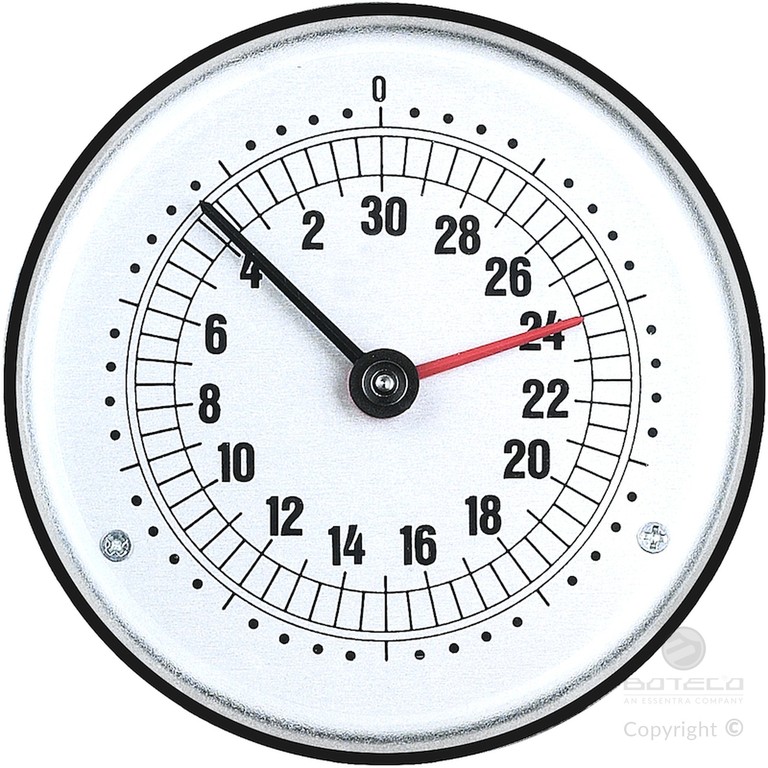

Mountable indicator:

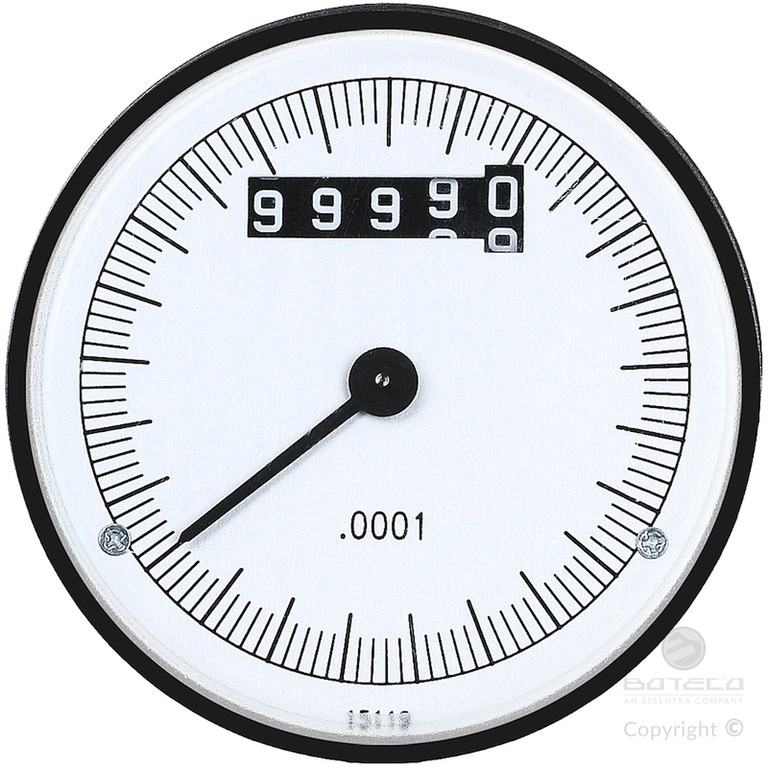

Use gravity position indicators models K650 or K660. The indicator can be only used in a vertical position (horizontal machine axis). The indicator and the corresponding grub screw d7 must be purchased separately. For further information on the indicators see the pages of articles K650 and K660.

(*) With adapter KS08050.T01 you can mount the indicator K650050.

Lateral insert:

Brass insert with threaded through hole.

Lateral handle:

Revolving handle art. M144.

Locking handwheel:

Cylindrical handwheel G793-36 with threaded stud.

Fixing method:

For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

Special Requests:

On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.

Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

The indicator must be ordered separately.

Upon request and for special quantities it is possible to change the indicator seat.

Combinations Diameters/Indicators:

d5=50 --> K650050

d5=80 --> K650080 or K660080

Data sheet

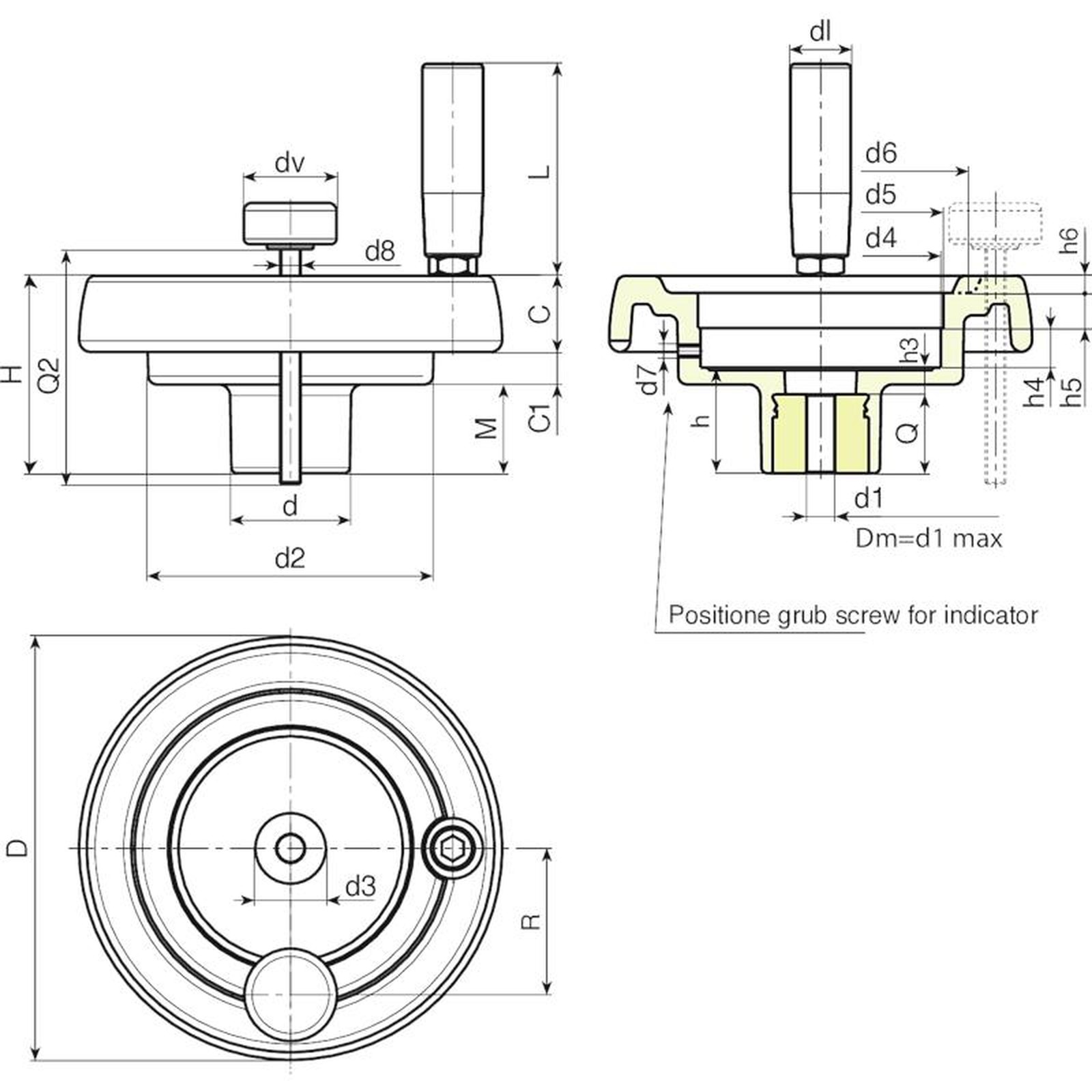

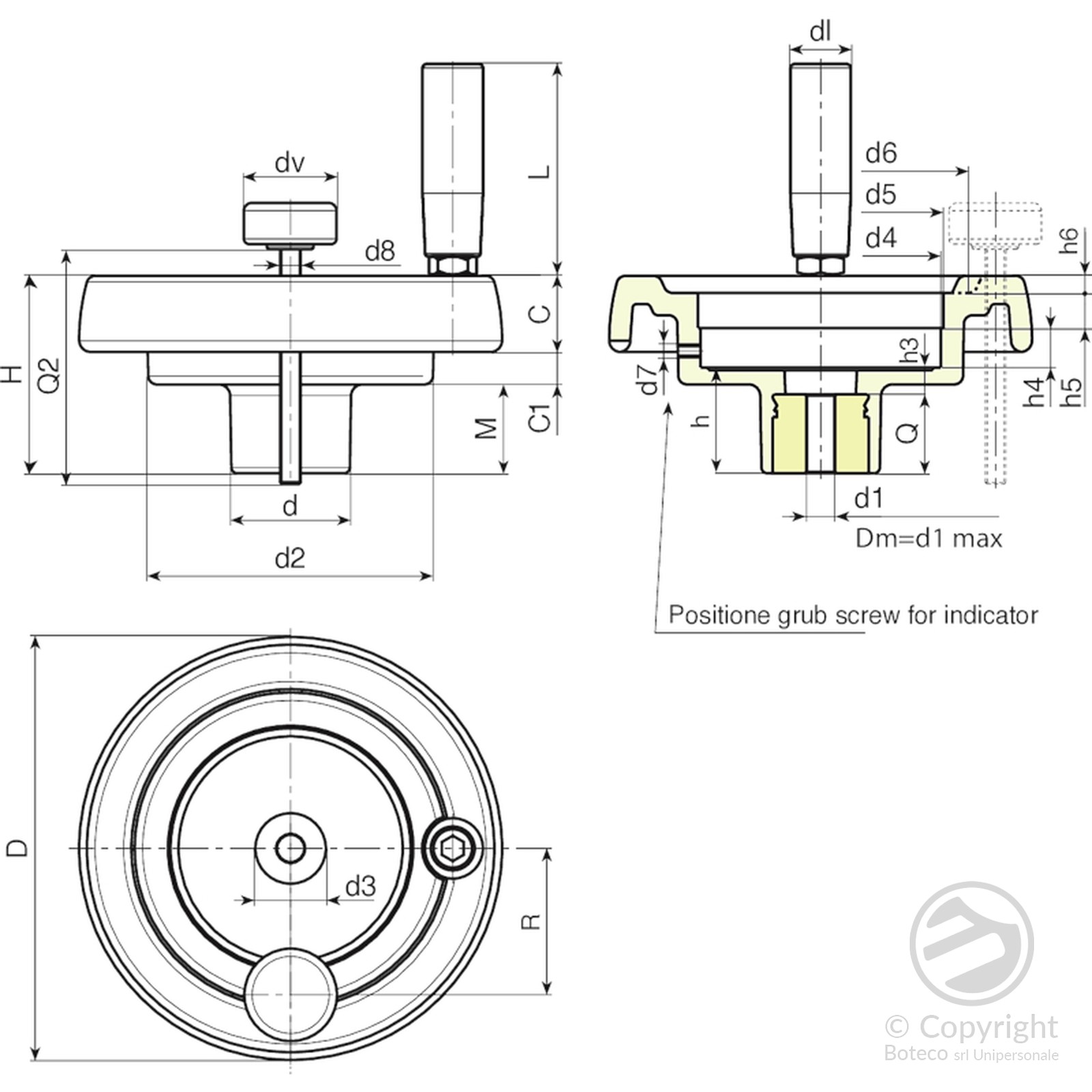

Code art. D H d d2 M C C1 d3 d4 d5 d6 d7 h h3 h4 h5 h6 R d8 dl L Dm d1 Q Weight (g)
K903130.0002 K903130.T080P6.801P 130 65.5 42 98 87.5 23,5 13,5 29 85.2 80* 90 M6 34 10 13.5 12.5 5 54 M8 21 65 20 6.8 24 426
K903150.0001 K903150.T080P6.801P 149 69 42 101 31 25.5 12.5 29 85.2 80* 106 M6 37 9 13.5 12.5 6.5 57 M8 23 76 20 6.8 28 555
K903175.0001 K903175.T080P6.801P 174 73 41 114 30 31.5 11.5 26 85.2 80* 126 M6 39 11 13.5 12.5 8 60 M8 25 86 20 6.8 28 782
K903200.0001 K903200.T080P6.801P 201 71 46 136 24.5 32 14.5 30 85.2 80* 145 M6 35 12 13.6 12.5 10 74 M8 25 86 22 6.8 23 950
Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
Dm = Maximum obtainable diameter for subsequent machining (widening).
Q2 = Upon request.
dv = 36 mm. (K903130 dv=32 mm)

Alternative products:

11

K405

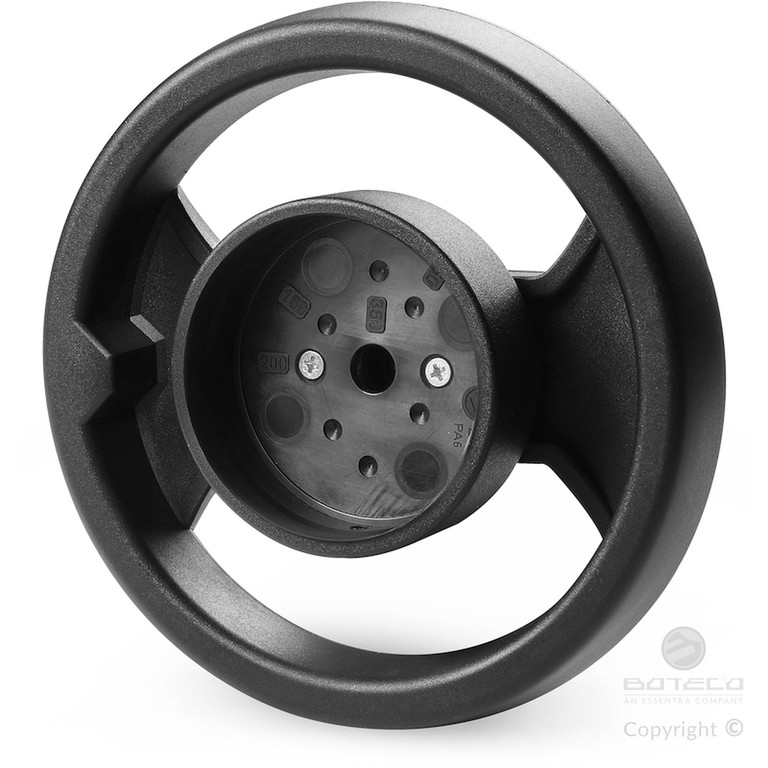

SPOKE HANDWHEEL WITH INDICATOR SEAT
11

K406

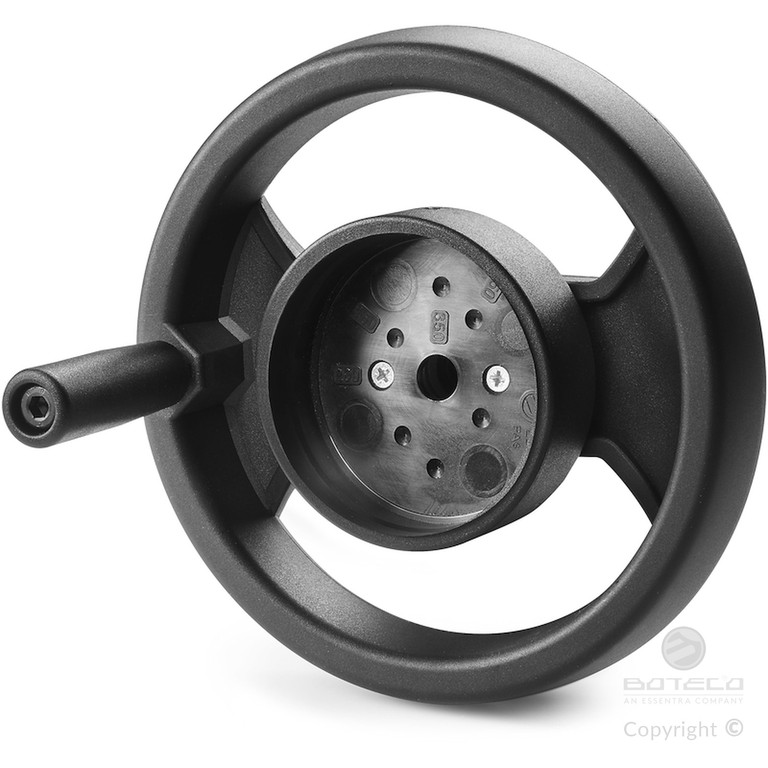

SPOKE HANDWHEEL WITH HANDLE AND INDICATOR SEAT
11

K900

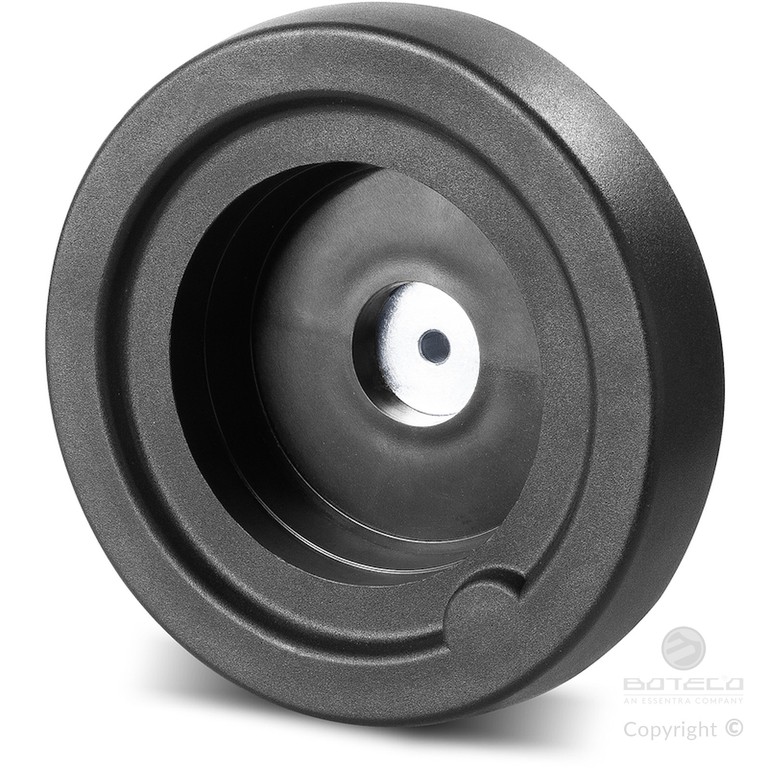

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT
11

K901

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT AND LOCKING KNOB
11

K902

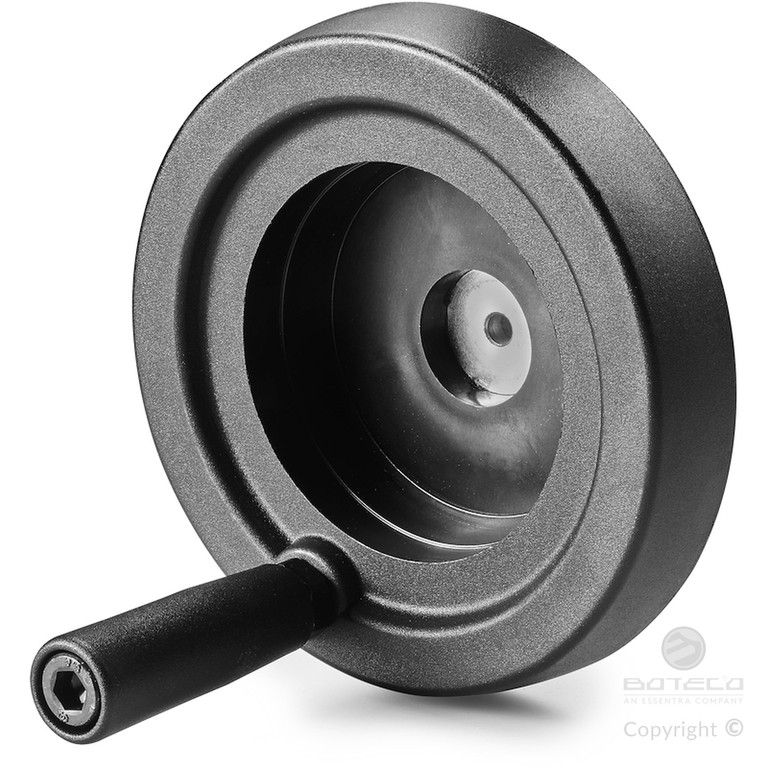

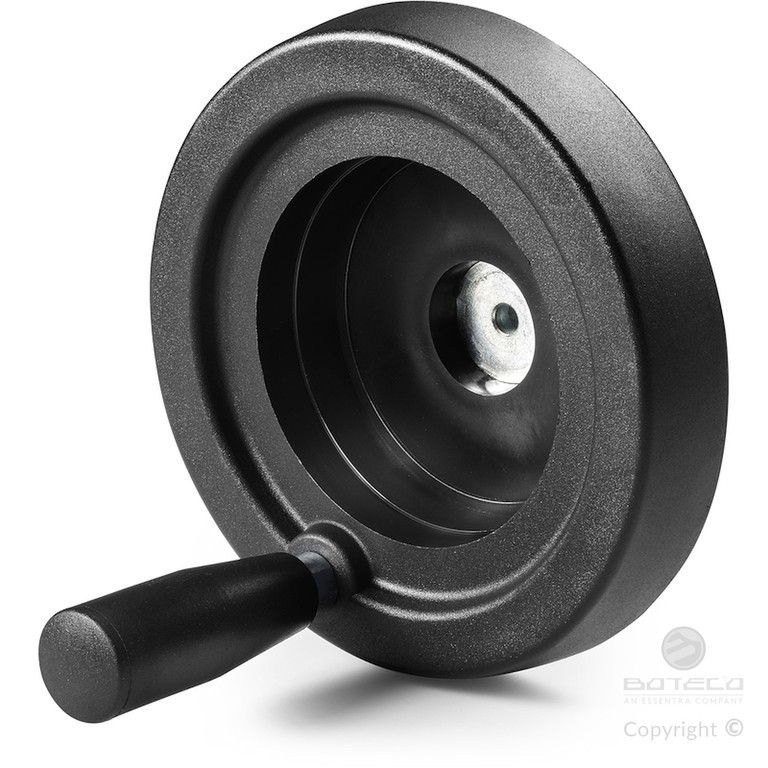

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT AND REVOLVING HANDLE
11

K904

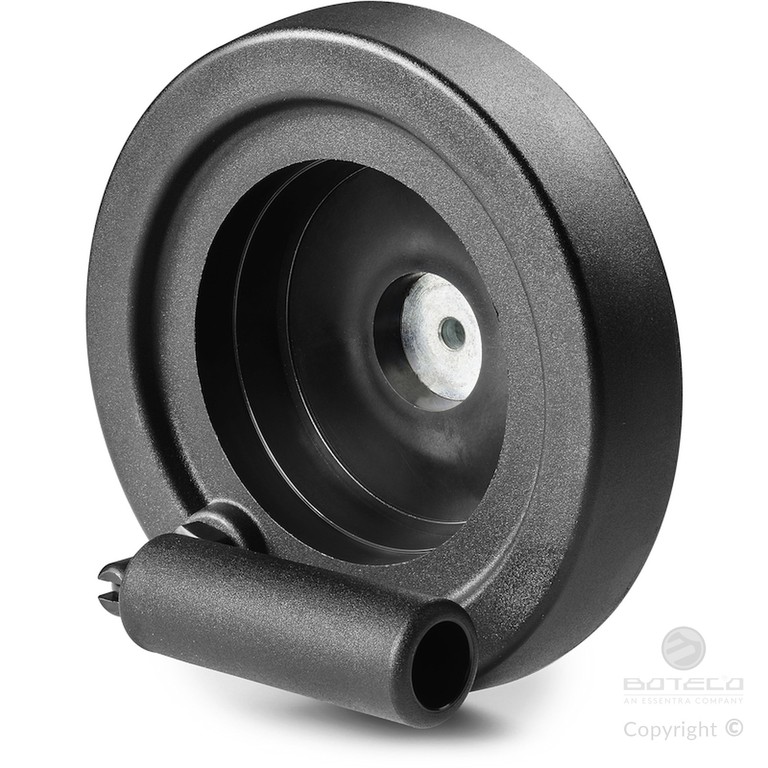

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT AND REVOLVING, FOLDING HANDLE
11

K905

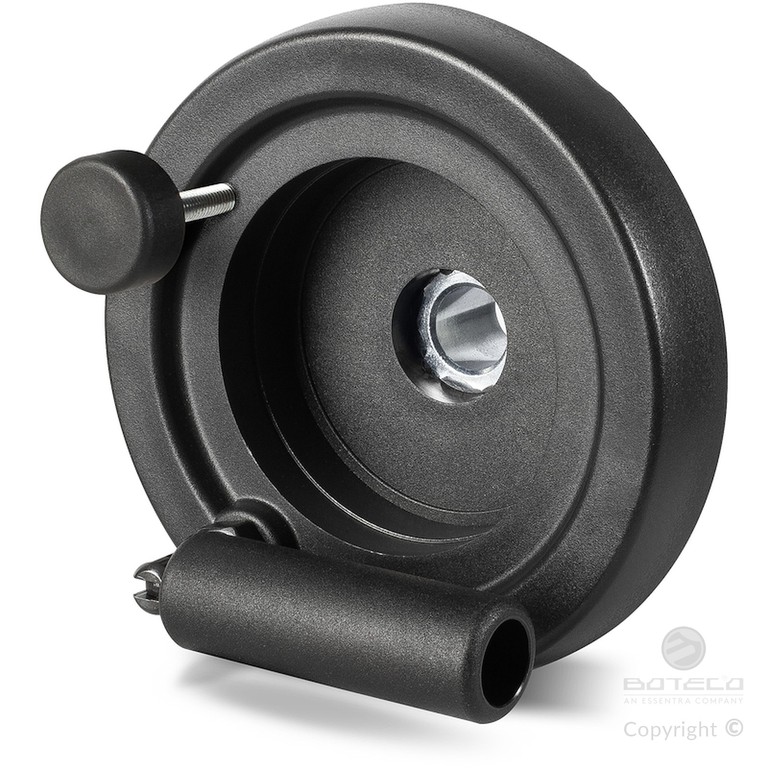

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT, REVOLVING, FOLDING HANDLE AND LOCKING KNOB
11

K906

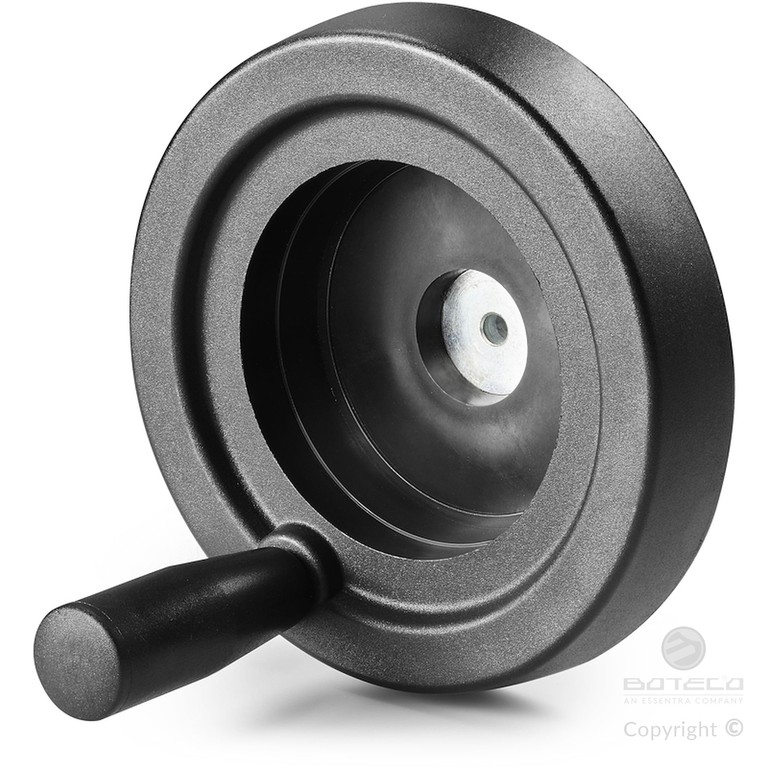

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT AND REVOLVING HANDLE M129
11

K907

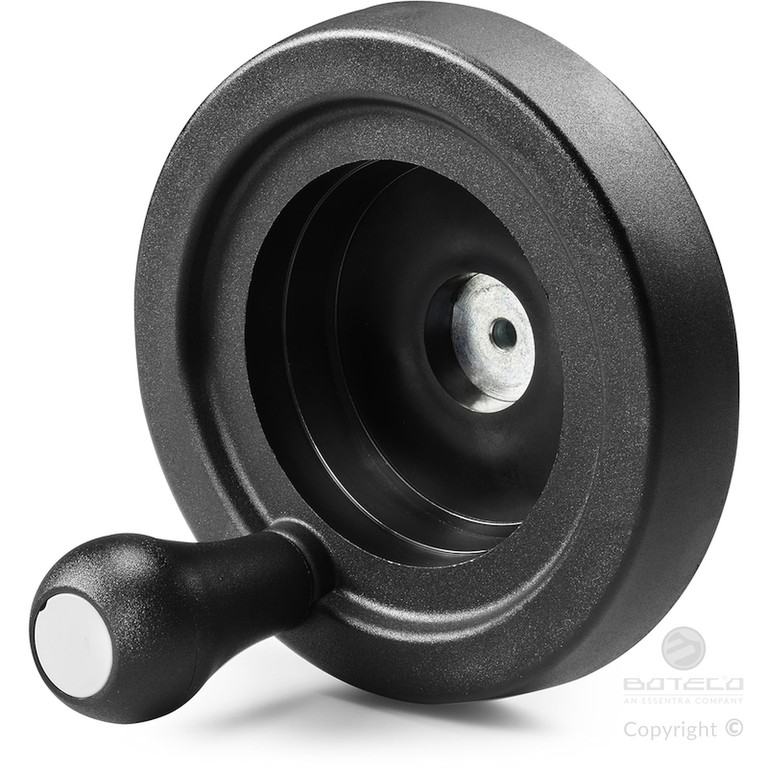

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT AND REVOLVING HANDLE M145
11

K908

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT AND REVOLVING HANDLE M202
11

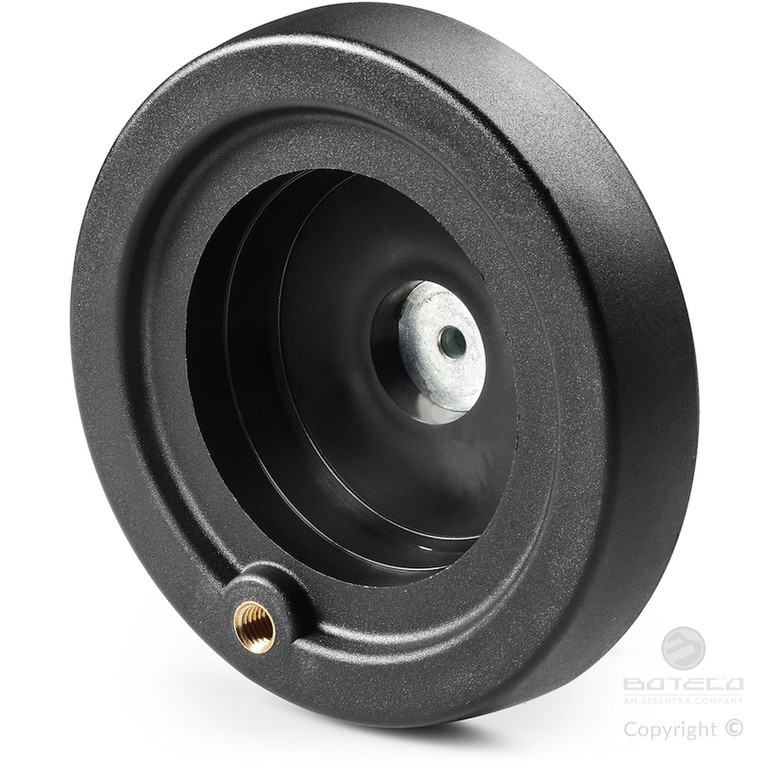

KBASE
