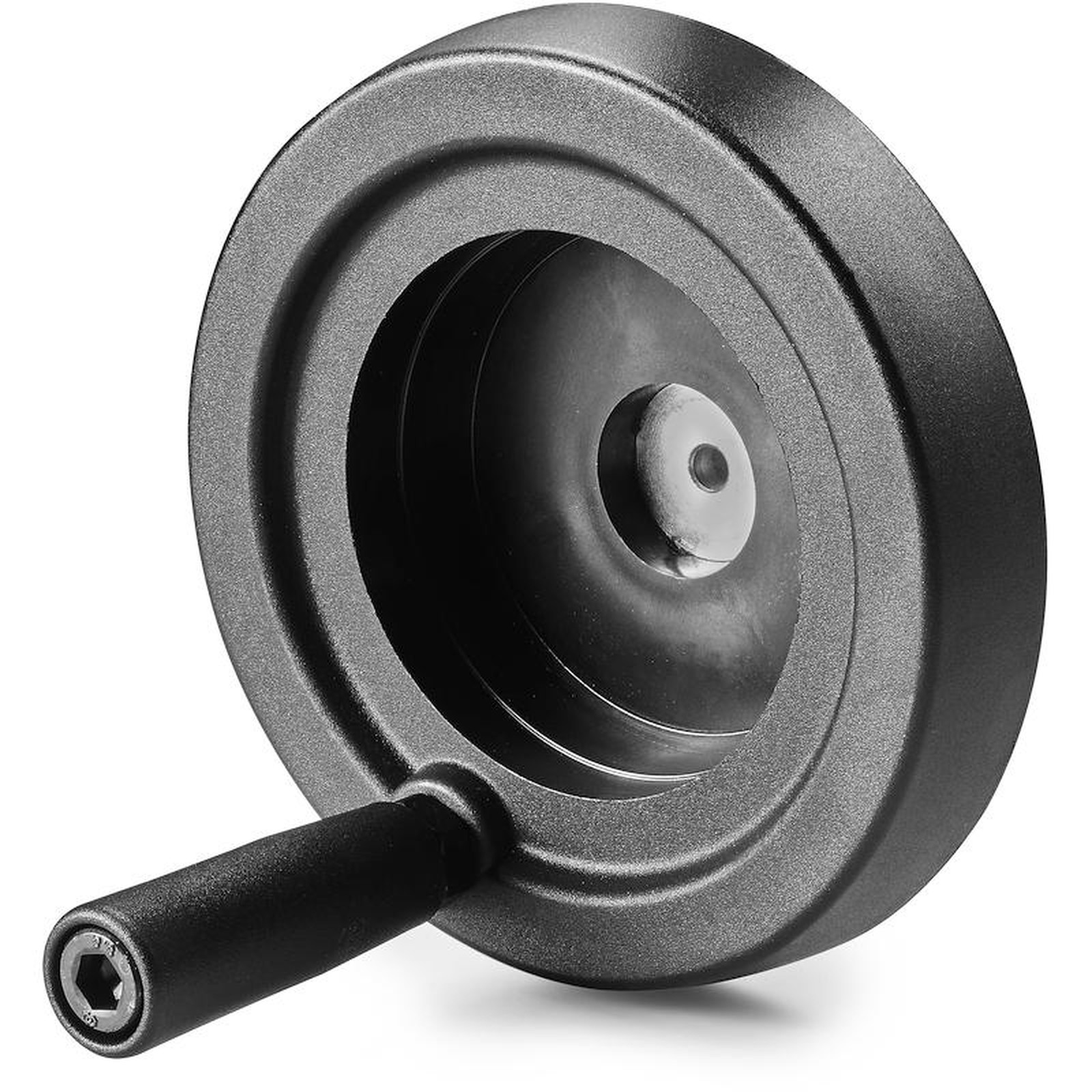

SOLID CONTROL HANDWHEEL WITH INDICATOR SEAT AND REVOLVING HANDLE

11

K902


Volantini di manovra con sede per indicatore gravitazionale

    Materials:

    Reinforced and stabilized polyamide.

    Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black (RAL 9011).

    Insert:

    Galvanised steel insert with smooth through bore (tolerance H10).

    Lateral insert:

    Brass insert with threaded through hole.

    Lateral handle:

    Revolving handle art. M144.

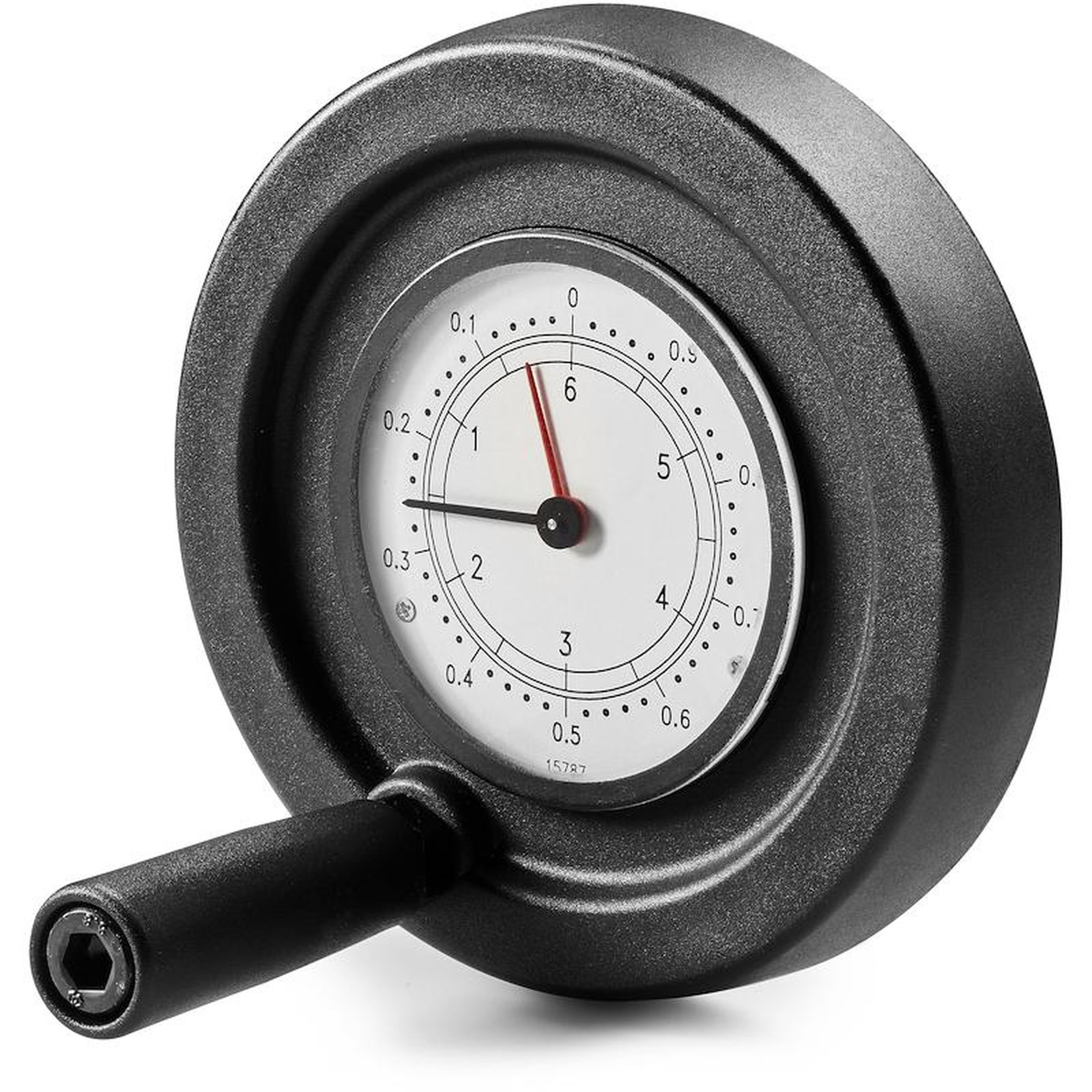

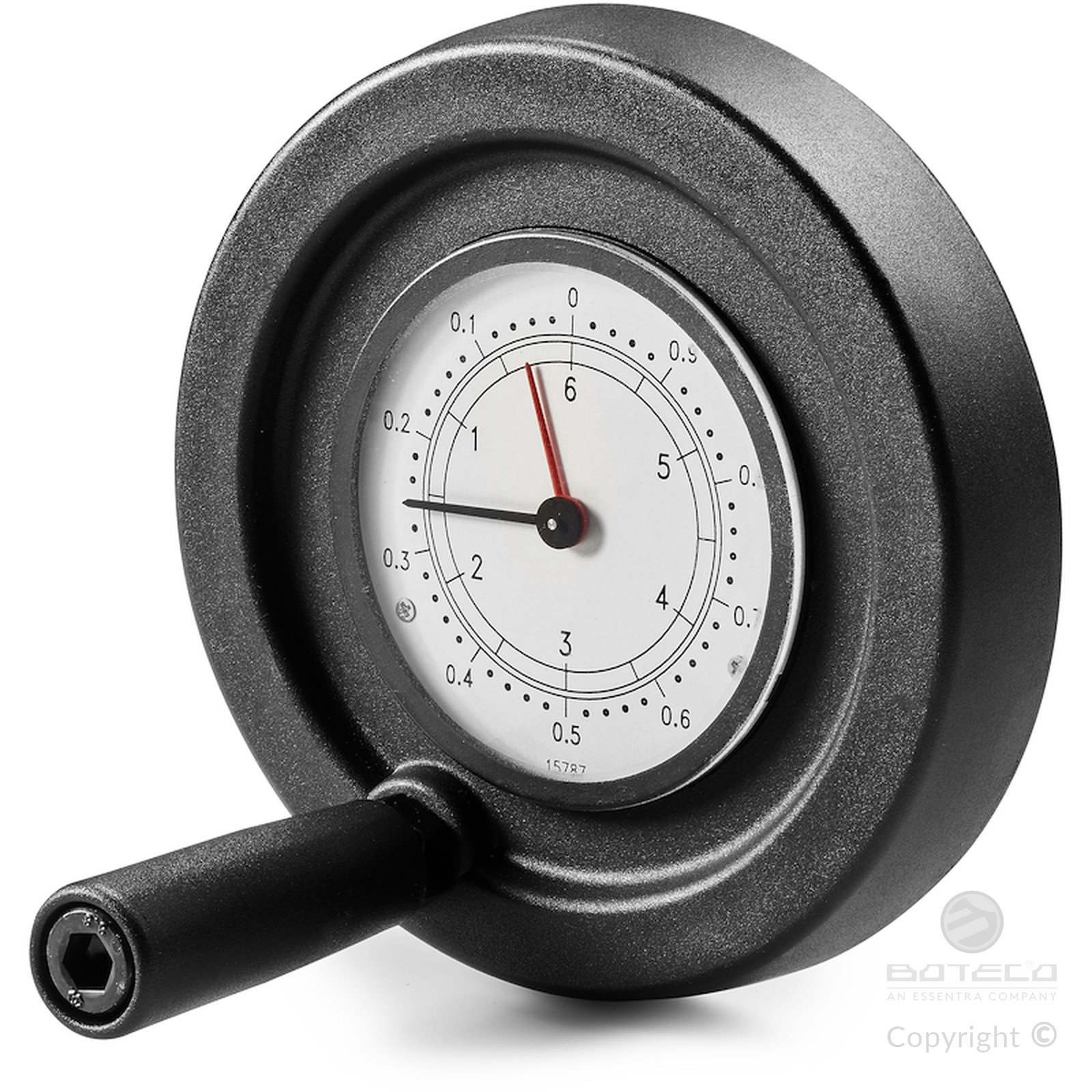

    Mountable indicator:

    Utilizzare Indicatori gravitazionali modelli serie K650 o K660. L’indicatore può essere usato solo in posizione verticale (asse macchina orizzontale). L’indicatore e il relativo grano di fissaggio d7 sono da acquistare separatamente. Per informazioni ulteriori sugli indicatori consultare le pagien relative agli articoli K650 e K650.

    (*) With adapter KS08050.T01 you can mount the indicator K650050.

    Fixing method:

    For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

    Special Requests:

    On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.

    Upon request and for special quantities inserts can be supplied with custom hole diameter d1.

    Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

    The indicator must be ordered separately.

    Upon request and for special quantities it is possible to change the indicator seat.

    Combinations Diameters/Indicators:

    d5=50 --> K650050

    d5=80 --> K650080 or K660080

    Data sheet

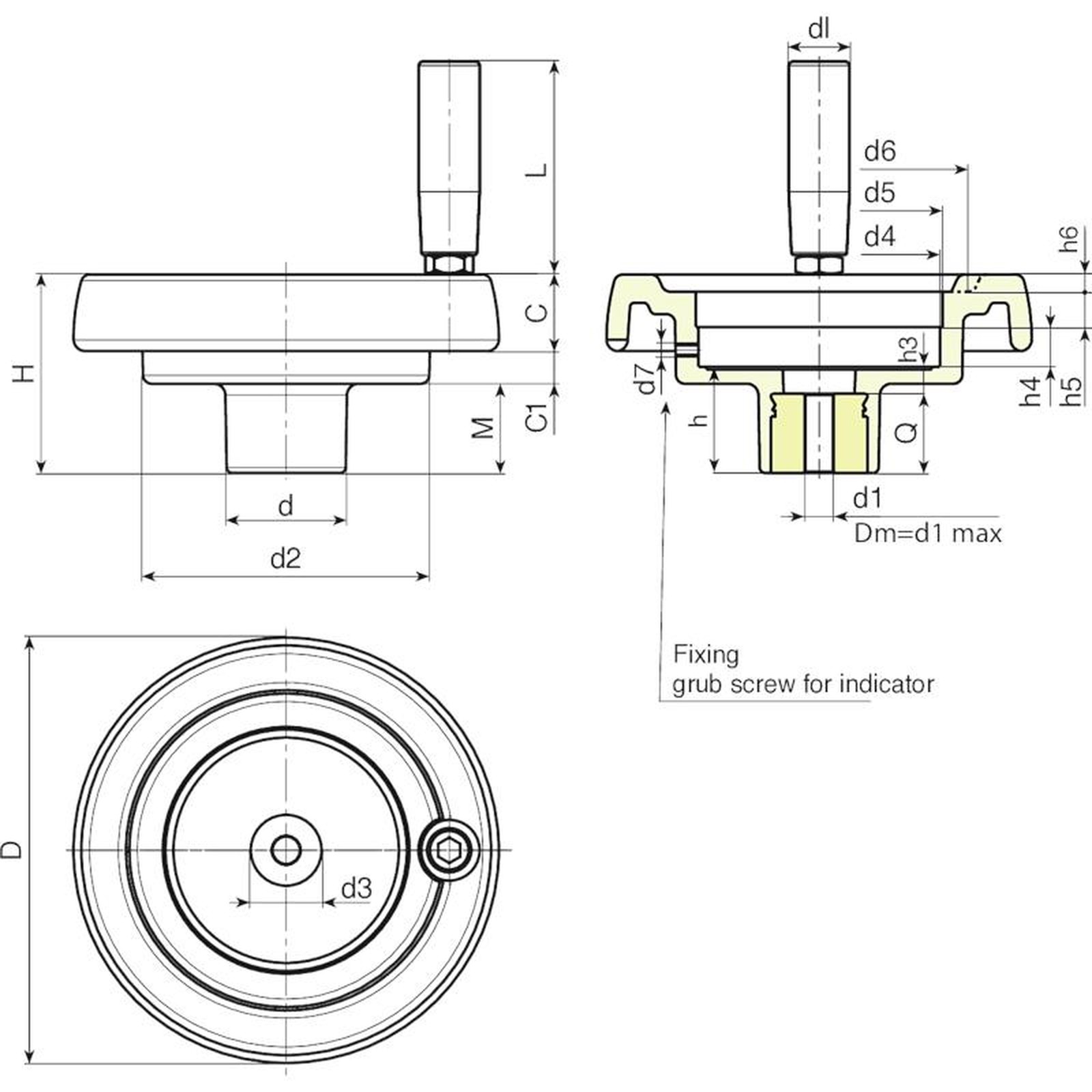

    Code art. D H d d2 M C C1 d3 d4 d5 d6 d7 h h3 h4 h5 h6 dl L Dm d1 Q Weight (g)
    K902087.0002 K902087.T050P5.801P 86 53 32 62 21 17 15 20 50.8 50 63 M6 26.5 6.5 11.5 12 3 20 56 12 5.8 20 185
    K902100.0003 K902100.T050P6.801P 99 55.5 32 63 23.5 20.5 11.5 20 50.8 50 68 M6 29 9 11.5 12 3.5 20 56 12 6.8 20 200
    K902130.0002 K902130.T080P6.801P 130 65.5 42 98 28.5 23,5 13,5 29 85.2 80* 90 M6 34 10 13.5 12.5 5 21 65 20 6.8 24 406
    K902150.0005 K902150.T080P6.801P 149 69 42 101 31 25.5 12.5 29 85.2 80* 106 M6 37 9 13.5 12.5 6.5 23 76 20 6.8 28 530
    K902175.0002 K902175.T080P6.801P 174 73 41 114 30 31.5 11.5 26 85.2 80* 126 M6 39 11 13.5 12.5 8 25 86 20 6.8 28 760
    K902200.0001 K902200.T080P6.801P 201 71 46 136 24.5 32 14.5 30 85.2 80* 145 M6 35 12 13.6 12.5 10 25 86 22 6.8 23 920
    Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
    Dm = Maximum obtainable diameter for subsequent machining (widening).
