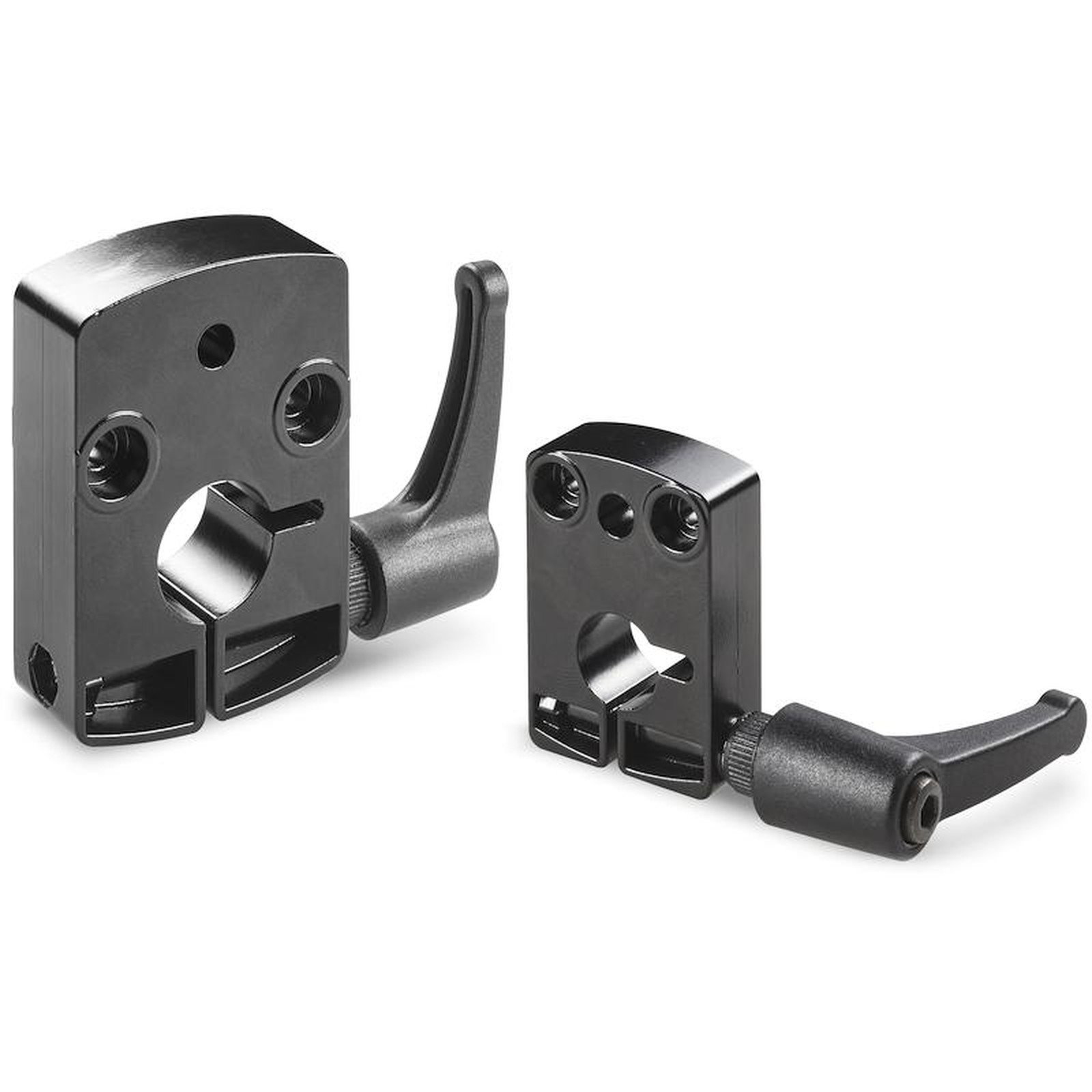

FIXING PLATE FOR NUMERATOR BLOCK
11
K590
Blocchetti numeratori ed accessori
Material:
Plate:
Die-cast zinc alloy (zamak).
Lever:
Glass fiber reinforced polyamide. See specific data on art. A580.
Surface finish:
Plate:
Smooth, epoxy powder coated.
Lever:
Satin.
Colour:
Black (RAL 9011).
Fixing systems:
Hexagonal socket head cap screw (TCCE) M4 in galvanised steel.

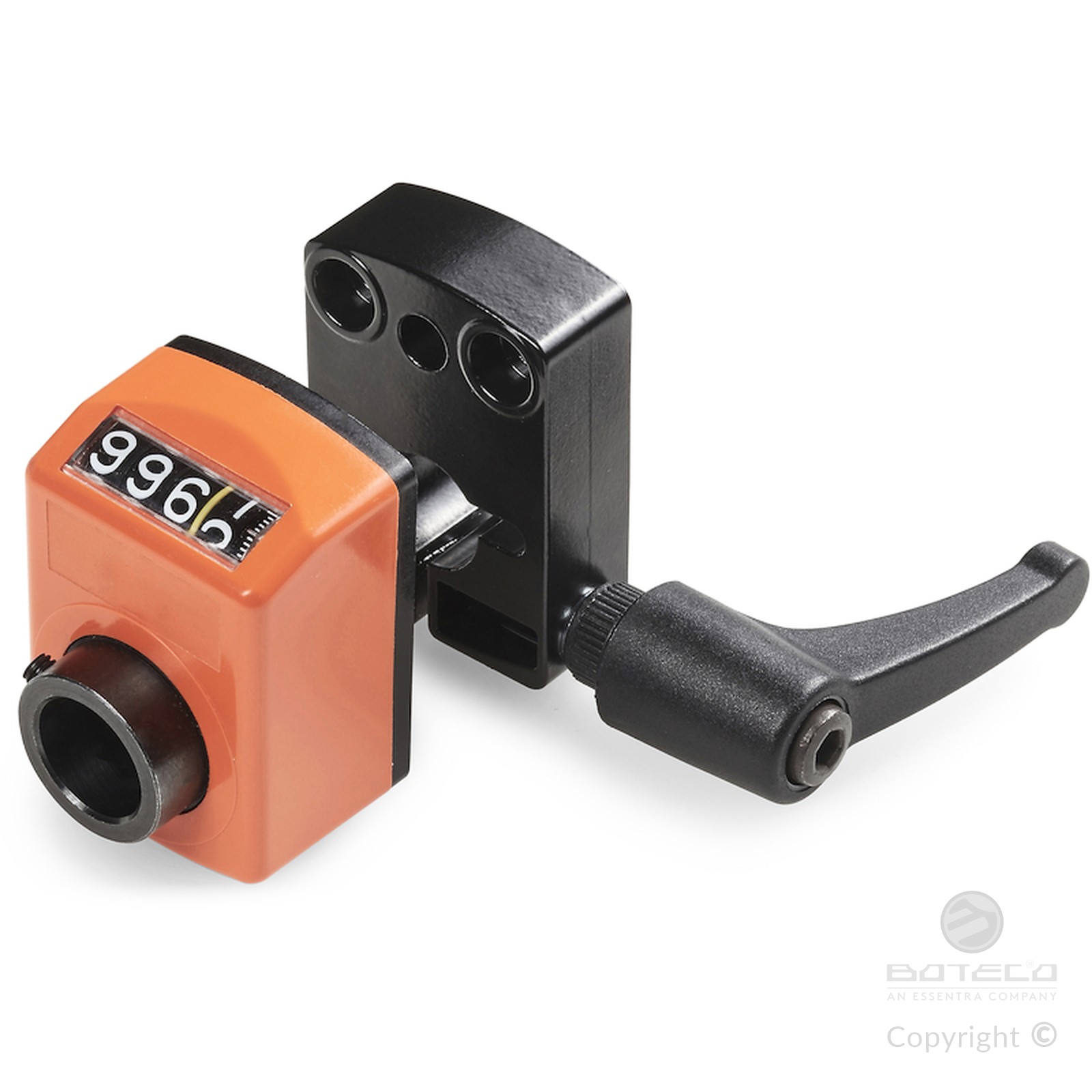

Compatibility:
K590047: For block K610047.
K590067: For block K620067.

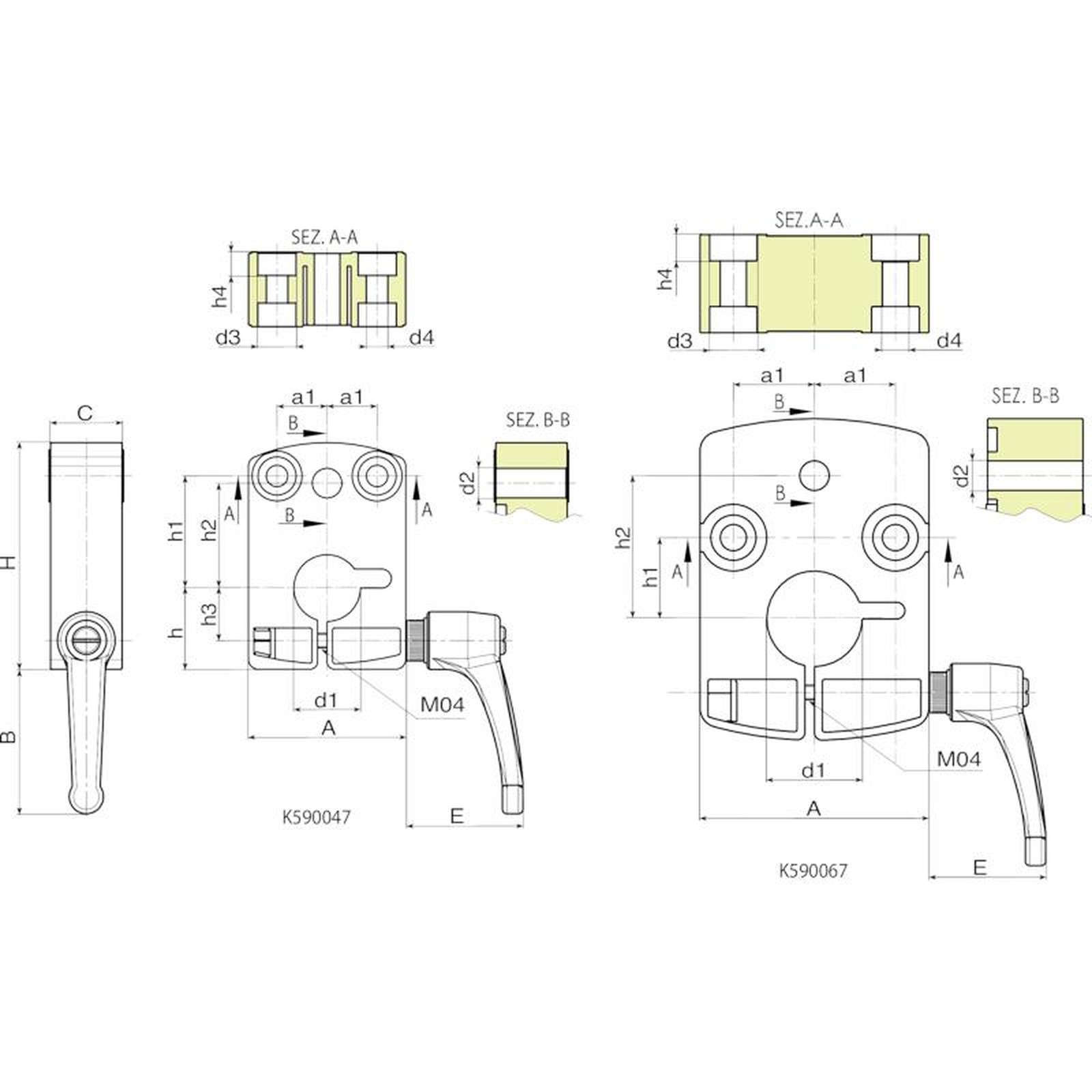

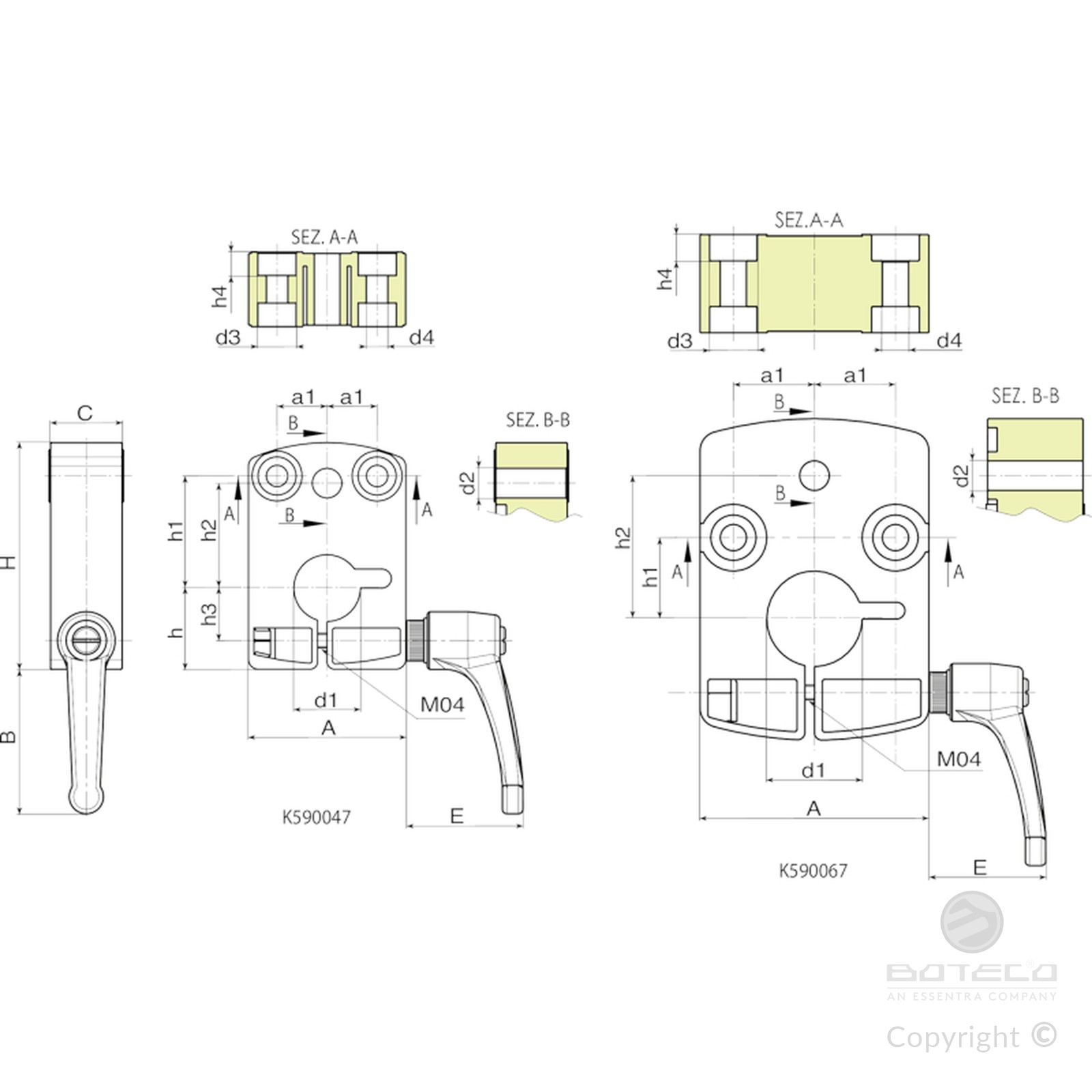

Code | art. | H | A | C | B | E | a1 | h | h1 | h2 | h3 | h4 | d2 | d3 | d4 | d1 | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
K590047.0001 | K590047.TD14P1 | 47,5 | 33 | 15 | 38 | 33 | 10.5 | 17 | 23.5 | 22 | 11 | 4.9 | 6.2 | 8 | 4.5 | 14 | 105 |
K590067.0001 | K590067.TD20P1 | 67.4 | 48 | 20 | 34 | 33 | 17 | - | 17 | 30 | - | 5.5 | 6.2 | 10 | 5.5 | 20 | 165 |
