ADAPTER FOR INDICATOR
11
K500
Indicatori gravitazionali ed accessori
Materials:
Reinforced and stabilized polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Primary cap colour:
Black (RAL 9011).
Secondary cap colour:
Grey (RAL 7035).
Alternative cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Grey (RAL 7035 cod. 13).
Cap fixing method:
Push-fit. Removable.
Special Requests:
None.
Pad printing service:
Upon request and for special quantities caps can be supplied with custom pad printing.

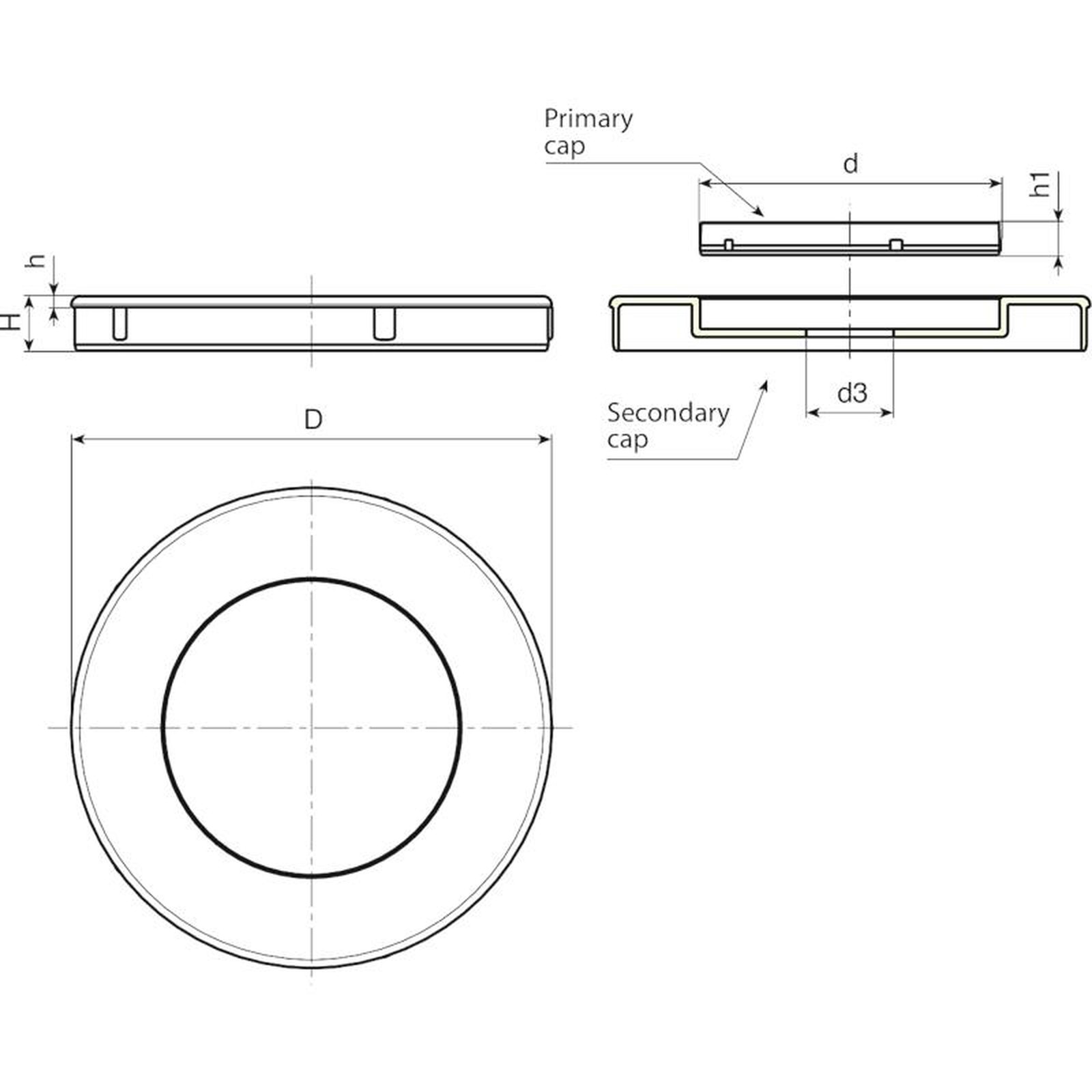

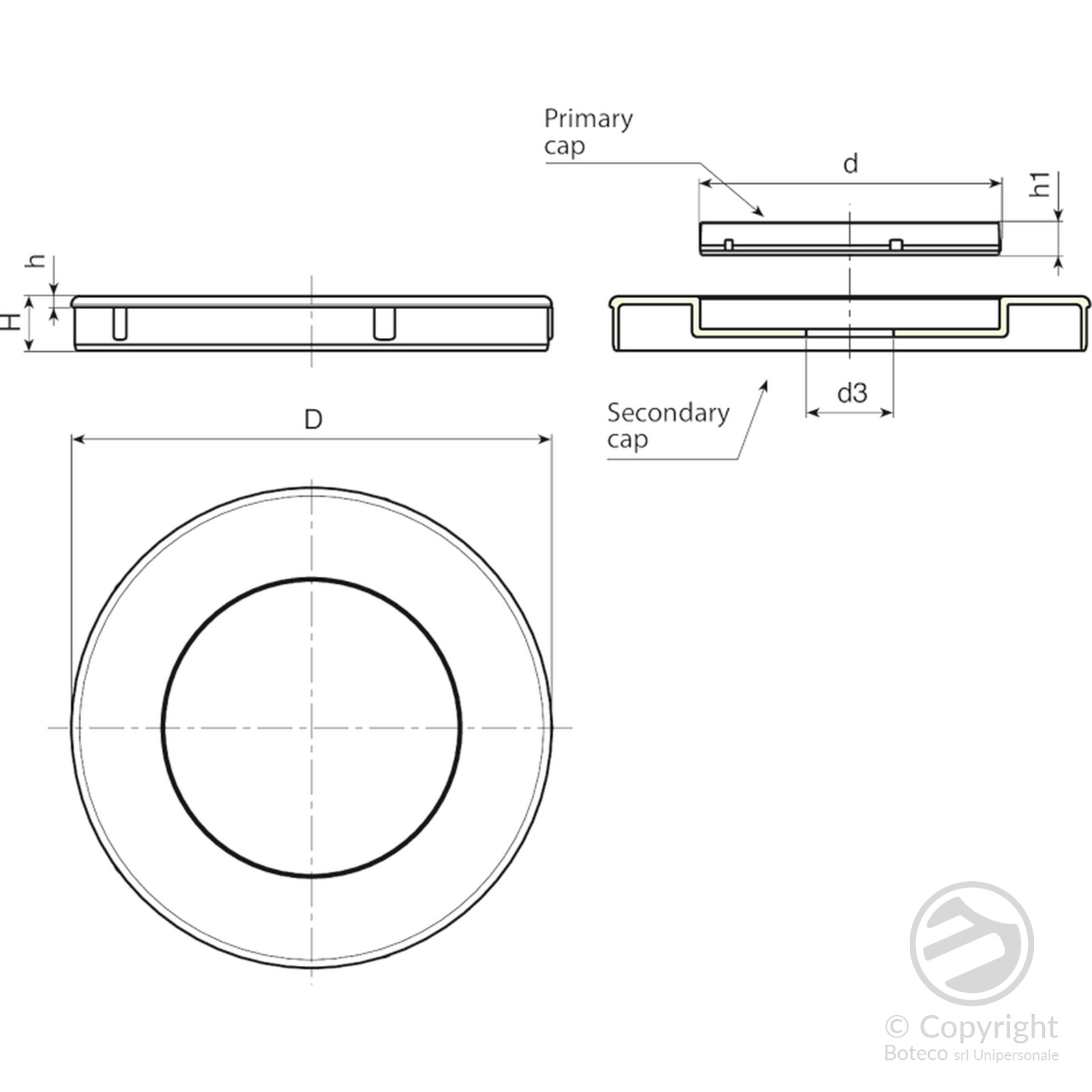

Code | art. | D | d | d3 | H | h | h1 | Weight (g) |
---|---|---|---|---|---|---|---|---|
K500.0001 | K500.0500113 | K650050 | 34 | 10 | 8 | 2 | 5 | 10 |
K500.0003 | K500.0800113 | K650080 | 55 | 16 | 10 | 2 | 6 | 25 |
