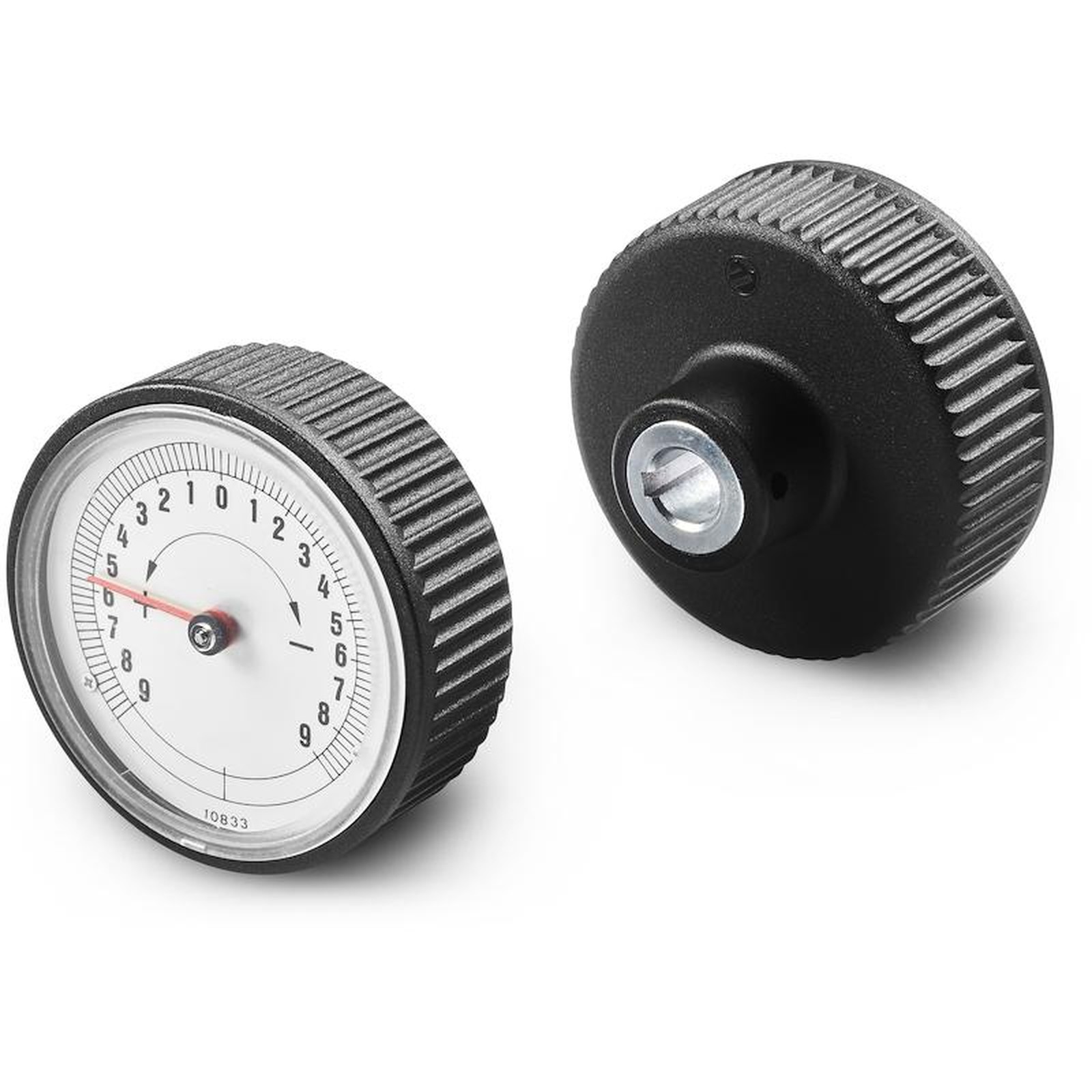

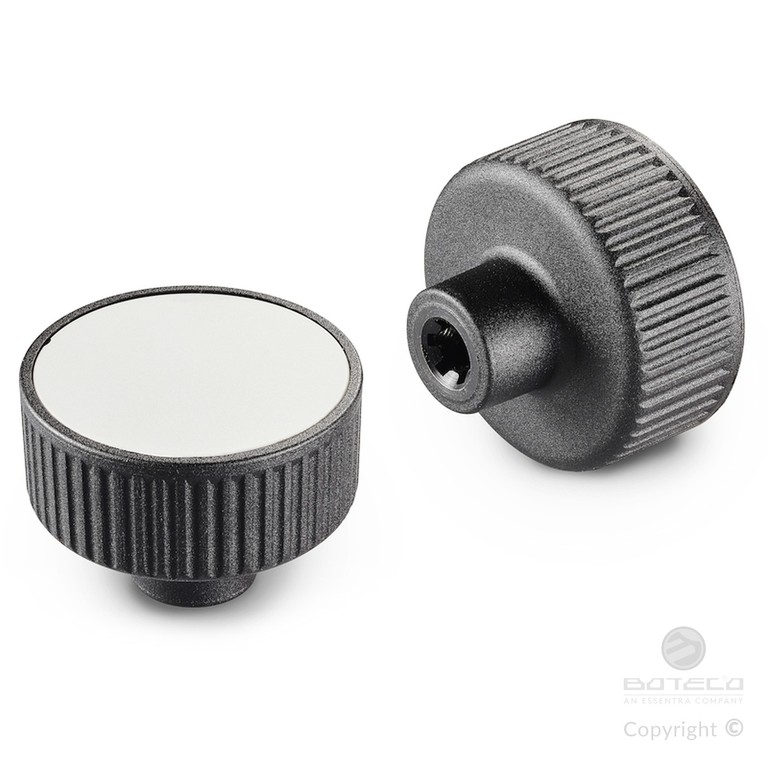

KNURLED KNOB FOR INDICATOR
K150
Pomelli con sede per indicatore gravitazionale
Materials:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Mountable indicator:
Gravity position indicator type K650050. The indicator can be only used in a vertical position (horizontal machine axis). The indicator must be purchased separately. For further information see article K650.
ATTENTION:
In your order specify the following information and select the corresponding letter to insert in the code:
Rotation direction
O = increase of values with clockwise rotation. A = increase of values with counter clockwise rotation.
Gear ratio and corresponding scale:
Select the appropriate gear ratio by deciding which number the big black pointer must indicate after the knob has completed one turn. The graduated scale will be proportional to the selected ratio. A ratio of 12 will have a scale that ranges from 0 to 12.
Insert:
Galvanised steel insert with smooth through bore (tolerance H10).
Fixing method:
The knob is fixed to the shaft by means of the threaded radial hole (d2) (grub screw not supplied).
Special Requests:
On request and with a minimum of 50 pieces, the inserts can be supplied with the hole d1 with H7 tolerance and black-oxide finish.
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials.
Combinations Diameters/Indicators:
d3=52.4 --> K650050
d3=66.8 --> K650070
d3=87.4 --> K650080 or K660080

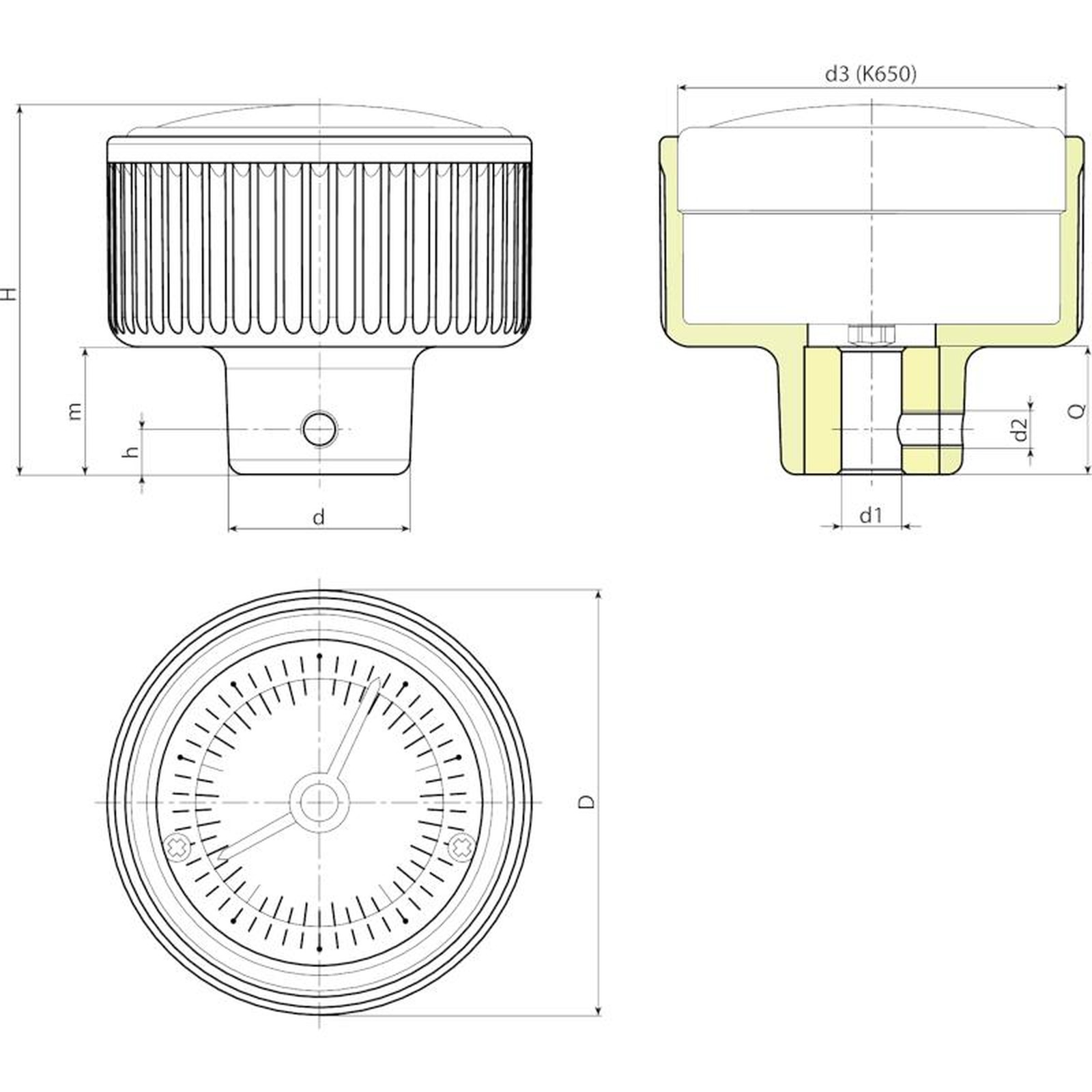

Code | art. | D | d | H | h | m | d3 | d2 | d1 H10 | dm | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
- | K150057.TD0801... | 57 | 24 | 50 | 6 | 17 | 52,4 | M5 | 8 | 12 | 16 | 105 |
- | K150057.TD1001... | 57 | 24 | 50 | 6 | 17 | 52,4 | M5 | 10 | 12 | 16 | 104 |
- | K150057.TD1201... | 57 | 24 | 50 | 6 | 17 | 52,4 | M5 | 12 | 12 | 16 | 103 |
- | K150072.TD0801... | 72 | 28 | 56 | 6 | 21 | 66,8 | M5 | 8 | 12 | 20 | 165 |
- | K150072.TD1001... | 72 | 28 | 56 | 6 | 21 | 66,8 | M5 | 10 | 12 | 20 | 163 |
- | K150072.TD1201... | 72 | 28 | 56 | 6 | 21 | 66,8 | M5 | 12 | 12 | 20 | 161 |
- | K150094.TD1001... | 94 | 36 | 60 | 6 | 24 | 87,4 | M5 | 10 | 15 | 24 | 376 |
- | K150094.TD1201... | 94 | 36 | 60 | 6 | 24 | 87,4 | M5 | 12 | 15 | 24 | 373 |
- | K150094.TD1401... | 94 | 36 | 60 | 6 | 24 | 87,4 | M5 | 14 | 15 | 24 | 370 |
