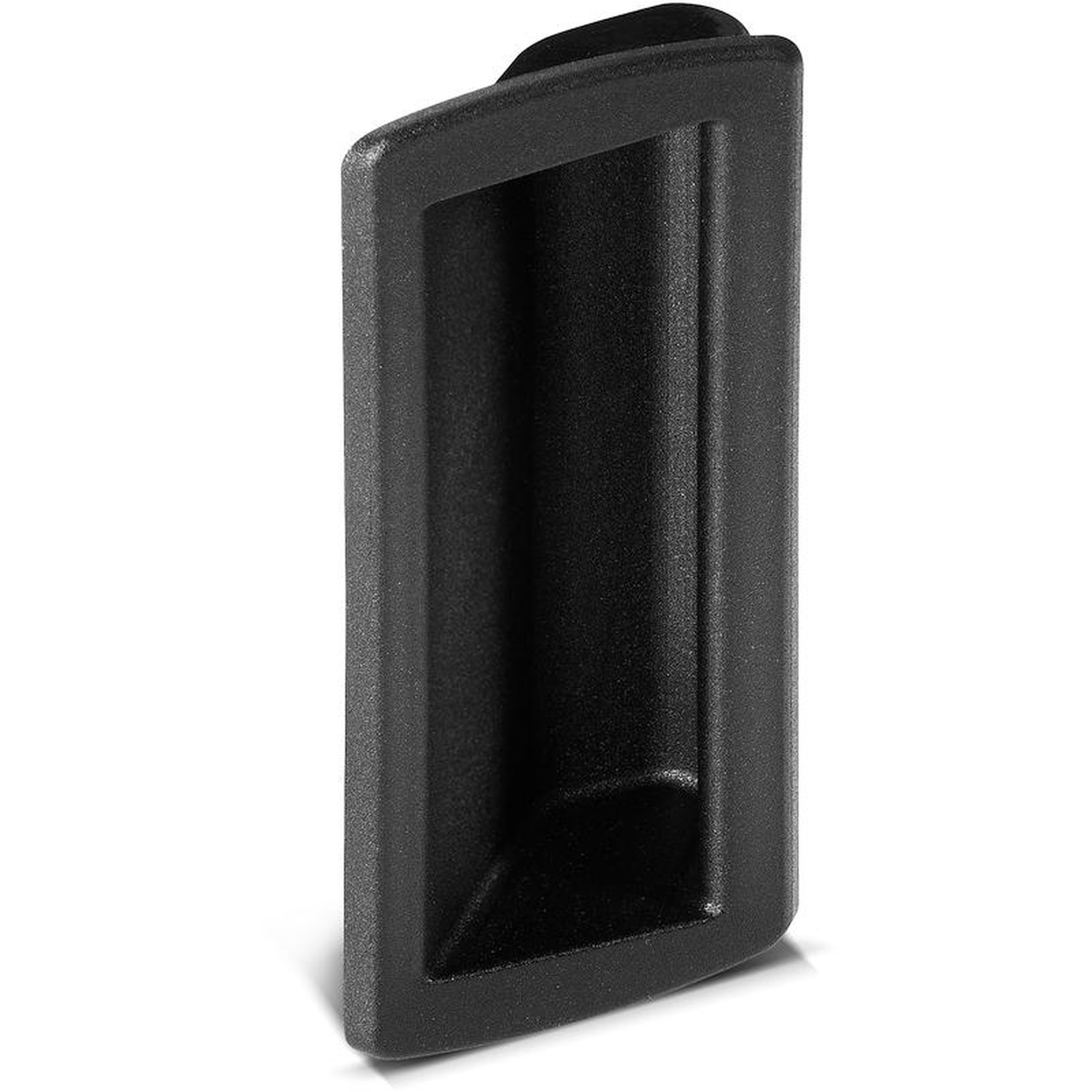

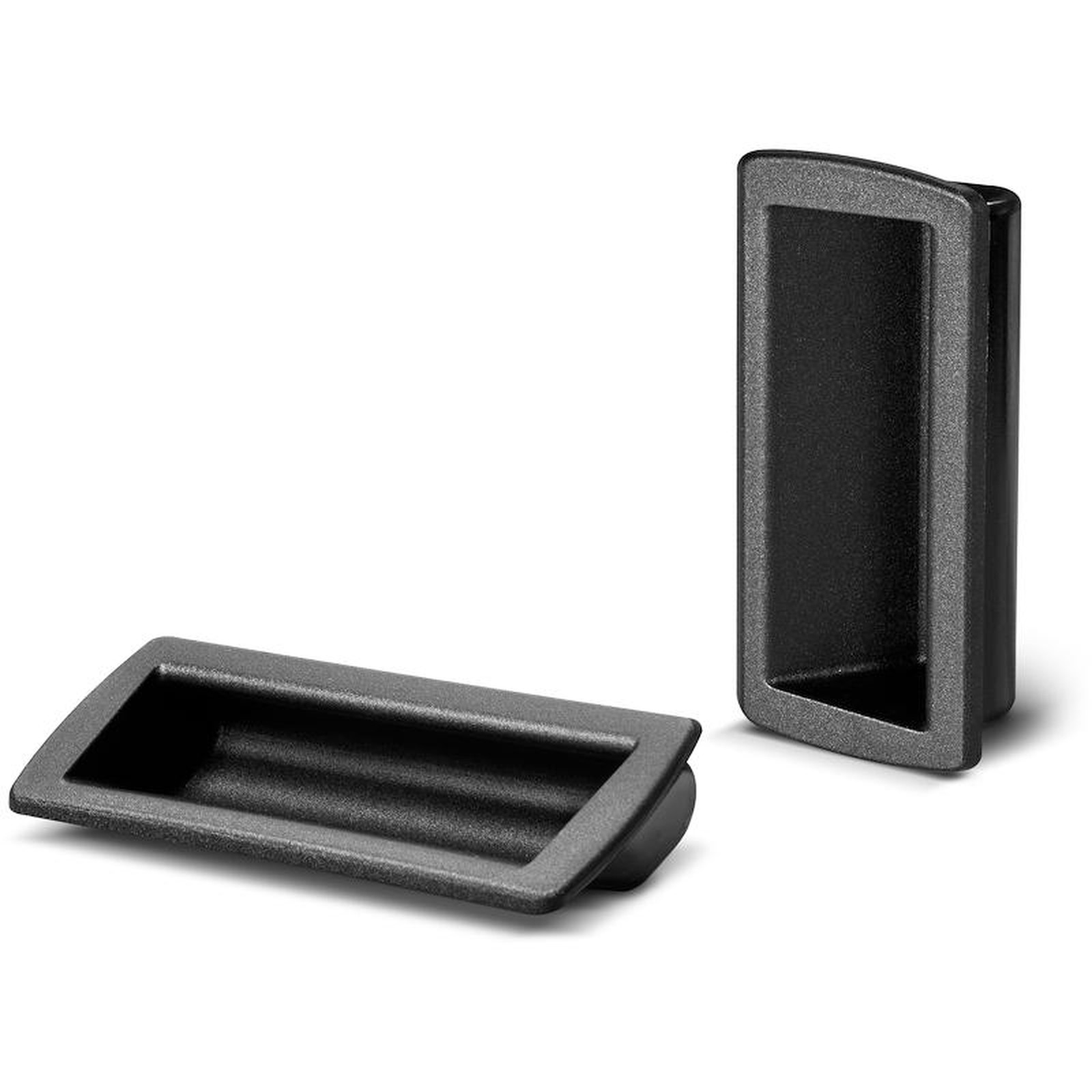

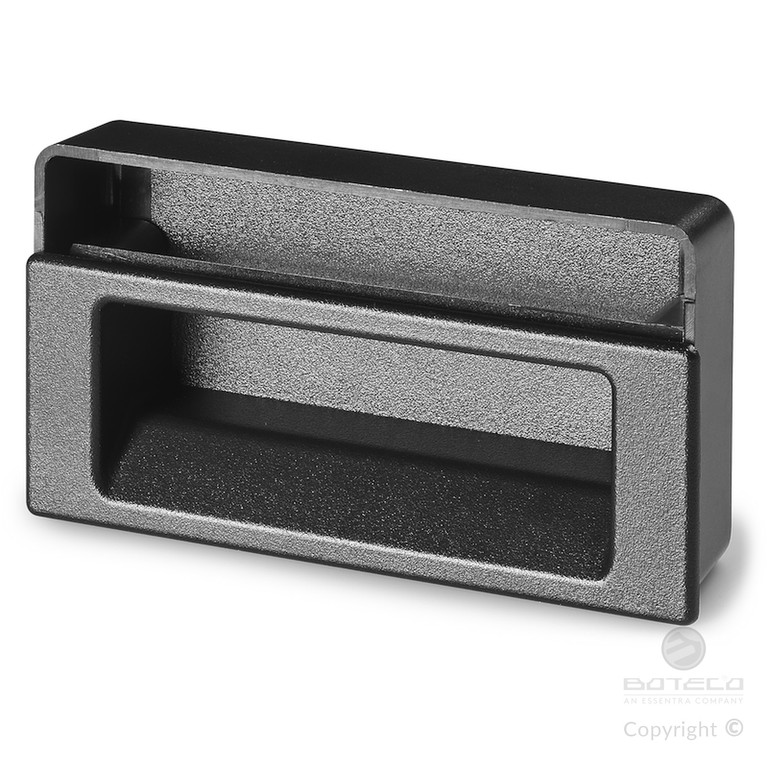

RECESSED HANDLE WITH PUSH-FIT

Materials:

Reinforced polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black (RAL 9011).

Fixing method:

Push-fit.

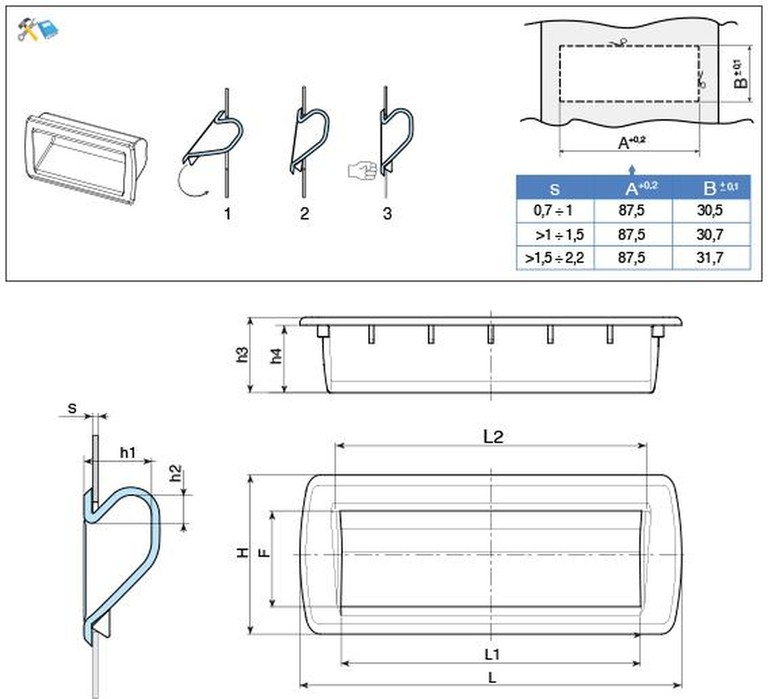

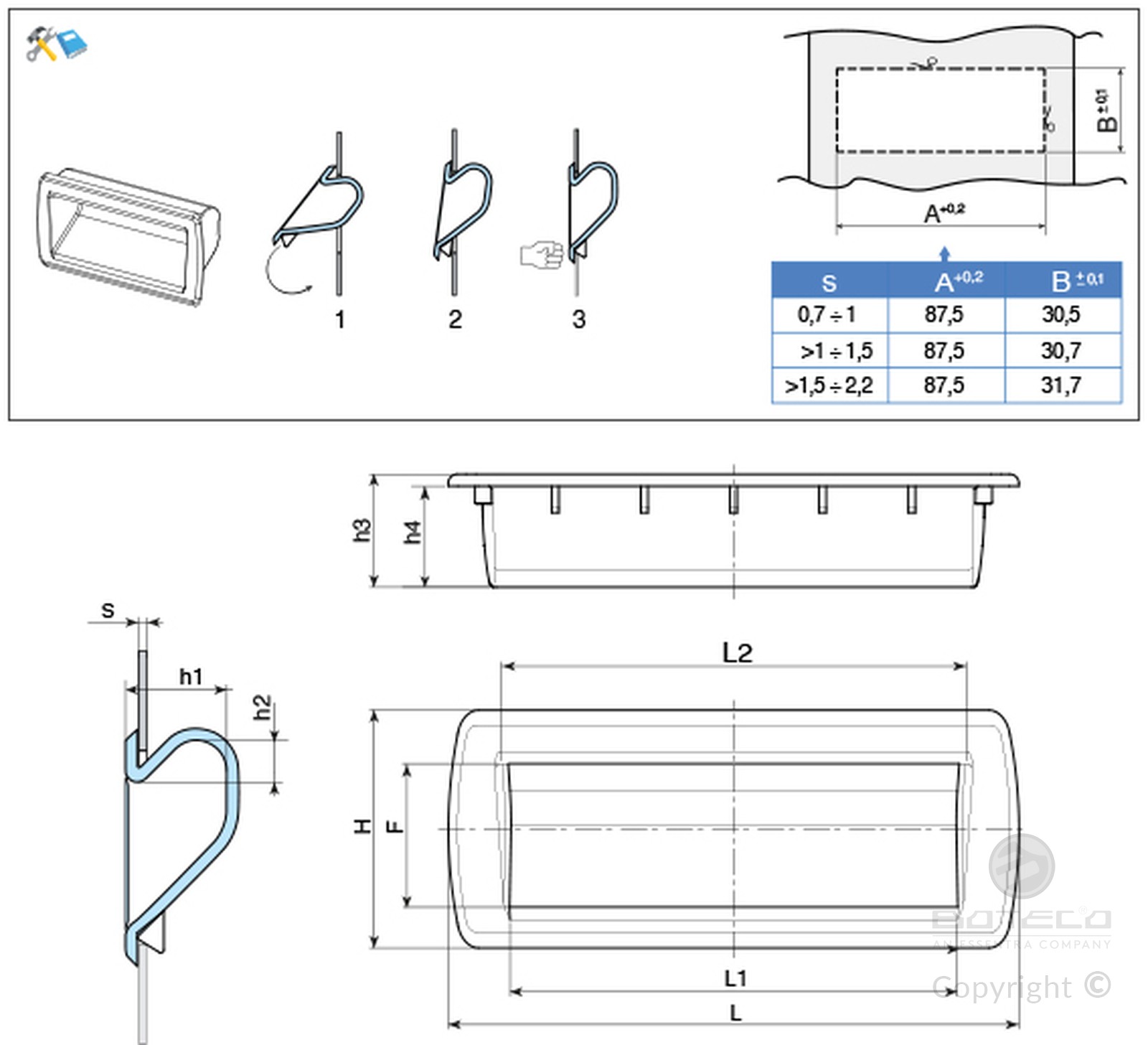

Drill the plate as indicated in the table included in the technical drawing. The hole sizes vary depending on the thickness of the plate. Remove any drilling burrs before installing the handle.

Follow the sequence shown in the drawings for correct assembly:

1. Insert the long side of the handle - the thickest and most rounded part - first.

2. Turn the handle and position the side with the tabs over the hole.

3. Press the handle until it clicks into place.

Special requests:

Upon request and for special quantities available in the colours indicated in the chart.
