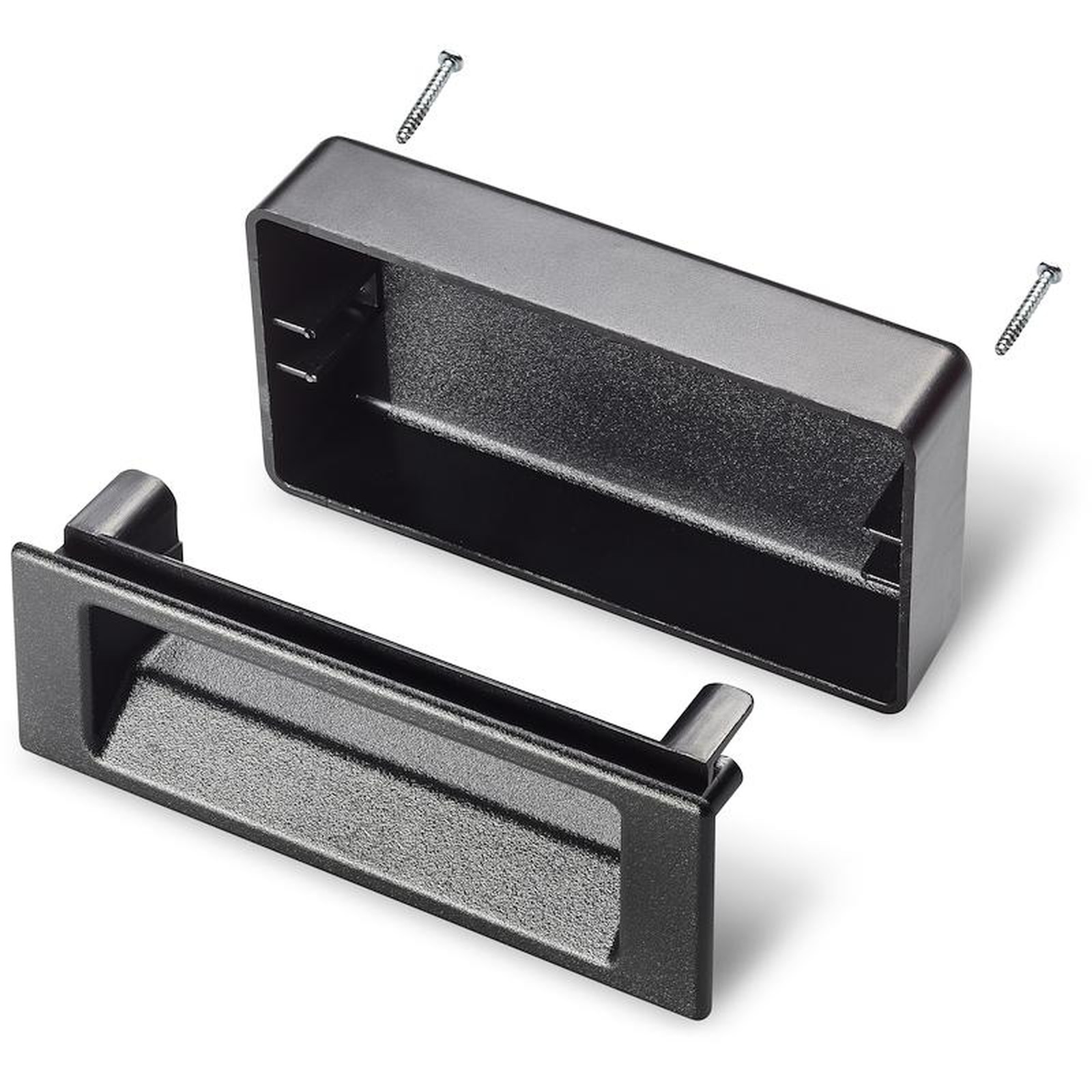

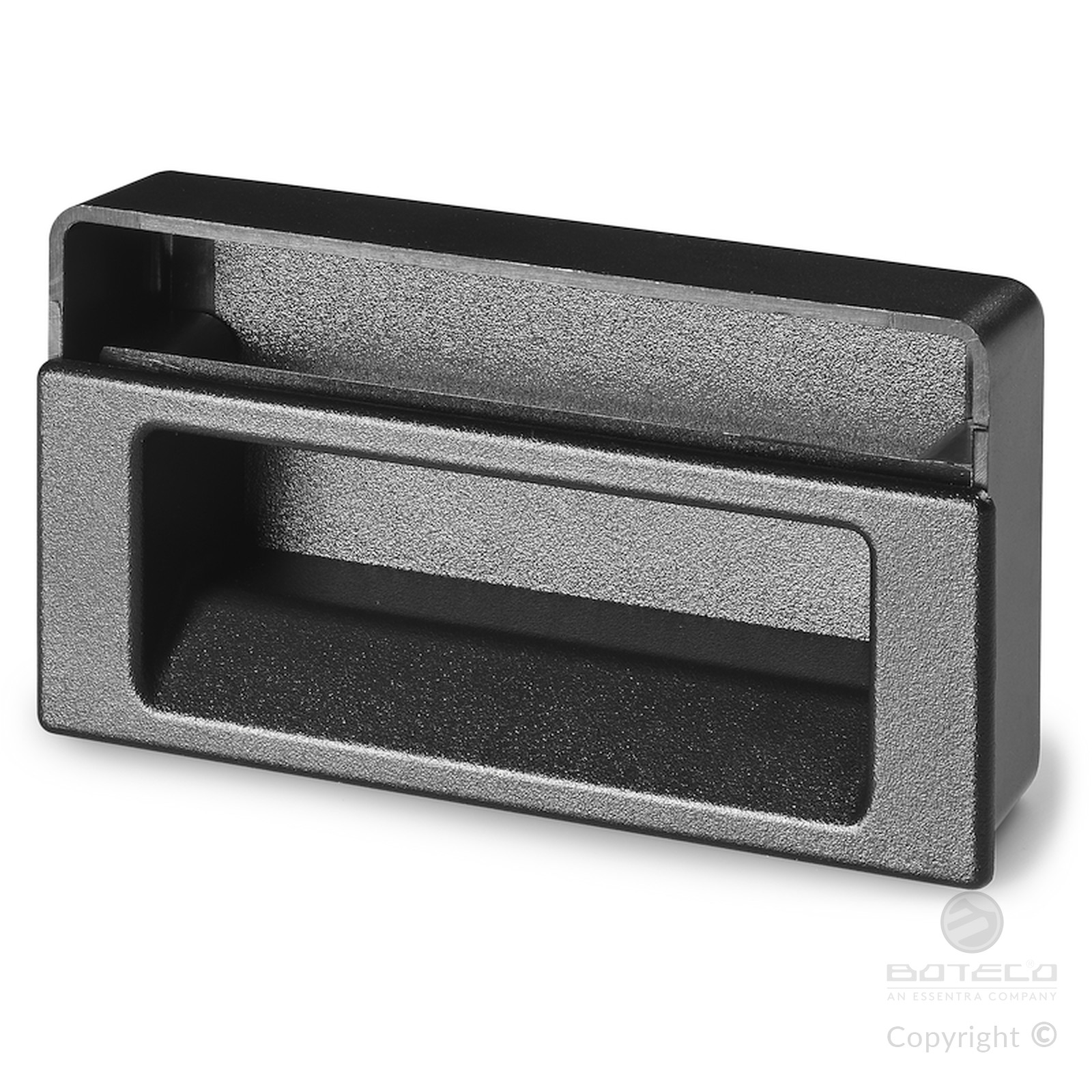

RECESSED HANDLE L. 123mm. WITH REAR CASE AND SCREW MOUNT
02
B450
Maniglie ad incasso
Materials:
(1-3) A.B.S. front plate and case
Surface finish:
Satin.
Colour:
Black: (RAL 9011 code 01).
Inserts:
(4) 2 galvanised steel self-tapping screws 2.9.
Panel:
(2) Figurative panel as example.
Special requests:
None.

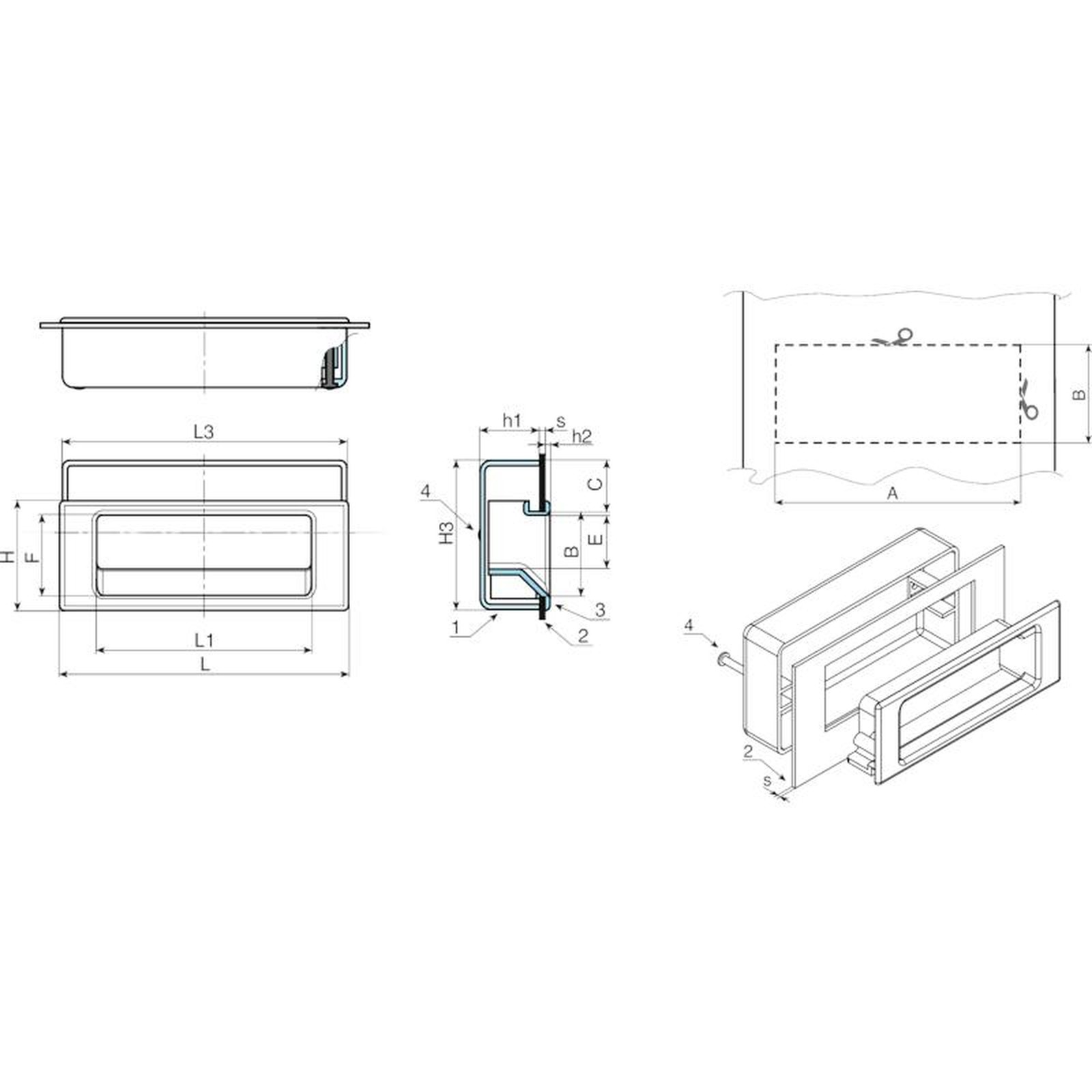

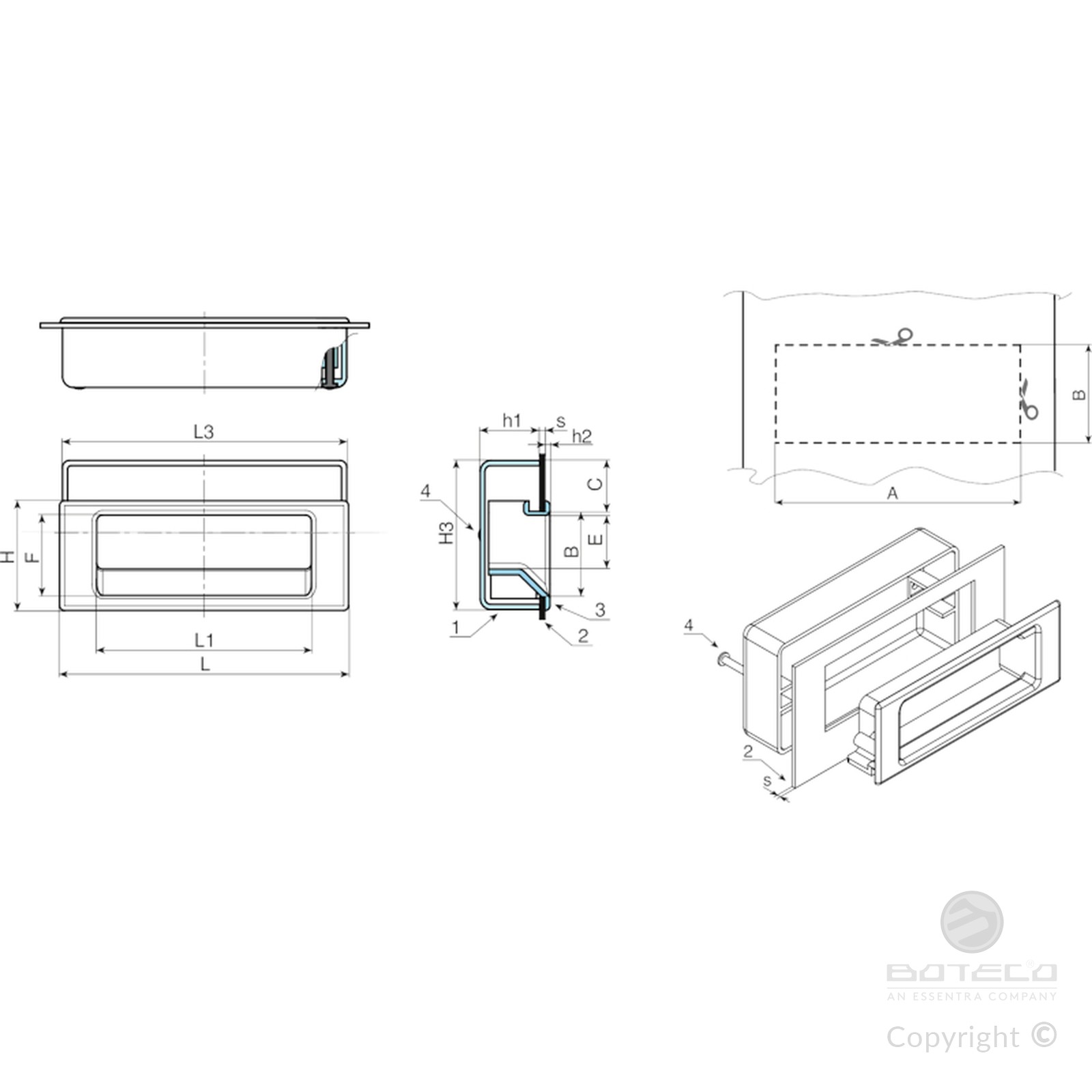

| Code | art. | L | A | B | C | E | F | H | H3 | L1 | L3 | h1 | h2 | s | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B450123.0001 | B450123.AV101 | 123 | 114,5 | 38 | 22,7 | 22,5 | 37 | 47 | 63,5 | 93 | 121 | 26 | 2,5 | 1 - 6,3 | 58 |
