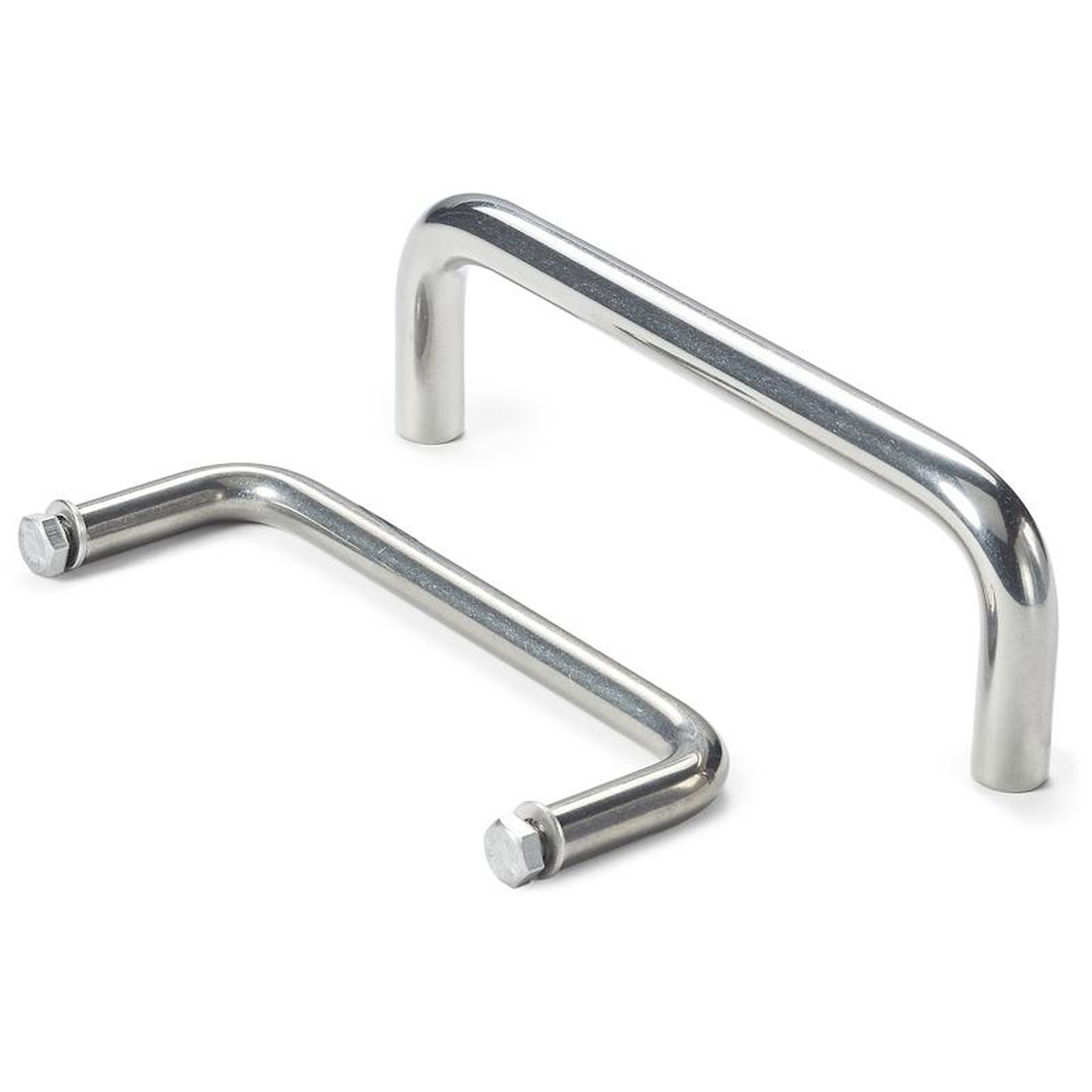

STAINLESS STEEL ROUND HANDLE (with screw and washer)
02
B413GIN
Maniglie in metallo
Materials:
Stainless steel handle (Aisi 316).
Surface finish:
Smooth.
Colour:
Natural.
Inserts:
(1) Threaded screw M5x10 in stainless steel (Aisi 316).
(2) Stainless steel washer (Aisi 316).
Special requests:
None.

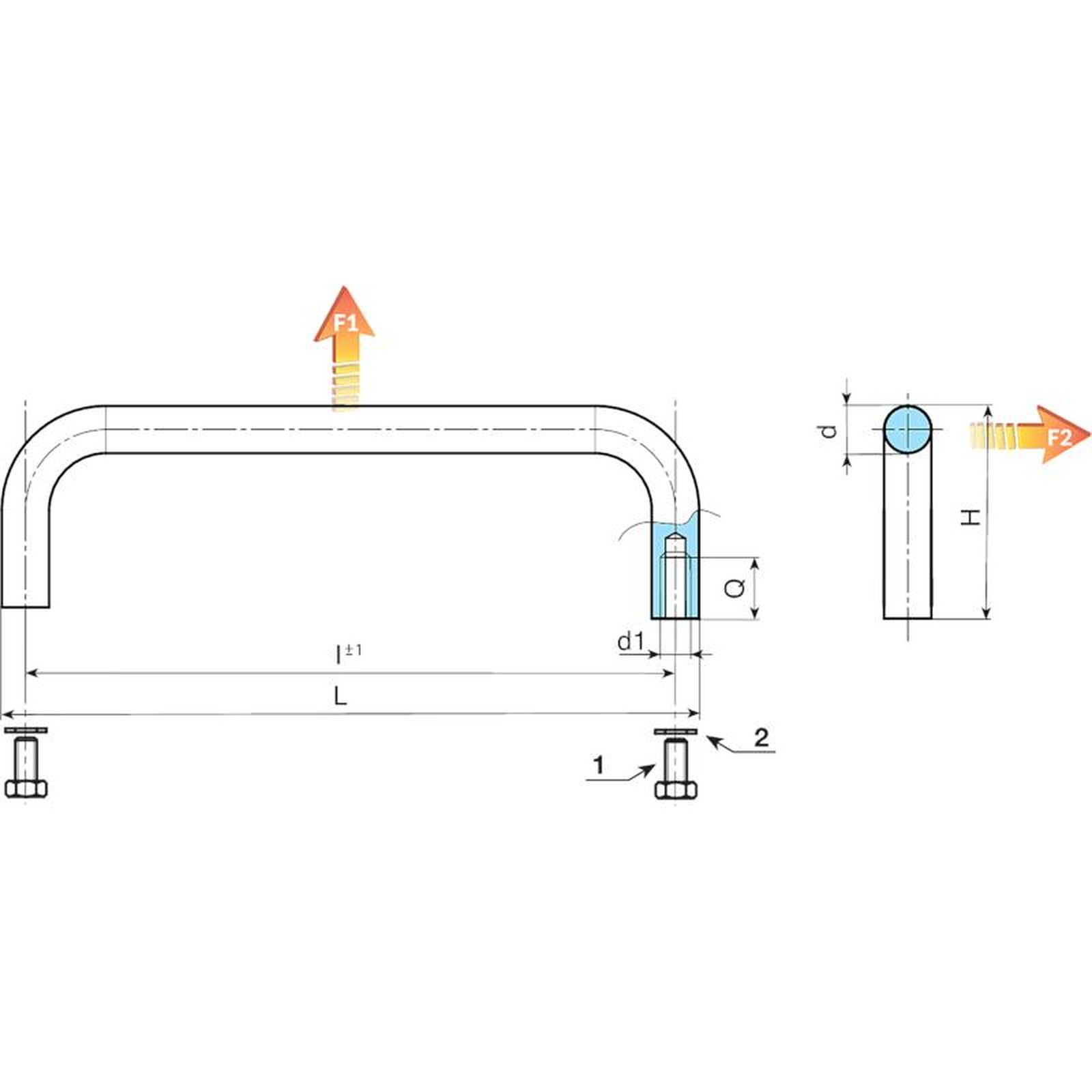

| Code | art. | L | I ±1 | H | d | Q | d1 | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| B413100.0001 | B413100.G08M05GIN | 108 | 100 | 35 | 8 | 10 | M5 | - | 1000 | 1000 |
| B413120.0001 | B413120.G10M05GIN | 130 | 120 | 40 | 10 | 10 | M5 | 116 | 1000 | 1000 |
| B413250.0001 | B413250.G10M05GIN | 260 | 250 | 40 | 10 | 10 | M5 | 200 | 1000 | 1000 |
| B413350.0001 | B413350.G10M05GIN | 360 | 350 | 40 | 10 | 10 | M5 | 263 | 1000 | 1000 |
