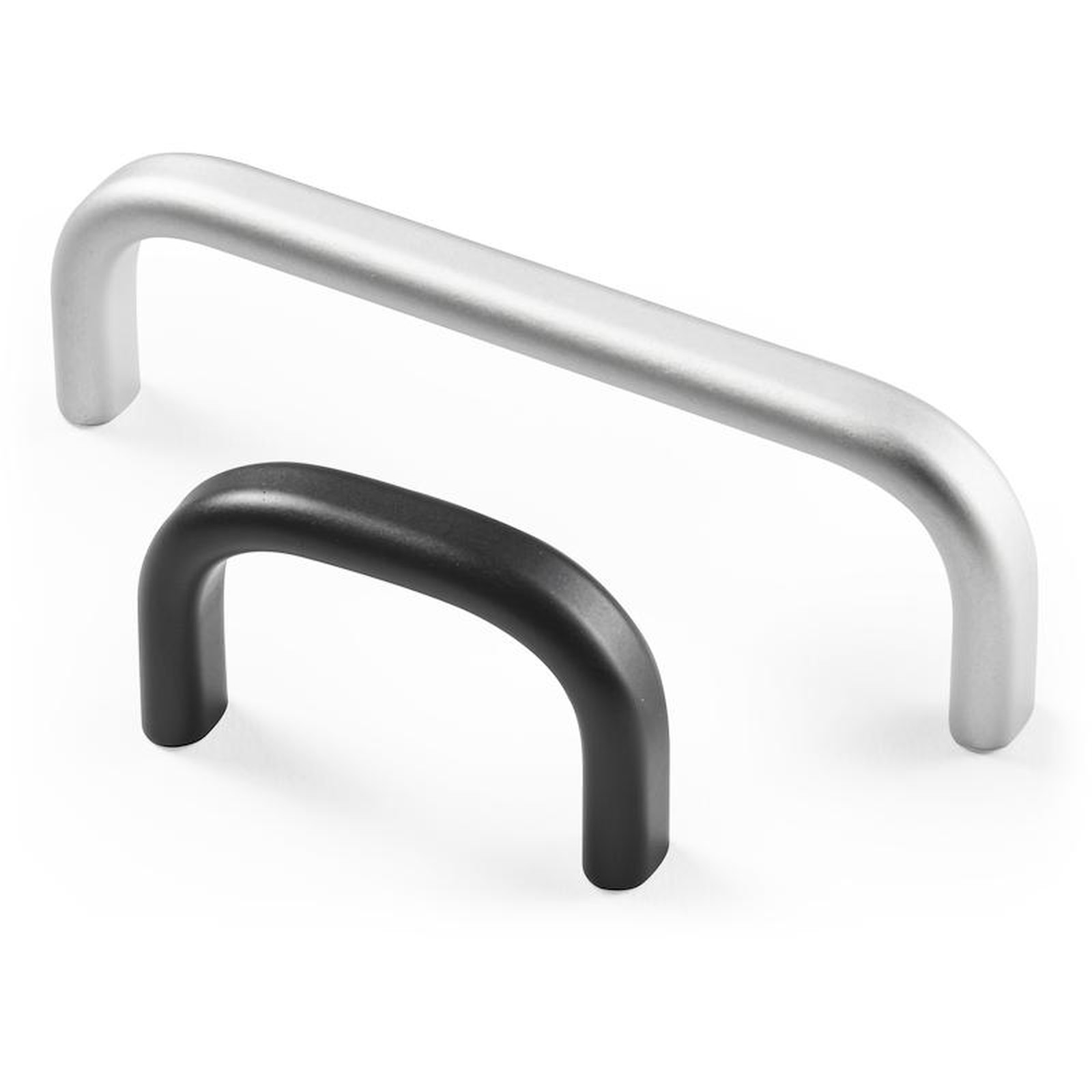

ALUMINUM NARROW FLAT OVAL HANDLE

02

B408


Maniglie in metallo

Materials:

Handle in aluminium alloy 6060.

Surface finish:

Sandblasted satin finish.

Colour:

B408-01

Anodized black.

B408-99

Natural anodised silver.

Special requests:

None.

Data sheet

B408 - Black anodised version - code 01

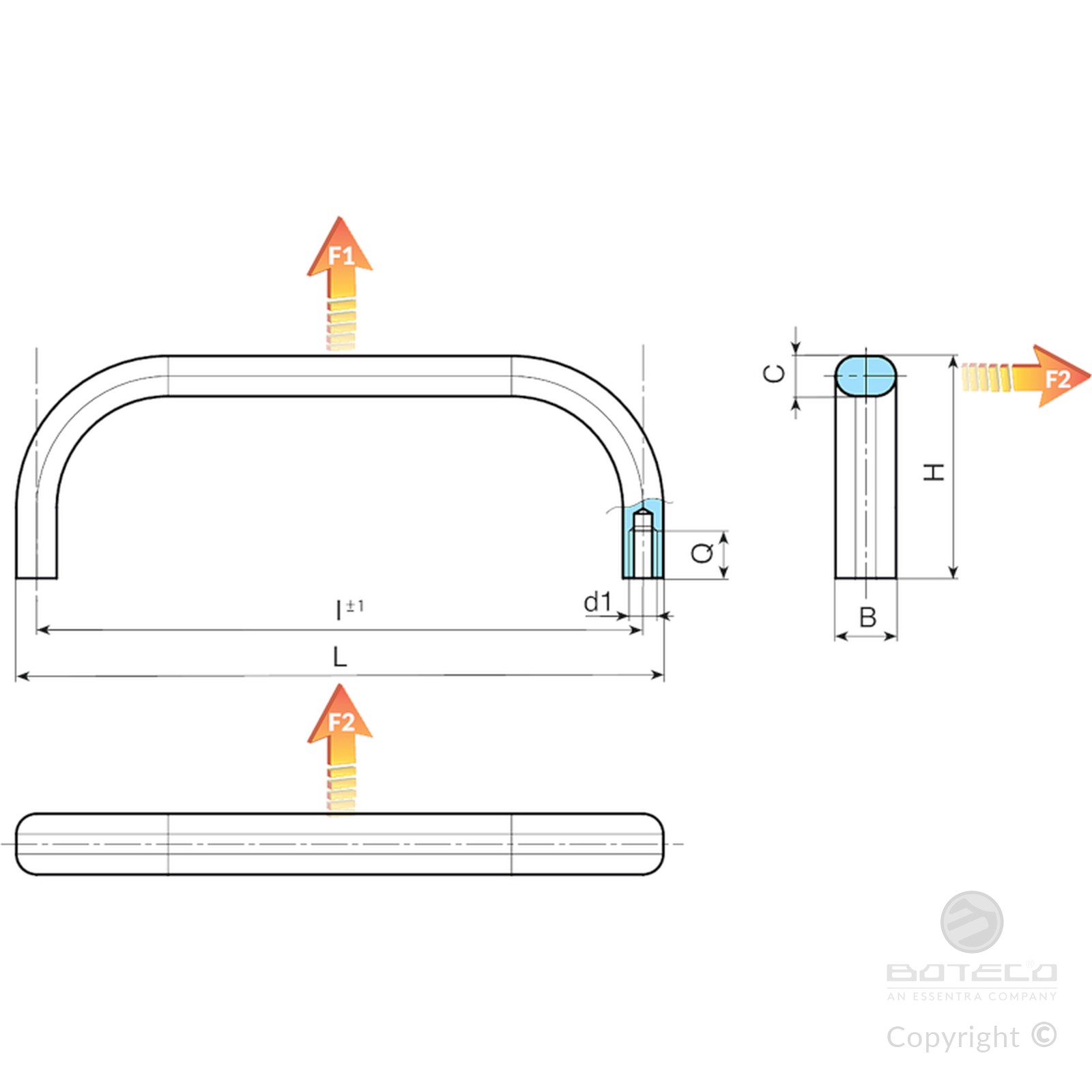

Code art. L I ±1 H B C Q d1 Weight (g) F1 (N) F2 (N)
B408055.0001 B408055.A12M0501 63 55 40 12 8 10 M5 24 500 500
B408088.0001 B408088.A12M0501 96 88 40 12 8 10 M5 30 500 500
B408100.0001 B408100.A12M0501 108 100 40 12 8 10 M5 32 500 500
B408120.0001 B408120.A12M0501 128 120 40 12 8 10 M5 37 500 500
B408180.0001 B408180.A12M0501 188 180 40 12 8 10 M5 50 500 500
B408200.0001 B408200.A12M0501 208 200 40 12 8 10 M5 55 500 500
B408235.0001 B408235.A12M0501 243 235 40 12 8 10 M5 64 500 500
B408250.0001 B408250.A12M0501 258 250 40 12 8 10 M5 68 500 500

B408 - Natural silver anodised version - code 99

Code art. L I ±1 H B C Q d1 Weight (g) F1 (N) F2 (N)
B408055.0002 B408055.A12M0599 63 55 40 12 8 10 M5 24 500 500
B408088.0002 B408088.A12M0599 96 88 40 12 8 10 M5 30 500 500
B408100.0002 B408100.A12M0599 108 100 40 12 8 10 M5 32 500 500
B408120.0002 B408120.A12M0599 128 120 40 12 8 10 M5 37 500 500
B408180.0002 B408180.A12M0599 188 180 40 12 8 10 M5 50 500 500
B408200.0002 B408200.A12M0599 208 200 40 12 8 10 M5 55 500 500
B408235.0002 B408235.A12M0599 243 235 40 12 8 10 M5 64 500 500
B408250.0002 B408250.A12M0599 258 250 40 12 8 10 M5 68 500 500
