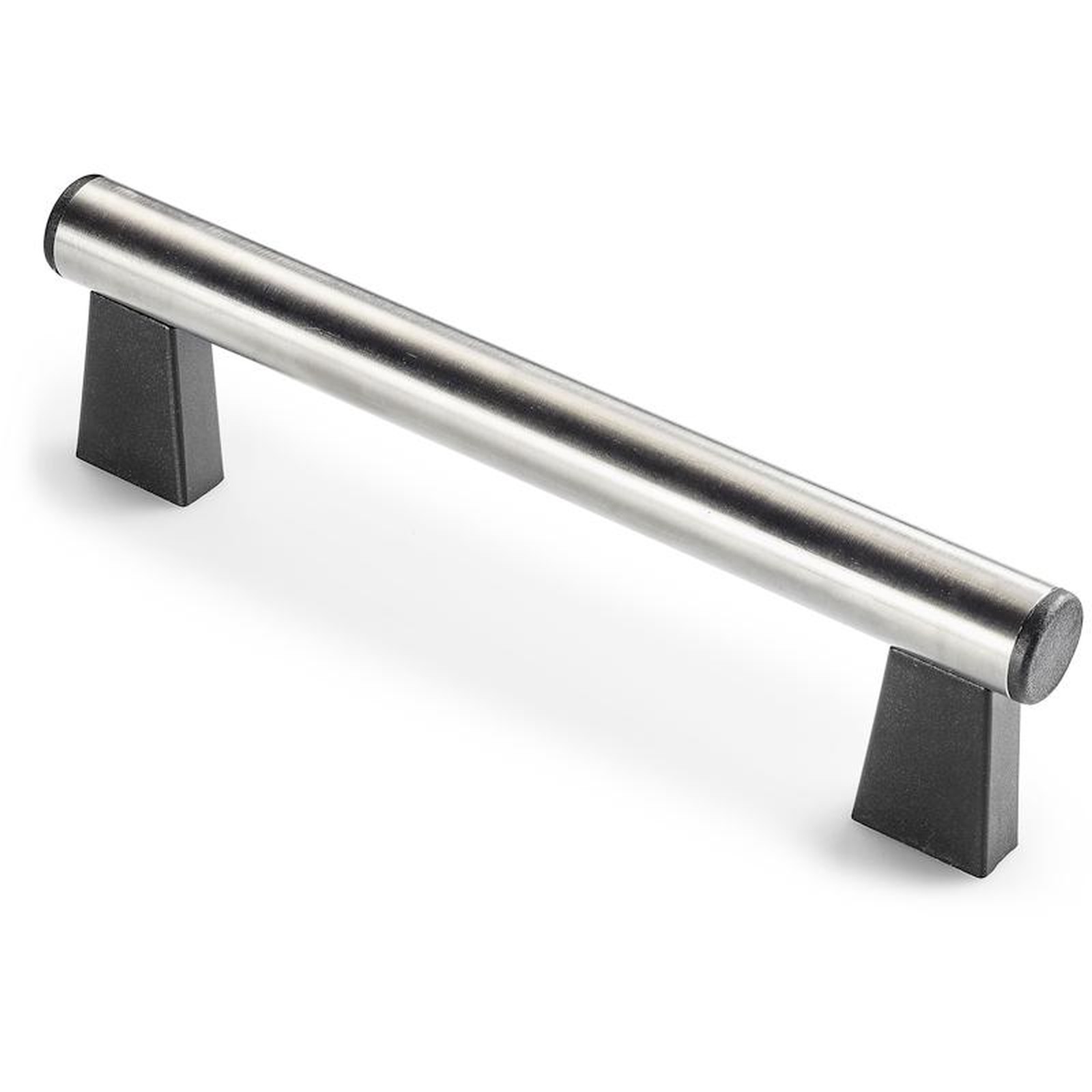

HANDLE WITH STAINLESS STEEL TUBE D. 30 AND VERTICAL ENDS
02
B350CIN
Maniglie con tubo
Materials:
(1) Reinforced polyamide bracket for tube. Resistant to oils and greases.
(2) Stainless steel tube (Aisi 304).
(3) Turned round aluminium insert with threaded hole M08 for fastening hexagonal socket head cap screws.
(4) Stainless steel hexagonal socket head cap screw Aisi 304 M08x70 (DIN 912).
(5) Winged snap-fit LDPE cap for tubes.
Surface finish:
(1-5) Satin.
(2) Glossy natural.
Colour:
(1-5) Black (RAL 9011).
(2) Natural steel.
ATTENTION:
The handle is supplied disassembled, in single packs.
Special requests:
None.

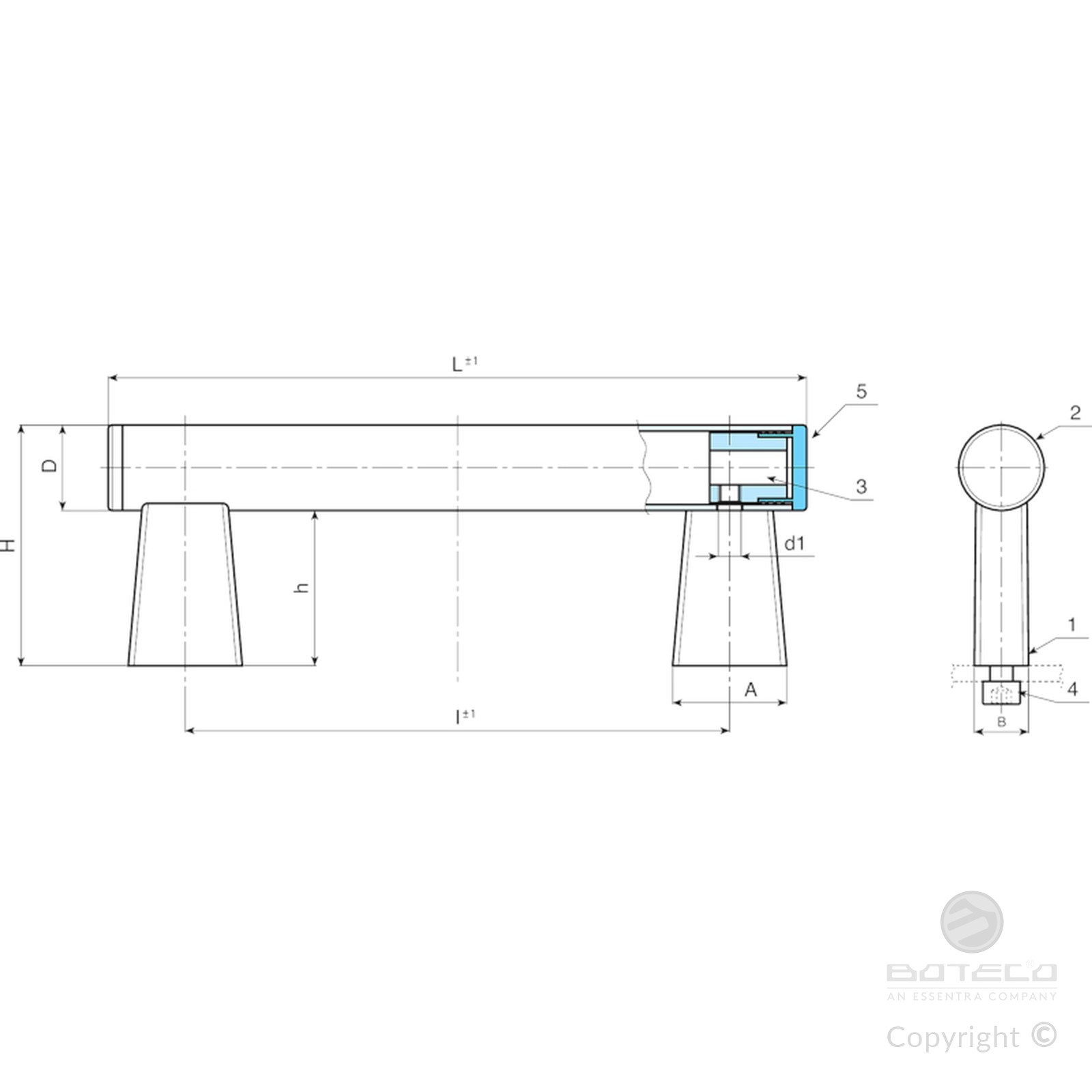

| Code | art. | L | I ±1 | D | H | h | A | B | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| B350150.0003 | B350150.TG3001CIN | 206 | 150 | 30 | 85 | 55 | 40 | 19 | M8 | 395 |
| B350200.0003 | B350200.TG3001CIN | 256 | 200 | 30 | 85 | 55 | 40 | 19 | M8 | 447 |
| B350250.0003 | B350250.TG3001CIN | 306 | 250 | 30 | 85 | 55 | 40 | 19 | M8 | 500 |
| B350300.0003 | B350300.TG3001CIN | 356 | 300 | 30 | 85 | 55 | 40 | 19 | M8 | 550 |
| B350350.0003 | B350350.TG3001CIN | 406 | 350 | 30 | 85 | 55 | 40 | 19 | M8 | 602 |
| B350400.0003 | B350400.TG3001CIN | 456 | 400 | 30 | 85 | 55 | 40 | 19 | M8 | 654 |
| B350500.0003 | B350500.TG3001CIN | 556 | 500 | 30 | 85 | 55 | 40 | 19 | M8 | 756 |
| B350600.0003 | B350600.TG3001CIN | 656 | 600 | 30 | 85 | 55 | 40 | 19 | M8 | 862 |
| B350700.0003 | B350700.TG3001CIN | 756 | 700 | 30 | 85 | 55 | 40 | 19 | M8 | 966 |
