HANDLE WITH TUBE D. 30 AND VERTICAL ENDS
02
B350
Maniglie con tubo

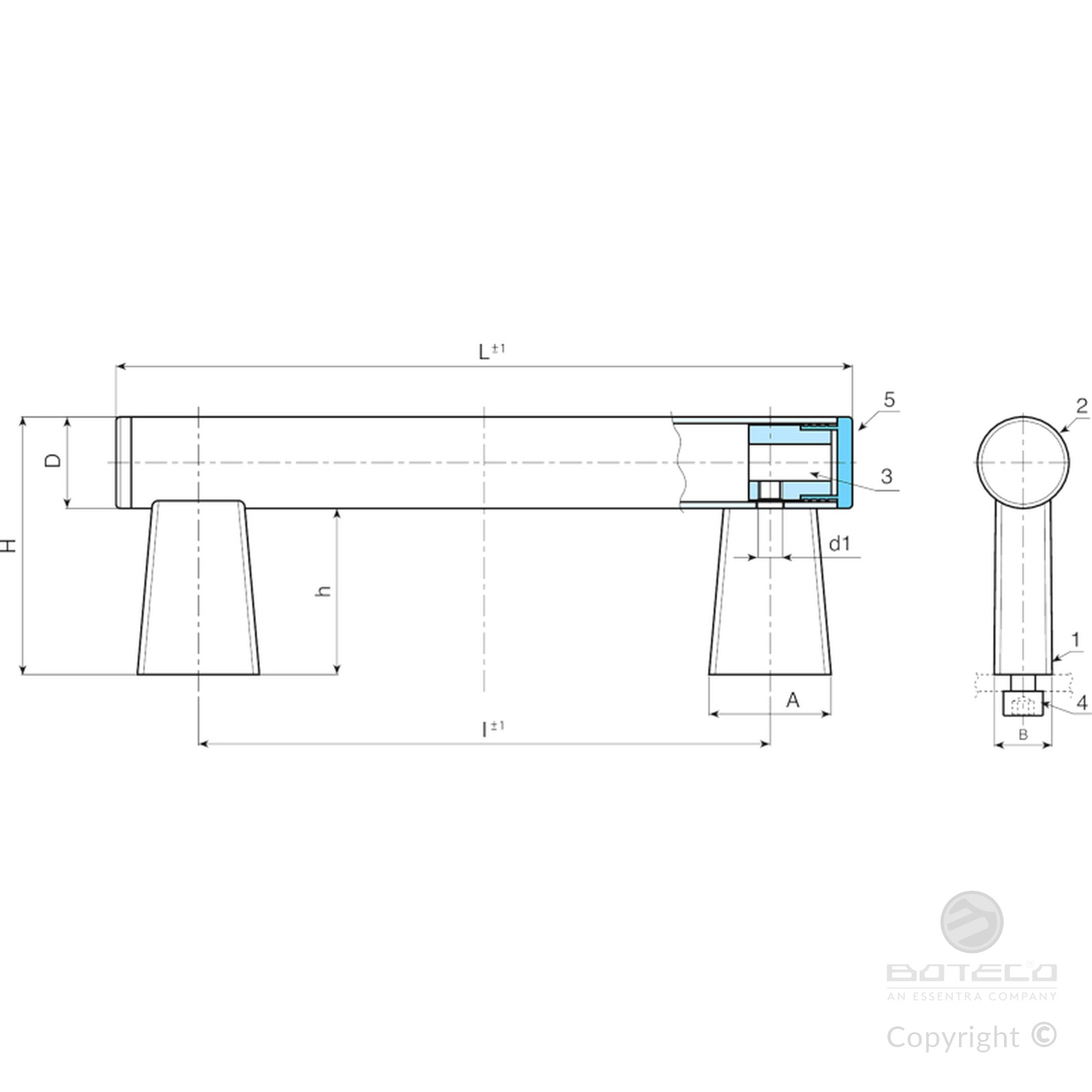

Materials:
(1) Reinforced polyamide bracket for tube. Resistant to oils and greases.
(2) Anodised aluminium alloy 6060 tube.
(3) Turned round aluminium insert with threaded hole M08 for fastening hexagonal socket head cap screws.
(4) Black oxide treated hexagonal socket head cap screw M08x70 (DIN 912).
(5) Winged snap-fit LDPE cap for tubes.
Surface finish:
(1-5) Satin.
(2) Glossy anodised.
Colour:
(1-5) Black (RAL 9011).
Tube:

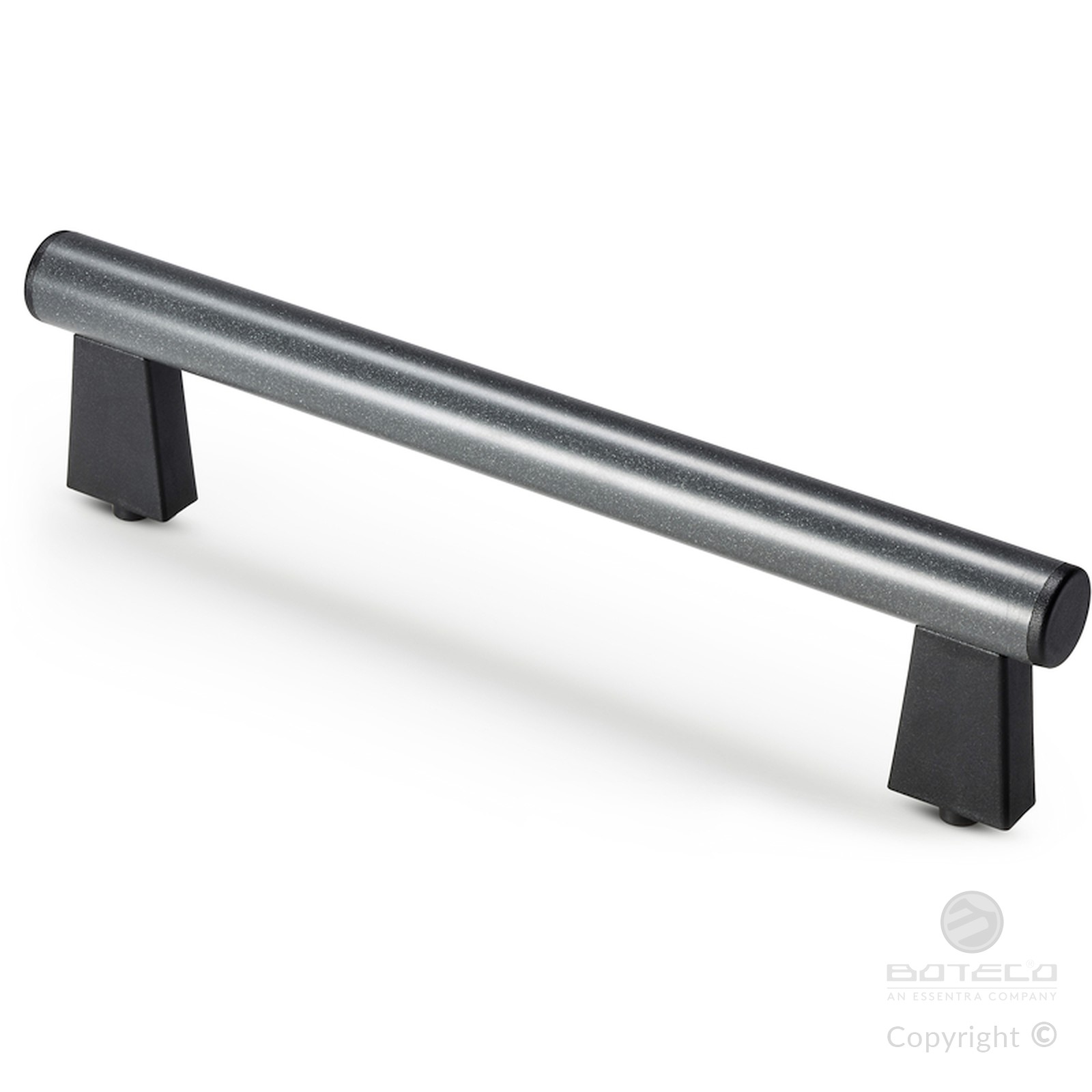

Version B350-99: (2) Silver anodised.
Version B350-98: (2) Marbled black epoxy powder coating.
ATTENTION:
The handle is supplied disassembled, in single packs.
Special requests:
None.

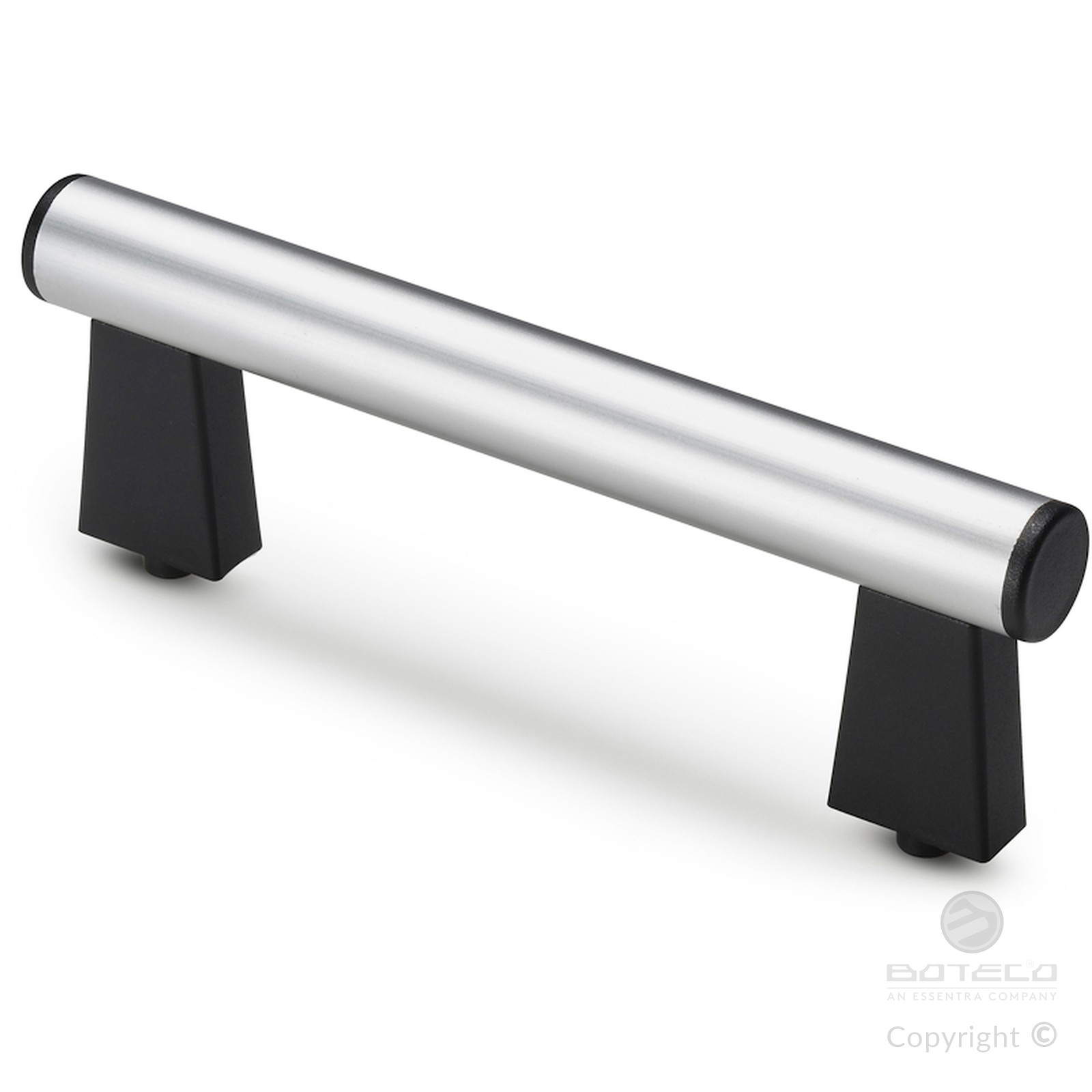

Version B350-99: with tube colour anodised silver
| Code | art. | L | I ±1 | D | H | h | A | B | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| B350150.0002 | B350150.TG300199 | 206 | 150 | 30 | 85 | 55 | 40 | 19 | M8 | 270 |
| B350200.0002 | B350200.TG300199 | 256 | 200 | 30 | 85 | 55 | 40 | 19 | M8 | 290 |
| B350250.0002 | B350250.TG300199 | 306 | 250 | 30 | 85 | 55 | 40 | 19 | M8 | 309 |
| B350300.0002 | B350300.TG300199 | 356 | 300 | 30 | 85 | 55 | 40 | 19 | M8 | 327 |
| B350350.0002 | B350350.TG300199 | 406 | 350 | 30 | 85 | 55 | 40 | 19 | M8 | 345 |
| B350400.0002 | B350400.TG300199 | 456 | 400 | 30 | 85 | 55 | 40 | 19 | M8 | 363 |
| B350500.0002 | B350500.TG300199 | 556 | 500 | 30 | 85 | 55 | 40 | 19 | M8 | 400 |
| B350600.0002 | B350600.TG300199 | 656 | 600 | 30 | 85 | 55 | 40 | 19 | M8 | 436 |
| B350700.0002 | B350700.TG300199 | 756 | 700 | 30 | 85 | 55 | 40 | 19 | M8 | 473 |
Version B350-98: with tube colour marbled black
| Code | art. | L | I ±1 | D | H | h | A | B | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| B350150.0001 | B350150.TG300198 | 206 | 150 | 30 | 85 | 55 | 40 | 19 | M8 | 270 |
| B350200.0001 | B350200.TG300198 | 256 | 200 | 30 | 85 | 55 | 40 | 19 | M8 | 290 |
| B350250.0001 | B350250.TG300198 | 306 | 250 | 30 | 85 | 55 | 40 | 19 | M8 | 309 |
| B350300.0001 | B350300.TG300198 | 356 | 300 | 30 | 85 | 55 | 40 | 19 | M8 | 327 |
| B350350.0001 | B350350.TG300198 | 406 | 350 | 30 | 85 | 55 | 40 | 19 | M8 | 345 |
| B350400.0001 | B350400.TG300198 | 456 | 400 | 30 | 85 | 55 | 40 | 19 | M8 | 363 |
| B350500.0001 | B350500.TG300198 | 556 | 500 | 30 | 85 | 55 | 40 | 19 | M8 | 400 |
| B350600.0001 | B350600.TG300198 | 656 | 600 | 30 | 85 | 55 | 40 | 19 | M8 | 436 |
| B350700.0001 | B350700.TG300198 | 756 | 700 | 30 | 85 | 55 | 40 | 19 | M8 | 473 |
