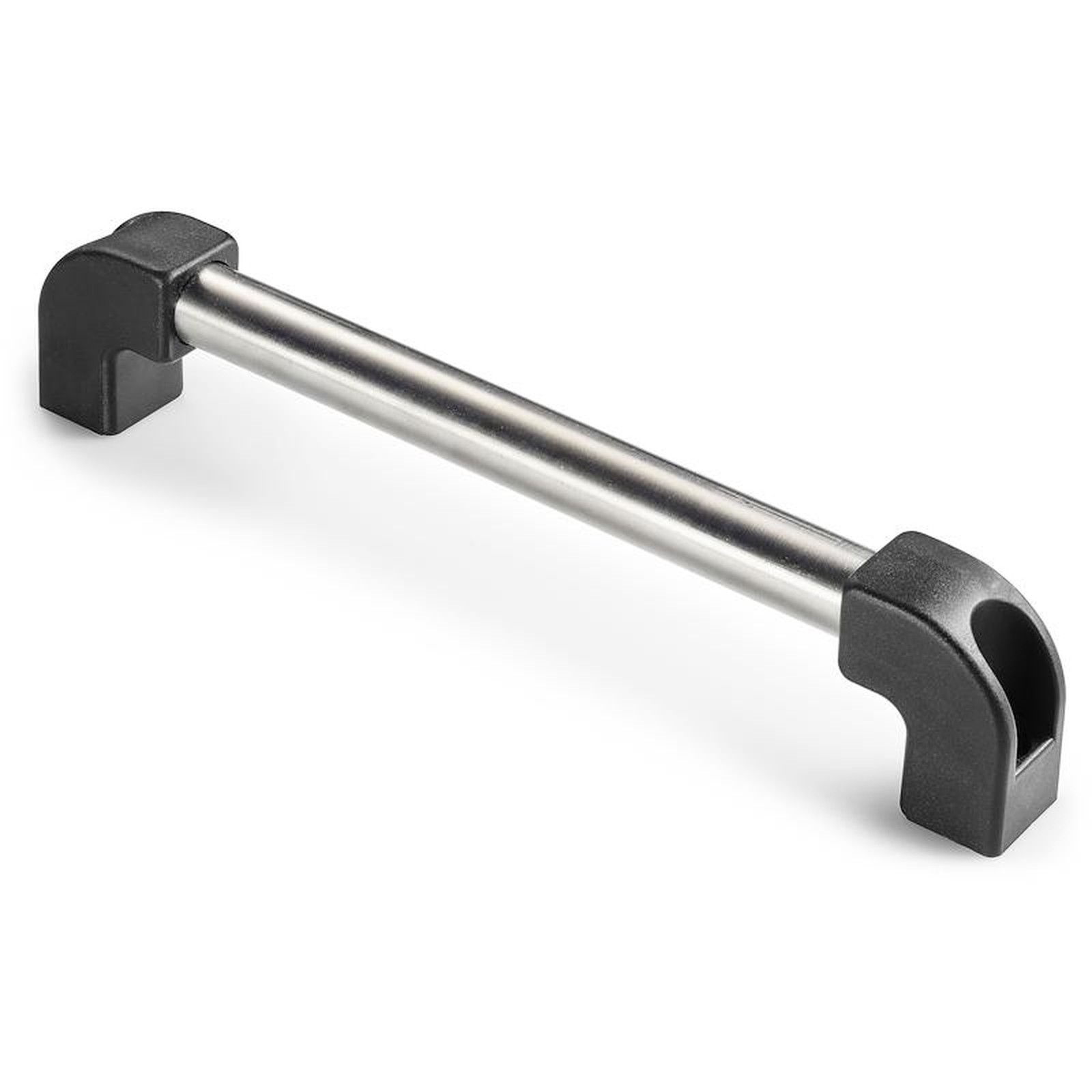

HANDLE WITH STAINLESS STEEL TUBE D. 30
02
B330CIN
Maniglie con tubo
Materials:
Plastic end:
Reinforced polyamide. Resistant to oils and greases.
Tube:
Stainless steel (Aisi 304).
Surface finish:
Plastic end:
Satin.
Tube:
Natural Smooth.
Colour:
Plastic end:
Black (Ral 9011).
Tube:
Natural.
Hole:
Smooth through hole obtained by moulding the plastic.
Special requests:
Upon request and for special quantities the handle can be supplied with custom length.
Upon request screw caps are available.
Upon request and for special quantities available in the colours indicated in the chart.

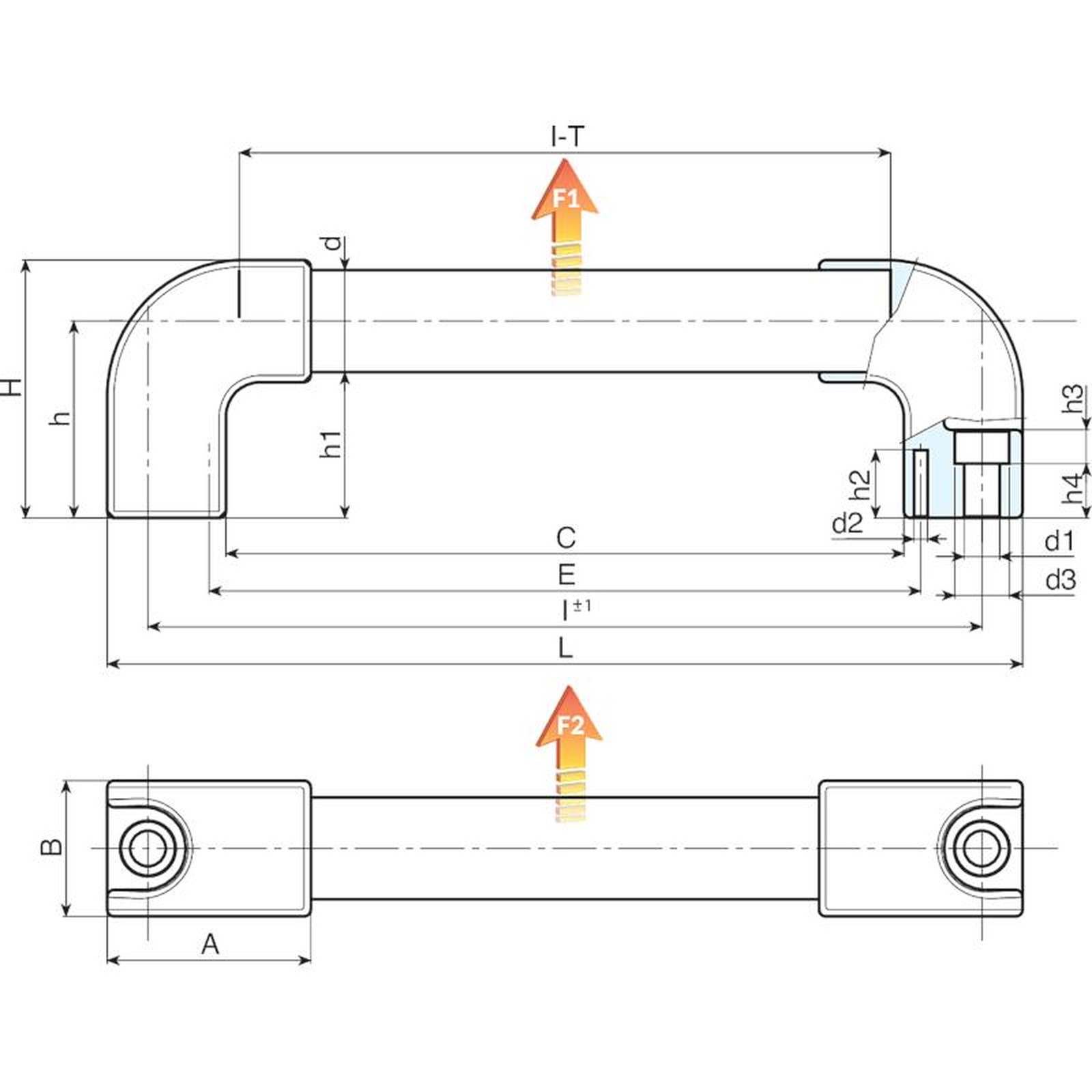

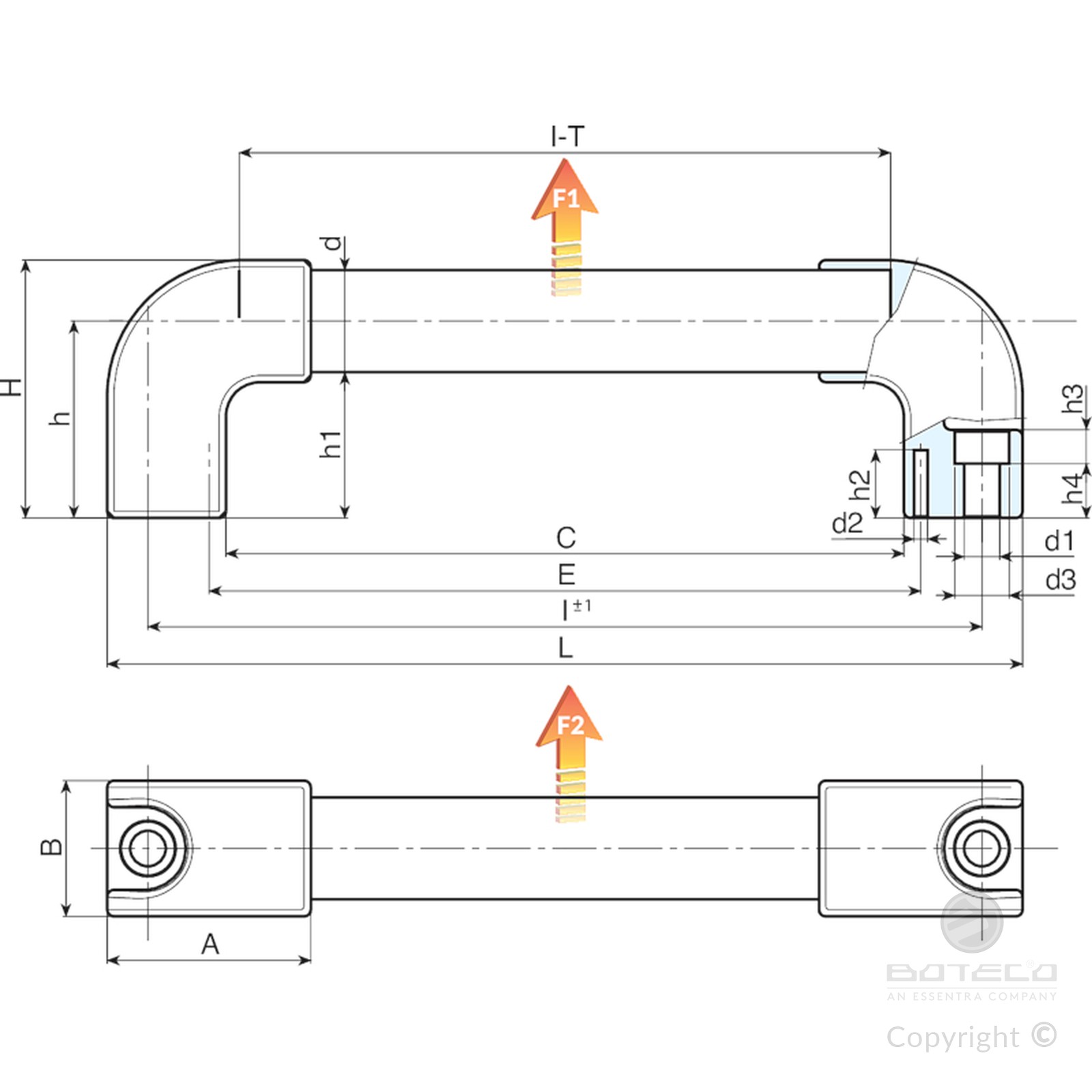

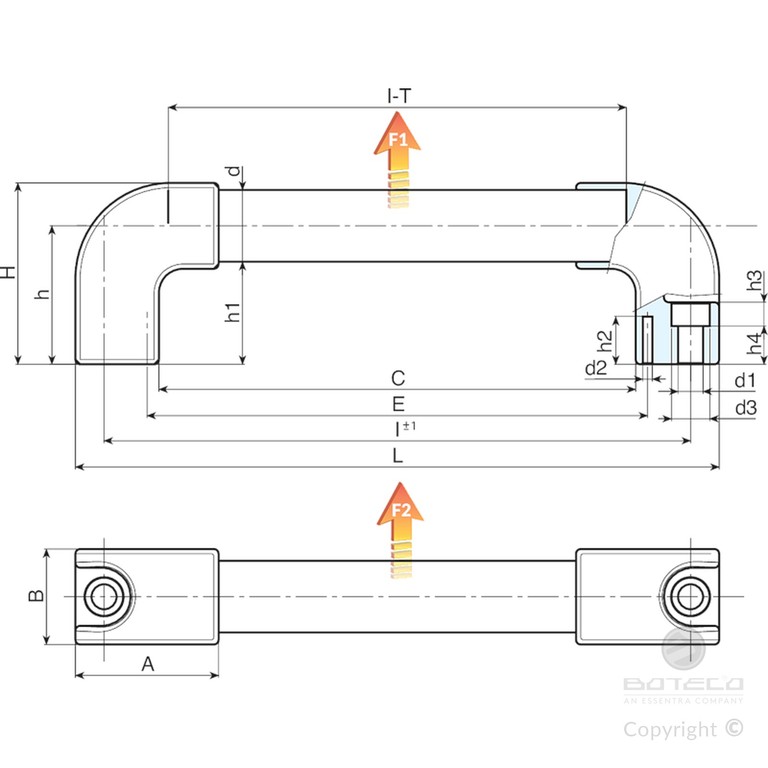

| Code | art. | L | I ±1 | C | E | A | B | T | H | h | h1 | h4 | h3 | h2 | d | d3 | d2 | d1 | Weight (g) | F1 (kN) | F2 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B330200.0001 | B330200.TG3001CIN | 224 | 200 | 154 | 164 | 60 | 40 | 54 | 77 | 58 | 43 | 16 | 11 | 19 | 30 | 16 | 4 | 10.5 | 235 | 3,4 | 2,9 |
| B330250.0001 | B330250.TG3001CIN | 274 | 250 | 204 | 214 | 60 | 40 | 54 | 77 | 58 | 43 | 16 | 11 | 19 | 30 | 16 | 4 | 10.5 | 250 | 3,8 | 3,2 |
| B330300.0001 | B330300.TG3001CIN | 324 | 300 | 254 | 264 | 60 | 40 | 54 | 77 | 58 | 43 | 16 | 11 | 19 | 30 | 16 | 4 | 10.5 | 270 | 3,2 | 2,9 |
| B330350.0001 | B330350.TG3001CIN | 374 | 350 | 304 | 314 | 60 | 40 | 54 | 77 | 58 | 43 | 16 | 11 | 19 | 30 | 16 | 4 | 10.5 | 285 | 2,7 | 2,4 |
| B330400.0001 | B330400.TG3001CIN | 424 | 400 | 354 | 364 | 60 | 40 | 54 | 77 | 58 | 43 | 16 | 11 | 19 | 30 | 16 | 4 | 10.5 | 305 | 2,4 | 2,2 |
| B330500.0001 | B330500.TG3001CIN | 524 | 500 | 454 | 464 | 60 | 40 | 54 | 77 | 58 | 43 | 16 | 11 | 19 | 30 | 16 | 4 | 10.5 | 340 | 1,9 | 1,7 |
| B330600.0001 | B330600.TG3001CIN | 624 | 600 | 554 | 564 | 60 | 40 | 54 | 77 | 58 | 43 | 16 | 11 | 19 | 30 | 16 | 4 | 10.5 | 370 | 1,6 | 1,4 |
| B330700.0001 | B330700.TG3001CIN | 724 | 700 | 654 | 664 | 60 | 40 | 54 | 77 | 58 | 43 | 16 | 11 | 19 | 30 | 16 | 4 | 10.5 | 405 | 1,4 | 1,25 |
