HANDLE WITH TUBE D.30
02
B330
Maniglie con tubo
Materials:
Plastic end:
Reinforced polyamide. Resistant to oils and greases.
Tube:
Aluminum alloy 6060.
Surface finish:
Plastic end: Satin.
Tube: Smooth.
Colour:
Plastic end:
Black (Ral 9011).
Tube:

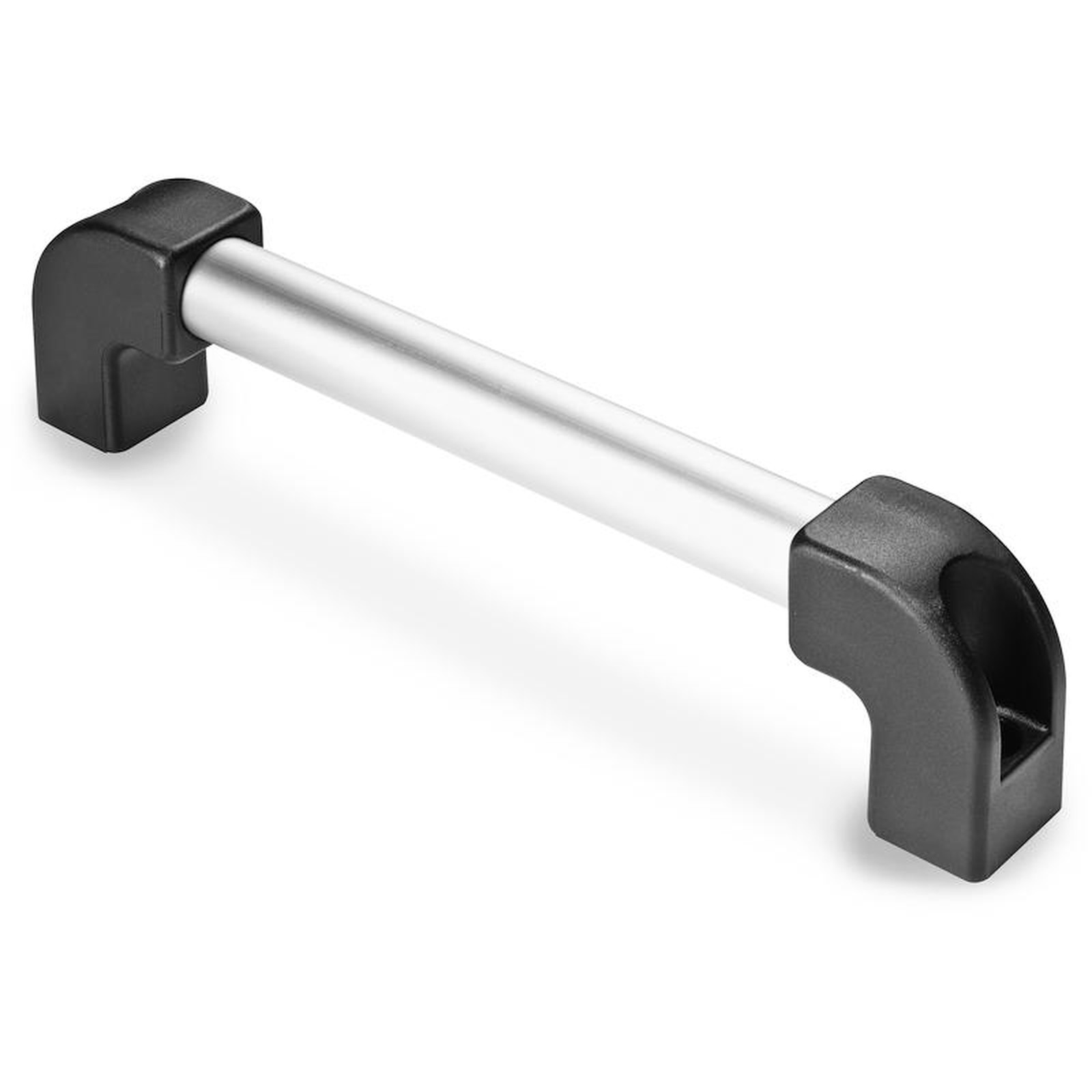

Version B330-99: Anodised silver.

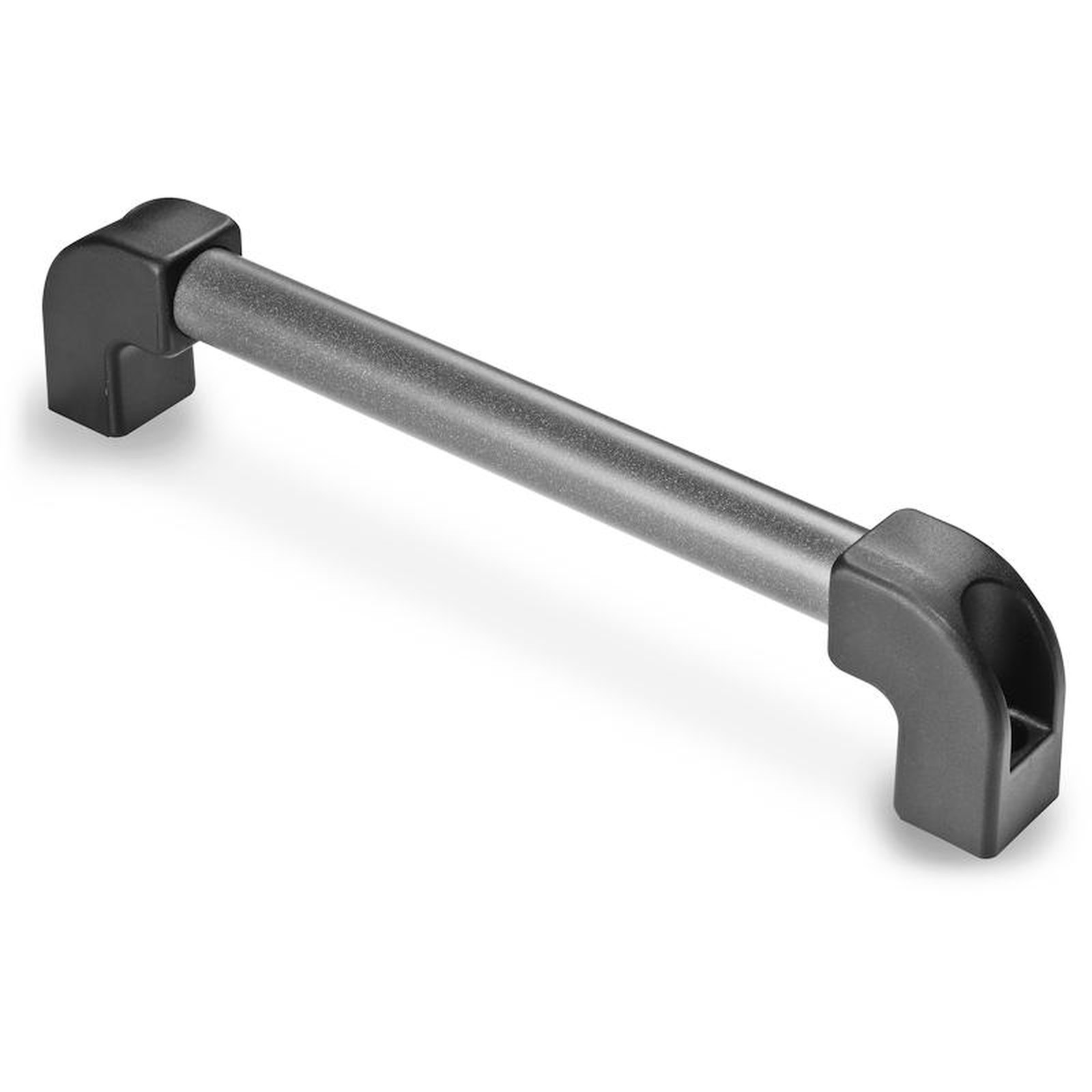

Version B330-98: Marbled black epoxy powder coating.
Hole:
Smooth through hole obtained by moulding the plastic.
Special requests:
Upon request and for special quantities the handle can be supplied with custom length.
Upon request screw caps are available.
Upon request and for special quantities available in the colours indicated in the chart.
Version B330-99: with tube colour anodised silver

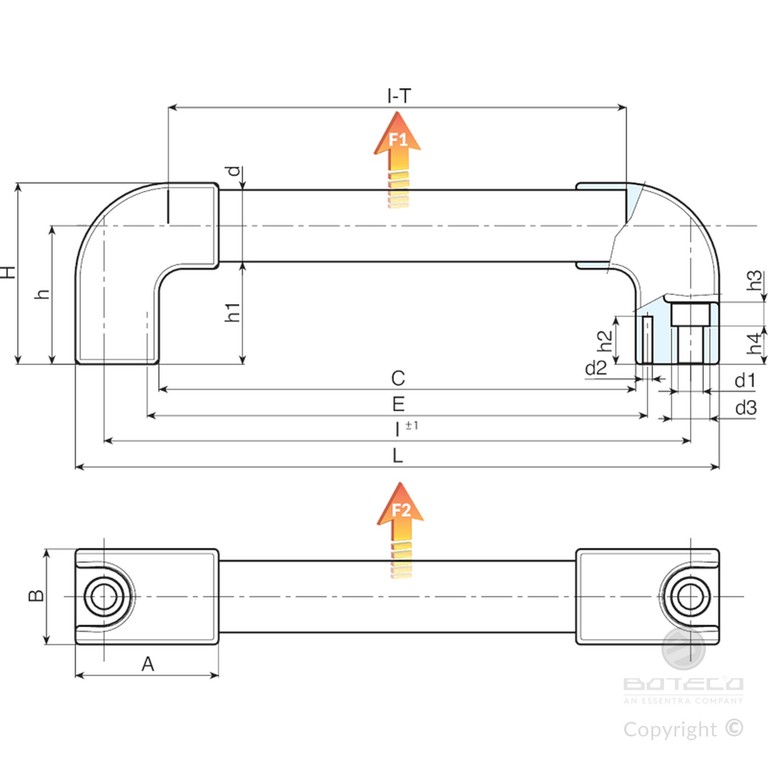

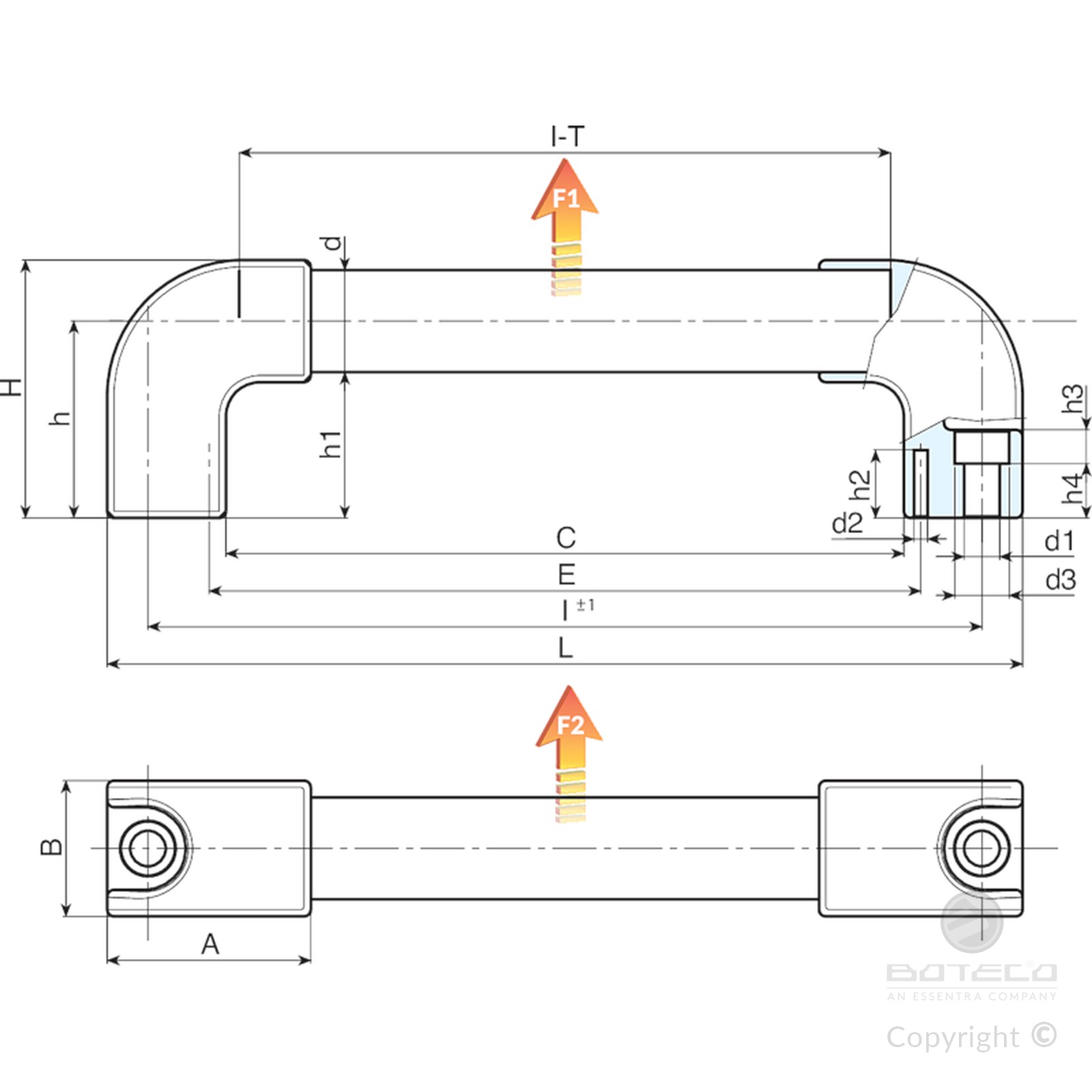

| Code | art. | L | I ±1 | C | E | A | B | T | H | h | h1 | h4 | h3 | h2 | d | d3 | d2 | d1 | Weight (g) | F1 (kN) | F2 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B330200.0003 | B330200.TG3099 | 224 | 200 | 154 | 164 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 235 | 3,4 | 2,9 |
| B330250.0003 | B330250.TG3099 | 274 | 250 | 204 | 214 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 250 | 3,8 | 3,2 |
| B330300.0003 | B330300.TG3099 | 324 | 300 | 254 | 264 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 270 | 3,2 | 2,9 |
| B330350.0003 | B330350.TG3099 | 374 | 350 | 304 | 314 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 285 | 2,7 | 2,4 |
| B330400.0004 | B330400.TG3099 | 424 | 400 | 354 | 364 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 305 | 2,4 | 2,2 |
| B330500.0003 | B330500.TG3099 | 524 | 500 | 454 | 464 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 340 | 1,9 | 1,7 |
| B330600.0003 | B330600.TG3099 | 624 | 600 | 554 | 564 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 370 | 1,6 | 1,4 |
| B330700.0003 | B330700.TG3099 | 724 | 700 | 654 | 664 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 405 | 1,4 | 1,25 |
Version B330-98: with tube colour marbled black.
| Code | art. | L | I ±1 | C | E | A | B | T | H | h | h1 | h4 | h3 | h2 | d | d3 | d2 | d1 | Weight (g) | F1 (kN) | F2 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B330200.0002 | B330200.TG3098 | 224 | 200 | 154 | 164 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 235 | 3,4 | 2,9 |
| B330250.0002 | B330250.TG3098 | 274 | 250 | 204 | 214 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 250 | 3,8 | 3,2 |
| B330300.0002 | B330300.TG3098 | 324 | 300 | 254 | 264 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 270 | 3,2 | 2,9 |
| B330350.0002 | B330350.TG3098 | 374 | 350 | 304 | 314 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 285 | 2,7 | 2,4 |
| B330400.0003 | B330400.TG3098 | 424 | 400 | 354 | 364 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 305 | 2,4 | 2,2 |
| B330500.0002 | B330500.TG3098 | 524 | 500 | 454 | 464 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 340 | 1,9 | 1,7 |
| B330600.0002 | B330600.TG3098 | 624 | 600 | 554 | 564 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 370 | 1,6 | 1,4 |
| B330700.0002 | B330700.TG3098 | 724 | 700 | 654 | 664 | 60 | 40 | 54 | 77 | 58 | 43 | 12 | 15 | 19 | 30 | 16 | 4 | 10.5 | 405 | 1,4 | 1,25 |
