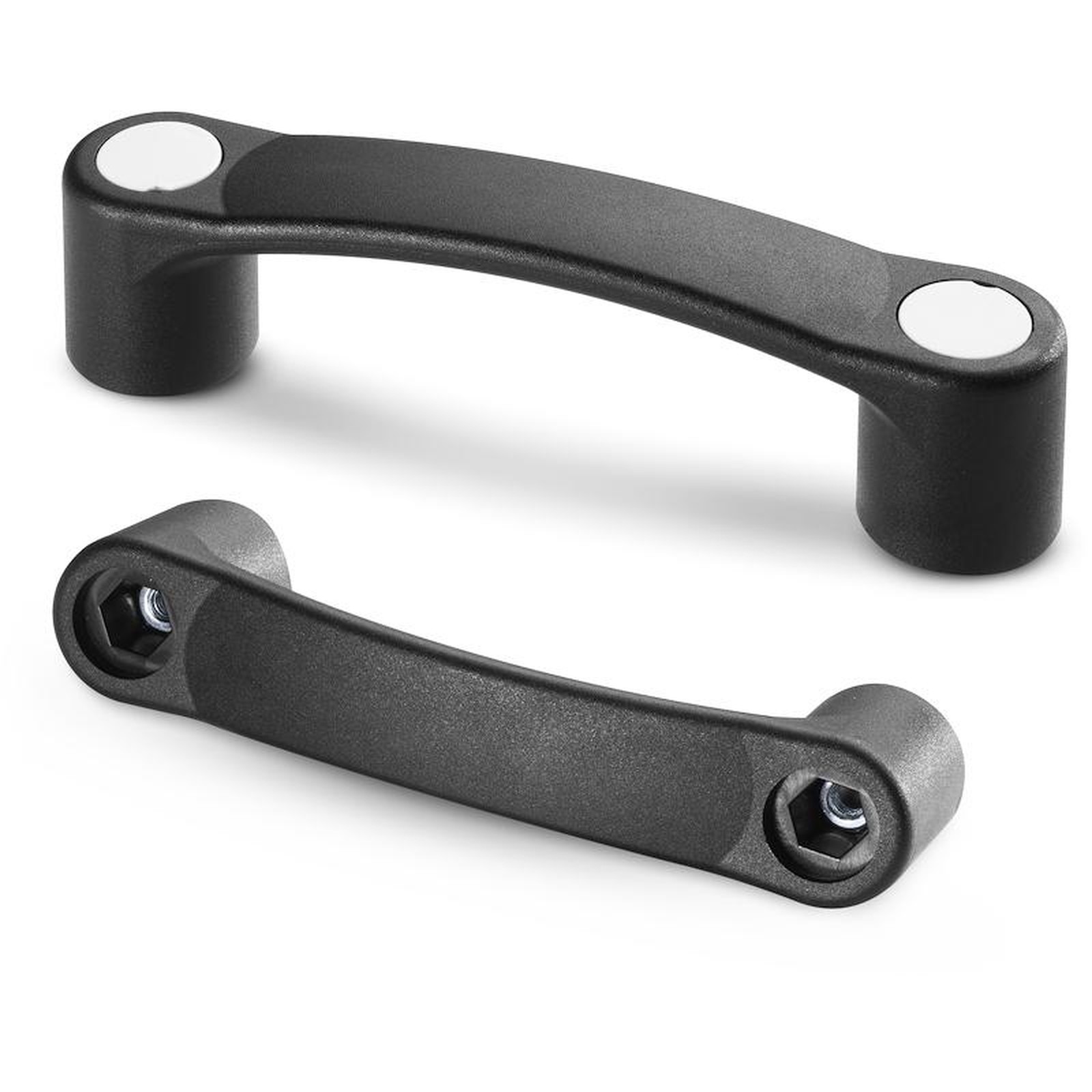

“EUROMODEL” HANDLE WITH THREADED NUT AND CAP
02
B326N
Maniglie piene
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Standard cap:
Grey polyamide cap (RAL 7035 code 13).
Alternative cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Black (RAL 9011 code 01).
Inserts:
Galvanised steel nut with threaded through hole DIN 934/UNI 5588.
Special requests:
Upon request and for special quantities available in the colours indicated in the chart.

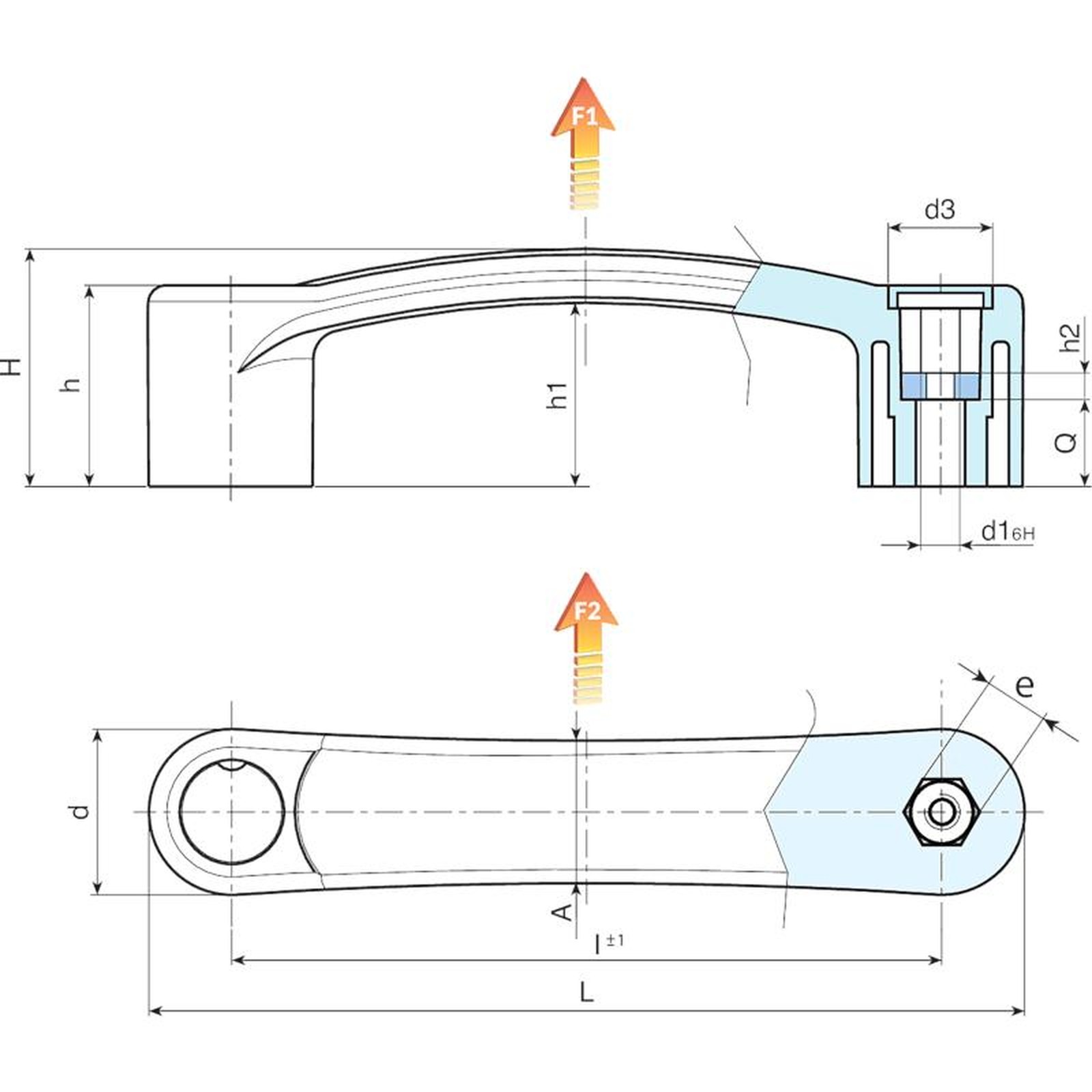

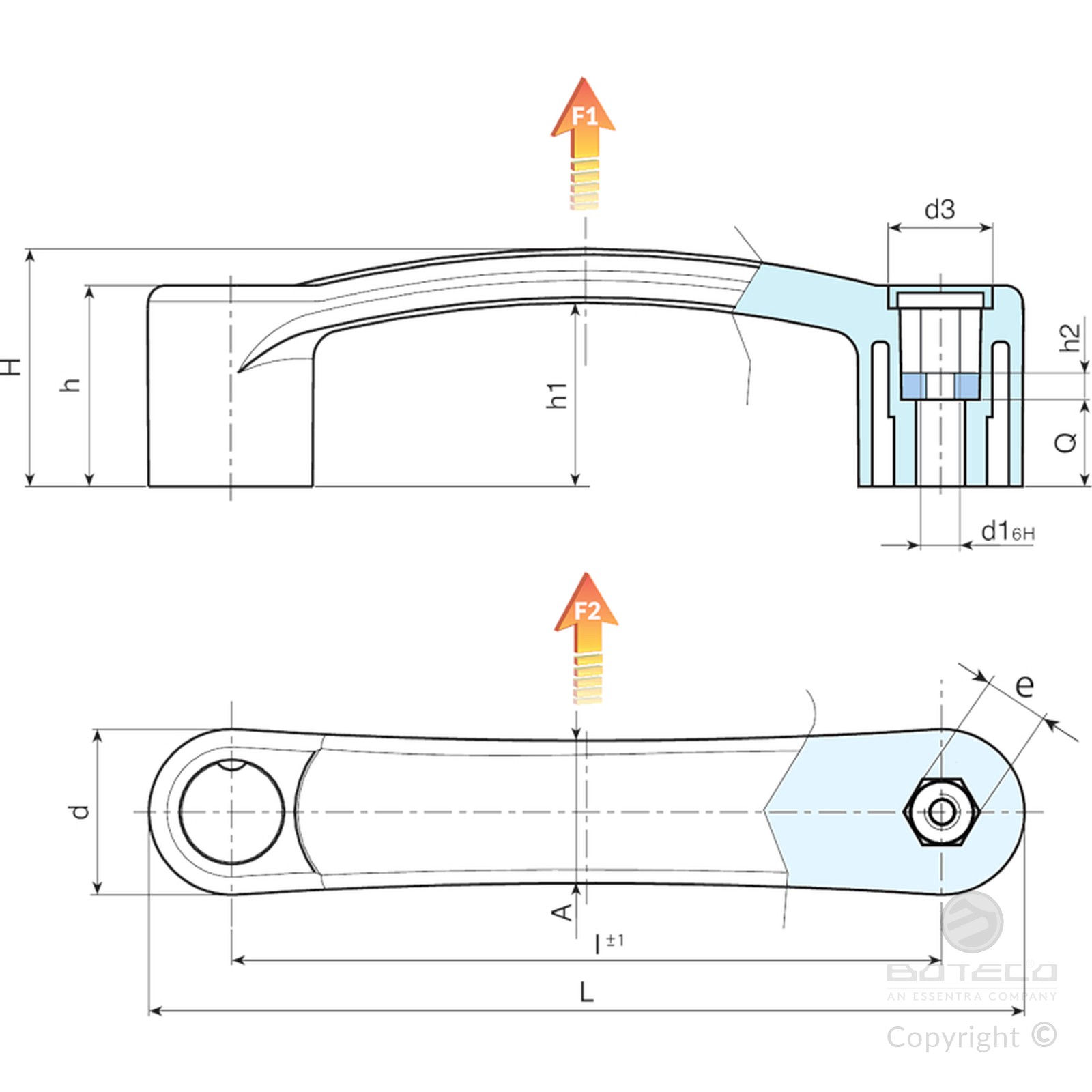

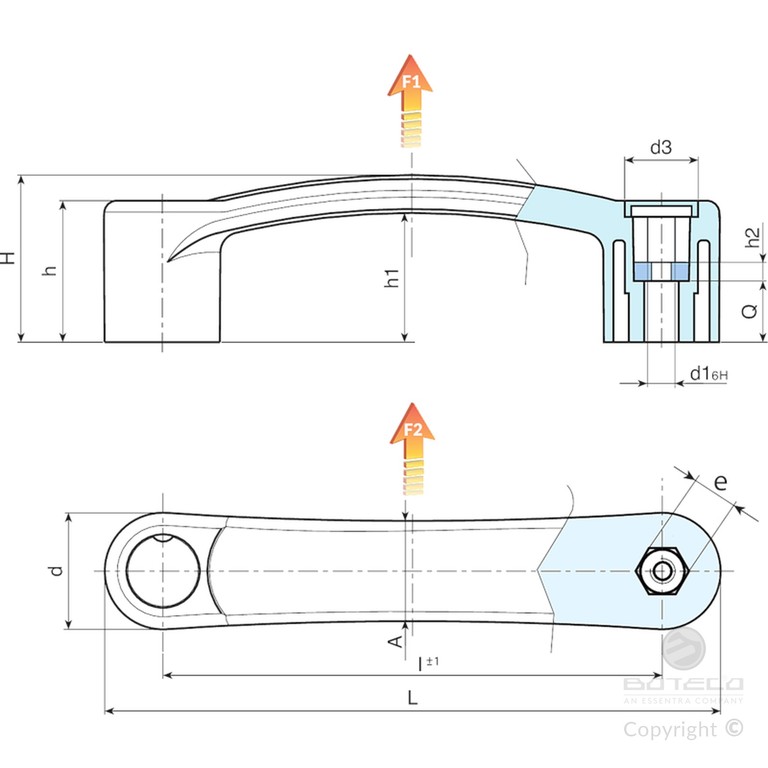

| Code | art. | L | I ±1 | H | h | h1 | h2 | A | d | d3 | e | Q | d1 6H | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B326117.0001 | B326117.TM050113 | 145 | 117 | 40 | 34,5 | 31,5 | 4 | 24 | 28 | 18 | 8 | 14,5 | M5 | 63 | 3400 | 2900 |
| B326117.0006 | B326117.TM060113 | 145 | 117 | 40 | 34,5 | 31,5 | 5 | 24 | 28 | 18 | 10 | 14,5 | M6 | 63 | 3400 | 2900 |
| B326117.0012 | B326117.TM080113 | 145 | 117 | 40 | 34,5 | 31,5 | 6,5 | 24 | 28 | 18 | 13 | 14,5 | M8 | 66 | 3400 | 2900 |
