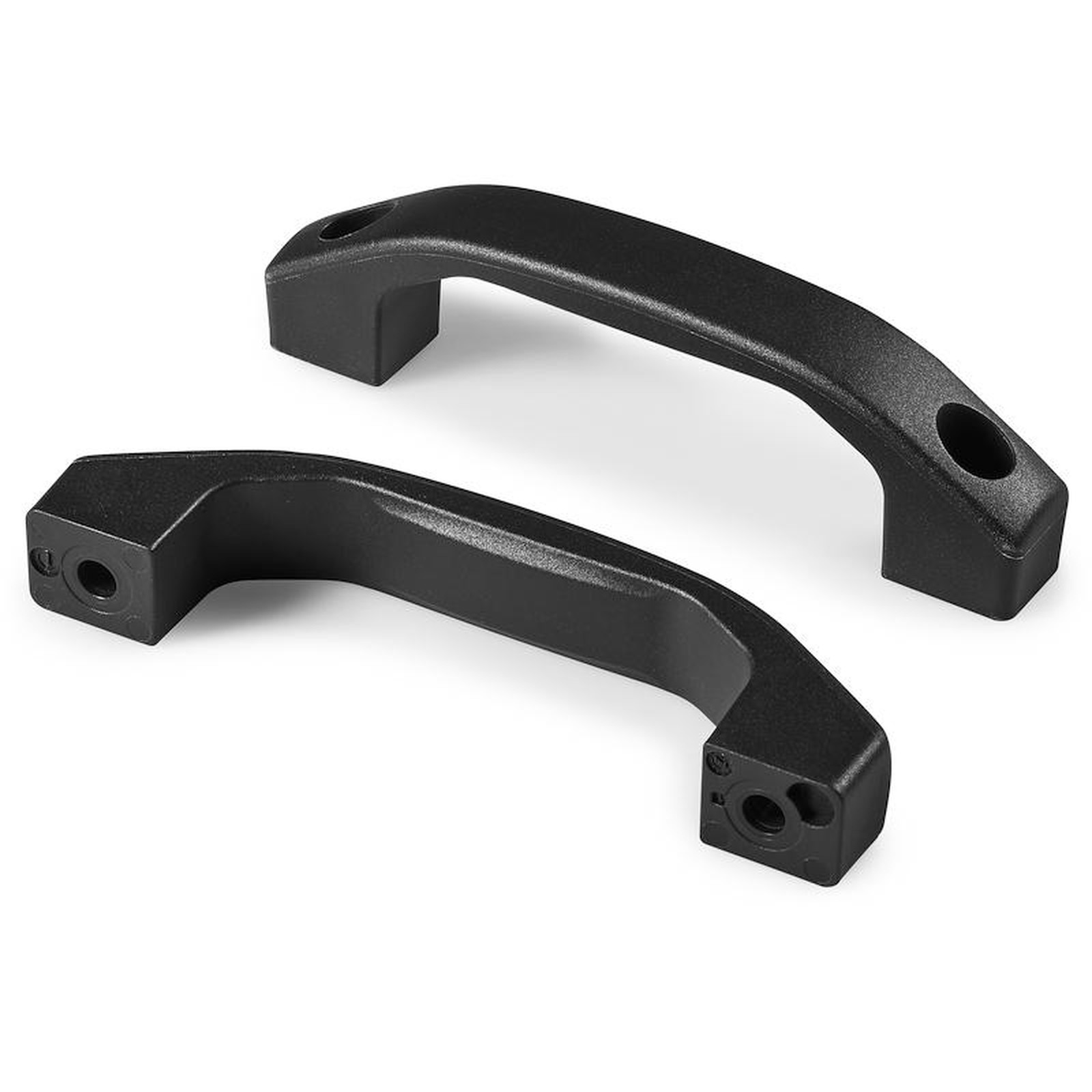

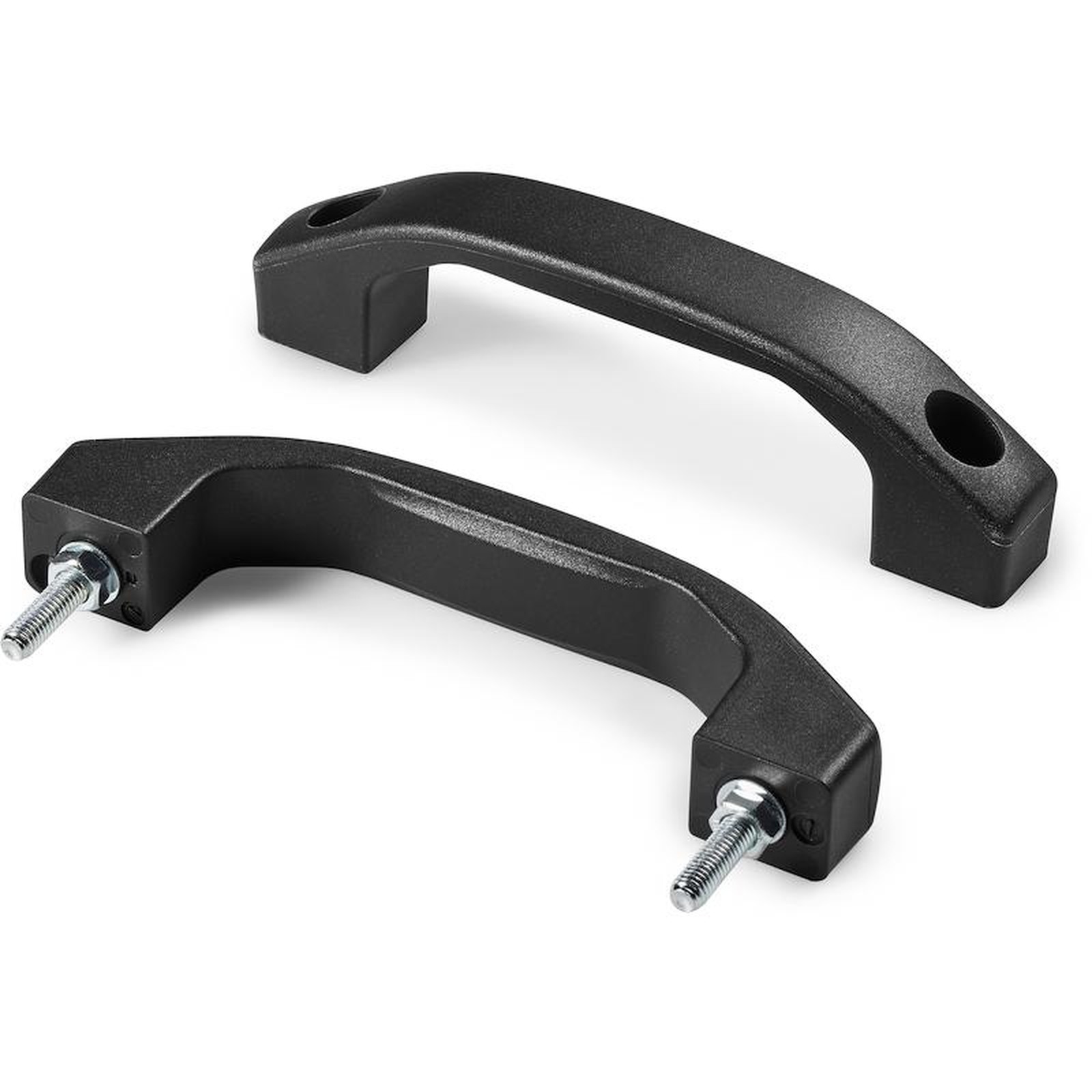

SOLID HANDLE WITH SCREW AND NUT
02
B240
Maniglie piene
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black: (RAL 9011 code 01).
Inserts:
B240:
2 galvanised steel screws DIN 912.
2 galvanised steel nuts DIN 934.
2 galvanised steel perforated washers.
B240CIN:
2 stainless steel screws (Aisi 304) DIN 912.
2 stainless steel nuts (Aisi 304) DIN 934.
2 stainless steel perforated washers (Aisi 304).
Special requests:
None.
Version B240: with galvanised steel inserts

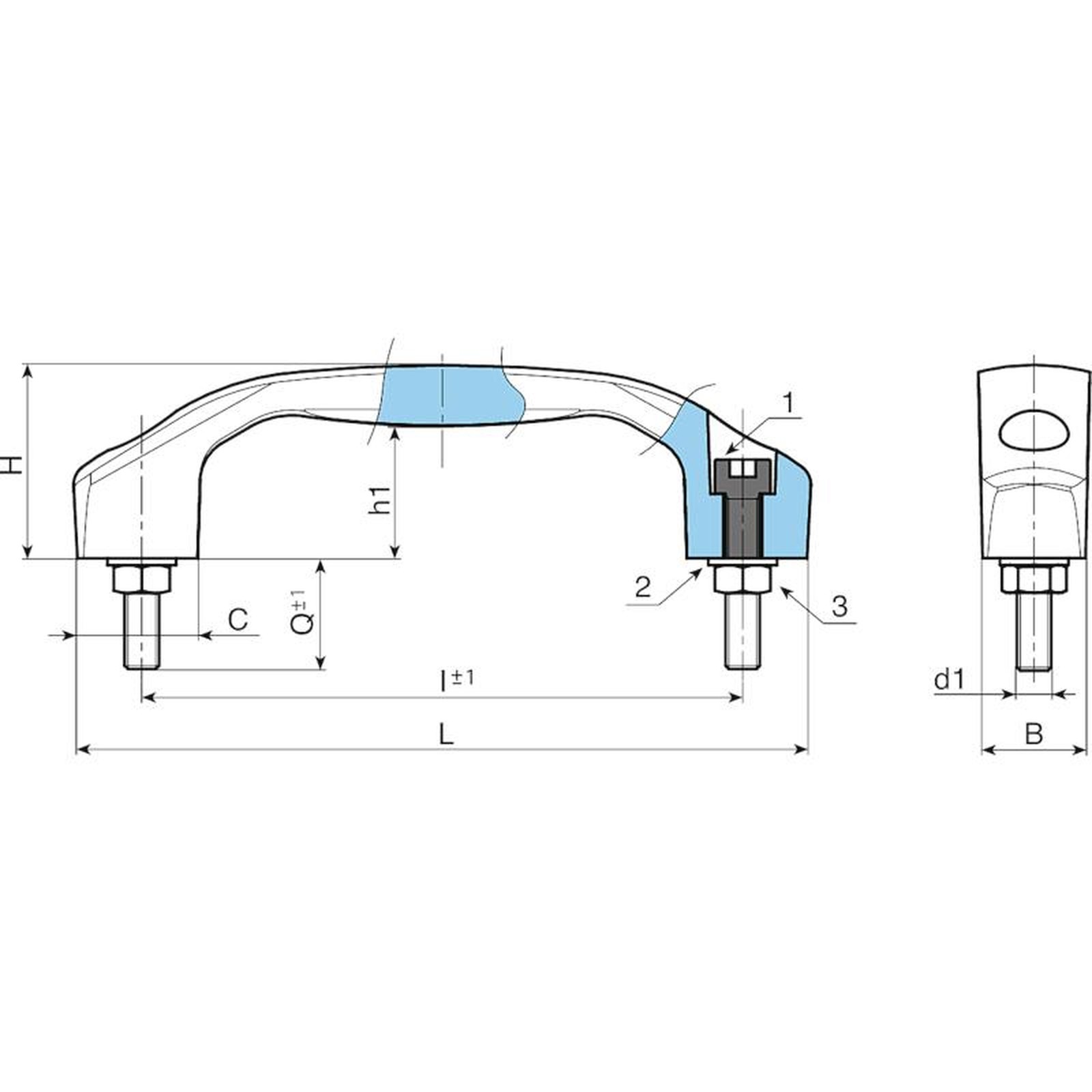

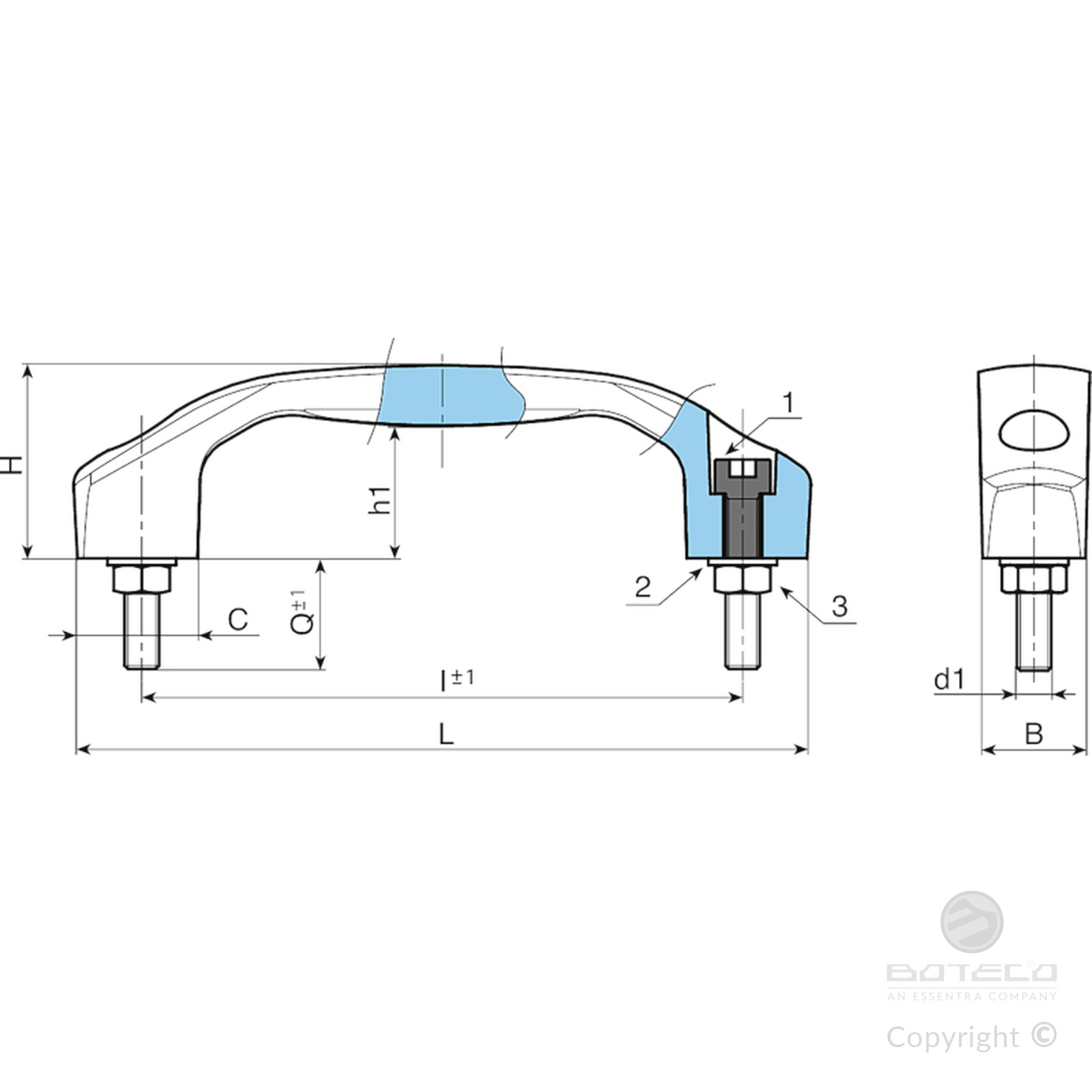

| Code | art. | L | I ±1 | B | C | H | h1 | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B240100.0001 | B240100.TM05X2001 | 122 | 100 | 17 | 20 | 33 | 23,5 | M5 | 20 | 53 | 1000 |
| B240120.0001 | B240120.TM06X2501 | 146 | 120 | 21 | 24 | 39 | 27,5 | M6 | 25 | 93 | 1000 |
| B240140.0001 | B240140.TM08X3001 | 170 | 140 | 24 | 28 | 45 | 31 | M8 | 30 | 150 | 1000 |
Version B240CIN: with stainless steel inserts (Aisi 304)
| Code | art. | L | I ±1 | B | C | H | h1 | d1 6g | Q | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B240100.0002 | B240100.TM05X2001CIN | 122 | 100 | 17 | 20 | 33 | 23,5 | M5 | 20 | 53 | 1000 |
| B240120.0002 | B240120.TM06X2501CIN | 146 | 120 | 21 | 24 | 39 | 27,5 | M6 | 25 | 93 | 1000 |
| B240140.0002 | B240140.TM08X3001CIN | 170 | 140 | 24 | 28 | 45 | 31 | M8 | 30 | 150 | 1000 |
