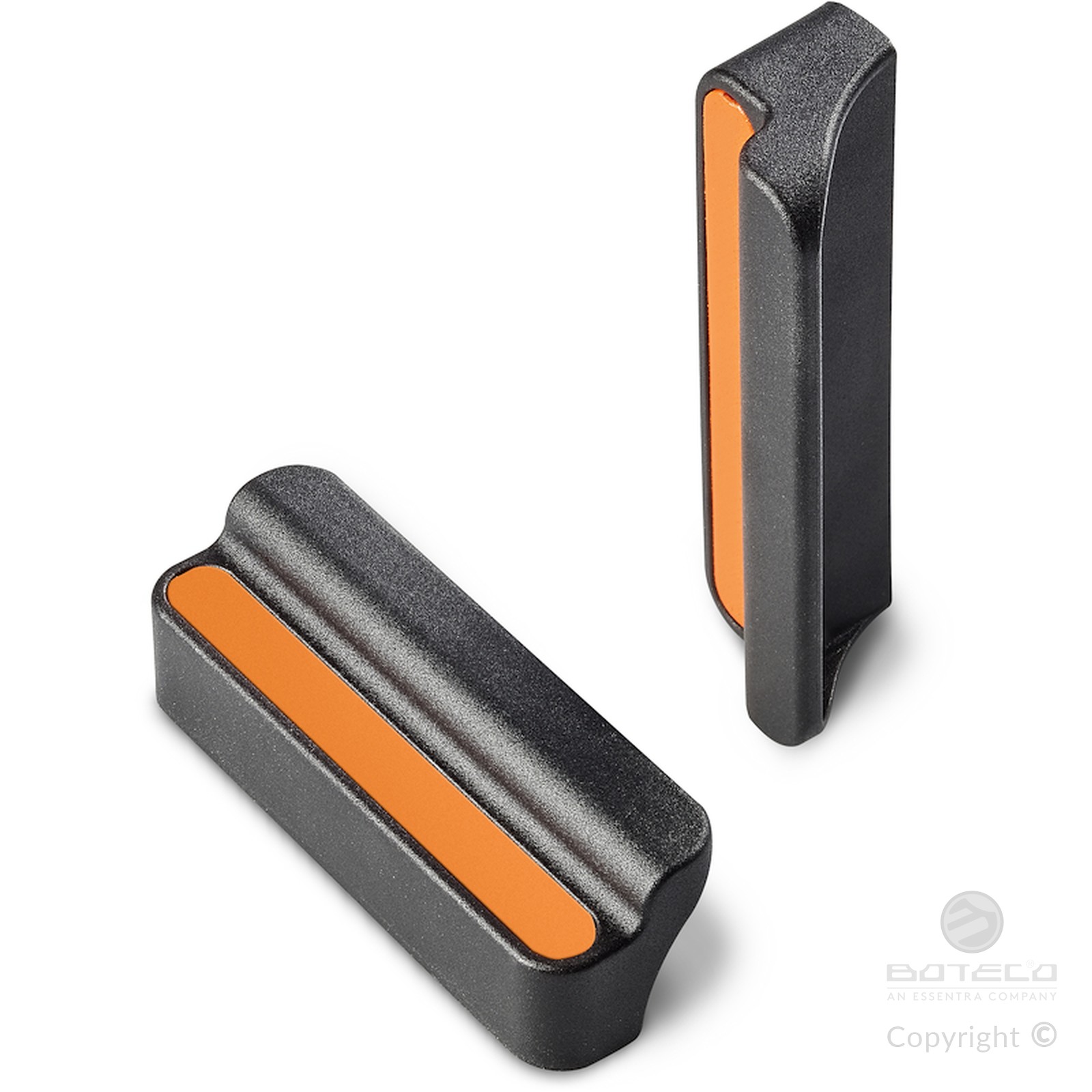

"EUROMODEL" SAFETY HANDLE WITH THROUGH HOLES AND CENTRAL CAP
02
B230
Maniglie piene
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Standard cap:
Rectangular cap in orange polyamide (RAL 2004 code 02).
Alternative cap colours:
Grey (RAL 7035 cod. 13).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Black (RAL 9011 code 01).
Hole:
Smooth through hole obtained by moulding the plastic.
Version TS:
Seat for countersunk screw DIN 7991 / UNI 5933.
Version TC:
Seat for cylindrical head screw DIN 912 / UNI 5931.
Version TE:
Seat for hex head screw DIN 933 / UNI 4017, or for nut DIN 934 / UNI 5588.
Special requests:
Upon request and for special quantities available in the colours indicated in the chart.
Version TC: with hole for cylindrical head screws

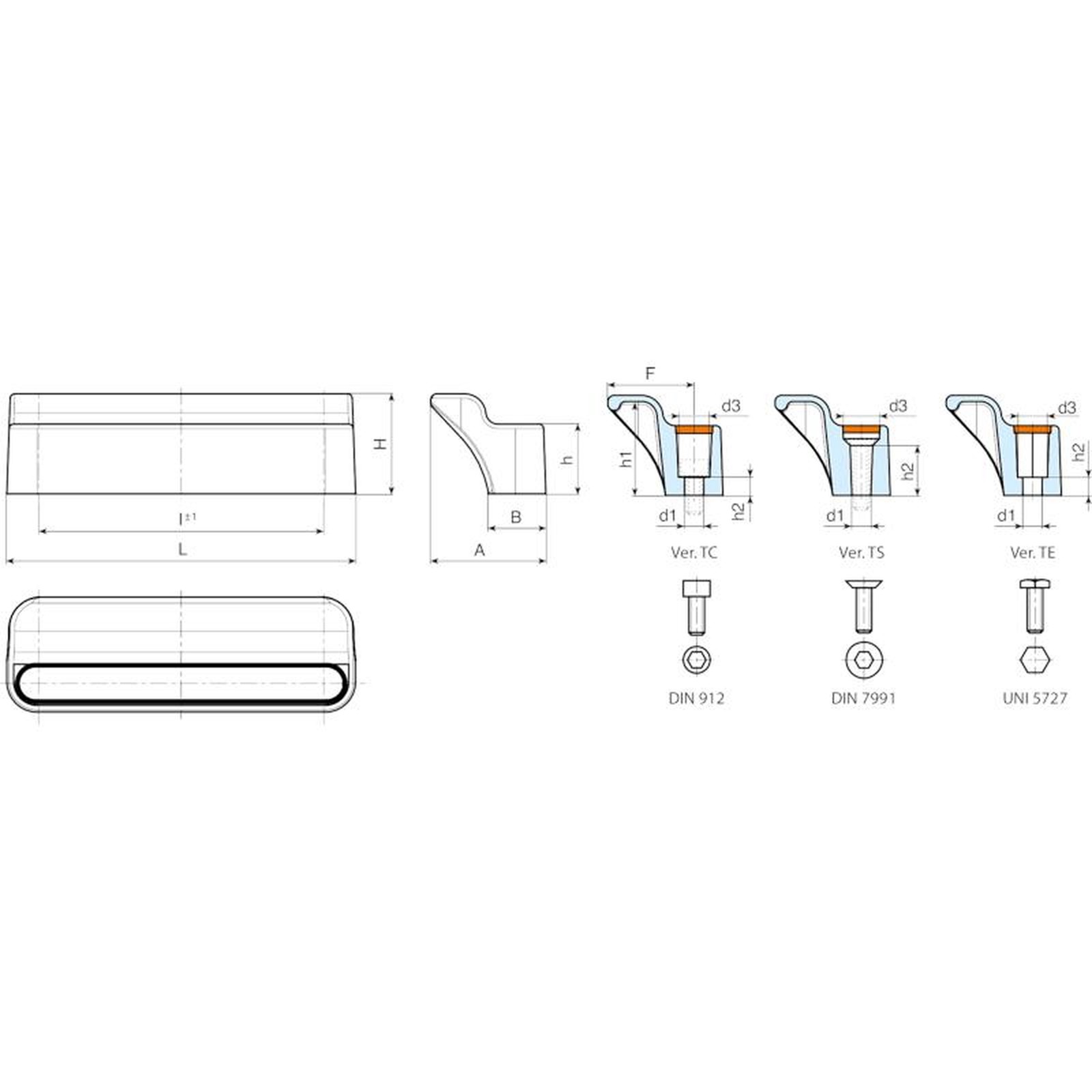

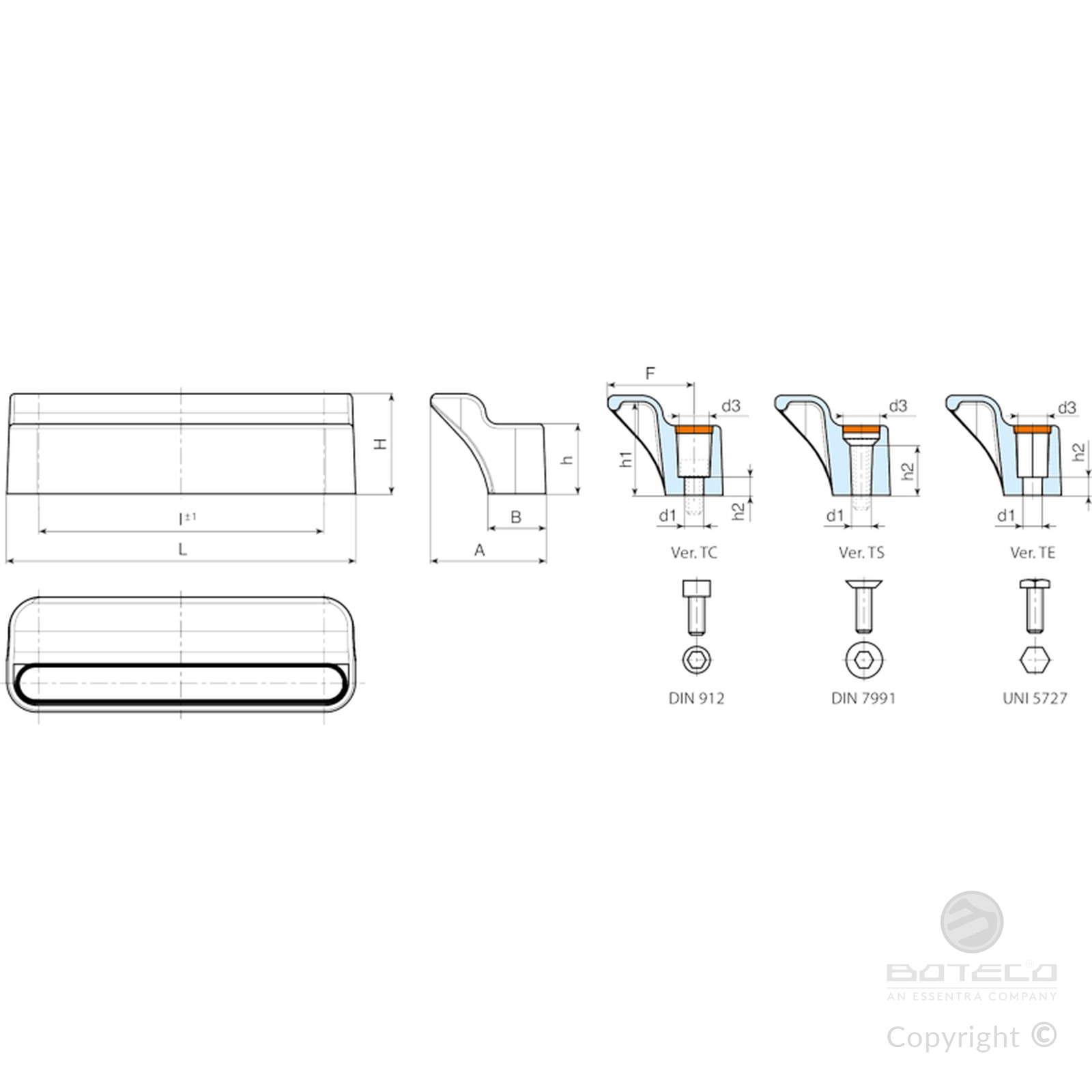

| Code | art. | L | I ±1 | H | F | h | h1 | h2 | A | B | d3 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B230094.0003 | B230094.TG06.50102TC | 115 | 94 | 33 | 28,5 | 23 | 31 | 6 | 38 | 19 | 10,3 | 6,5 | 54 |
Version TS: with hole for countersunk head screws
| Code | art. | L | I ±1 | H | F | h | h1 | h2 | A | B | d3 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B230094.0005 | B230094.TG06.50102TS | 115 | 94 | 33 | 28,5 | 23 | 31 | 16,3 | 38 | 19 | 11,9 | 6,5 | 54 |
Version TC: with hole for hex head screws
| Code | art. | L | I ±1 | H | F | h | h1 | h2 | A | B | d3 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B230094.0004 | B230094.TG06.50102TE | 115 | 94 | 33 | 28,5 | 23 | 31 | 6 | 38 | 19 | 10 | 6,5 | 54 |
